McIntosh XR3 (1976–1981)

Name: McIntosh xr3
Brand: McIntosh

Warm, detailed, and built like a tank—these floorstanders glow with little warning lights and a legacy of smooth imaging, even if their foam won’t last forever.

Overview

The McIntosh XR3 isn’t flashy, but it carries itself with quiet authority—the kind of speaker that shows up in a pair of 1970s listening rooms and never really leaves. Produced from 1976 through 1981, these 4-way floorstanding loudspeakers were the smallest in McIntosh’s XR series, a lineup that aimed to bring the brand’s signature engineering precision to high-end home audio. Priced at $850 plus taxes for the pair when new, the XR3 split the difference between ambition and accessibility in an era when speaker design was rapidly evolving. They weren’t the biggest, loudest, or deepest-bass models in the catalog, but they offered something more valuable to purists: coherence, balance, and that unmistakable McIntosh build quality.

Owners report a sound that’s smooth and detailed, with imaging so precise it makes you turn your head—like someone’s actually in the room with you. The XR3 works especially well with tube amplifiers, thanks to its high sensitivity, making it a favorite among analog diehards who value warmth without sacrificing clarity. It’s the kind of speaker that doesn’t shout, but makes you lean in. And if you’re standing in front of one, you might notice two small lights glowing at the bottom right corner: red and yellow. The red one? That means the tweeter fuse has blown. The yellow? A gentle heads-up that you’ve hit maximum power level. It’s a small touch, but pure McIntosh—functional, honest, and just a little bit theatrical.

Despite their compact status in the XR family, the XR3s are no lightweight. At 40 pounds each and standing 27 inches tall, they’re solidly built with an acoustic suspension (sealed) enclosure, which helps deliver tight, controlled bass—though not earth-shaking depth. And while they’re not the rarest McIntosh speakers out there, they’ve held a quiet reputation among collectors and restorers, especially as parts become harder to find and original condition units grow scarcer.

Specifications

Manufacturer	McIntosh Laboratory
Product type	Loudspeaker, Isoplanar Radiator Loudspeaker System
Production years	1976 through 1981
Dimensions	27" high, 15" wide, 10" deep
Weight	40 lbs
Frequency response	30-20,000 Hz
Impedance	8 ohms
Power handling	50 watts
Driver configuration	4-way floor system with 10" woofer, 5" lower mid, 1-1/2" dome upper mid and two 2-5/8" angled tweeters
Drivers	12" woofer, 2" dome midrange, 1" dome tweeter
Crossover frequencies	600 Hz, 5000 Hz
Enclosure	Acoustic suspension

Key Features

Isoplanar Radiator Drivers

At the heart of the XR3’s sound is McIntosh’s proprietary Isoplanar Radiator technology—a design approach that aimed to minimize distortion and improve dispersion. These drivers, identified by part numbers 036-046 (tweeter) and 036-047 (woofer), were shared across the XR5 and XR7 models, suggesting a common engineering foundation. The use of dome midrange and tweeter elements contributes to the speaker’s detailed upper register, while the multi-way configuration allows for a more nuanced division of frequencies. Whether you’re hearing the 10" or 12" woofer variant depends on the source, but both reflect the same underlying design philosophy: controlled output, not brute force.

Acoustic Suspension & Crossover Design

The sealed acoustic suspension enclosure gives the XR3 its tight, well-damped bass response—fast and accurate, if not overwhelmingly deep. This design avoids the port noise and tuning limitations of bass-reflex cabinets, favoring precision over volume. The crossover network, built with air-core inductors and polypropylene capacitors, reflects a deliberate choice to reduce distortion and maintain signal purity. These components were high-end choices for the time and contribute to the speaker’s reputation for transparency and smooth tonal balance.

Woven Cane Grilles & Indicator Lights

Visually, the XR3 stands out with its “woven cane” grilles—elegant but fragile. Collectors note they’re often damaged or missing, and replacements are rare. More distinctive, though, are the red and yellow indicator lights on the lower right side. The red light signals a blown tweeter fuse—a useful diagnostic feature that protects the delicate high-frequency drivers. The yellow light illuminates at maximum power level, acting as a real-time warning that you’re pushing the limits. It’s a small but thoughtful inclusion, the kind of user-focused detail that sets McIntosh apart.

Collectibility & Value

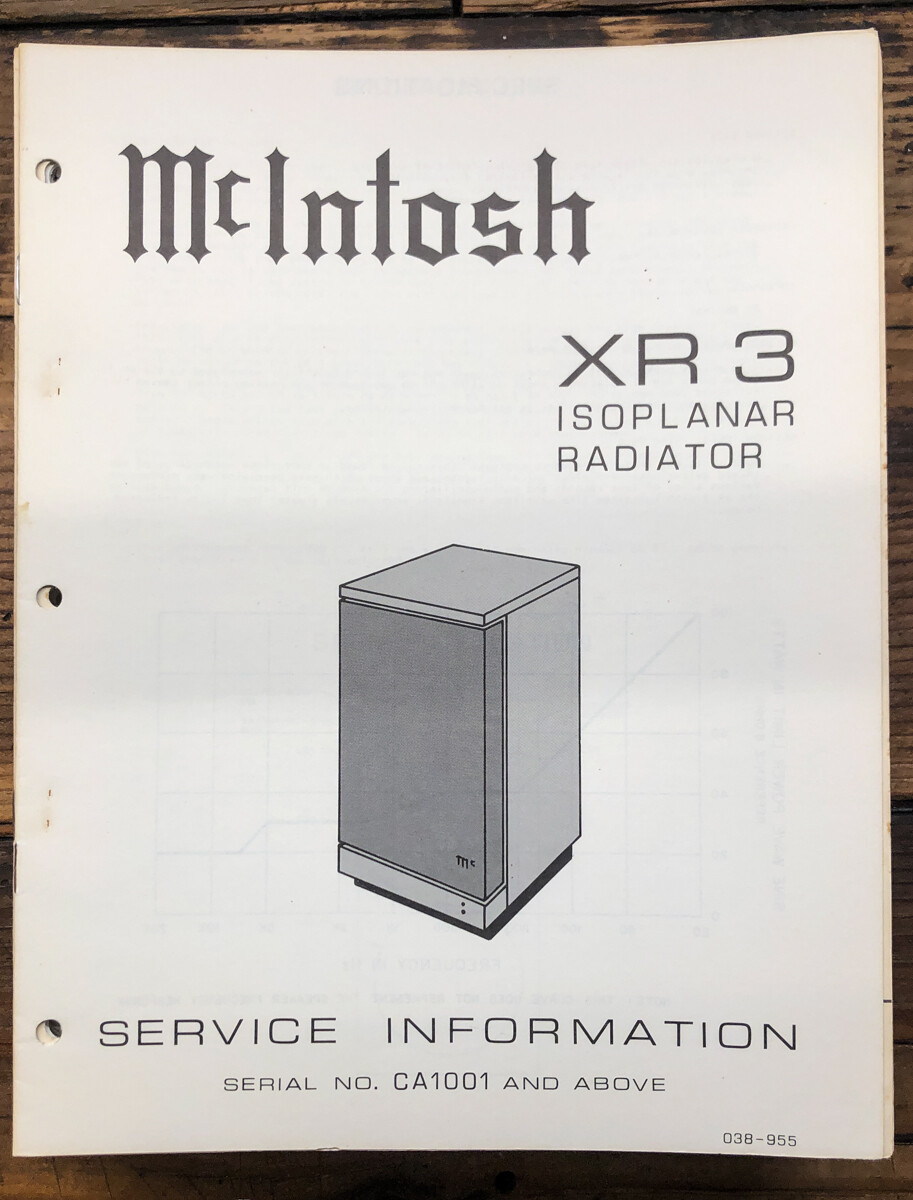

The McIntosh XR3 trades in a quiet corner of the vintage audio market—respected but not hyped. A recent sale for a pair in good condition landed at $450 USD, while current asking prices hover around $400. Damaged pairs—especially those needing foam replacement—can be found for as low as $130 with shipping, making them a potential project for restorers. Original service manuals go for $14–$19, owner’s manuals $9–$50, and the shared XR3/XR5/XR7 brochure sells for $9–$11 across currencies.

The most common failure point is the foam surrounds on the woofer, which degrade over time and require refoaming—a standard but necessary maintenance step for any pair that hasn’t been stored perfectly. One owner reported having their XR3s serviced, refoamed, and crossovers recapped at a McIntosh-approved repair center, suggesting that professional restoration is possible, though parts aren’t cheap: a used 036-047 woofer lists for $123, and a pair of 036-046 tweeters for $150. Given the fragility of the cane grilles and the cost of driver replacements, a fully restored pair represents a real investment—not just in money, but in care.

Still, for those who value imaging, neutrality, and that quiet confidence of a speaker that knows its role, the XR3 delivers. It won’t rattle your walls, but it might make you hear your records anew.
