McIntosh XR-6 (1970-1978)

Name: McIntosh xr-6
Brand: McIntosh

Warmth, precision, and glowing warning lamps—this floor-standing four-way tells you when it’s had enough, before it quits for good.

Overview

The McIntosh XR-6 isn’t just a speaker—it’s a statement in walnut and glowing glass. Built between 1970 and 1978, it carries the weight of McIntosh’s amplifier DNA in a floor-standing acoustic suspension design that means business. At 35 pounds and nearly a meter tall, it’s not subtle in form, but sonically, owners report a balance that’s hard to fault: neutral yet warm, detailed without being clinical. It’s the kind of speaker that doesn’t shout its pedigree but earns respect over hours of listening. With a 4-way configuration and a carefully engineered crossover network, the XR-6 was designed to do more than move air—it was built to preserve timing, phase, and power response with a level of intention that was rare even for its time. And if things go sideways? It’ll tell you with lights on the front. Not many speakers from the 70s come with a built-in warning system, but then again, not many were made by McIntosh.

This was part of the XR series, a line that included the XR-5, XR-7, XR-14, and XR-16, though exactly where the XR-6 sits in that hierarchy isn’t spelled out in the records. What is clear is that it was built with the same obsessive attention to component quality that defined the brand’s amplifiers. The cabinet comes in oiled walnut, a finish that ages gracefully, and the drivers are protected by a network that uses low-loss metal capacitors in the highs and selected electrolytics below—choices that suggest a focus on signal integrity, not just power handling. With a frequency response stretching from 35 Hz to 20,000 Hz and 200 watts of allowable input, it was built to handle the best solid-state and tube gear of its era, and owners confirm it plays well with both.

Specifications

Manufacturer	McIntosh Laboratory
Product type	Loudspeaker
Production years	1970-1978
Impedance	8 ohms
Maximum allowable input / Power handling	200W
External dimensions	Width 450 x Height 910 x Depth 320 mm
Weight	35 lbs
Frequency response	35 Hz to 20,000 Hz
Crossover frequency	250 Hz, 1.4 kHz, 7 kHz
Units Used / Drivers	For low band: 30 cm (12") cone type; For middle and low band: 20 cm (8") cone type; For Middle Area: 3 cm Dome Type; For high-pass: 2.5 cm dome type
Model Rating Method	4-way, 4-speaker floor type
Original price	$250.00

Key Features

Four-Way Acoustic Suspension Design

The XR-6 is a true 4-way system, splitting the audio spectrum across four dedicated drivers: a 12-inch cone for the lows, an 8-inch cone handling mid-bass, a 3 cm dome for midrange, and a 2.5 cm dome tweeter for the highs. This division of labor allows each driver to operate within its optimal range, reducing distortion and improving clarity. The acoustic suspension alignment—McIntosh’s preferred method—means tight, controlled bass without the port noise or resonance of reflex designs. It’s not the loudest speaker in the room, but it’s one of the most composed.

Linear Phase & Time Alignment

McIntosh didn’t just split the frequencies—they timed them. The crossover network is designed with linear phase in mind, and the physical layout ensures that the sound from each driver reaches the listener at the same time. This isn’t just theory; it’s baked into the design. The result, as one Audiogon reviewer put it, is “excellent imaging and a wide soundstage”—a hallmark of speakers that respect the original recording’s spatial cues.

High-Grade Crossover Components

Inside, the network uses low-loss metal capacitors for the high-frequency section, where signal integrity is critical. For the mid and low frequencies, selected low-loss electrolytic capacitors are used—practical but still high-quality choices for their domain. This tiered approach reflects a balance between performance and cost, but one that still leans toward the audiophile end of the spectrum.

Driver Edge Processing

The edges of the drivers, particularly the woofers, have undergone special processing. While the exact nature of this treatment isn’t detailed, it likely refers to enhancements in the surround material or bonding technique to improve durability and reduce nonlinear distortion at high excursions.

Oiled Walnut Cabinet

The enclosure is finished in oiled walnut, a classic McIntosh touch that ages beautifully. It’s not just for looks—the cabinet is built to minimize resonance, and the finish protects the wood while letting it breathe. These speakers were meant to live in a living room, not a lab, and the warm woodgrain helps them blend in.

Linear Power Response

The XR-6 features McIntosh’s “Linear Power Response” design, a philosophy aimed at maintaining consistent sound quality across varying volume levels. This means the tonal balance stays stable whether you’re playing at background levels or cranking up the dynamics—no sudden brightness or bass bloat as the volume climbs.

Visual Protection Circuit

One of the most distinctive features is the protection lamp on the lower right front of the cabinet. When the speaker is operating at its rated input, a yellow lamp lights up—basically a “running hot” indicator. If the input exceeds the tweeter’s allowable limit, the tweeter’s protection fuse blows and a red lamp illuminates. If the overall input exceeds the speaker’s 200-watt limit, the main fuse blows. It’s a rare example of real-time speaker protection with visible feedback—practical, dramatic, and very McIntosh.

Collectibility & Value

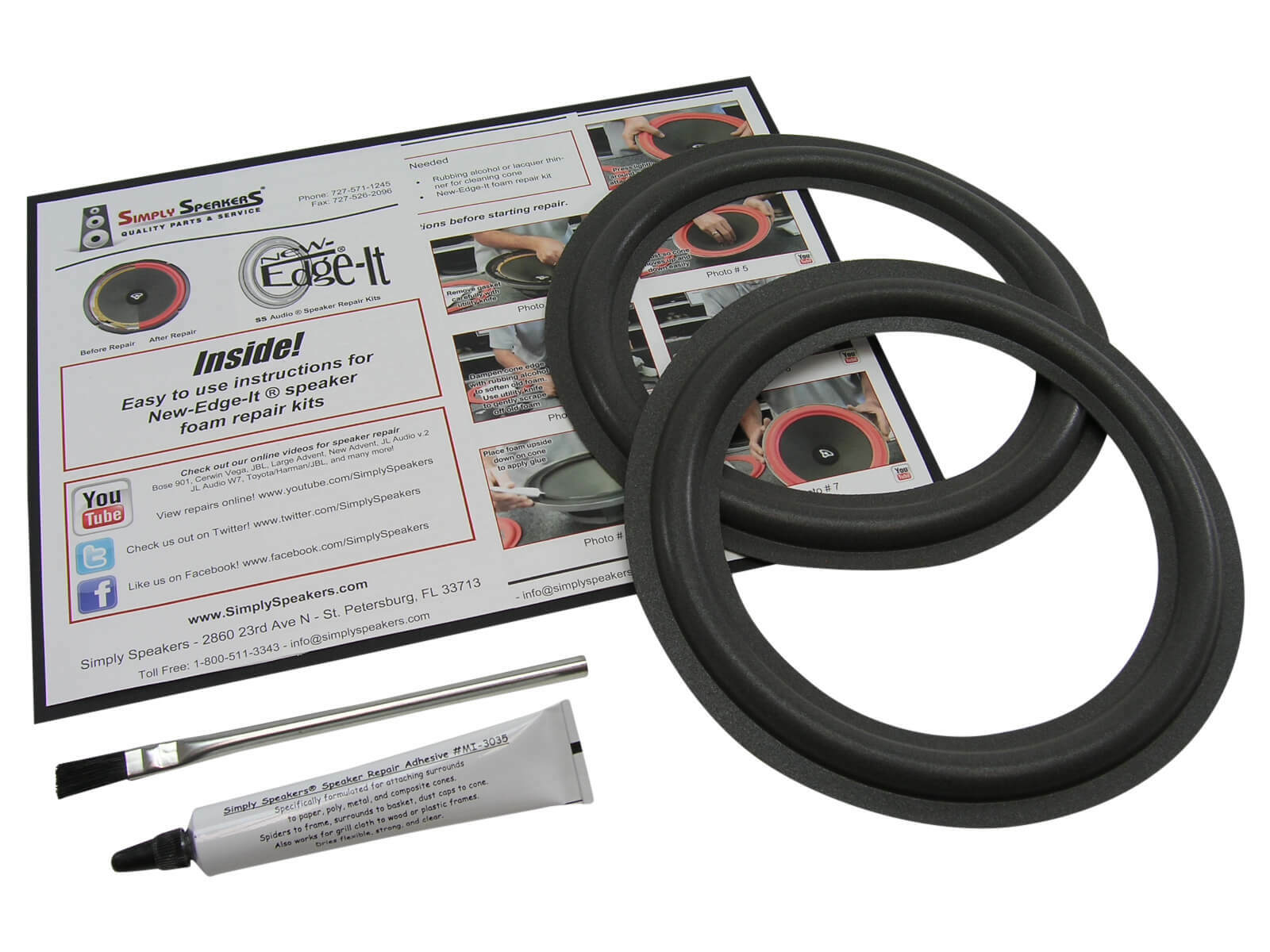

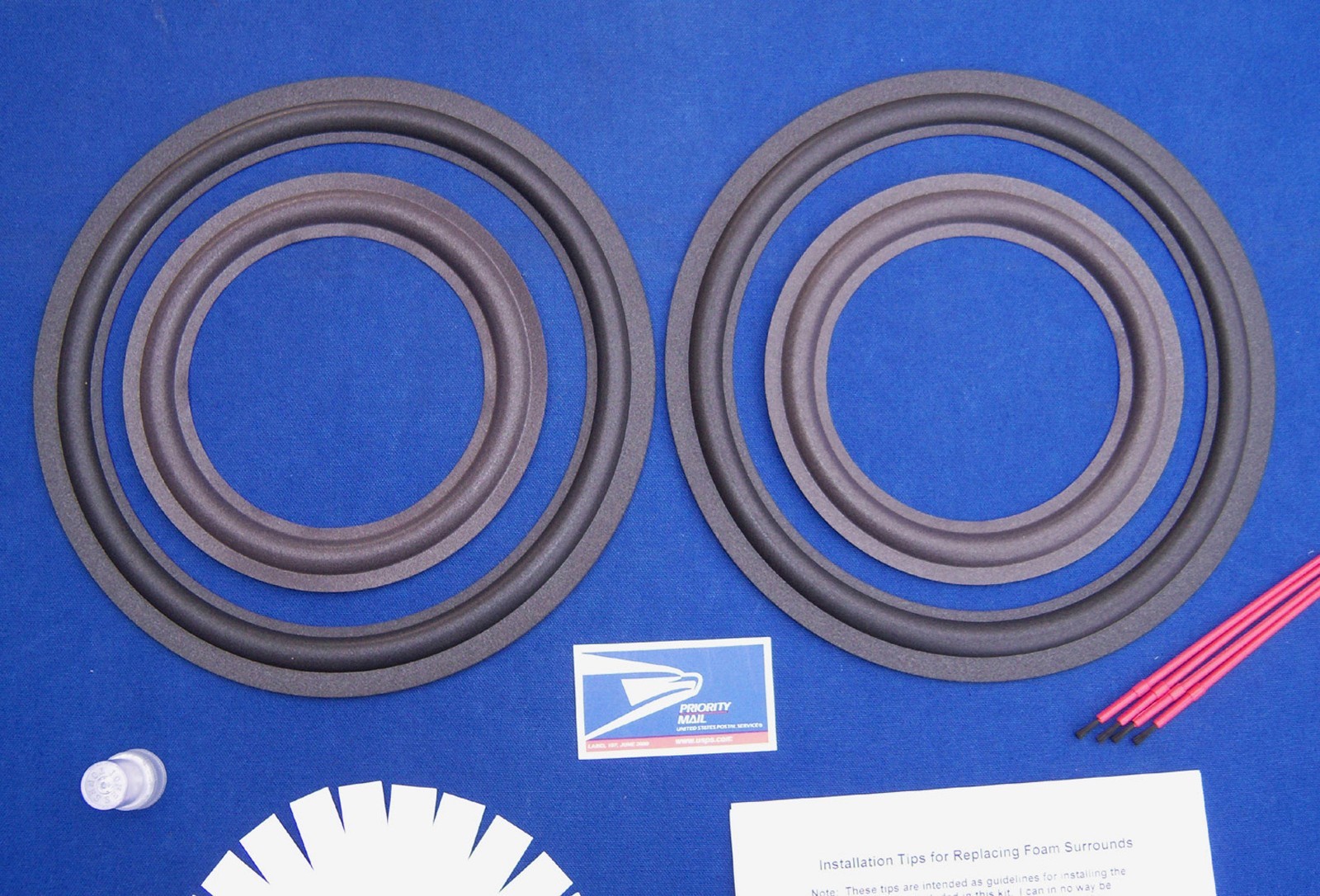

The XR-6 has found a loyal following among vintage audio enthusiasts, and the market reflects that. A pair sold for $450 on eBay in March 2023, while a pair in excellent condition fetched $600 on US Audio Mart in January 2024—solid numbers for a 70s floorstander. However, buyers need to be cautious. The foam surrounds on the woofers are prone to deterioration over time and will almost certainly need replacement on un-restored units. This isn’t a quick fix—it’s a full reconing job, which adds to ownership cost. Equally important, the midrange and tweeter domes are made of phenolic resin, a material that can become brittle with age. While they may look intact, micro-cracks can develop, degrading high-frequency performance. Original brochures and service manuals occasionally surface on eBay, suggesting ongoing interest and support within the community. Owners praise the XR-6’s versatility, noting its ability to deliver a “warm, detailed sound” with both tube and solid-state amplifiers—making it a flexible choice in a vintage system.
