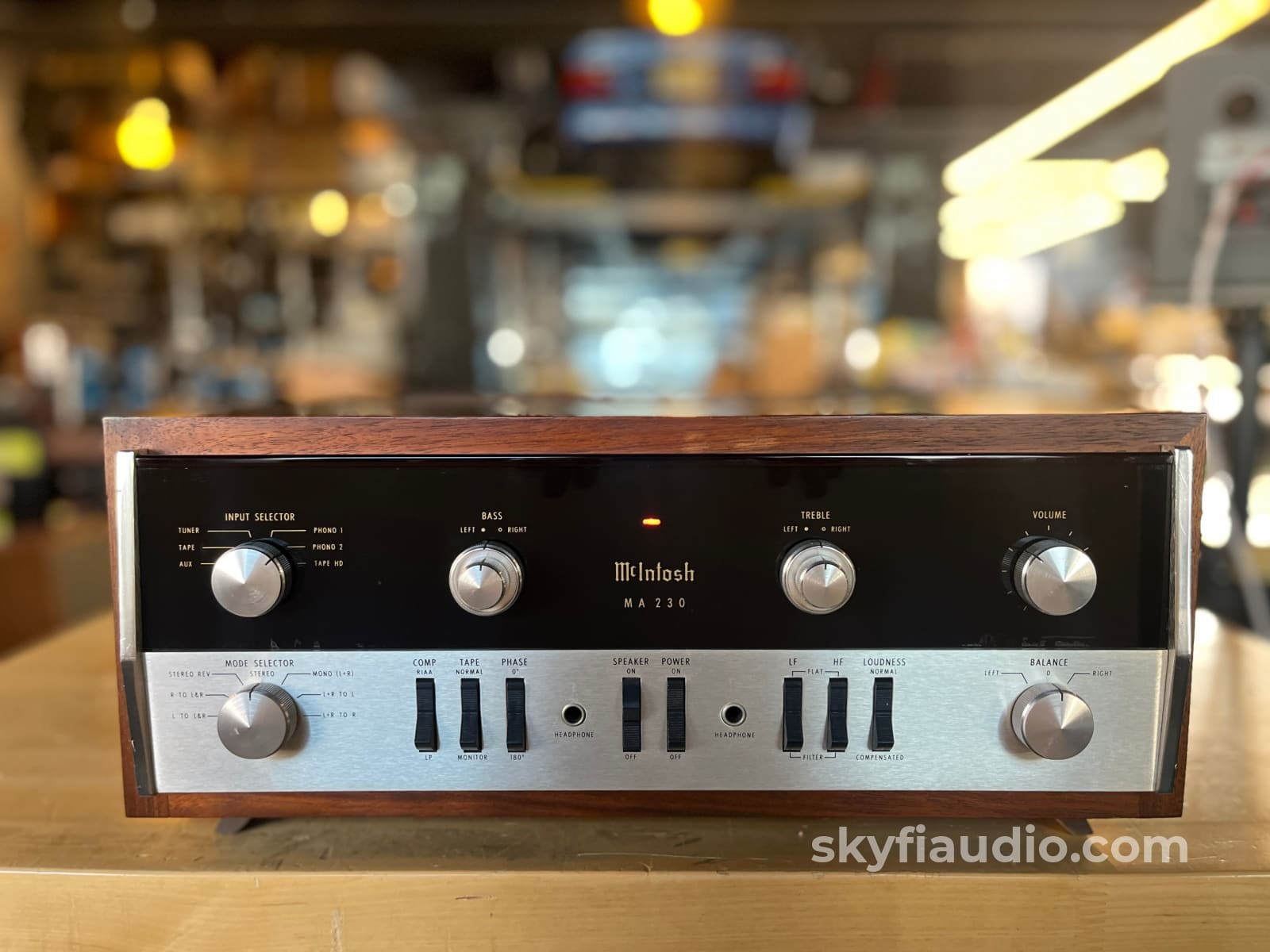

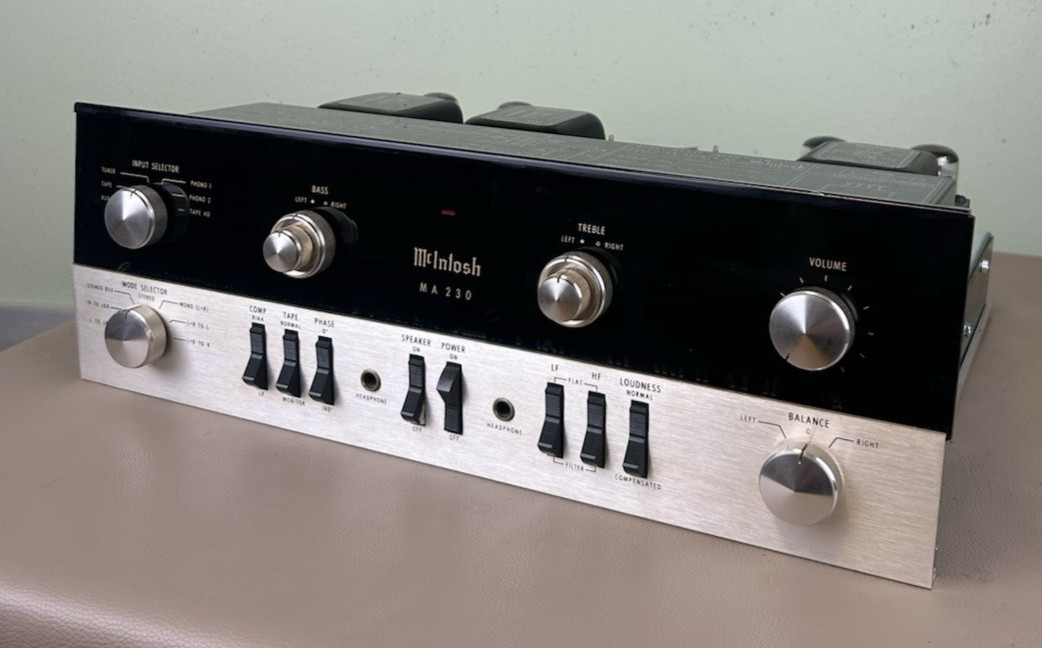

McIntosh MA230 (1963-1966)

Forty-three pounds of Binghamton iron that put a silicon front end and a tube output stage on the same chassis - and did it before anyone else.

Overview

The MA230 is the amplifier McIntosh built when the company finally admitted that not every customer wanted a rack full of separates. It was born in 1963 and sold through roughly 1966. It was McIntosh's first integrated design, and the company's own literature said so plainly. McIntosh wrote that the MA230 was "the FIRST stereo instrument to combine a solid state preamplifier with a tube and transformer power amplifier on the same chassis." That means a silicon-Planar transistor preamp, a pair of tube output channels, and the big McIntosh output transformers, all sharing one piece of metal.

The asking price in the USA was $349.00. That was real money in 1963, roughly the cost of a decent used car, and it tells you McIntosh positioned this as a serious component rather than a starter piece. It weighed 40 lbs, which is a lot of mass for a 30-watt-per-channel integrated, and most of that weight sits in the transformers across the center of the chassis. Owners who have lived with one describe a hybrid character: the tube front end supplies the midrange warmth, the solid-state preamp keeps noise and hum in check, and the output stage does the heavy lifting. The company's marketing billed it as eliminating "all previous limitations of single chassis preamp power amplifiers," which is advertising copy, not a measurement. The architecture was still genuinely unusual for 1963.

Power output is rated at 30 watts per channel into 8 ohms in stereo, or 60 watts continuous in mono. A front-panel impedance selector switches the output for 4, 8, or 16-ohm speaker loads, and the amplifier is rated for speaker impedances from 4 to 16 ohms. Distortion is specified at less than 0.5% at 30 watts output from 20 cycles through 20,000 cycles. The preamp section itself contributes only a few hundredths of one percent, and McIntosh was proud enough of that to put it in the technical description. Damping factor is 10, which is modest by later solid-state standards but typical for a tube output stage of the period. Weight, again, is 43 lbs.

Key Features

Solid-State Preamp with Silicon-Planar Transistors

The preamplifier section runs on twelve transistors, all of them Silicon-Planar types. McIntosh's manual is specific about why: high thermal stability, low leakage, low noise, and superior high-frequency response. The phono stage uses three transistors per channel. The first stage feeds a Darlington pair, and a negative feedback loop returns to the input transistor's emitter. That topology holds distortion down even at 20 cycles, where gain is highest. Phono input impedance is 47,000 ohms, and additional resistors can be added to match cartridges that want something different. High-level inputs sit at 250,000 ohms, so a tuner or tape deck connects without any loss of low frequencies. The manual notes that at 2,000 cycles the phono inputs can accept 150 millivolts before overload, far more than any magnetic cartridge of the era could deliver.

Tube Power Amplifier with Unity Coupled Output Transformer

The output stage is pure tube, built around the McIntosh-patented Unity Coupled output transformer, the same basic approach that made the company's separate power amps famous. Output tubes in surviving units are typically McIntosh-branded Sylvania 7591s, with Telefunken 12AU7 and 12AX7 driver tubes in the front end. The manual describes the layout as deliberate: output tubes spaced well apart for air circulation, transformers positioned across the center of the chassis for mechanical stability. Cooler operation, McIntosh argued, meant longer tube life. The bias of each 7591 can be set individually via test point jacks and trim controls mounted next to each tube, with a target of 0.7 volts DC from each test point to chassis ground. A phase inverter AC balance control is also provided per channel, factory-set for minimum distortion at 20 cycles and 30 watts.

Seven Program Inputs and a Versatile Mode Selector

The MA230 provides seven separate program inputs controlled by the front-panel selector switch, plus a tape monitor loop. The list includes phono 1 and 2 for magnetic cartridges, a tape head input for decks without their own playback preamp, and high-level tuner, aux, and tape inputs. Input sensitivities run 1.5 mV for phono and tape head, and 0.25 V for the high-level inputs. The tape outputs come straight off the selector switch and deliver enough level to feed a recorder: 10 millivolts at the phono input produces 1.6 volts at the tape output. High Fidelity's equipment report (December 1964, p.63) singled out the mode selector as unusually versatile for an integrated of this class, noting positions beyond the basic stereo and mono settings.

Dual Power Meters and Front-Panel Headphone Jacks

Two meters on the front panel give real-time output indication, a McIntosh signature carried over from the company's separate power amplifiers. Two pairs of low-impedance stereo headphones can be plugged into the front-panel jacks, wired through 100-ohm resistors to set the correct output level. Preamp out and main in jacks on the rear let you separate the preamp and power amp sections. That helps if you want to insert an equalizer or outboard processor, and it helps with troubleshooting a half-century later.

Historical Context

The MA230 arrived while the industry was still arguing about transistors. McIntosh's answer was neither a wholesale conversion nor a stubborn holdout: the preamp went solid-state, the output stage stayed tube. The company's own technical description frames this as a deliberate split. The compact transistor preamp freed up enough chassis space to fit a proper 30-watt-per-channel tube amplifier alongside it. One owner, recalling his time with the amp in the 1970s, described it simply as McIntosh's first integrated amp. Production is generally given as 1963 to 1966, though at least one source extends the run to 1967. The MA230 appears alongside the MA 5100 in surviving McIntosh documentation, though the fact sheet offers no confirmed positioning of the MA230 relative to other integrated models in the lineup.

Collectibility & Value

The MA230 sits in a comfortable second tier of McIntosh collectibility. It doesn't draw the frenzy that surrounds an MC275, but it is far from forgotten. Contemporary coverage in High-Fidelity (December 1964, p.63) described it as a stereo preamp-power amplifier with a 16-inch front panel and an unusually versatile mode selector. Market values run roughly $1,500 to $3,000 depending on condition and restoration quality, with a collectibility rating around 8/10. Recent eBay completed sales fall between $1,300 and $1,898, with a median of $1,575 across six sales in a twelve-month window. The broader market tracking shows a high of $2,560, a low of $1,071, and a latest figure of $1,898. Asking prices on enthusiast marketplaces run higher: a recapped example was listed at $2,900, and an original tube/solid-state unit at $4,800. As with any McIntosh of this era, glass condition, chrome pitting, and service history drive the spread more than the model itself.

Restoration is not optional on a sixty-year-old hybrid. Aging capacitors in both the tube and solid-state sections are almost guaranteed to need replacement, and a full recap is the standard starting point. The original tubes may still glow, but fresh 12AX7s and 12AU7s restore lost clarity, and the 7591 outputs are the parts that matter most. Power meter bulbs burn out regularly and need NOS or modern equivalents. Early transistors, sturdy as they were for their time, are not immune to failure and should be tested thoroughly. Typical service records show a lamp replacement, a handful of capacitors, cleaned controls and switches, and re-soldered joints. That is the ordinary work of keeping a 1960s McIntosh alive. Restoring one is a project measured in weekends, not hours, particularly given the interplay between the two halves of the circuit. The MA230 is also heavy, and the manual recommends the mounting brackets rest on a wooden shelf for support when installed in a cabinet.

Market Value

┌──────────────────────────────────────────────────────────────────────────┐
│ MCINTOSH MA230                                                  Nov 2026 │
├──────────────────────────────────────────────────────────────────────────┤
│ High      $2,560                                  Latest          $1,898 │
│ Median    $1,575                                  Trend                — │
│ Low       $1,071                                  Volume           ~1/mo │
├──────────────────────────────────────────────────────────────────────────┤
│ $3,000 ┤                                                                 │
│        │                                                                 │
│        │              .                                                  │
│ $2,143 ┤                                                                 │
│        │                                                                .│
│        │.                                                                │
│        │                                       .  .                      │
│ $1,000 ┤                                                .                │
│        ├─────────────────────────────────────────────────────────────────│
│    vol │█             █                        █  █     █               █│
│        └─────────────────────────────────────────────────────────────────│
│         2026-03                      2026-05                      2026-07│
└──────────────────────────────────────────────────────────────────────────┘

eBay completed sales. Excludes accessories, parts, and non-working units. Hover points for details.
