Marantz 2285B (1978–1980)

Name: Marantz 2285B
Brand: Marantz

The last great Marantz receiver before the digital shift—brutal power wrapped in analog grace.

Overview

When you fire up a 2285B that’s been properly serviced, the first thing you notice isn’t the wattage or the frequency response—it’s the silence. Not dead silence, but the kind of quiet that hums with latent energy, like a muscle coiled under velvet. Then the music starts, and it doesn’t so much play as unfold: bass that’s tight without being clinical, mids that carry the weight of real instruments, and highs that shimmer without ever screeching. This isn’t a receiver that shouts; it speaks with authority, and everyone in the room leans in to listen.

Marantz built the 2285B at the peak of their 1970s golden era, when “high fidelity” still meant discrete transistors, hand-trimmed bias points, and chassis so thick they’d dent a concrete floor. It sits at the very top of the 22xx series—not just in power, but in ambition. Where earlier models like the 2275 were refined, the 2285B was a statement: Marantz wasn’t just keeping up with the Japanese competition, they were out-engineering them. With 85 watts per channel (some sources claim 94W under ideal conditions), it could drive all but the most stubborn speakers, and its damping factor of 40 meant it could stop a woofer on a dime. That mattered in an era when people were finally starting to pair receivers with efficient, full-range floorstanders instead of tinny bookshelves.

It wasn’t just brute force, though. The 2285B inherited the DNA of Marantz’s separate components: a MOSFET front end on the FM tuner for low noise, ceramic IF filters for rock-solid selectivity, and a phase-locked loop (PLL) multiplex decoder that delivered stereo separation up to 40 dB—exceptional for the time. The AM section wasn’t an afterthought either, using an advanced IC and ceramic filters to pull in weak stations with surprising clarity. The preamp stage offered dual phono inputs (MM only), two tape loops, and two auxiliary inputs, making it a hub for a full analog rig. And yes, it had Dolby B noise reduction (via the DLB-1 module), a rare feature on receivers, letting you connect a cassette deck and actually improve the signal path instead of just passing noise through.

Specifications

Manufacturer	Marantz
Production Years	1978–1980
Original Price	$669.95
Power Output Continuous Rated (per channel, both channels operating)	85 Watts at 8Ω
Maximum Power Output (per channel)	94 Watts into 8Ω (stereo)
Total Harmonic Distortion at Rated Power	0.08% max
IM Distortion	0.1%
Frequency Response	10Hz to 40kHz
S/N Ratio (MM)	50dB
S/N Ratio (Line)	50dB
Input Sensitivity (MM)	1.8mV
Input Sensitivity (Line)	180mV
Output (Line)	180mV
Output (Preamp)	1.5V
Damping Factor	40
Load Impedance	4–16Ω
Tuning Range	FM, AM (MW)
Inputs	Phono 1, Phono 2, Tape 1 In, Tape 2 In, Aux 1, Aux 2
Outputs	Tape 1 Out, Tape 2 Out, Preamp Out, Headphones
Weight	37.5 lbs (17 kg)
Dimensions	17.5" W × 5.5" H × 14.25" D

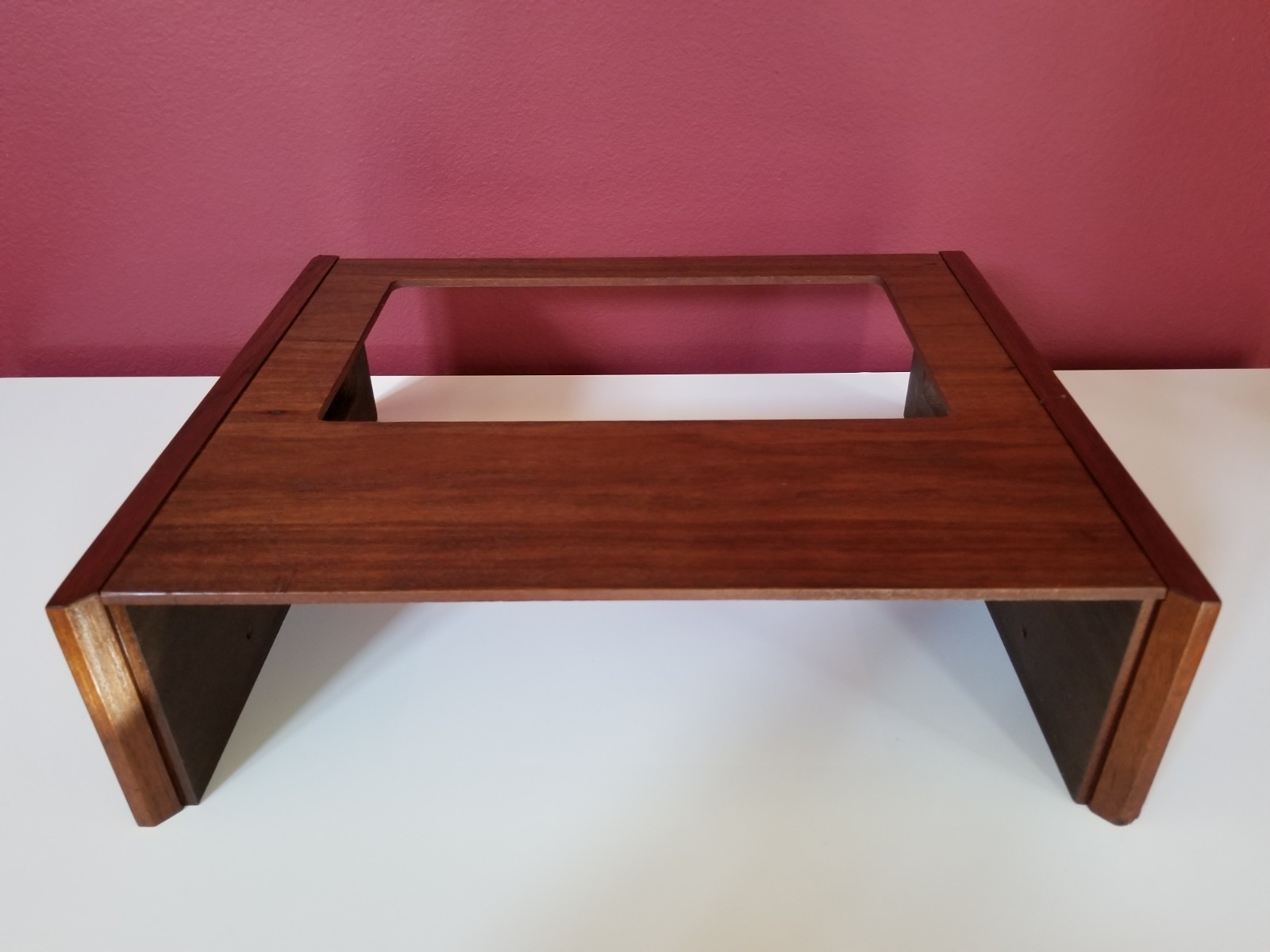

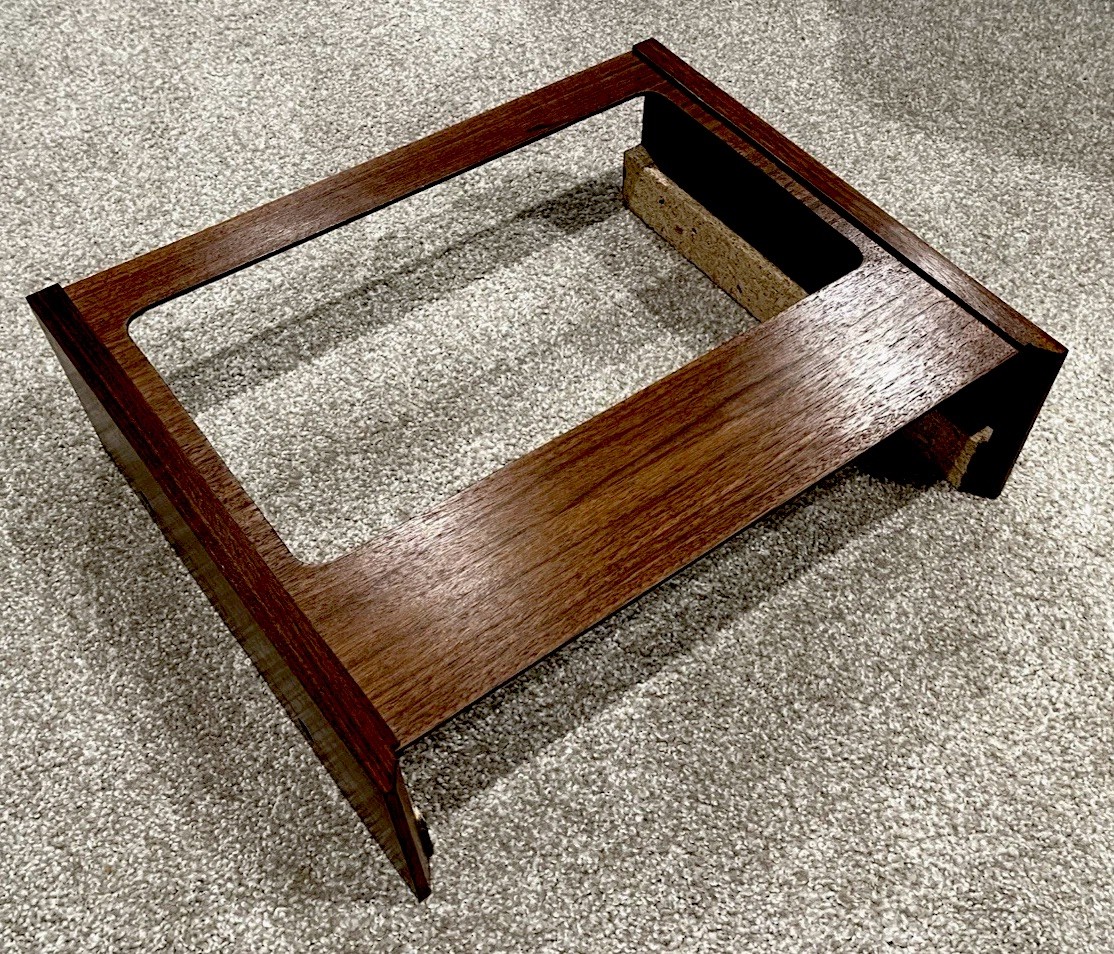

Cabinet Option	WC-22 wood case (optional)

Key Features

A Tuner That Could Out-Dig a Bloodhound

The FM section of the 2285B wasn’t just good for a receiver—it was competitive with standalone tuners of the era. The MOSFET input stage minimized noise right at the front door, which mattered when you were pulling in distant stations or dealing with urban interference. Combined with the ceramic IF filters, this meant you got a signal that was both strong and clean, without the “swish” of adjacent-channel bleed. The PLL stereo decoder was a big deal in 1978; most receivers still used ratio detectors, which could drift and cause phase errors. The 2285B locked onto the stereo pilot tone like a guided missile, delivering consistent separation and a rock-solid center image. If you were the kind of listener who taped live broadcasts or just wanted to hear the subtle reverb on a jazz piano, this tuner delivered.

Dolby B in a Receiver? Yes, and It Works

Most receivers treated tape monitoring as a routing afterthought. The 2285B went further: it included a full Dolby B noise reduction circuit, accessible via front-panel switches. Engage it, and the high-frequency hiss from your cassette deck drops away like a curtain. More impressively, it did so without the “breathing” artifacts that plagued cheaper implementations. The DLB-1 module wasn’t just bolted on; it was integrated into the signal path with proper calibration points, meaning a technician could align it to match the tape deck’s bias. This wasn’t just a gimmick—it turned the 2285B into a genuine high-fidelity cassette hub, a rare thing in an all-in-one box.

Build Quality That Demands Respect

Open the hood, and you’re looking at a circuit board that’s more sculpture than electronics. Heavy copper traces, hand-soldered joints, and a massive toroidal transformer that takes up nearly a third of the chassis. The heat sinks are extruded aluminum, not stamped steel, and they’re bolted directly to the output transistors with proper thermal paste. The front panel uses real brushed aluminum, not foil over plastic, and the knobs have a weight and resistance that feel like they were machined for royalty. This wasn’t cost-reduced for mass appeal; it was overbuilt for longevity. Owners report that even unrecapped units often power up after decades in storage, a testament to the conservative design margins.

Historical Context

The 2285B arrived in 1978, right as the receiver wars were peaking. Japanese brands like Pioneer, Kenwood, and Sansui were flooding the market with powerful, feature-packed models, often at lower prices. Marantz, still a U.S.-driven company at the time, responded not by cutting corners but by doubling down on quality. While competitors chased wattage wars with inflated ratings, Marantz focused on real-world performance: low distortion, high damping, and a tuner section that could embarrass many separates. The 2285B was their flagship, positioned above the 2275 and 2238B, and priced accordingly—at $670, it cost nearly twice as much as a comparable Sherwood, as one collector noted. That price wasn’t just for the badge; it paid for better parts, tighter tolerances, and a design philosophy that treated the receiver as a long-term investment, not disposable electronics.

It also arrived at the end of an era. By 1980, digital tuning was on the horizon, and the integrated receiver would soon give way to separates and, later, digital source components. The 2285B was one of the last Marantz receivers to use analog tuning dials and discrete amplifier stages before the company shifted toward synthesized tuning and more cost-conscious designs. In that sense, it’s a closing chapter—a final, defiant analog statement before the digital tide rolled in.

Collectibility & Value

Today, the 2285B is a sought-after piece, but not a blind buy. In fully restored, recapped, and aligned condition, it commands $1,500 to $2,500—prices that reflect both its performance and its status as a collector’s item. Unrestored units in working order sell for $800 to $1,200, while non-working or heavily oxidized examples still fetch $400 to $600 due to the high demand for donor chassis and rare parts like the DLB-1 Dolby board.

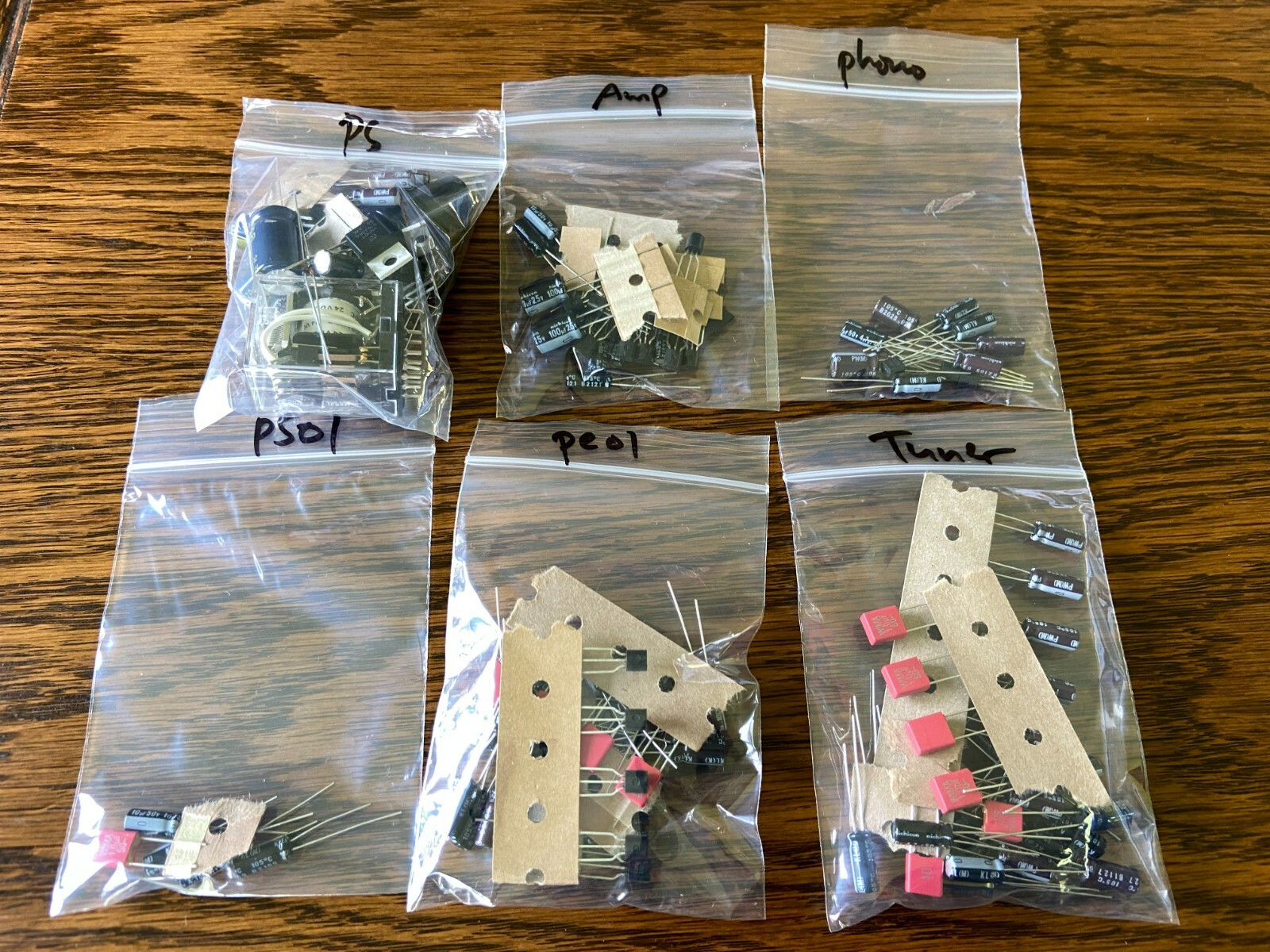

The biggest threat to longevity? Capacitors. Like all late-70s gear, the 2285B relies on electrolytics that dry out over time. When they fail, they don’t just degrade sound—they can leak, corrode the board, or cause thermal runaway in the output stage. A full recap is non-negotiable for long-term ownership, and service technicians observe that the power supply and preamp coupling caps are the first to go. Bias drift is another common issue; if not adjusted after servicing, the amp can run too hot and fry output transistors. The relay that switches speakers is also a known weak point, with contacts that oxidize and cause intermittent output.

What to check before buying? First, power it on and listen for DC offset—a popping speaker or hum through headphones means the amp isn’t balanced. Test all inputs and the tape monitor loop; faulty switches are common after decades of disuse. Check the tuner tracking: does the needle stay centered on strong stations? If it drifts, the alignment is off. And inspect the rear panel for corrosion—especially around the grounding points, which can affect noise floor.

Despite the maintenance demands, the 2285B holds its value because it delivers a sound that modern gear often misses: warm, dynamic, and emotionally engaging without sacrificing control. It’s not the most powerful vintage receiver, nor the most feature-rich, but it strikes a balance that feels timeless. If you’re building a period-correct system or just want a single box that can do everything well, the 2285B remains a benchmark.
