Marantz 2285B (1978–1980)

The last great Marantz receiver before the digital shift - brutal power wrapped in analog grace.

Overview

When a properly serviced 2285B fires up, the first thing you notice is the silence. It isn't dead silence. It's quiet with some energy sitting in it. Then the music starts, and it unfolds: bass that's tight without being clinical, mids that carry the weight of real instruments, and highs that shimmer without screeching. This isn't a receiver that shouts. It speaks with authority.

Marantz built the 2285B at the peak of their 1970s golden era, when "high fidelity" still meant discrete transistors, hand-trimmed bias points, and chassis so thick they'd dent a concrete floor. It sits at the top of the 22xx series, in power and in ambition. Earlier models like the 2275 were refined. The 2285B was a statement: Marantz wasn't just keeping up with the Japanese competition, they were out-engineering them. It makes 85 watts per channel (some sources claim 94W under ideal conditions), enough to drive all but the most stubborn speakers, and its damping factor of 40 meant it could stop a woofer on a dime. That mattered in an era when people were finally starting to pair receivers with efficient, full-range floorstanders instead of tinny bookshelves.

It wasn't just brute force, though. The 2285B inherited the DNA of Marantz's separate components: a MOSFET front end on the FM tuner for low noise, ceramic IF filters for rock-solid selectivity, and a phase-locked loop (PLL) multiplex decoder that delivered stereo separation up to 40 dB, exceptional for the time. The AM section wasn't an afterthought either. It used an advanced IC and ceramic filters to pull in weak stations with surprising clarity. The preamp stage offered dual phono inputs (MM only), two tape loops, and two auxiliary inputs, making it a hub for a full analog rig. It also had Dolby B noise reduction (via the DLB-1 module), a rare feature on receivers, letting you connect a cassette deck and actually improve the signal path instead of just passing noise through.

Specifications

Manufacturer	Marantz
Production Years	1978–1980
Original Price	$669.95
Power Output Continuous Rated (per channel, both channels operating)	85 Watts at 8Ω
Maximum Power Output (per channel)	94 Watts into 8Ω (stereo)
Total Harmonic Distortion at Rated Power	0.08% max
IM Distortion	0.1%
Frequency Response	10Hz to 40kHz
S/N Ratio (MM)	50dB
S/N Ratio (Line)	50dB
Input Sensitivity (MM)	1.8mV
Input Sensitivity (Line)	180mV
Output (Line)	180mV
Output (Preamp)	1.5V
Damping Factor	40
Load Impedance	4–16Ω
Tuning Range	FM, AM (MW)
Inputs	Phono 1, Phono 2, Tape 1 In, Tape 2 In, Aux 1, Aux 2
Outputs	Tape 1 Out, Tape 2 Out, Preamp Out, Headphones
Weight	37.5 lbs (17 kg)
Dimensions	17.5" W × 5.5" H × 14.25" D

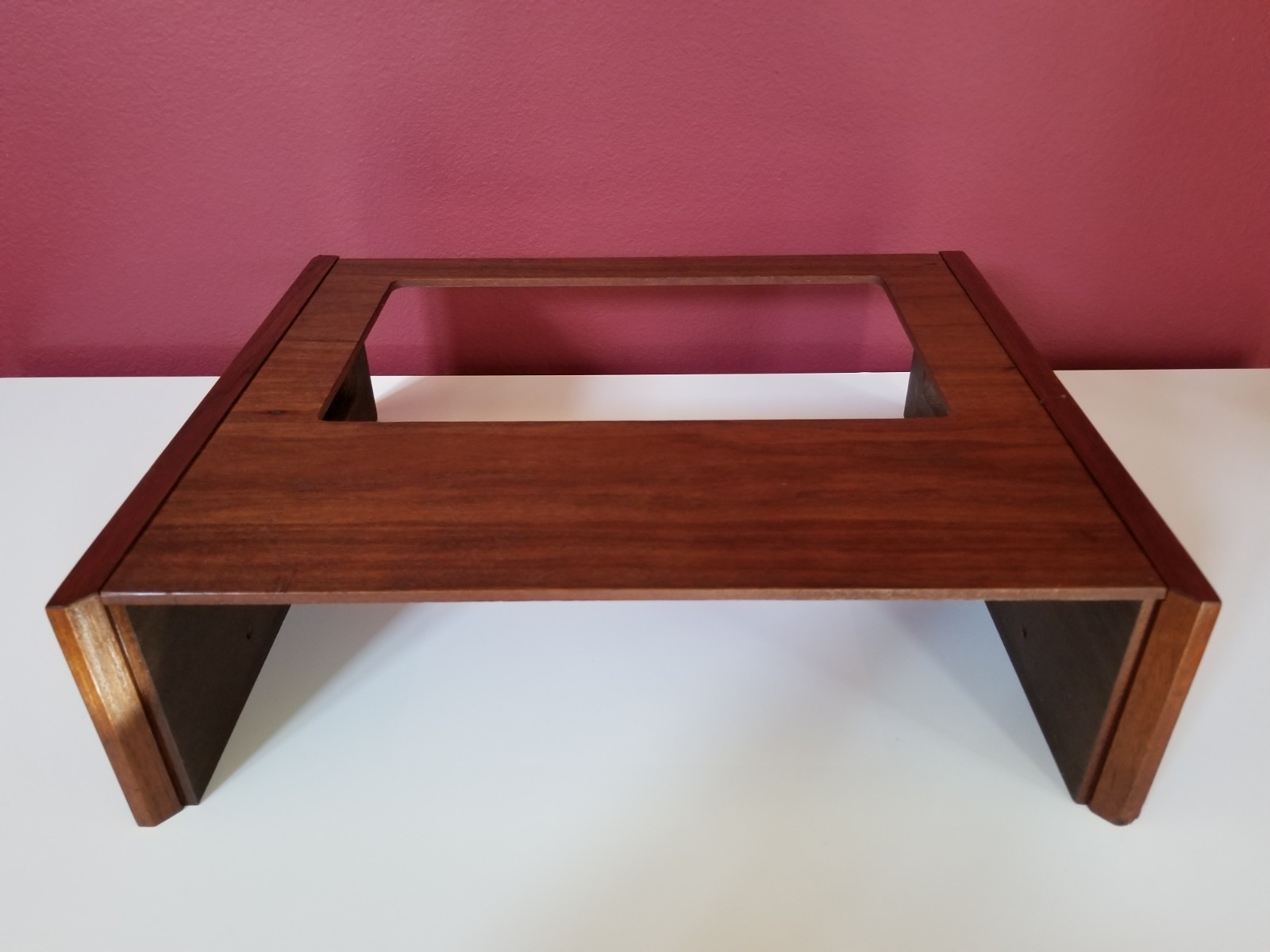

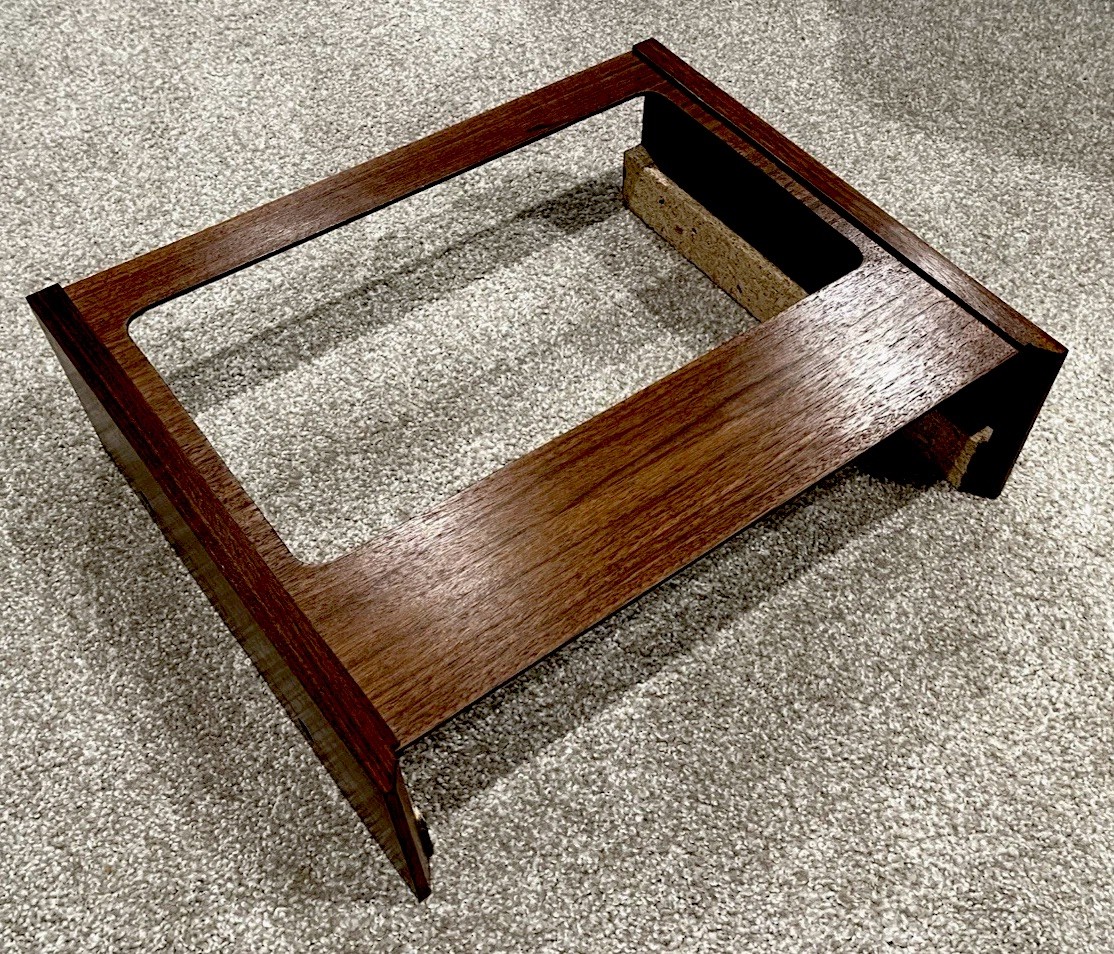

Cabinet Option	WC-22 wood case (optional)

Key Features

A Tuner That Could Out-Dig a Bloodhound

The FM section of the 2285B was competitive with standalone tuners of the era. The MOSFET input stage minimized noise right at the front door, which mattered when you were pulling in distant stations or dealing with urban interference. Combined with the ceramic IF filters, you got a signal that was both strong and clean, without the "swish" of adjacent-channel bleed. The PLL stereo decoder was a big deal in 1978. Most receivers still used ratio detectors, which could drift and cause phase errors. The 2285B locked onto the stereo pilot tone like a guided missile, giving consistent separation and a rock-solid center image.

Dolby B in a Receiver? Yes, and It Works

Most receivers treated tape monitoring as a routing afterthought. The 2285B included a full Dolby B noise reduction circuit, accessible via front-panel switches. Engage it, and the high-frequency hiss from your cassette deck drops away. It did so without the "breathing" artifacts that plagued cheaper implementations. The DLB-1 module wasn't just bolted on. It was integrated into the signal path with proper calibration points, so a technician could align it to match the tape deck's bias. That made the 2285B a genuine high-fidelity cassette hub, a rare thing in an all-in-one box.

Build Quality That Demands Respect

Open the hood and you're looking at heavy copper traces, hand-soldered joints, and a massive toroidal transformer that takes up nearly a third of the chassis. The heat sinks are extruded aluminum, not stamped steel, and they're bolted directly to the output transistors with proper thermal paste. The front panel uses real brushed aluminum, not foil over plastic, and the knobs have real weight and resistance. This wasn't cost-reduced for mass appeal. It was overbuilt for longevity. Owners report that even unrecapped units often power up after decades in storage.

Historical Context

The 2285B arrived in 1978, right as the receiver wars were peaking. Japanese brands like Pioneer, Kenwood, and Sansui were flooding the market with powerful, feature-packed models, often at lower prices. Marantz, still a U.S.-driven company at the time, responded by doubling down on quality instead of cutting corners. While competitors chased wattage wars with inflated ratings, Marantz focused on real-world performance: low distortion, high damping, and a tuner section that could embarrass many separates. The 2285B was their flagship, positioned above the 2275 and 2238B, and priced accordingly. At $670, it cost nearly twice as much as a comparable Sherwood, as one collector noted. That price paid for better parts, tighter tolerances, and a design that treated the receiver as a long-term investment.

It also arrived at the end of an era. By 1980, digital tuning was on the horizon, and the integrated receiver would soon give way to separates and, later, digital source components. The 2285B was one of the last Marantz receivers to use analog tuning dials and discrete amplifier stages before the company shifted toward synthesized tuning and more cost-conscious designs.

Collectibility & Value

Today the 2285B is sought after, but not a blind buy. In fully restored, recapped, and aligned condition, it commands $1,500 to $2,500. Unrestored units in working order sell for $800 to $1,200, while non-working or heavily oxidized examples still fetch $400 to $600 because of demand for donor chassis and rare parts like the DLB-1 Dolby board.

The biggest threat to longevity is capacitors. Like all late-70s gear, the 2285B relies on electrolytics that dry out over time. When they fail, they can degrade the sound, leak, corrode the board, or cause thermal runaway in the output stage. A full recap is non-negotiable for long-term ownership, and service technicians observe that the power supply and preamp coupling caps are the first to go. Bias drift is another common issue. If it isn't adjusted after servicing, the amp can run too hot and fry output transistors. The relay that switches speakers is also a known weak point, with contacts that oxidize and cause intermittent output.

Before buying, power it on and listen for DC offset. A popping speaker or hum through headphones means the amp isn't balanced. Test all inputs and the tape monitor loop, since faulty switches are common after decades of disuse. Check the tuner tracking: the needle should stay centered on strong stations, and if it drifts, the alignment is off. Inspect the rear panel for corrosion, especially around the grounding points, which can affect the noise floor.

Despite the maintenance demands, the 2285B holds its value because it delivers a sound that modern gear often misses: warm, dynamic, and engaging without sacrificing control. It's not the most powerful vintage receiver, nor the most feature-rich.

Market Value

┌──────────────────────────────────────────────────────────────────────────┐
│ MARANTZ 2285B                                                   Nov 2026 │
├──────────────────────────────────────────────────────────────────────────┤
│ High      $2,198                                  Latest          $2,198 │
│ Median    $1,675                                  Trend                — │
│ Low       $838                                    Volume           ~5/mo │
├──────────────────────────────────────────────────────────────────────────┤
│ $3,000 ┤                                                                 │
│        │                                                                 │
│        │                                                                 │
│ $2,057 ┤                                                     .          .│
│        │                                                                 │
│        │                                         .                       │
│        │                                                                 │
│   $800 ┤.                                                      .         │
│        ├─────────────────────────────────────────────────────────────────│
│    vol │█                                        █           █ █        █│
│        └─────────────────────────────────────────────────────────────────│
│         2026-04                      2026-05                      2026-05│
└──────────────────────────────────────────────────────────────────────────┘

eBay completed sales. Excludes accessories, parts, and non-working units. Hover points for details.
