JBL L300 Summit (1975–1983)

JBL took the 4333 studio monitor, put it in a walnut cabinet, and sold it for the living room. It weighs 66 kilograms.

Overview

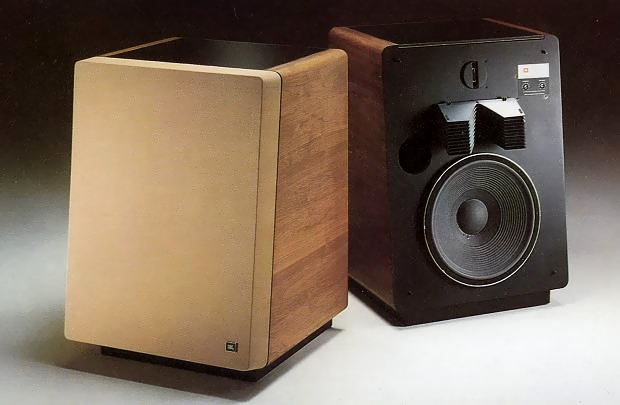

At 66 kg per speaker, the L300 Summit is not something you buy on a whim and rearrange on a Saturday afternoon. It stands 803 mm tall, spans 584 mm across, and runs 572 mm deep. It's a three-way, three-speaker bass reflex floorstander that JBL built from 1975 to 1983. The footprint alone settles the question of where it goes.

JBL's own framing is that this is a domesticated version of the professional 4333 studio monitor. The drivers show it: a 15-inch 136A woofer handling everything below 800 Hz, an LE85 compression driver on an HL92 horn lens covering the middle, and the 077 ring radiator super tweeter taking over at 8.5 kHz. That's studio inventory, not a typical consumer parts list. The crossover points are relatively low and high respectively, so the compression driver does the heavy lifting across the critical midrange, and the ring radiator only has to handle the top octave and change.

Frequency response is quoted at 30 Hz to 20 kHz, and the bass reflex loading is what gets the 136A down that far. Nominal impedance is 8 Ω, and power handling is rated at 150W continuous program. Per the source material, it needs a powerful amplifier and careful room placement to perform at its best. Get that right and the payoff is described as effortless dynamics and bass extension down to 30 Hz.

This was JBL's flagship home speaker of the 1970s. The company positioned it as the bridge between the control room and the living room: the same drivers and crossover technology used in recording studios, sold to audiophiles who wanted that sound at home. Whether it fully succeeded is a matter of taste, but it stayed in production for eight years.

Key Features

The Slanted Baffle

The angled front panel isn't cosmetic. JBL designed it to position all drivers in optimal time alignment for the listening position. The physical offset compensates for the different acoustic centers of the woofer, horn, and tweeter, so the wavefronts arrive at your ears together instead of smeared across time. It's also the most visually distinctive element of the Summit's design.

136A 15-Inch Woofer with Alnico V Magnet

The 136A is a ribbed corn paper cone woofer with a massive Alnico V magnetic circuit. JBL's own description credits it with delivering authoritative bass and a rich sense of volume. The bass reflex enclosure and the 800 Hz crossover point let it operate well into the lower midrange, which is part of why the Summit sounds so cohesive through the male vocal range. Alnico magnets have their own mythology among collectors, and the 136A is one of the drivers that earned it.

LE85 Compression Driver on HL92 Horn

The midrange is handled by an LE85, a 2-inch (5 cm) throat compression driver mounted to an HL92 horn lens. JBL describes it as providing exceptional midrange clarity and dynamics. That's the compression-driver advantage: efficiency and transient snap that dome midranges struggle to match. The horn lens controls dispersion. Without it, the midrange would beam and the sweet spot would collapse to a narrow strip. With it, the Summit holds together across a reasonable listening window.

077 Ring Radiator Super Tweeter

Above 8.5 kHz, the 077 ring radiator takes over. JBL credits it with extended high-frequency response and wide dispersion. The 077 is a known quantity in the JBL lineup, since the same tweeter showed up in the L65 Jubal, and it has a reputation among collectors for combining air and detail with the output capability that horn-loaded designs bring. It's not a soft-dome sound. It's a monitor sound.

Smoked Glass Top Panel

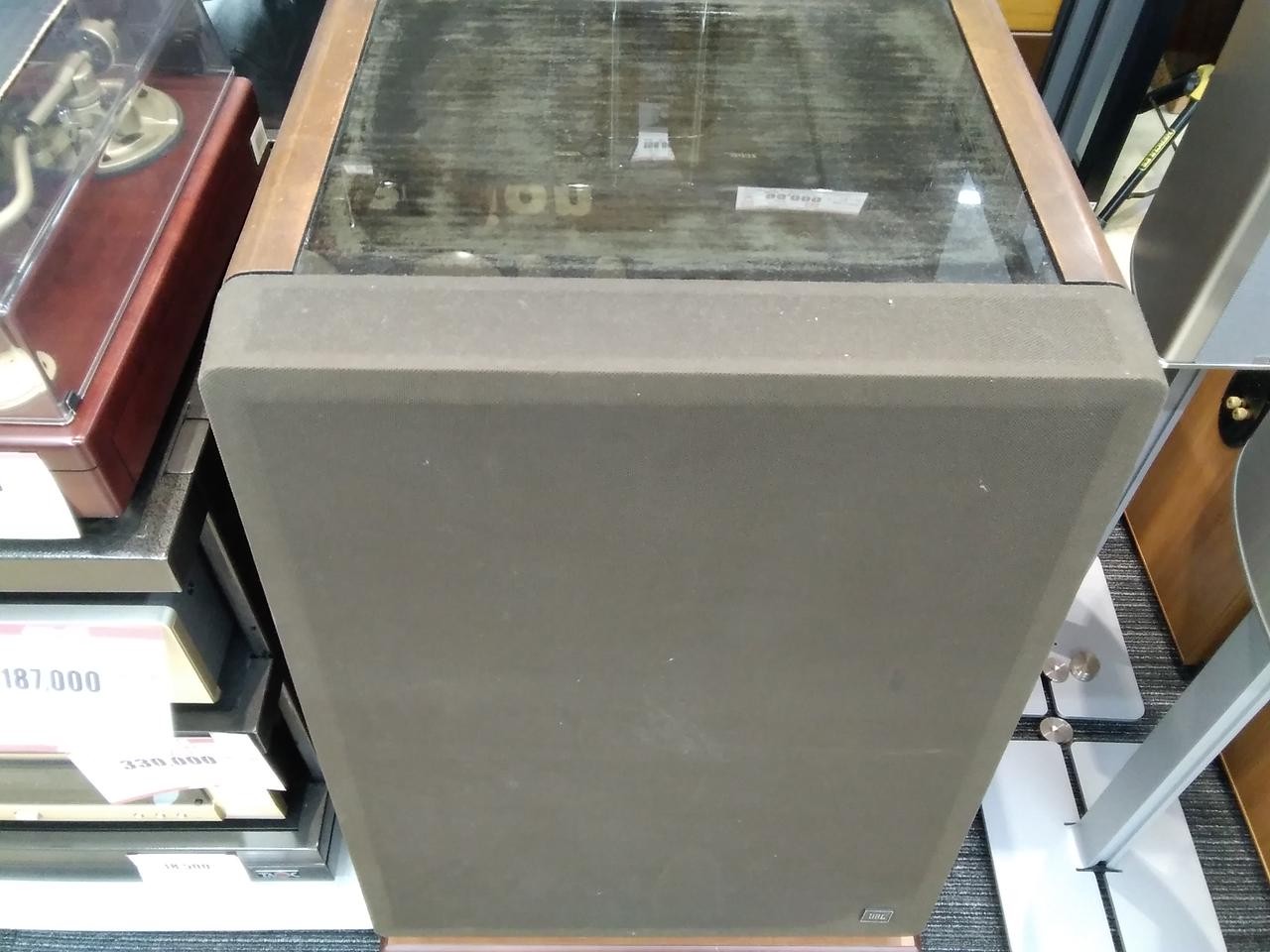

JBL called it the "Smoke De Grasse" top, a smoked glass panel that sits atop the cabinet and adds a furniture-grade finish to what is otherwise a very serious-looking box. The cabinet itself is finished in walnut, with dark fabric grilles and rich wood bases. Four grille color variations were offered, though the source material doesn't specify which colors.

Front-Mounted Controls

The Summit has a control panel on the front with a white label, orange logo, and knobs for presence and brilliance. These are L-pad level controls for the midrange and tweeter, letting owners trim the output of the compression driver and ring radiator to suit the room and their taste. Forum discussions note that the original L-pads are difficult to replace with modern equivalents of the same quality - more on that in the collectibility section.

Historical Context

The L300 Summit was introduced in 1975 and remained in production for eight years, which by the standards of the 1970s hi-fi market is a long run. Audio Express (September 2001, p.37) noted that span when revisiting the model a quarter-century later. JBL positioned it as the consumer-facing version of the 4333 studio monitor, sharing its DNA with both that professional model and the L200 Studio Master. The 077 tweeter it used also appeared in the L65 Jubal, so the Summit sat within a family of speakers that shared drivers and design philosophy.

One source gives the introduction year as 1973, which conflicts with the 1975 date used elsewhere. The 1975 figure appears in the more detailed product documentation and matches the 1975-1983 production window, so that's the date to go with. Collectors comparing notes will occasionally see the earlier year cited.

According to available documentation, the Summit quickly became one of JBL's most successful designs for both the recording industry and serious audiophiles. It was succeeded as JBL's flagship consumer speaker by the L250, and one source notes that within JBL's own hierarchy, the Summit was surpassed only by the Everest series 55000, a much larger horn system. So the L300 was near the top of the consumer line, but not the top of what JBL could build.

Collectibility & Value

The L300 Summit has held its value better than most speakers from its era. Asking prices range widely depending on condition and originality. One listing shows a pair described as "excellent working" at $6,500, while others sit around $3,400 or €3,500 for examples described as being in original good condition with original cones, voice coils, and diaphragms. The spread reflects the usual variables: cabinet condition, driver originality, whether the grilles survived, and whether the crossovers have been touched. A pair with original Alnico drivers and unmolested crossovers commands a premium. A pair that's been recapped and re-coned may sound excellent but won't fetch the same money from collectors who prioritize originality.

Maintenance is a real consideration. Forum advice is consistent on two points: clean and lubricate the L-pads rather than replacing them, because modern replacements aren't built to the same standard, and replace the crossover capacitors if you're not going to bi-amp with an active crossover. The original network capacitors are described as inferior to today's film capacitors, so a recap is generally seen as a sonic improvement rather than a compromise. A crossover network modification project and an active biamplification project both circulate in enthusiast documentation.

The practical warning is the same one that applies to any 66 kg speaker with Alnico magnets and paper cones: shipping is expensive and risky, and the drivers are heavy enough that a dropped cabinet can shift the magnet assembly and ruin the alignment. Buy local if you can, inspect the drivers in person if you can't, and budget for a recap and L-pad service regardless of how good the listing photos look.
