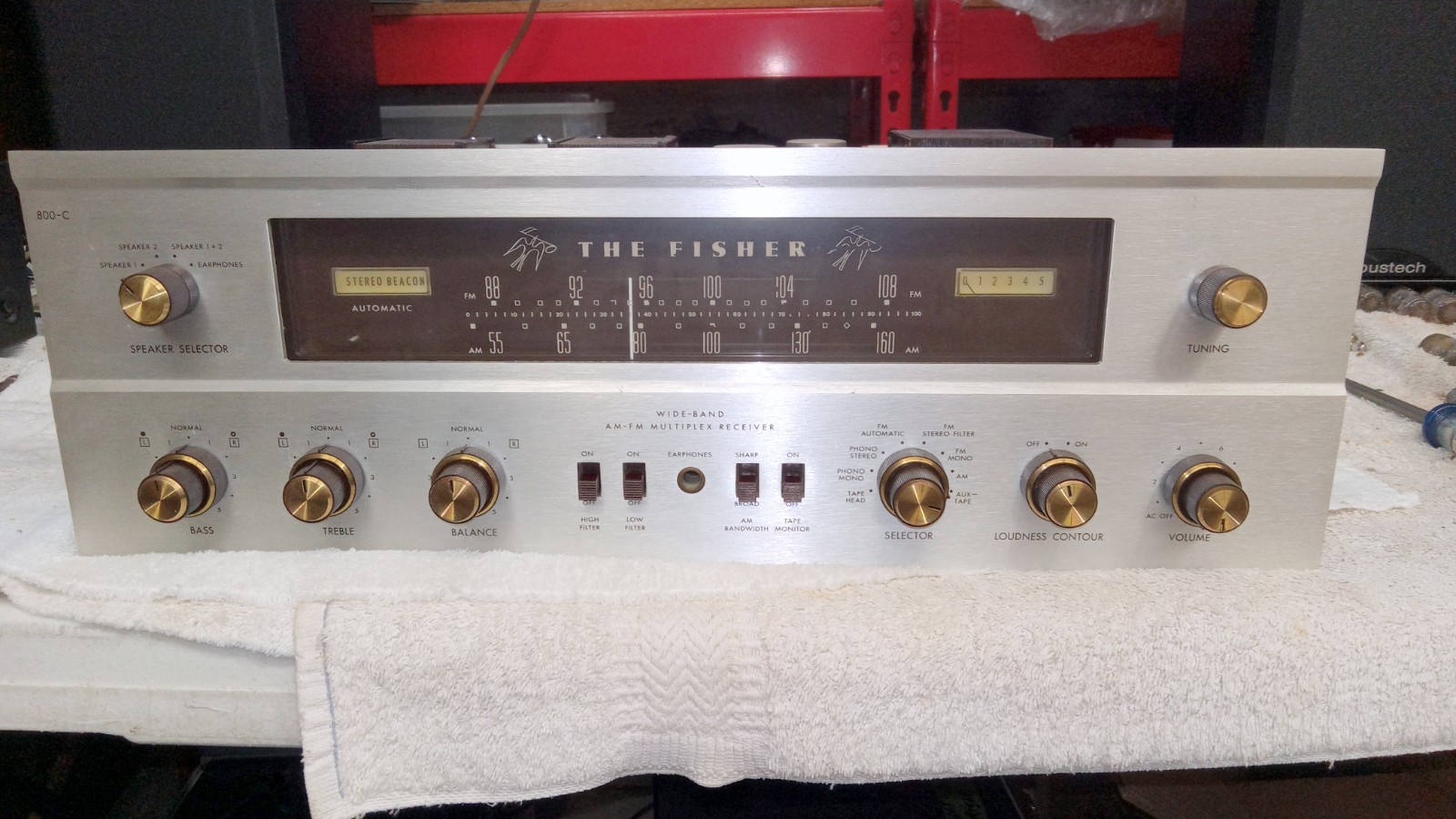

Fisher 800-C Vacuum Tube Receiver

The Fisher 800-C, introduced in 1963, stands as a landmark in high-fidelity audio history. Combining a powerful tube amplifier, precision FM/AM tuner, and advanced stereo decoding in a single chassis, it represented the pinnacle of Fisher's engineering before the transition to solid-state electronics. Revered for its rich, musical sound and robust construction, the 800-C remains a sought-after classic among audiophiles and vintage equipment collectors.

Specifications

Feature	Specification
Model	800-C
Brand	Fisher
Year of Production	1963–1965
Category	Tube Receiver (Integrated Amplifier)
Power Output	40 watts per channel (stereo), 80 watts (mono)
Output Tubes	4 × 7591
Rectifier Tube	1 × GZ34
Other Tubes	Multiple preamp and tuner tubes (total 14)
Impedance	4, 8, and 16 ohm speaker outputs
Inputs	Phono (MM), Tuner, Auxiliary
Tuner	FM/AM with multiplex stereo decoding
Features	Built-in reverb, phono preamp, Fisher-branded power and output transformers
Dimensions	19" W × 7" H × 15" D
Weight	Approx. 55 lbs (25 kg)

Historical Significance

The Fisher 800-C was released during the golden era of vacuum tube audio equipment. It was designed to deliver reference-grade performance in both amplification and radio reception, making it one of the first true high-end integrated receivers. Fisher, founded by Avery Fisher, was known for uncompromising quality, and the 800-C exemplified this philosophy.

Its FM tuner section was exceptionally sensitive and stable, rivaling standalone tuners of the time. The inclusion of a multiplex stereo decoder allowed it to reproduce the emerging FM stereo broadcasts with clarity and spatial accuracy. The unit’s use of premium components—such as custom-wound transformers and high-quality tube complement—set it apart from competitors.

As one of the last great tube-based receivers before the solid-state revolution, the 800-C symbolizes the end of an era. It is often cited as one of the finest tube receivers ever made, combining technical excellence with luxurious sound.

Sound Signature

The Fisher 800-C delivers a warm, rich, and highly musical listening experience. Its sound is characterized by:

Smooth, extended highs without harshness
Lush midrange with excellent vocal presence
Full, controlled bass that remains articulate
Excellent stereo imaging and soundstage depth

Often described as "tube lush," the 800-C imparts a pleasing harmonic richness that enhances acoustic, jazz, and vocal recordings. Its built-in reverb adds a subtle ambience that can enhance the listening experience, particularly with older recordings.

Maintenance and Restoration Tips

Due to its age, most Fisher 800-C units require restoration to operate safely and reliably. Key considerations include:

Capacitor Replacement: All electrolytic and coupling capacitors should be replaced. Old capacitors can leak, cause distortion, or damage other components.
Tube Replacement: While original tubes may still function, testing and replacing weak or noisy tubes (especially the 7591s and GZ34) is recommended. Use matched pairs for optimal performance.
Resistor Check: Carbon composition resistors can drift out of specification over time. Critical resistors in the signal path and power supply should be tested and replaced if necessary.
Cleaning Controls: Use contact cleaner on volume, tone, and input selector pots to eliminate crackling and noise.
Power Transformer: Inspect for signs of overheating or hum. Avoid prolonged operation at full power until the unit is fully serviced.
Bias Adjustment: The 7591 output tubes require proper biasing after installation. Ensure bias is checked and adjusted during restoration.

It is highly recommended to have the unit serviced by a technician experienced with vintage tube gear. Proper restoration not only ensures safety but also unlocks the full sonic potential of the 800-C.

Collectibility and Market Value

The Fisher 800-C ranks 9/10 in collectibility due to its legendary status, limited production run, and enduring reputation. Fully restored units in excellent cosmetic and functional condition command premium prices.

Market Value: $800 – $2,500

(Varies based on condition, originality, and quality of restoration)

Original packaging, manuals, and documentation can further increase value. Units with all-original tubes and low usage are especially rare and desirable.

Conclusion

The Fisher 800-C is more than just a vintage amplifier—it is a masterpiece of analog audio engineering. Its combination of powerful amplification, superb tuner performance, and luxurious sound continues to captivate audiophiles over 60 years after its introduction. For those who appreciate the warmth and character of tube audio, the 800-C remains a benchmark of excellence and a worthy centerpiece for any classic hi-fi system.
