Denon PMA-980R: A Refined Powerhouse from the Late 90s Hi-Fi Era
In the late 1990s Denon had a reputation for balanced audio engineering. The Denon PMA-980R was a high-performance integrated amplifier that sat in a prestigious spot in the company's lineup. It gets talked about less than some contemporaries from Marantz or Yamaha, but it has a loyal following among audiophiles who like its refined sound, build quality and understated looks.
Denon positioned the PMA-980R as a premium integrated amplifier. It offered control, clarity and a touch of warmth, which suited jazz, classical or rock. It was released in 1998, when the CD era was at its peak, digital sources were gaining traction, and high-fidelity analog systems were still the gold standard for serious listeners. Denon built a component that kept to tradition while using modern engineering practices.
Technical Specifications
The PMA-980R was built to deliver both authority and finesse. Denon engineers focused on low-noise circuitry, high current delivery, and superior channel separation to ensure a clean, dynamic sound across a wide range of speakers.
| Specification | Detail |
| Model | PMA-980R |
| Year Introduced | 1998 |
| Type | Integrated Amplifier |
| Power Output | 80W per channel (8Ω, RMS) |
| Frequency Response | 5Hz – 100kHz (+0/-3dB) |
| Total Harmonic Distortion | <0.01% (1kHz, 80W) |
| Input Sensitivity | 200mV (for rated output) |
| Input Impedance | 47kΩ (line), 47kΩ (MM/MC) |
| Signal-to-Noise Ratio | 105dB (IHF-A weighted) |
| Speaker Impedance | 4–16Ω |
| Dimensions (W×H×D) | 435 × 149 × 411 mm |
| Weight | 17.5 kg (38.6 lbs) |
| Inputs | 4 Line, 1 Phono (MM/MC switchable) |
| Outputs | Pre-out/Main-in, Tape Loop, 2 Speaker Sets |
| Power Supply | Large toroidal transformer |
| Construction | Dual-mono design, symmetrical layout |
One of the most notable aspects of the PMA-980R’s design is its dual-mono architecture, where the left and right audio channels are physically and electrically isolated to minimize crosstalk and interference. This approach, typically reserved for separates or high-end preamps/power amps, was a bold move in an integrated amplifier and speaks to Denon’s commitment to performance.
The amplifier also features a high-quality phono stage with switchable loading for both Moving Magnet (MM) and Moving Coil (MC) cartridges—a rare and welcome inclusion at this level. This made the PMA-980R a true one-box solution for vinyl enthusiasts, eliminating the need for an external phono preamp.
Sound Characteristics and Performance
The PMA-980R sounds refined, balanced, and highly detailed. It doesn't shout. Denon's tuning leans toward neutrality with a slight warmth in the midrange, which gives vocals and acoustic instruments a lifelike presence without tipping into excessive richness.
Bass is tight and well controlled, thanks to the power supply and high current output. It can drive demanding speakers like the KEF LS50, B&W 600 Series, or Tannoy Mercury with authority, and it keeps its composure at higher volumes. The frequency response extends to 100kHz, which gives excellent transient response and airiness in the highs. Cymbals and string harmonics sparkle without harshness.
Stereo imaging is precise, with a wide and stable soundstage that places instruments accurately in space. Low distortion and a high signal-to-noise ratio give a black background, so subtle details in recordings come through clearly. With a live jazz trio or a large orchestral work, the PMA-980R reveals layers of texture and nuance.
Notable Features and Innovations
It isn't flashy, but the PMA-980R is packed with thoughtful engineering:
- Toroidal Transformer: A large, low-noise toroidal power supply ensures stable voltage delivery and reduces electromagnetic interference—critical for maintaining signal purity.
- Discrete Amplification Circuitry: Instead of using op-amps, Denon employed discrete transistor circuits throughout the signal path for greater control over sonic character and performance.
- Dual Speaker Outputs & Bi-Wiring Capability: The amplifier supports two sets of speaker terminals, allowing for bi-wiring or connection to a second pair of speakers (switchable from the front panel).
- Main-In/Pre-Out Flexibility: The PMA-980R can be used as a pure power amplifier by bypassing the internal preamp via the Main In, or its preamp section can be used independently via the Pre Out—adding versatility to system integration.
- High-Quality Potentiometer: The volume control uses a precision Alps attenuator, known for its smooth operation and channel matching.

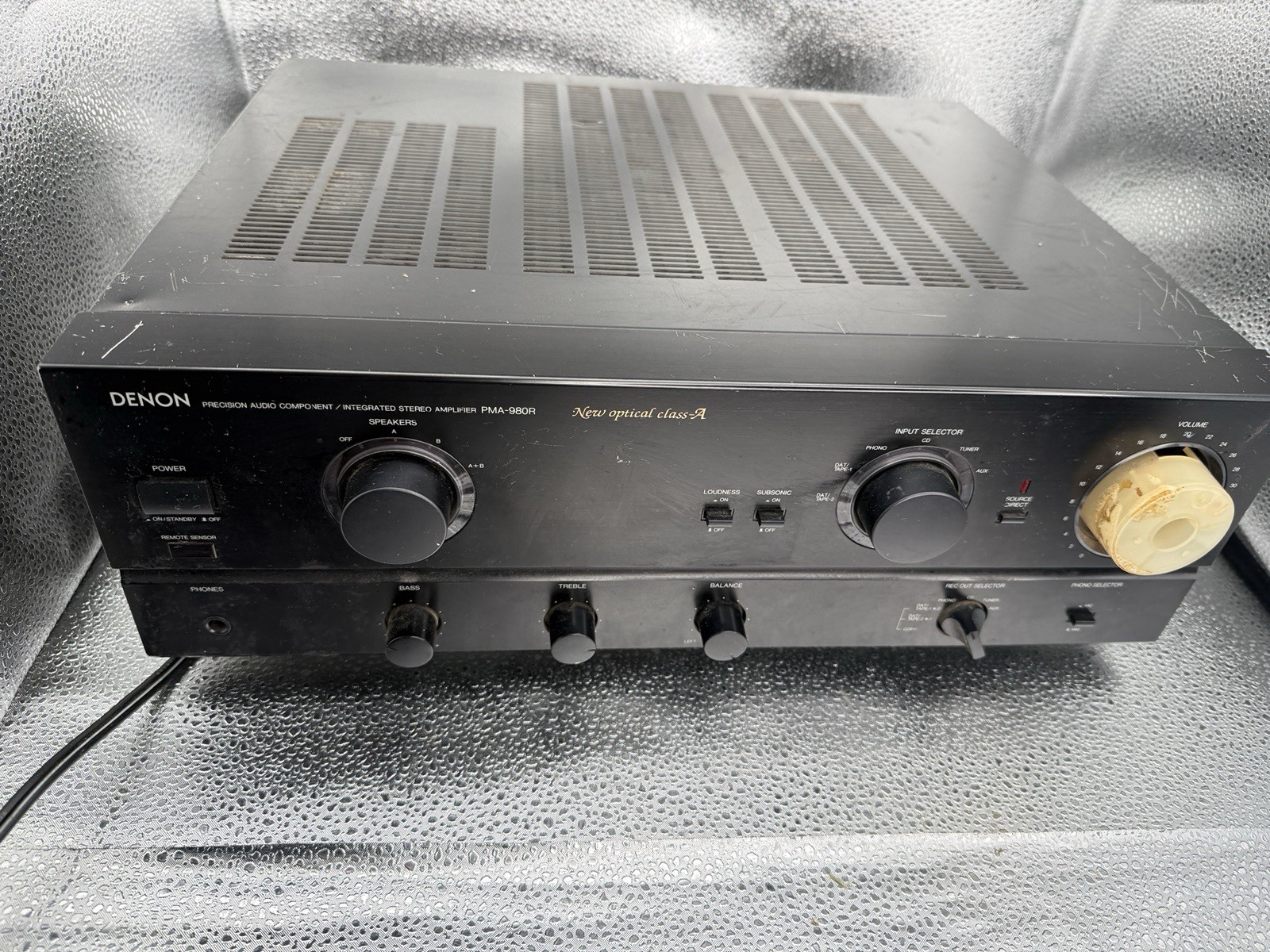

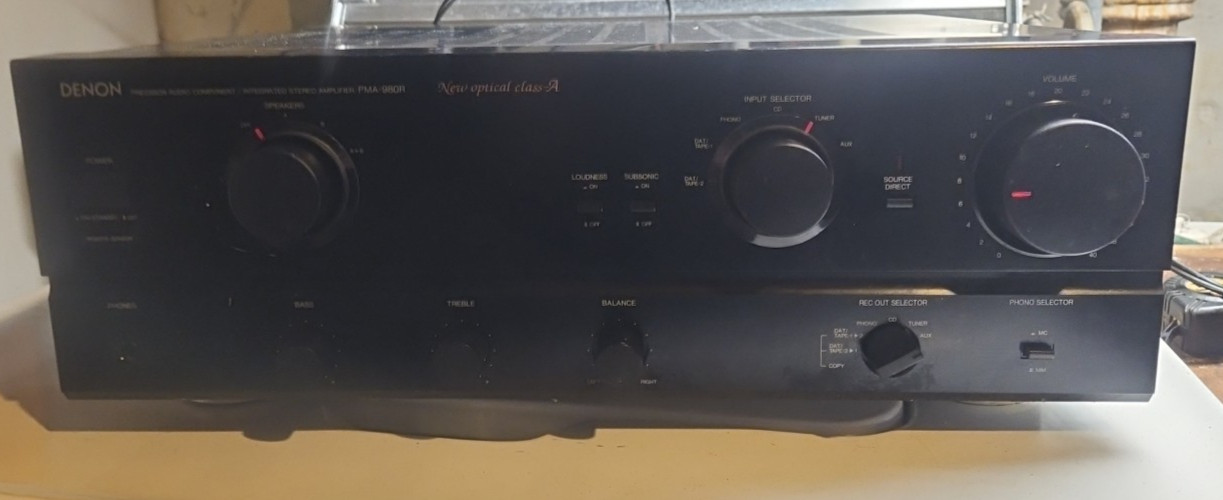

The front panel is clean and functional, with a large central volume knob, source selector, and essential controls (tone bypass, balance, speaker select). The build is exceptional: thick steel chassis, solid faceplate, and high-grade internal wiring, all aimed at mechanical and electrical stability.
Common Issues and Maintenance
The PMA-980R is generally reliable, but as with any 25-year-old electronics, a few issues may come up:
- Capacitor Aging: Electrolytic capacitors in the power supply and signal path may degrade over time, leading to hum, channel imbalance, or reduced performance. A recapping by a qualified technician can restore it to like-new condition.
- Phono Stage Sensitivity: Some users report that the MC setting can be noisy if the cartridge doesn’t produce sufficient output. Ensuring proper cartridge matching and grounding is essential.
- Dust Accumulation: The ventilation slots on the top and sides can collect dust, which may affect cooling. Regular cleaning with compressed air is recommended.
- Remote Control: The original remote (if included) may suffer from worn contacts or battery corrosion. Replacement IR modules are available from third-party suppliers.
Given its solid construction and serviceable design, the PMA-980R is well worth maintaining. Many units still perform flawlessly today.
Current Market Value and Collectibility
The Denon PMA-980R is not a "hyped" vintage amplifier, but it has been gaining quiet recognition in recent years. On the current secondhand market (2023-2024), a fully functional unit typically sells for $400 - $700, depending on condition, included accessories, and regional demand.
It's not yet a "collector's item" the way a Luxman or Accuphase might be, but its combination of performance, features, and build quality makes it a strong contender for audiophiles seeking a no-compromise integrated from the late 90s. The phono stage, dual-mono design, and flexibility give it an edge over many contemporaries.
Conclusion and Legacy
The Denon PMA-980R is a high point in Denon's integrated amplifier design. It lacks the flashy badges or cult following of some Japanese rivals, but in performance and craftsmanship it stands with the best of its era.
For a modern listener building a vintage-inspired system, the PMA-980R offers detailed sound, excellent connectivity, and the ability to drive a wide range of speakers without breaking a sweat. Denon is better known for its CD players and AV receivers, but it also made some outstanding stereo components.
If you’re lucky enough to find one in good condition, consider giving it a listen. The PMA-980R might just become the quiet heart of your audio system—unassuming in appearance, but unforgettable in performance.
Market Value
┌──────────────────────────────────────────────────────────────────────────┐ │ DENON PMA-980R Nov 2026 │ ├──────────────────────────────────────────────────────────────────────────┤ │ High $386 Latest $211 │ │ Median $279 Trend — │ │ Low $147 Volume ~1/mo │ ├──────────────────────────────────────────────────────────────────────────┤ │ $400 ┤ │ │ │. │ │ │ .. │ │ $271 ┤ . │ │ │ │ │ │ .│ │ │ . .│ │ $100 ┤ │ │ ├─────────────────────────────────────────────────────────────────│ │ vol │▄ ▄▄ ▄ ▄ █│ │ └─────────────────────────────────────────────────────────────────│ │ 2026-01 2026-03 2026-06│ └──────────────────────────────────────────────────────────────────────────┘
eBay completed sales. Excludes accessories, parts, and non-working units. Hover points for details.
eBay Listings
Recently sold on eBay: $151–$331 (median $279, based on 7 completed sales, past 12 months)
