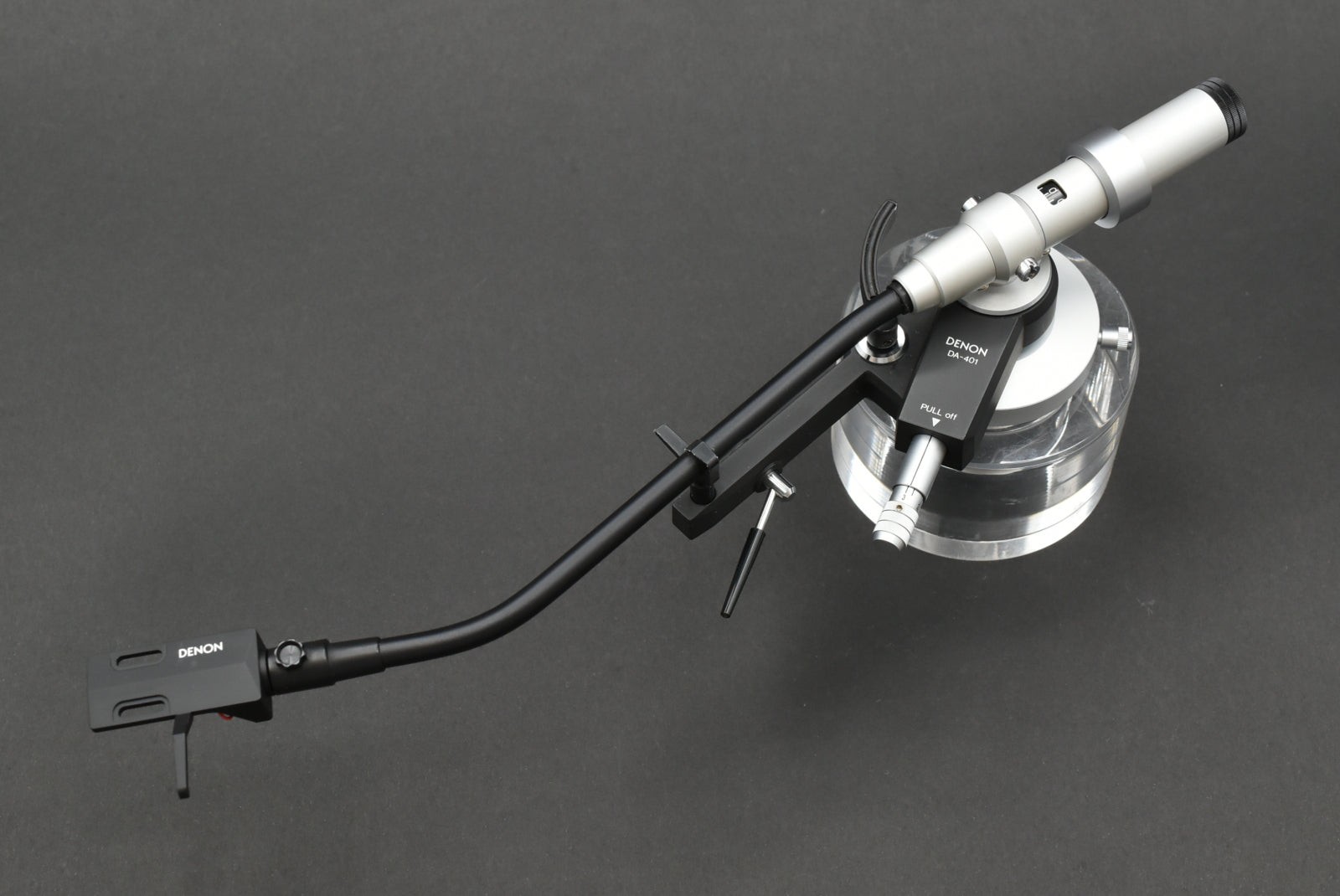

Denon DA-401 (c.1979)
At 7.5 grams effective mass, this S-shaped tonearm was built to stay out of the music's way
Overview
The Denon DA-401 isn't a name that comes up in every vintage audio circle. Released around 1979 at ¥45,000, this universal tone arm was Denon's answer to the growing demand for lightweight, high-tracking-accuracy arms during the analog renaissance of the late 1970s. Heavier arms relied on mass to control resonance. The DA-401 went the other way and stripped down inertia at the tip to improve transient response and reduce intermodulation distortion.
Key Features
7.5g Effective Mass with Rigid Light Alloy Construction
The defining trait of the DA-401 is its low effective mass of 7.5 grams (excluding cartridge). Denon got there with a rigid light alloy pipe arm and a dedicated rigid resin-made head shell. The light weight was functional, not fashion. Less mass at the arm tip lowers the risk of the arm's natural resonant frequency dipping too low, which could interfere with cartridge performance, especially with moving magnet designs. The rigid construction kept the arm sound without adding weight, so it could track complex grooves with agility. As noted in High-Fidelity (December 1979, p.61), such low-mass arms were engineered to minimize resonance and improve tracking precision.
Dynamic Damping Mechanism for Resonance Control
DENON's dynamic damping mechanism is built into the arm's structure to suppress vibrations transmitted from the arm base. It doesn't rely solely on external damping fluids or rubber isolators. It dissipates energy internally and greatly reduces partial resonance in each part of the arm. That means a more neutral presentation, with fewer colorations from mechanical feedback. This helped when the arm was mounted on turntables prone to plinth-borne vibrations.
Static Balance, S-Shape Geometry with 244mm Effective Length
The DA-401 is a static-balance, S-shaped tone arm, 322mm in total length and 244mm in effective length. It has an offset angle of 20.5° and an overhang of 14mm, which keeps peak tracking error under 2.5° across the record surface. That's a respectable figure for a universal mount arm of its era. The geometry is fixed, so setup depends on precise placement of the armboard, but once aligned it performs consistently.
Contactless Magnetic Anti-Skating with Release Mechanism
The anti-skating is a contactless magnetic control type, which applies force without physical friction. The cancellation force varies with the tonearm's position as it moves across the record, avoiding the uneven bias common in spring-based systems. A release mechanism lets you disengage the system during setup or cartridge alignment.
Oil-Damped Arm Lifter for Smooth Operation
The oil dump type arm lifter raises and lowers the arm with controlled, smooth movement. Simple spring-lift mechanisms can bounce or drop abruptly. This damped system reduces shock to both stylus and record. It isn't motorized.
0.1g Precision Needle Pressure Adjustment
Downforce is set with a needle pressure adjustment mechanism that has a 0.1g interval scale, for easy direct reading. That was uncommon on mid-tier arms at the time. The scale is clearly marked and mechanically stable, which reduces drift during playback. Sub-weights can be used for cartridges between 4g and 10g, so the DA-401 accommodates a wide range of moving magnet and moving coil designs.
Low-Capacitance Output Cord with Gold-Plated Terminals
The output cord is low-capacitance, rated at 40pF/m, and approximately 1.2 meters long. It terminates in a 5P connector, pin plug, and grounding lug, which works with standard phono preamps and headshell wiring. All electrical contacts use gold-plated terminals, which improves long-term reliability and minimizes oxidation. The low capacitance is particularly beneficial with cartridges sensitive to loading, helping maintain high-frequency extension and transient clarity.
Wide Mounting Flexibility and Height Adjustment
As a universal tone arm, the DA-401 fits a wide range of turntables. It mounts on boards between 5mm and 30mm thick, using a washer with a 31mm diameter. The height adjustment range runs from 42mm to 70mm from the armboard surface to the center of the arm pipe, which allows for different platter heights and suspension systems.
Collectibility & Value
The DA-401 doesn't appear frequently on the vintage market, and current resale prices aren't well documented. One eBay listing notes a standalone DA-401 tonearm with an arm weight of 37.3g, likely including counterweight and base assembly. Another listing pairs the DA-401 with the Denon DP-80 and calls it a "carbon fibre tonearm," though other sources describe the arm tube as rigid light alloy, not carbon fiber. That discrepancy remains unresolved. Forum users have expressed satisfaction with the arm, with one noting in 2009, "I am utterly delighted with my Denon DA-401 and ADC ZLM combination," while another suggested it "might be worth speculating on if you can find one at a decent price." Reports also describe "delicate plastic" components in the arm's structure, so long-term survival may depend on careful handling.
