Denon DRA-550 (1985)
Denon DRA-550: The Compact Classic with Big Sound
In the mid-1980s, Denon was building a reputation for high-quality audio components that balanced technical precision with musicality. The company was best known for its high-end separates and reference-grade turntables and CD players. It also made a range of integrated amplifiers for the entry-level and mid-tier audiophile market. One of these was the Denon DRA-550, a compact stereo receiver that is not as widely documented as some of its siblings.

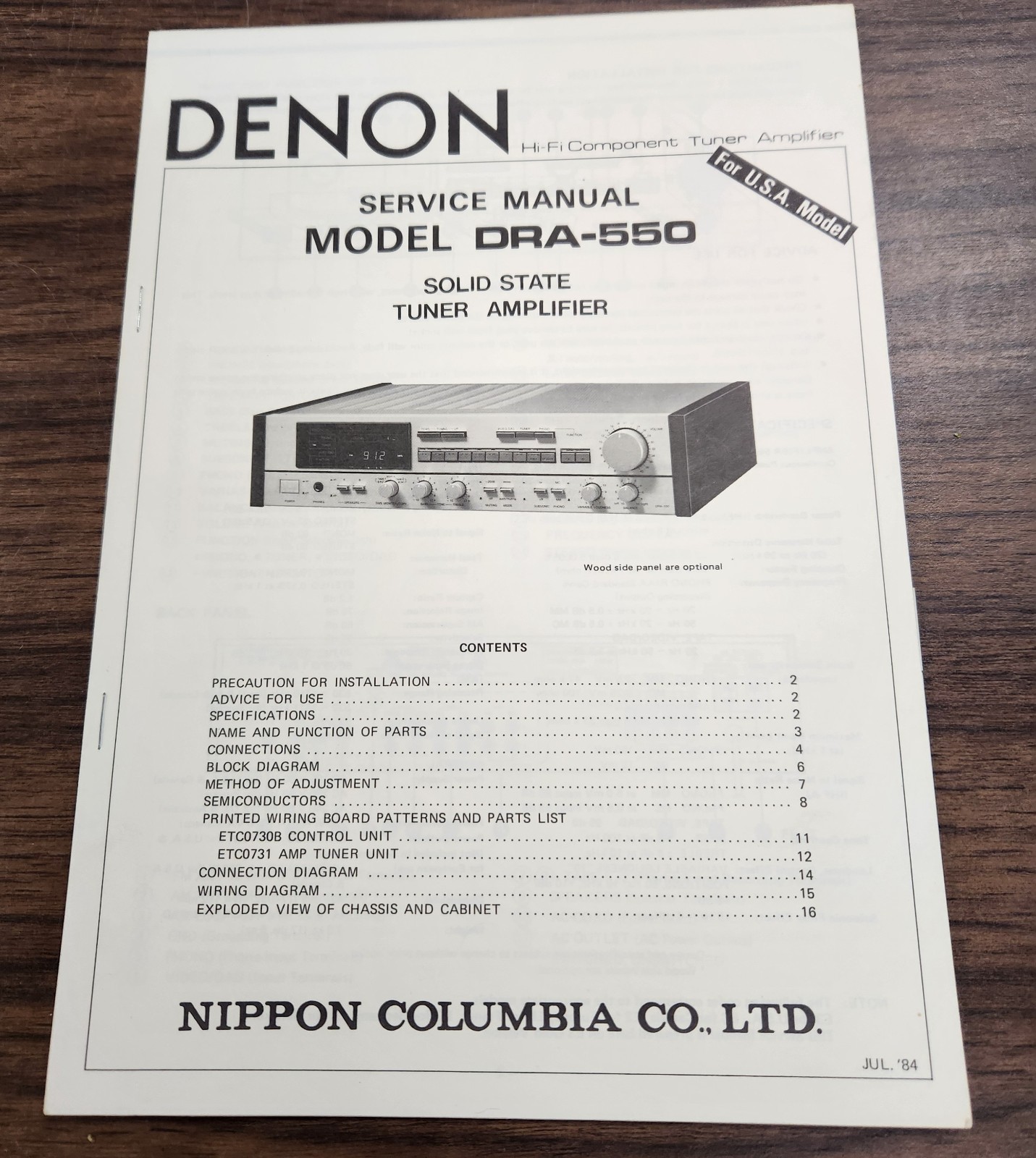

Detailed service manuals and original brochures for the DRA-550 are scarce today. Its presence in vintage audio circles suggests a unit that was well-regarded for its reliability, clean signal path, and warm Denon sound. It was built when Japanese manufacturers were pushing solid-state amplifier design hard.
Technical Specifications
This is a proper stereo receiver from Denon's lineup in the mid-80s. It was built in Japan from 1984 to 1986, and it's a solid, no-nonsense piece of kit designed for the heart of a serious compact system. It's got the heft and feel of a quality component, not a plastic toy.
| Model | Denon DRA-550 |
| Years of Manufacture | 1984 - 1986 |
| Type | Stereo Receiver |
| Output Power (RMS) | 50W per channel (8Ω) |
| Inputs | 4x Analog (including Phono MM/MC), Tape In |
| Outputs | Tape Out, Speaker A/B |
| Features | Variable Loudness, Muting, Subsonic Filter |
| Dimensions (W×H×D) | 434 x 112 x 400 mm |
| Weight | 7 kg |
| Finish | Champagne or Black |
The front panel is clean and functional, dominated by a large volume knob and straightforward source selection. The inclusion of a dedicated phono stage with both MM and MC support is a dead giveaway of its era—this was built when the turntable was still king. Its compact height (just 112mm) makes it a perfect fit for a bookshelf or a tight rack, but don't let the size fool you; it's a dense 7kg of Japanese engineering.
Sound Characteristics and Performance
Denon has long been associated with a warm, smooth, musical sound, and the DRA-550 follows that. It has a discrete solid-state amplifier section and high-quality internal components, and it sounds surprisingly full-bodied for its size.
The midrange is smooth and renders vocals and acoustic instruments with clarity and presence. Bass is tight and well-controlled, without the flabbiness sometimes found in budget receivers of the era. High frequencies are extended but never harsh - Denon's engineers clearly prioritized reducing listener fatigue, which makes the DRA-550 a good fit for long listening sessions.
It is not a high-powered beast, but its 50 watts per channel are honest and more than enough to drive efficient bookshelf speakers like the Yamaha NS-1000M, KEF Coda, or even vintage AR models. With the right speakers it shows a surprising depth of soundstage and imaging precision for a compact unit. It has that classic Denon "grip" on the music, and everything feels solid and intentional.
Notable Features and Design
The DRA-550 follows Denon's philosophy of "engineered simplicity." It has no flashy meters and skips the excess features of some contemporaries. The amplifier circuitry is discrete, which is always a good sign, since it means no cheap op-amps in the critical path. The dual Speaker A/B outputs are useful for running a second pair of speakers in another room or for easy A/B testing.
The tape monitor function is there for the cassette heads. It has both Moving Magnet and Moving Coil phono inputs, which is a serious step up for a receiver in this class. Build quality is typical Denon: excellent. The chassis is rigid, the volume pot is smooth and high-quality, and the brushed aluminum faceplate (in either champagne or black) looks quietly premium. It feels built to last, and frankly, it has.
Common Issues and Maintenance
Like any electronics from the 1980s, the Denon DRA-550 may need some attention after decades of use. Denon's build quality generally ensures good longevity. The most common issue is capacitor aging. The electrolytic caps in the power supply and signal path are now 40 years old, and they can dry out, leading to hum, weak bass, or a channel imbalance. A full recapping by a qualified technician is the single best thing you can do for one of these.
The other usual suspect is dirty controls. The volume pot and selector switches can get scratchy and noisy. A good blast of contact cleaner (make sure it's the non-residue type) usually fixes them. There's no remote control to worry about, and no complex digital systems to fail. If you find one that's dead, check the mains fuse first, though a blown fuse is usually a symptom of a deeper power supply issue.
Current Market Value and Collectibility
The Denon DRA-550 is not a high-profile collector's item like the Marantz 2270 or Pioneer SX-1980. It holds quiet appeal among enthusiasts of compact vintage systems and Denon loyalists.
Units in good working condition typically sell for $75 - $150 USD, depending on cosmetic condition, included accessories, and whether they've been serviced. Fully restored models with recapped power supplies and cleaned controls may command slightly higher prices, especially when bundled with matching Denon speakers or source components.
Its collectibility is bolstered by Denon’s strong reputation and the growing interest in space-saving vintage audio for apartments and secondary systems. While not rare, the DRA-550 is becoming harder to find in excellent, unmolested condition, making it a smart buy for those seeking a no-nonsense, sonically pleasing amplifier from the 1980s. It's a piece you buy to use, not just to display.
