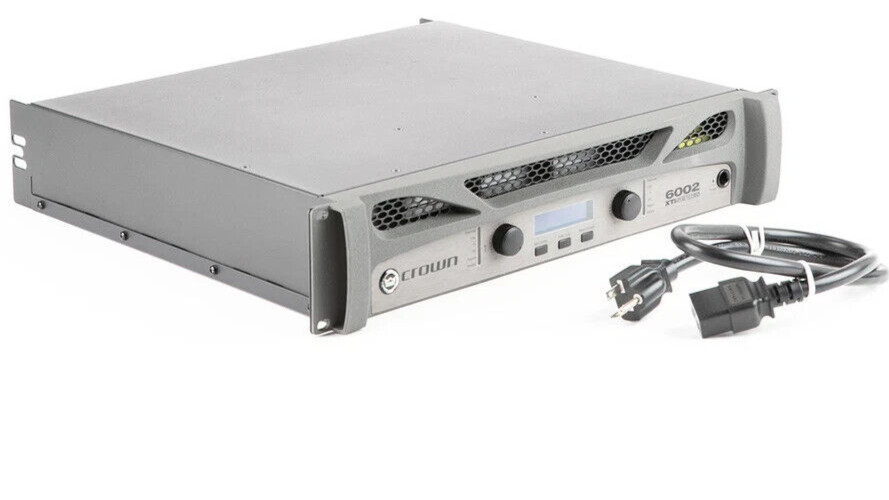

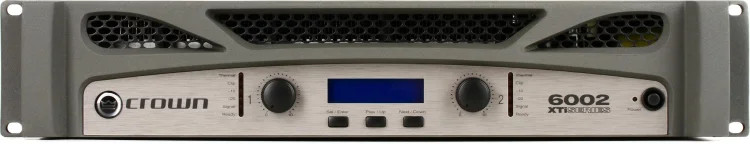

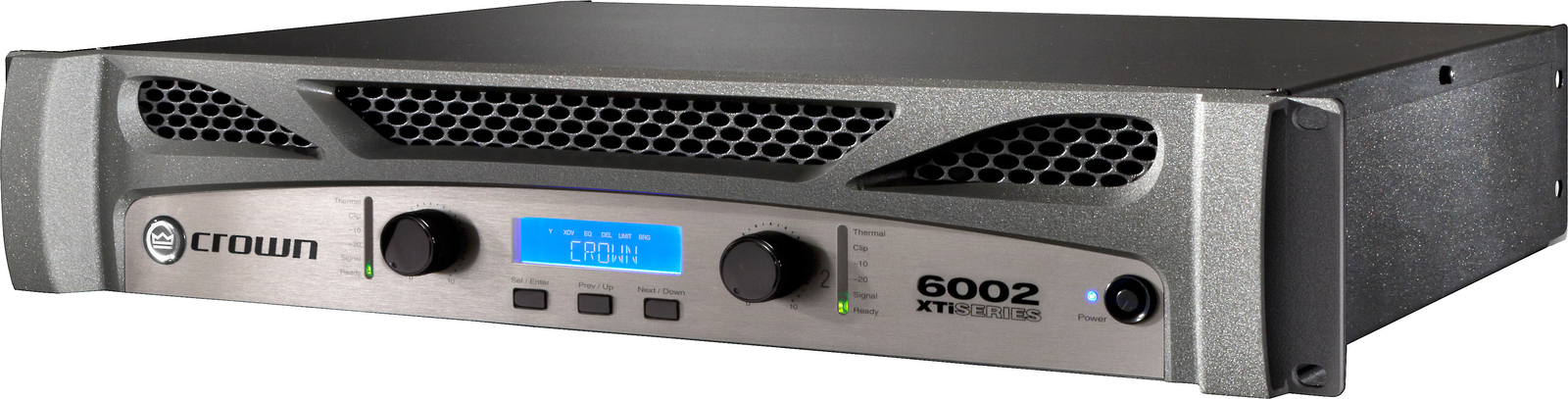

Crown XTi 6002
A DSP-controlled power amplifier from Crown's XTi Series.
Overview
The Crown XTi 6002 is a professional power amplifier in Crown's XTi Series. A front-panel LCD handles menu navigation. Processing includes InputEQ, OutputEQ, crossover, delay, and PeakStop Limiter. Inputs are balanced XLR and 1/4" TRS. Outputs come on binding posts and Speakon® connectors, so it hooks up to most speaker cabling.
Specifications
| Power Output | 2 x 1200W @ 4Ω, 2 x 600W @ 8Ω |
| Frequency Response | 20Hz–20kHz (±0.5dB) |
| THD | <0.5% |
| S/N Ratio | >103dB, A-weighted |
| Damping Factor | >2000 |
| Input Sensitivity | 1.4V |
| Input Impedance | 20kΩ balanced, 10kΩ unbalanced |
| Cooling | Variable-speed fan |
| Height | 3.5 in (8.9 cm) |
| Width | 19 in (48.3 cm) |
| Depth | 14.9 in (37.8 cm) |
| Weight | 35 lb (15.9 kg) |
Design
The XTi 6002 is DSP-controlled and comes with System Architect™ software for system tuning and monitoring. The front-panel LCD has menu navigation. Inputs are balanced XLR and 1/4" TRS, and outputs are on binding posts and Speakon® connectors. Onboard processing covers InputEQ, OutputEQ, crossover, delay, and PeakStop Limiter, which protects the speakers.
