Bowers & Wilkins DM602
A 2-way bass reflex loudspeaker with Kevlar cone and metal dome tweeter, part of Bowers & Wilkins’ 600 Series 2 lineup.
Overview

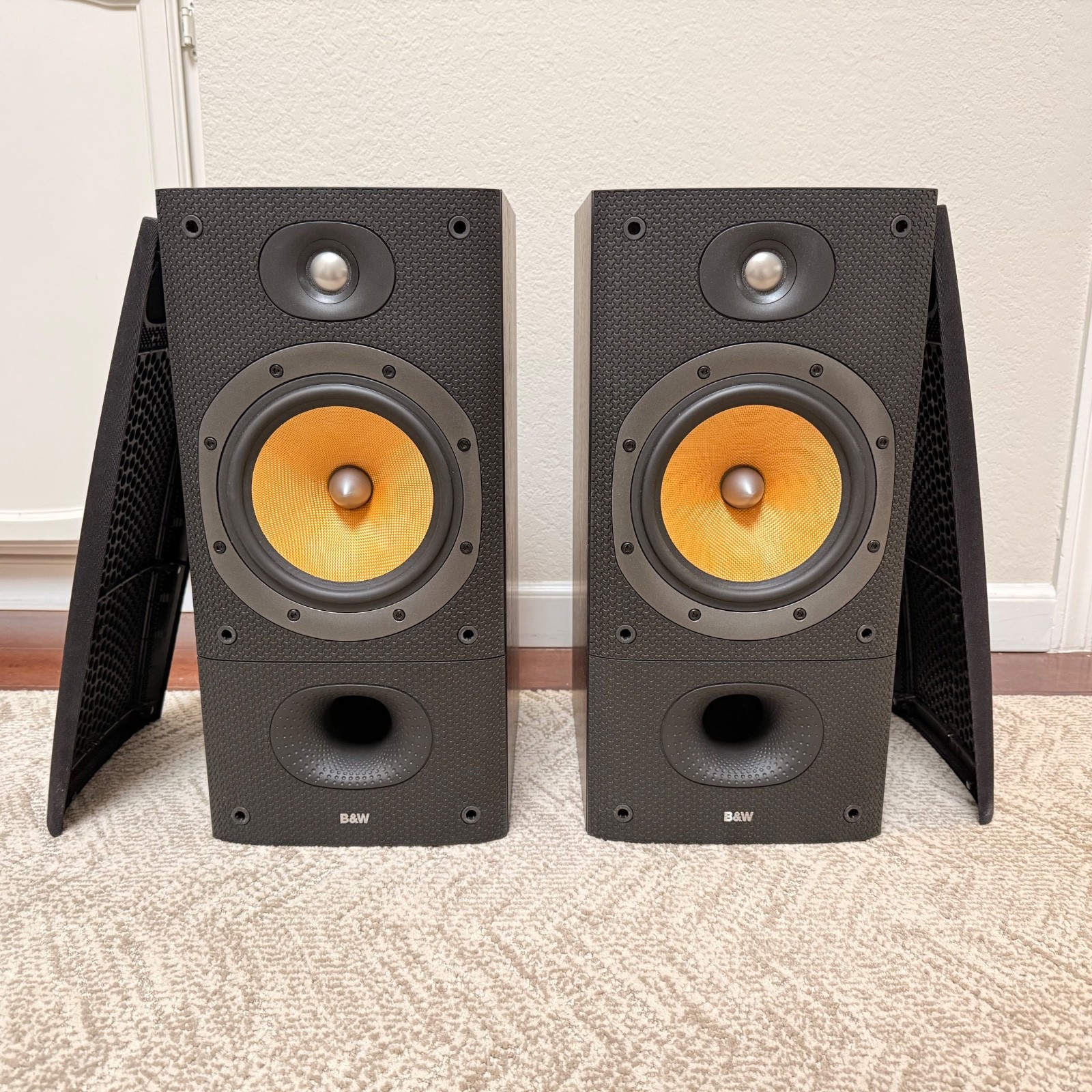

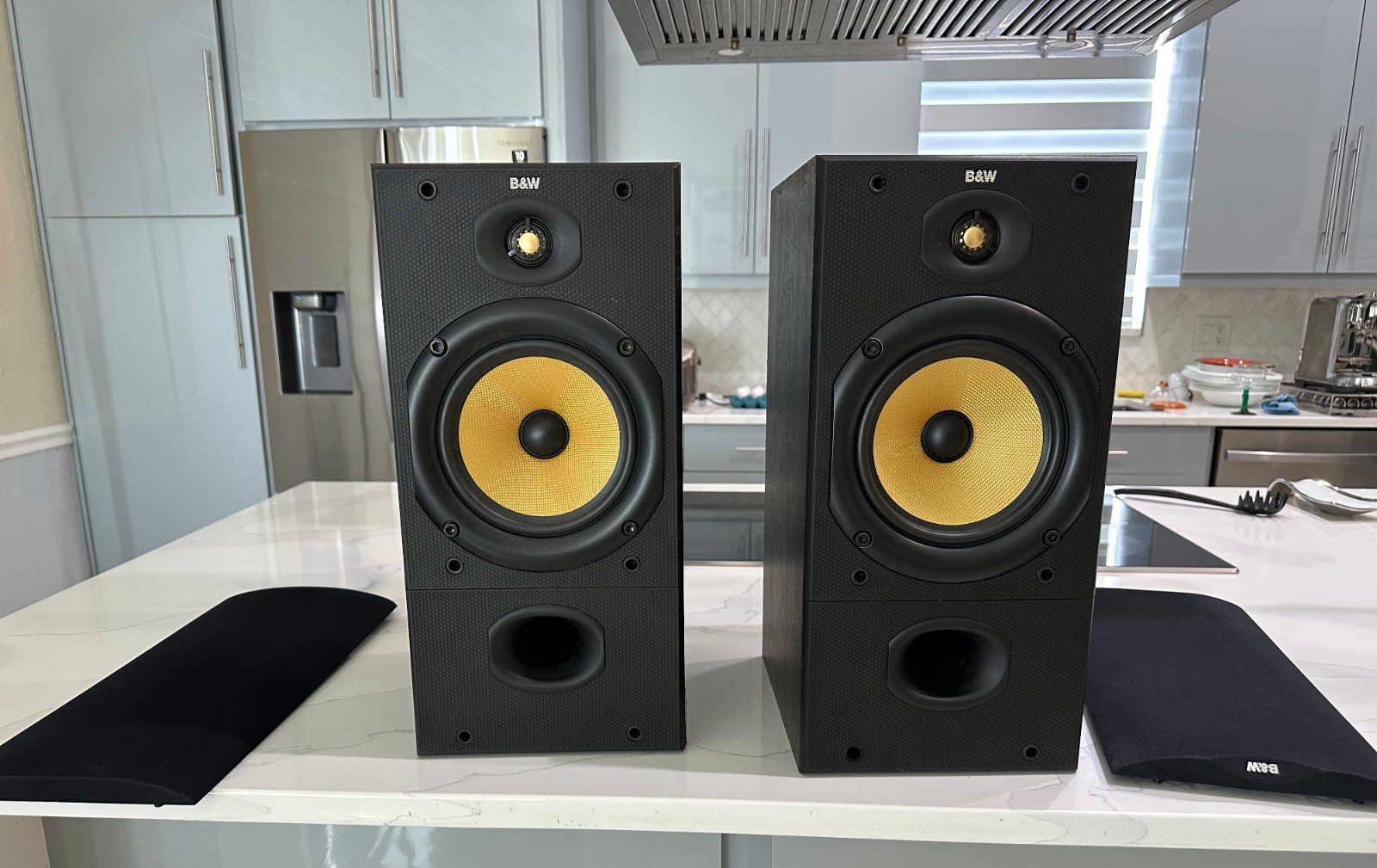

The Bowers & Wilkins DM602 is a 2-way bass reflex loudspeaker, also known as the 600 Series 2 DM602 S2. It has a 180mm Kevlar cone bass/midrange driver and a 25mm metal dome tweeter, built for accurate midrange and extended high-frequency response. The vented cabinet boosts low-frequency output and efficiency.
Specifications
| Product type | 2-way vented-box system loudspeaker system |
| Type | 2-way, bass reflex |
| Drivers | 1x 25mm metal dome tweeter, 1x 180mm Kevlar cone bass/midrange |
| Frequency Response | 48Hz - 20kHz (±3dB) |
| Crossover Frequency | 3kHz |
| Sensitivity | 90dB (2.83V, 1m) |
| Nominal Impedance | 8Ω |
| Power Handling | 120W |
| Dimensions (H x W x D) | 460 x 235 x 270 mm |
| Weight | 8.0kg |
Design
The cabinet is a bass reflex design with a front-firing port to extend low-frequency response. The 180mm Kevlar cone handles bass and midrange. It was chosen for its rigidity and low distortion. The 25mm metal dome tweeter handles the highs. The crossover splits the signal at 3kHz, matching the drivers' optimal operating ranges.
