Aiwa CS-880: The Forgotten Flagship of Cassette Excellence

Name: Aiwa CS-880
Brand: Aiwa

In the early 1980s, the cassette deck evolved from a portable convenience into a serious high-fidelity format, and few companies embraced this transformation as passionately as Aiwa. Known for their sleek designs, meticulous engineering, and competitive pricing, Aiwa carved out a strong reputation in the audiophile world. Among their most refined offerings was the CS-880, a three-head, auto-reverse cassette deck released in 1984 that represented the pinnacle of the brand’s cassette technology.

Though overshadowed in popular memory by contemporaries like the Nakamichi Dragon or the Sony TC-K855ES, the Aiwa CS-880 was a formidable machine in its own right. Designed for critical listeners and home recording enthusiasts, it combined advanced tape biasing systems, precision transport mechanics, and a host of user-friendly features that made it a standout in the upper echelon of cassette decks.

Technical Specifications

Specification	Detail
Model	Aiwa CS-880
Year Introduced	1984
Type	3-head, auto-reverse cassette deck
Head Configuration	Separate record, playback, erase heads
Tape Speed	1⅞ ips (4.76 cm/s)
Wow and Flutter	< 0.065% (weighted)
Frequency Response	20Hz – 20kHz (with CrO₂ tape)
Signal-to-Noise Ratio	66 dB (Dolby C), 72 dB (Dolby HX Pro)
Total Harmonic Distortion	< 1.5%
Head Amplifier	Discrete transistor design
Azimuth Adjustment	Manual (via front panel)
Tape Types Supported	Type I (Normal), Type II (CrO₂), Type IV (Metal)
Noise Reduction	Dolby B, C, and HX Pro
Auto Reverse	Yes
Inputs/Outputs	Line In (RCA), Line Out (RCA), Earphone (3.5mm)
Display	Dual fluorescent VU meters, status LEDs
Dimensions	430 × 135 × 330 mm (W×H×D)
Weight	9.8 kg (21.6 lbs)

Sound Characteristics and Performance

The Aiwa CS-880 was engineered for transparency and neutrality—qualities that made it especially well-suited for both playback and high-quality cassette duplication. Its three-head design allowed for independent optimization of record and playback functions, resulting in tighter tracking, reduced crosstalk, and improved high-frequency response.

Equipped with Dolby HX Pro (Headroom Extension), the CS-880 dynamically adjusted the bias during recording to maximize the tape’s dynamic range—especially beneficial with metal and chromium dioxide tapes. This feature, rare outside of high-end decks, allowed for cleaner transient reproduction and reduced distortion on peaks, giving recordings a more open and dynamic character.

The discrete head amplifier circuitry contributed to a low-noise, high-headroom signal path, preserving detail and spatial information. Users often praise the CS-880 for its balanced tonal presentation—neither overly warm nor harsh—making it an excellent choice for archiving vinyl or creating mix tapes with audiophile-grade fidelity.

When paired with quality Type IV (metal) tapes and recorded using Dolby C, the CS-880 could achieve a signal-to-noise ratio approaching that of early digital formats, a remarkable feat for analog tape in the mid-1980s.

Notable Features and Innovations

The CS-880 was packed with features that reflected Aiwa’s commitment to both performance and usability:

Auto-Reverse with True Full-Track Playback: Unlike many auto-reverse decks that compromised on head alignment or used half-track switching, the CS-880 maintained full stereo separation in both directions, thanks to its dual-capstan, dual-pulley transport system.

Manual Azimuth Adjustment: A rare feature at any price point, this allowed users to fine-tune the playback head’s alignment for optimal high-frequency response—especially useful when playing tapes recorded on other machines.

Fluorescent VU Meters: These large, easy-to-read meters provided real-time feedback on recording levels, helping users avoid distortion or under-modulation.

Dual Capstan Drive System: This minimized tape flutter and ensured consistent tape-to-head contact, contributing to the deck’s exceptional wow and flutter specs.

Logic-Controlled Transport: Microprocessor-based operation ensured precise tape handling, smooth door operation, and reliable auto-stop at tape ends.

Direct Drive Capstans: Eliminating rubber belts prone to wear, the direct drive system enhanced long-term reliability and speed stability.

Common Issues and Maintenance

Like all high-performance cassette decks of its era, the Aiwa CS-880 requires periodic maintenance to perform at its best. While built with durability in mind, aging components can affect performance:

Pinch Roller Hardening: The rubber pinch roller can harden or glaze over time, leading to speed instability. Replacement or careful rejuvenation with rubber restorer is recommended.

Capstan Shaft Oxidation: The stainless steel capstans may develop light corrosion; regular cleaning with isopropyl alcohol helps maintain smooth tape travel.

Worn Tape Guides: Metal guides can become grooved with heavy use, potentially causing tape misalignment. Inspection and polishing or replacement are advised.

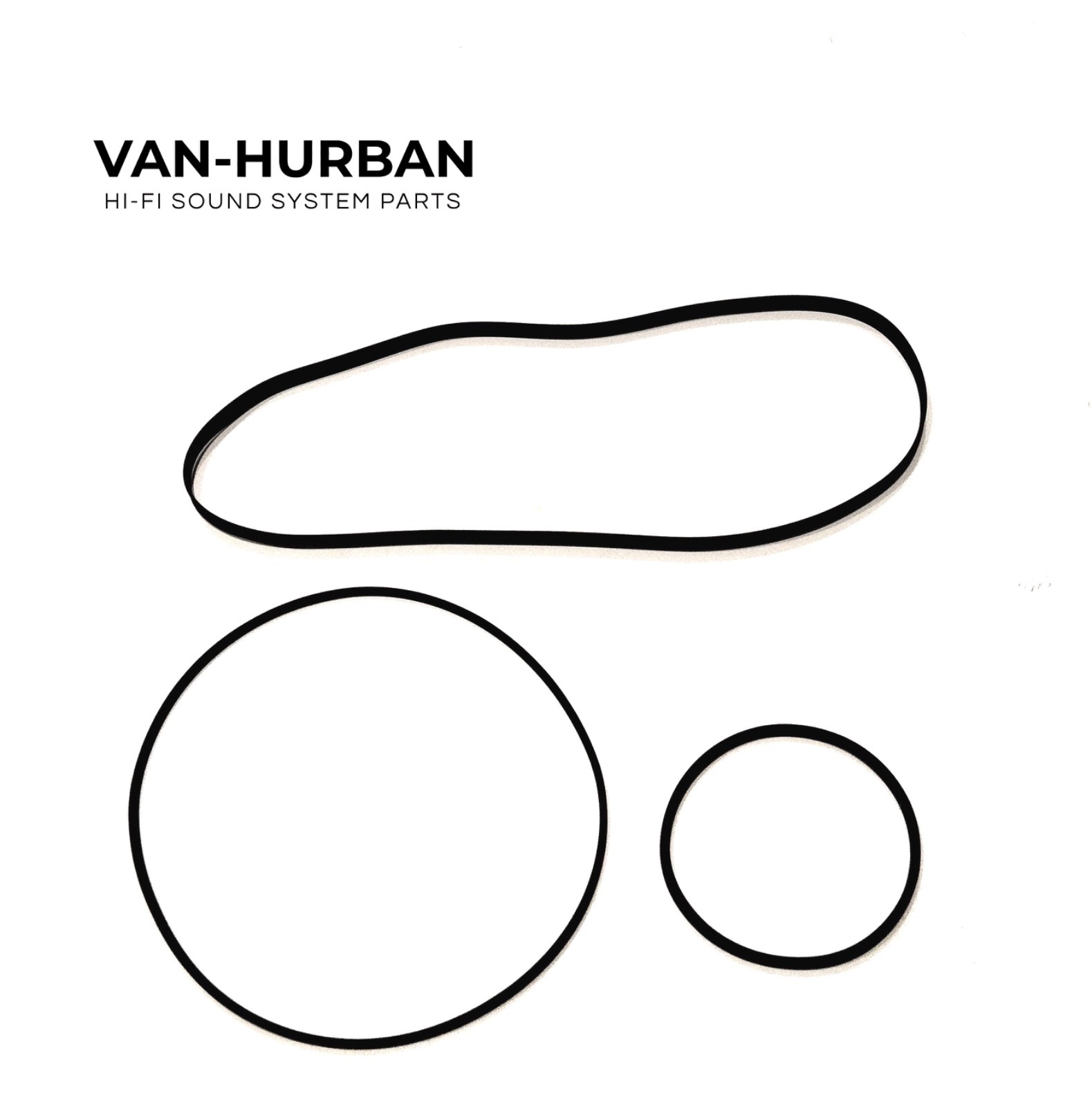

Deteriorating Belts (if applicable): While the capstans are direct drive, some internal mechanisms (e.g., tape counter, door actuator) may use small rubber belts that can degrade.

Dust Accumulation: The open head deck design is prone to dust buildup, which can affect head contact. Regular cleaning with a demagnetizer and head cleaning cassette is essential.

Given its complexity, a full service by a technician experienced with high-end cassette decks is recommended for units that have been in storage for decades.

Current Market Value and Collectibility

The Aiwa CS-880 remains a sleeper classic in the vintage audio community. While not as widely collected as Nakamichi or Revox models, it has gained a loyal following among cassette enthusiasts and DIY audio restorers.

In working condition, the CS-880 typically sells for $250–$400, depending on cosmetic condition and maintenance history. Fully serviced units with replaced rollers and cleaned heads may command higher prices, especially if accompanied by original packaging and documentation.

Its value lies in its rare combination of features—three heads, HX Pro, manual azimuth, and auto-reverse—in a relatively compact chassis. For those building a high-performance analog tape setup without the premium price tag of a Dragon, the CS-880 offers exceptional value.

Conclusion and Legacy

The Aiwa CS-880 stands as a testament to a time when cassette technology reached its analog zenith. It embodies the ambition of Japanese electronics firms in the 1980s to deliver near-studio-quality sound to the home listener. Though Aiwa eventually faded from the high-end market, the CS-880 remains a shining example of their engineering prowess.

Today, it appeals to a new generation of analog enthusiasts rediscovering the tactile joy of tape—whether for digitizing vinyl collections, creating curated mixtapes, or simply experiencing music through a warmer, more deliberate medium.

If you're seeking a capable, feature-rich cassette deck that delivers superb sound without the mythos (and markup) of more famous brands, the Aiwa CS-880 deserves a prominent place in your vintage audio setup. It may not have the name recognition of its rivals, but in performance and innovation, it absolutely belongs in the hall of fame.
