Acoustic Research AR-9LSI (1993)

Two twelve-inch woofers in a sealed tower over four feet tall - the last flagship AR built before the name changed hands.

Overview

The AR-9LSI stands 51¼ inches tall and carries a pair of 12-inch long-throw woofers in a sealed cabinet. You don't tuck it into a bookshelf. It is a floorstanding three-way built the old Acoustic Research way, and it arrived in 1993 as the flagship of the original AR lineage. It was the last one developed before the brand changed hands in the mid-1990s and moved away from its acoustic suspension roots. Collectors who follow the marque treat it as the end of a line. It measures roughly 16½ inches wide and 14½ inches deep, so it needs a real room and a real amplifier.

The design is a three-way acoustic suspension system, which is the AR house religion. No port, no passive radiator, just a sealed box using trapped air as the restoring force on the woofers. According to the design literature, the payoff is low-end authority without the bloat that ported alignments can introduce. The cost is efficiency, and here it is a real cost. The recommended amplifier range starts at 50 watts per channel and runs to 300. Owners of the closely related AR-9 have been blunt on the forums that 40 watts per channel "isn't even approaching the power needed" for this family of speakers. Budget for headroom, not just the minimum on the spec sheet.

Above the woofers sit an 8-inch midrange driver and a 1-inch soft dome tweeter, crossed over through a phase-coherent network with a time-aligned driver array. AR's stated intent was to preserve the integrity of the signal rather than flatter it. The company's whole identity rested on accuracy, going back to the acoustic suspension principle Dr. Edgar Villchur and Henry Kloss pioneered in the 1950s. The AR-9LSI is the culmination of over four decades of that thinking. It is bi-wire capable for owners who want separate cable runs to the high and low sections.

The reputation is neutral tonal balance, deep and controlled bass extension, and a lifelike midrange. The 8-inch midrange is credited with smooth vocal and instrumental reproduction, and the dome tweeter with extended highs that stop short of harshness. Contemporary coverage of the AR line in High-Fidelity (September 1985, p.40) noted that the company's crossover networks had been revised to roll off the tweeter more steeply at the bottom of its range, reducing distortion. That approach is consistent with the phase-coherent, time-aligned design carried into the AR-9LSI. Owners who have compared it directly to the classic AR-3a describe the 9 series - and the 9LSi especially - as a good deal more forward than the older speaker. That matters if you know the AR-3a's famously laid-back character. This is not the same voicing with more bass bolted on.

Key Features

Dual 12-Inch Long-Throw Woofers in a Sealed Cabinet

Two 12-inch woofers per cabinet, both long-throw, both working into a sealed acoustic suspension enclosure. They are the reason the speaker weighs what it weighs and demands what it demands from an amplifier. Acoustic suspension is what AR built its name on, and the claimed benefit here is authoritative low-frequency performance without the boom that ported designs can add. The related woofer part used in this family is described as having a powerful motor system, and the bass is characterized as rich and full-bodied with clarity and depth. Owners report that when the woofers are properly driven, the low end stays controlled rather than turning into a single-note thump.

Phase-Coherent Crossover and Time-Aligned Driver Array

The crossover is described as phase-coherent, with the drivers time-aligned so the signal arrives from each section in proper relation to the others. AR's stated purpose was signal integrity. The design brief was accurate imaging and soundstage rather than a voicing. The network is also bi-wire capable, so owners can run separate cable runs to the high and low sections. The electrolytic capacitors in that network are a known weak point at this age. Degraded caps show up as dull highs or weak bass, and replacing them with modern equivalents is one of the standard restoration steps.

8-Inch Midrange and 1-Inch Soft Dome Tweeter

The 8-inch cone midrange handles the vocal and instrumental range, and it is credited with smooth, natural reproduction through that band. The 1-inch soft dome tweeter covers the top. It is described as offering extended highs without the harshness that cheaper dome designs of the era could produce. Both drivers are part of the time-aligned array, and both sit behind a crossover tuned for phase coherence rather than a dramatic house curve.

Walnut or Rosewood Veneer Cabinet

The cabinet is finished in real wood veneer, walnut or rosewood depending on the example. Walnut is the finish most commonly seen on surviving pairs. The veneer ages and fades. Direct sunlight is the enemy, and a wood-safe polish is the maintenance tool. At this size it is as much furniture as transducer, since there is no hiding it in a room.

Historical Context

Acoustic Research was founded by Dr. Edgar Villchur and Henry Kloss, and the company's founding contribution to audio was the acoustic suspension loudspeaker, developed in the 1950s. The principle is to seal the cabinet, use the air inside as a spring, and get deep bass out of a smaller box. It runs from the company's earliest speakers to this one. The AR-9LSI, introduced in 1993, was the flagship floorstanding model of the original AR lineage and the final flagship developed before the brand changed hands in the mid-1990s. It is the culmination of over four decades of that design philosophy, and it is not as widely known as earlier landmarks like the AR-3a. Surviving examples are described in the collector market as ultra rare, which tracks with a flagship built at the end of an era and sold in modest numbers.

Collectibility & Value

The AR-9LSI scores a 7 out of 10 on collectibility. It has strong appeal among AR enthusiasts and anyone chasing high-performance vintage speakers with real engineering pedigree, but it lacks the name recognition that drives AR-3a prices. As of 2024, a well-maintained pair typically sells for $800 to $1,500 depending on condition, originality, and how much restoration has been done. Fully restored pairs with refoamed drivers and updated crossovers sit at the top of that range. The work is not optional on a speaker this age.

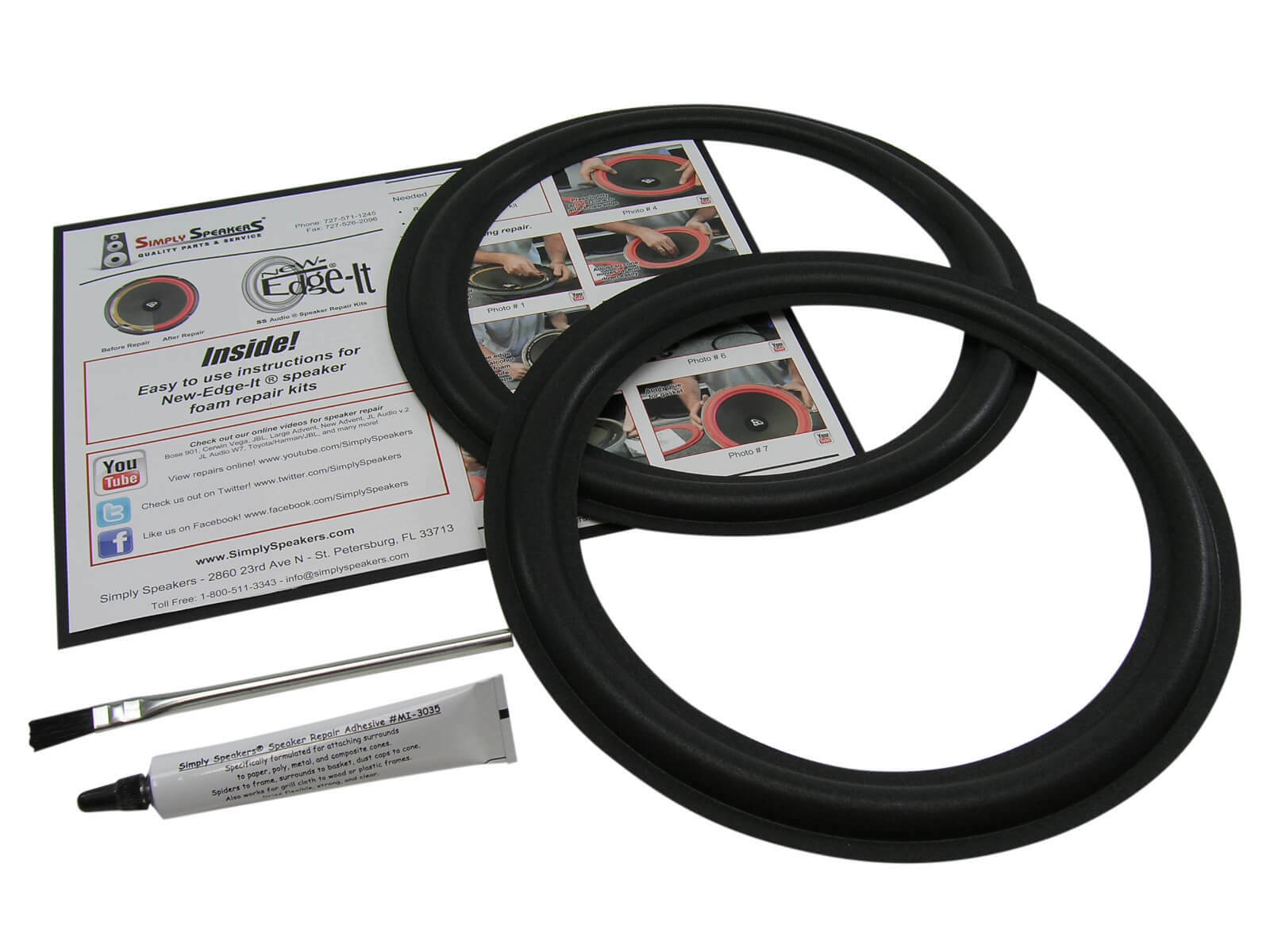

The foam surrounds on the dual 12-inch woofers and the 8-inch midrange dry out and disintegrate after 25-plus years. Refoaming by a qualified technician is the single most important restoration step, and it dramatically restores bass response and clarity. Foam surround repair kits for the AR9LSi woofer run around €10.59 including VAT, though the labor is the real cost if you are not doing it yourself. The crossover electrolytics degrade too, producing dull highs or weak bass until they are replaced. New bass chamber foam is another maintenance item owners report attending to. Auction records show pairs selling with drivers that need reconing, so inspect before you buy rather than trusting a listing photo.

Setup matters more than usual with a speaker this size. AR's guidance is to allow at least 12 to 18 inches from the rear wall and to toe the speakers in for optimal imaging. Given the sealed alignment and the power demands, a capable high-current amplifier is part of the ownership cost. The parts market is thin but present. Replacement tweeter diaphragms compatible with the AR-9LSI and MGC-1 turn up for around $16, and silk diaphragm replacements for around $15.99. Driver-level spares exist even when complete speakers do not.

A collector who values accuracy, depth, and musicality over badge prestige gets a serious speaker here, provided the foam has been done, the caps have been refreshed, and the amplifier behind it has the current to drive those twin twelves.
