Acoustic Research AR-4ax (1969)

An 8-inch woofer in a sealed walnut box, tuned to make a small room sound like a much larger one.

Overview

Acoustic Research built the AR-4ax as a compact bookshelf speaker. The cabinet is sealed and finished in oiled walnut veneer. Inside sits an 8-inch woofer working against the trapped air of the enclosure rather than a port. That's the acoustic suspension principle the company had been refining since the 1950s. It's the reason a box this size can produce bass that owners describe as surprisingly deep and articulate rather than thin and boxy.

The top end comes from a phenolic ring tweeter, the same general approach that gave the 4-series its character. Highs roll off gently above 10 kHz rather than climbing to a bright peak, so the speaker sounds warm and smooth rather than analytical. It isn't the last word in air or detail compared with some contemporary high-fidelity designs, and AR never pretended otherwise. The priority was musical coherence and tonal accuracy. Vocals and acoustic instruments sit forward in a strong midrange, which is where a speaker of this size needs to be convincing.

This is a single-source page. Nearly every specification and historical claim below traces back to one undated vintage-audio write-up, with a single eBay listing supplying the only other data point. Where a figure comes from just that one page, it's hedged accordingly. The AR-4ax is a real, documented model, but the paper trail is thin.

Key Features

8-Inch Woofer in a Sealed Acoustic Suspension Cabinet

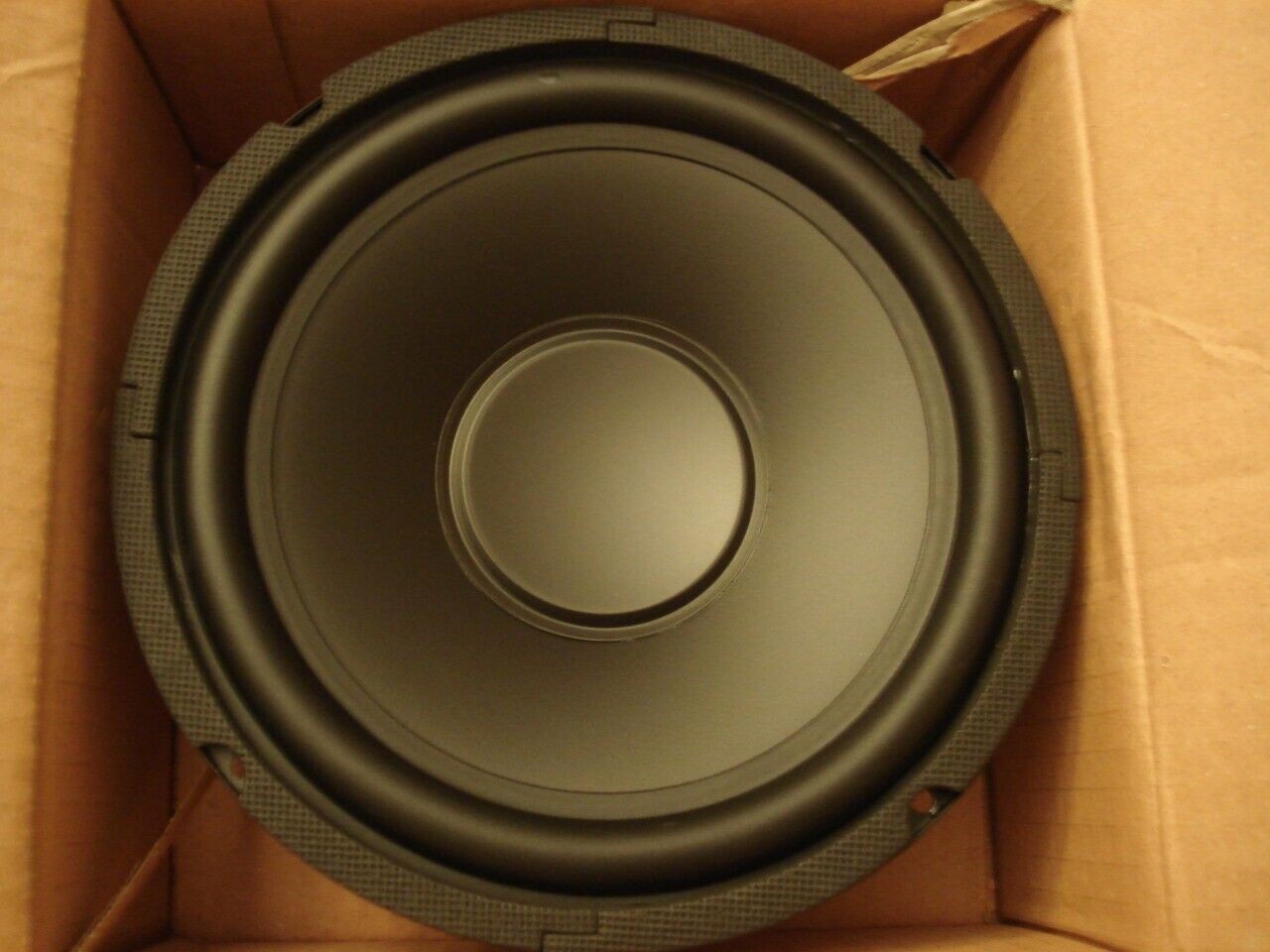

The 4ax uses a single 8-inch woofer loaded into a compact sealed cabinet. There's no port or passive radiator. The air inside the box acts as a spring against the woofer cone, which is the acoustic suspension principle Dr. Edgar Villchur and Henry Kloss pioneered at AR. In a speaker this size the result is bass that stays controlled and tuneful instead of booming, and owners consistently describe the low end as deeper than the cabinet dimensions would suggest. The woofer has a cloth surround, which is more durable than the foam surrounds that plague so many speakers of the period.

Phenolic Ring Tweeter with Gentle Roll-Off

High frequencies come from a phenolic ring tweeter that begins rolling off gently above 10 kHz. That's a deliberate voicing choice, not a limitation, and it's the reason the 4ax is non-fatiguing. A brighter tweeter might add sparkle at the cost of listener fatigue over an evening. The phenolic ring design keeps the top end smooth and lets the midrange carry the music.

Adjustable Tweeter Level Control

A tweeter level control, described in the source material as an adjustable tweeter pad, lets the owner trim high-frequency output to suit the room and their own taste. A speaker this size will behave differently on a bookshelf than on a stand, and the pad gives some latitude to compensate. The same control is also the most common failure point on a 50-year-old example.

Simple Crossover with Electrolytic Capacitors

The crossover uses electrolytic capacitors. That's period-correct and normal for 1969, but it's also the most predictable maintenance item on any AR-4ax today. Electrolytics of that vintage drift and dry out, and replacing them with modern film capacitors is the standard restoration step for anyone chasing original performance.

Oiled Walnut Veneer Cabinet

The cabinet is finished in oiled walnut veneer, which ages into a warm, low-sheen surface. Clean it with a dry or slightly damp cloth only. Silicone-based polishes will do more harm than good over time.

Historical Context

The AR-4ax arrived in 1969 as a direct evolution of the earlier AR-4x, with the improvements concentrated in the tweeter design and the crossover network. It sat within AR's broader push to refine its compact speaker line, and it landed as one of the last updates to the 4 series before the company's acquisition by Teledyne in the early 1970s.

Sonically, the 4ax belongs to what collectors call the East Coast sound: accurate, non-boomy bass, a strong and clear midrange, and a smooth, slightly rolled-off top end that avoids harshness. The 4ax helped define that character rather than merely adopting it. It is not as rare as the flagship AR-3a, and AR never positioned it as such, but it carried the same engineering philosophy into a smaller and more affordable cabinet.

Collectibility & Value

The AR-4ax carries a collectibility rating of 7 out of 10. Market value runs roughly $150-$400 per pair, with the spread driven almost entirely by condition, originality, and how much restoration work has already been done. The traits that command the top of that range are original drivers, clean cabinets, functional tweeter controls, and documented service history.

Restoration is straightforward and well understood. The adjustable tweeter pad oxidizes over time, and cleaning the potentiometer with contact cleaner, or replacing it if it crackles, is usually the first job. The crossover's electrolytic capacitors degrade after 50-plus years and should be swapped for modern film types to restore clarity and dynamics. Original foam grilles tend to disintegrate and are commonly replaced with modern acoustic fabric or reproduction grilles. The cloth woofer surrounds hold up far better than foam, but they should still be inspected for sagging, and re-coning is occasionally necessary. Replacement tweeters do surface on the used market - one listing for a 4.25-inch AR-4AX replacement tweeter was priced at $45.00 - and surround repair kits marketed for the AR 4 AX are also available from European parts suppliers. Restored pairs in good condition are reported to perform as well as they did when new.

A note on naming: sources are inconsistent, using "AR-4x," "AR-4ax," "AR 4 AX," "AR 4AX," and "4XA" somewhat interchangeably. No source explicitly confirms these all refer to the same speaker, so buyers should verify exactly which variant a listing describes before bidding.
