Roland JV-1080 (1994)

Name: Roland JV-1080
Brand: Roland

A 2U rack of PCM samples that ended up on more records than anyone can count, and still sells for less than a decent pedal.

Overview

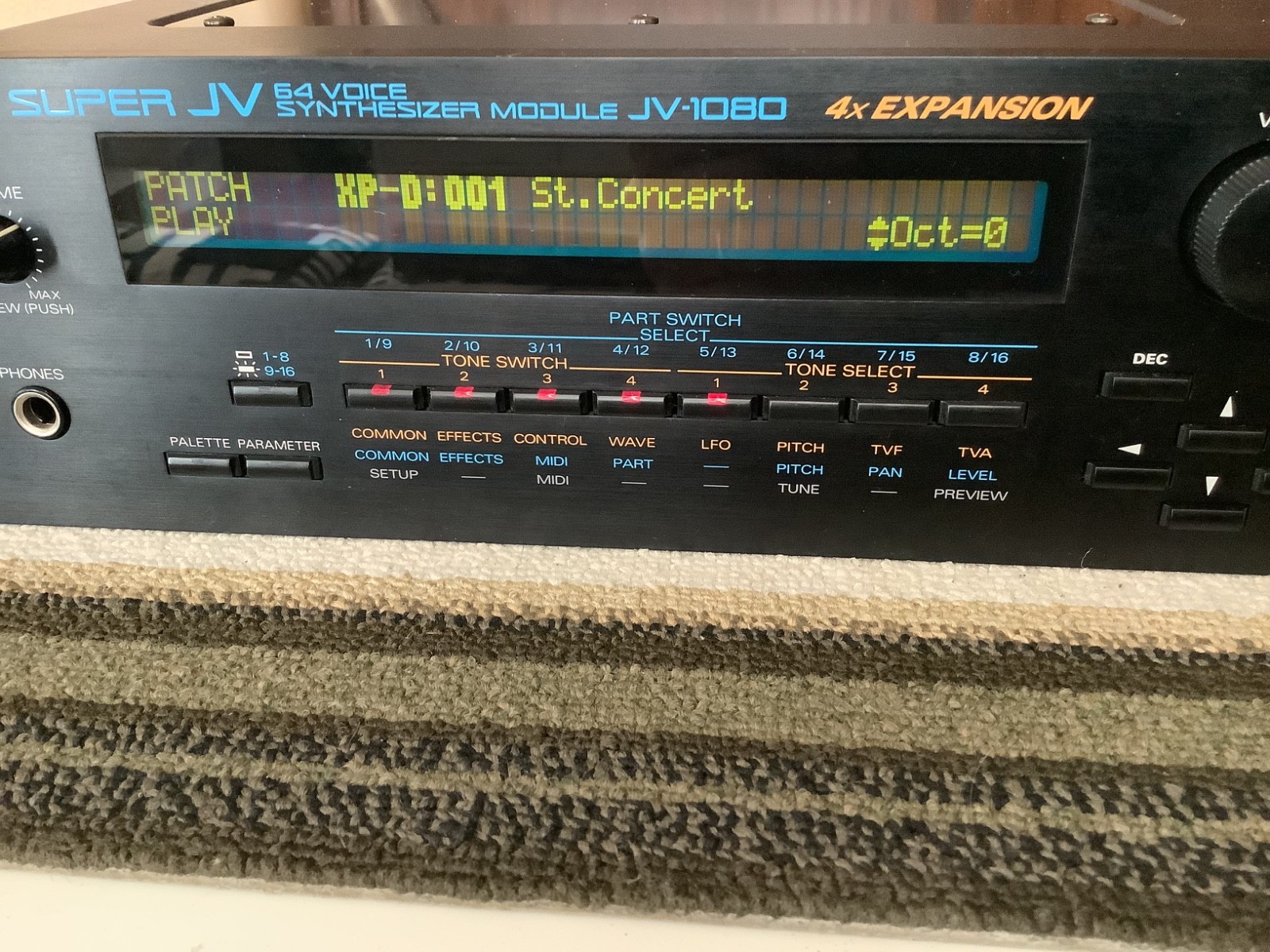

Two rack spaces, five kilograms, and a front panel with a 40-by-2-character display and not much else. The Roland JV-1080 is a sample-based synthesizer module, a PCM rompler, released in 1994. It is one of the most popular digital sound modules Roland has ever built. It packs 448 PCM waveforms into 8 MB of ROM, sampled at 32 kHz and stored at 16-bit resolution. A 64-voice engine plays them back, split into 16 multitimbral parts. Put it in a rack, point a sequencer at it, and you had an entire arrangement's worth of sounds without buying another keyboard.

The numbers look modest now. Sixty-four voices was generous in 1994 and is unremarkable today. 8 MB of ROM sounds like a rounding error next to a phone. But the JV-1080's reputation was never built on the spec sheet. It was built on the samples and what the engine let you do with them. Each tone carries two oscillators drawing from eight available waveforms, and the digital resonant filter is where the character lives. Owners describe the sound as warm and slightly unreal in a way that sits easily under a mix, and the presets have a nostalgic pull for anyone who worked in '90s production. It succeeded the JV-80, and Roland's own documentation describes it as the rack version of the JV-90 - the keyboard stripped away, the engine kept intact.

Polyphony, multitimbrality and expansion are what kept it around. Four internal slots accept SR-JV80-series wave boards, so the sound library could grow well past the stock ROM. Add the onboard effects and a special 16-track GS/GM mode, and the module could be the General MIDI backbone of a whole studio while still handling serious patch work when you needed it. That versatility is why it shows up in places people don't expect, more on that below.

Key Features

448 PCM Waveforms at 16 Bits, 32 kHz

The sample set is the instrument. Four hundred forty-eight waveforms in 8 MB of ROM, sampled at 32 kHz and stored at 16 bits, are the raw material for every patch. The manual separates one-shot waveforms, attack components like a piano hammer or a guitar's fret noise, from looped waveforms, which carry sounds with long decays. Without that split, a rompler sounds like a stack of static hits and can't sustain. The 32 kHz sampling rate is the honest limitation. This is not a hi-fi sample set, and the top end is what it is. The trade was ROM space, and the JV-1080 spends its 8 MB on variety rather than fidelity.

64-Voice Polyphony, 16-Part Multitimbral

Sixty-four voices across sixteen parts is what let the JV-1080 anchor a whole production. Sixteen multitimbral parts means sixteen separate patches responding to separate MIDI channels at once. That is enough for drums, bass, pads, leads, the lot, from one rack unit. Polyphony gets divided among those parts as you'd expect, so a dense sixteen-part sequence eats voices fast. For the era it was a serious working figure. The 32-bit RISC processor at the center of the thing is what made that part count practical.

Digital Resonant Filter and Ten Structure Variants

The filter section is a digital resonant design, and it's more flexible than the single-filter layout of many romplers. The JV-1080 offers ten "Structure" variants, which change how the two oscillators per tone are routed through the filters and envelopes. In one common arrangement, Filter 1 handles both PCM sources at once after they've been summed, and the combined signal then runs through Filter 2 and Amplitude Envelope 2. Being able to reconfigure that signal path is what separates patch programming on the JV-1080 from simply layering samples. The manual is explicit that patch editing covers filtering, envelopes, LFOs and more. It is a programmable instrument, not a preset box with a volume knob.

Two LFOs with Chaos and Random Waveforms

There are two LFOs per voice, offering sine, saw, square, triangle, trapezoid, sample-and-hold, random and chaos waveforms, with key sync or external sync available. They can modulate pitch, filter, pan or level. The chaos and random shapes are the interesting ones. They let the JV-1080 drift and breathe rather than sit perfectly still, and they're a big part of why its pads have a life that static samples don't. Owners who program rather than preset tend to lean on these heavily.

Four SR-JV80 Expansion Slots

Four internal slots for SR-JV80-series wave boards let the sound library grow well beyond the stock ROM. This kept JV-1080s in service long after newer modules arrived, since the expansion ecosystem meant the instrument could be refreshed rather than replaced. Collectors note that loaded units command more than bare ones, and a module with a full complement of boards is a different instrument from a stock example.

16-Track GS/GM Mode

A special 16-track GS/GM mode makes the JV-1080 a drop-in General MIDI sound source. For anyone running a sequencer that expected GM-compatible playback, this turned the module into a plug-and-play backbone. It's not the glamorous feature. It did put JV-1080s in studios that needed reliable, predictable sound coverage more than they needed another synth.

Historical Context

The JV-1080 arrived in 1994 as the rack version of the JV-90, succeeding the JV-80 in Roland's line. It quickly became one of the hottest and most popular digital synthesizers the company had released, and by the middle of the decade it was the standard module in studios worldwide. One contemporary account describes it as probably the best-selling synthesizer module in the world. That's hard to verify precisely, but easy to believe given how thoroughly it saturated mid-'90s production. Sound on Sound (April 1996, p.159) noted that nearly 18 months after its unveiling the JV-1080 remained a class leader in every way.

Its second life is arguably bigger than its first. The JV-1080 is one of the most influential synthesizers in video game music history. Its patches turn up in Final Fantasy IX, Kingdom Hearts, Metal Gear Solid and Resident Evil 2, among others. Film composers adopted it too, drawn by the same combination of sound quality and multitimbral flexibility that made it a studio staple. The engine was also used in Roland's XP-50 workstation, and the module has since been reborn as a Roland Cloud plugin, listed alongside the XV-5080 as one of the company's classics brought back in software.

Collectibility & Value

A module this ubiquitous sells for almost nothing. Pre-owned JV-1080s typically trade in the $150 to $330 range, a significant drop from the original retail price, which doesn't appear in the available documentation. Listings run higher than that range with some regularity, with observed asking prices of $330, $425, $500 and $600 depending on condition, bundled accessories and expansion boards. The lower figure reflects bare units. Loaded examples and clean ones pull toward the top.

The maintenance item every buyer should know about is the internal battery. A CR2032 retains all patches and settings, and on early revisions it's often soldered directly to the mainboard rather than socketed. Replacement is a soldering job, not a coin-cell swap. Replacement guides exist, and the warning that comes with them is to save your presets to a memory card or export them via SysEx before you change the battery, because you will lose everything stored in user memory. One listing notes a freshly replaced internal battery, which is worth looking for. A bundled M-512 memory card also shows up in some listings.

Owner sentiment runs warm. Many praise the sound quality and longevity, and more than a few say they'll never sell. There's at least one documented case of initial disappointment that turned around. It is a lot of instrument for the price of a mid-range pedal.
