Hammond B-3 (1954–1974): The Organ That Defined an Era of Sound

The Hammond B-3 spun sound from steel and electricity and became the voice of jazz, gospel, and rock for two decades.

Overview

If you've heard a jazz organ trio, a gospel keyboardist, or a 1970s rock solo, there's a 90% chance the sound came from a Hammond B-3. It debuted in 1954 and its final production run ended in 1974. It was the flagship of Hammond's tonewheel organs, and the standard other electric organs were judged against. The timbre comes from 91 spinning metal wheels and magnetic pickups. That gave it a level of expressiveness and harmonic control that no synthesizer or transistor organ could match at the time.

Jimmy Smith turned the organ from a background instrument into a lead voice, with blistering runs, percussive attack, and heavy use of drawbars and Leslie speaker modulation. Booker T. Jones, Keith Emerson and Jon Lord all adopted the B-3 too. They liked the tone, and they liked the feel: pulling drawbars mid-phrase, the click of the preset keys, the subtle resistance of the non-weighted keys. It demanded engagement.

Specifications

Key Features

• 91-Tonewheel Generator: At the heart of the B-3 lies its mechanical soul: 91 precisely machined metal wheels spinning near electromagnetic pickups, each generating a pure sine wave at a specific frequency. This electromechanical design produces a warmth and organic fluctuation that solid-state oscillators simply can’t replicate. The subtle imperfections—tiny speed variations, magnetic inconsistencies—are not flaws; they’re the source of the B-3’s living, breathing character.
• Nine Harmonic Drawbars per Manual: Unlike most organs of its time, the B-3 gives players real-time control over timbre via nine drawbars per manual, each corresponding to a different harmonic (from fundamental to seventh overtone). Pull them out, push them in—your sound changes instantly. Want a flute? Pull the 8' and 4'. A reedy, nasal lead? Crank the 5-1/3' and 2-2/3'. This level of sonic sculpting made the B-3 a proto-synthesizer long before the term existed.
• Integrated Vibrato and Chorus (V1/V2/V3, C1/C2/C3): The B-3’s built-in modulation system is deceptively simple but endlessly musical. The three vibrato settings alter pitch slightly at different depths and speeds, while the chorus settings layer delayed, detuned copies of the signal. Combined with a Leslie speaker, this creates the signature swirling, Doppler-effect-laden sound that defines the Hammond experience.
• Concave Radiating Pedalboard: The 25-note pedalboard isn’t just for bass lines—it’s a full expressive extension of the instrument. Its concave, radiating layout (wider at the back, narrower at the front) mimics pipe organ ergonomics, allowing for smooth glides and rapid runs. Jazz organists like Jimmy Smith used it for walking bass lines, turning the B-3 into a one-person rhythm section.
• Fixed Preset Keys: Eight preset keys (labeled Piano, Harp, Tibia, etc.) offer instant access to classic registrations. While purists often ignore them in favor of custom drawbar settings, they’re invaluable for live performance transitions and church settings where speed matters.

Historical Context

The B-3 came out of a lineage that began with the Hammond B-2, introduced in 1952, which itself refined earlier models like the T-series. The B-3 improved on the B-2 with better key contact reliability and a sturdier tonewheel generator. It also arrived just as electric gospel and hard bop jazz were rising, and both wanted expressive, sustained tones. Pipe organs were too large and expensive. Pianos lacked sustain and portability. The B-3 was affordable (relatively) and mobile (well, as mobile as 440 lbs gets).

Hammond's smart move was embracing the Leslie speaker rather than fighting it. It started out as a competitor. The Leslie's rotating horn and drum created a three-dimensional, moving sound that suited the B-3's harmonic complexity. By the late 1950s, the B-3/Leslie combo was standard, especially in jazz and gospel. Competitors like the Farfisa Professional offered lighter, cheaper transistor organs, but they lacked the B-3's depth and dynamic range. The B-3 was eventually succeeded by the Hammond C-3 in 1955, though the two were nearly identical, so the distinction is mostly cosmetic and collector-driven. The 1969 Hammond B-300 replaced vacuum tubes with solid-state circuitry. That improved reliability but lost some of the tube warmth purists liked.

Collectibility & Value

Production ended in 1974, and decades of hard use took their toll, so surviving units in good condition are uncommon. Those with original tonewheel generators and clean key contacts are very high in desirability. As of 2025, a fully functional B-3 with a matching Leslie speaker can fetch between $5,000 and $15,000 USD, depending on condition, provenance, and completeness.

Buying a B-3 takes some nerve. These are 440-pound electromechanical machines with known issues. Tonewheel generators can suffer from misalignment or bearing wear, causing dropouts or "farting" sounds (yes, that's the technical term). Key contacts corrode over time, leading to dead or intermittent notes, and cleaning them takes patience and a steady hand. The preamp tubes (in pre-B-300 models) degrade and need periodic replacement. If the Leslie isn't included, budget roughly $2,000 - $4,000 for a 122 or 147 model.

When shopping, look for units with documented service history, intact wiring, and minimal rust on the tonewheel shafts. Avoid organs that have been "converted" to MIDI unless you're specifically after that hybrid. Hear it in person. A B-3 that looks pristine but sounds thin or noisy is a money pit. A good one sounds clean and full, with a signature growl when you pull the 16' and 5-1/3' drawbars.

eBay Listings

E-MU Systems B-3 Rackmount 64-Voice Tone Wheel Organ

$560

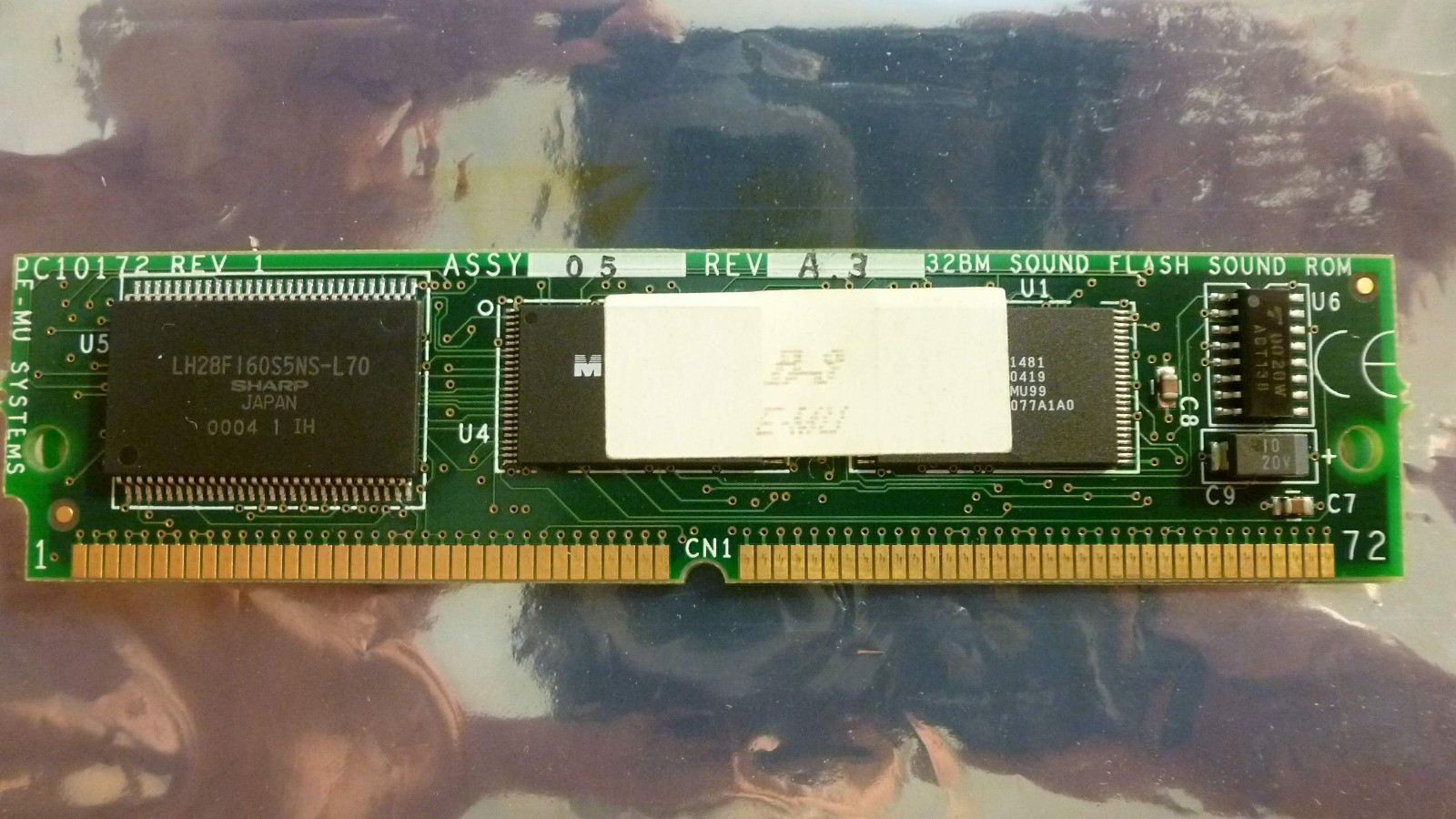

E-Mu B-3 Sound Rom
