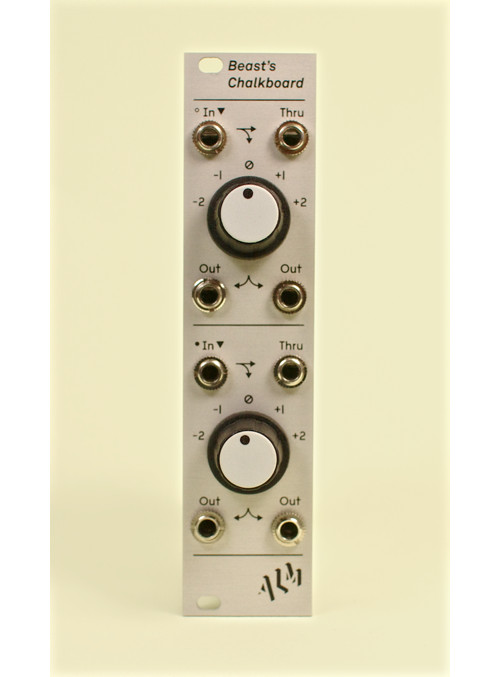

ALM Beast's Chalkboard (2013–)

A tiny 6HP brain for your modular, quietly solving tuning chaos one octave at a time

Overview

You know that moment when your dual VCO patch starts drifting, and suddenly one oscillator is harmonically lost in the wilderness? That’s when you reach for the Beast’s Chalkboard—not because it’s flashy, but because it’s the quiet hero that keeps your system speaking the same voltage language. This isn’t a sound generator or an effect; it’s a precision utility module that does one thing extremely well: it gives you rock-solid, stepped octave control over two separate CV lines, with the kind of accuracy that makes tuning feel less like negotiation and more like declaration. Born from ALM’s obsession with reliability and clean signal integrity, the Chalkboard fits in the sweet spot between a simple mult and a full-blown quantizer—offering exact 1V/octave steps from -2 to +2, meaning five octaves of perfectly calibrated shift per channel. And while it looks unassuming, that compact 6HP width hides a surprising amount of flexibility, especially when you start chaining channels or using it as a buffered distribution hub.

What makes the Chalkboard stand out in a sea of modular utilities is its dual-channel design with thoughtful normalization. Each channel accepts a CV input and lets you dial in octave offsets in precise 1V increments. But here’s the clever bit: the top input of each channel is normalized to the bottom, so if you only patch one, it automatically feeds both. That’s a small detail, but it cuts down on cable clutter when you’re doing something simple like transposing a sequencer. Each channel also has two buffered outputs and a “thru” output, meaning you can fan out your adjusted CV to multiple destinations without signal degradation—a godsend when you’re feeding several oscillators or filter cutoffs from a single source. And because it’s built with high-precision components (0.1% resistors, a stable voltage reference), it doesn’t need calibration, which means it ships ready to work and stays stable for years. That’s not something you can say about every utility module from the early 2010s.

But the Chalkboard isn’t just for pitch. Once you realize it’s essentially a dual-channel, stepped voltage adder, the possibilities open up. Want to create fixed FM ratios between two oscillators? Patch a VCO’s 1V/oct output into the Chalkboard, shift it by +1 or +2 octaves, and feed it into a modulator VCO for exact harmonic relationships. Need to transpose a sequence on the fly without recalculating voltages? Done. Want to calibrate a finicky analog oscillator that doesn’t track perfectly? Use the Chalkboard to inject a known offset and bring it back into line. It’s also a killer buffered mult—switch the octave knob to zero, and you’ve got a 1-to-6 distribution point (or dual 1-to-3), which is perfect for splitting clock, reset, or modulation signals without loading down the source. It’s this kind of multi-role utility that makes the Chalkboard feel less like a luxury and more like infrastructure—something you don’t miss until you don’t have it.

Specifications

Manufacturer	ALM Busy Circuits
Model	Beast’s Chalkboard (ALM002)
Production Years	2013–
Original Price	$135 USD
Format	Eurorack
Width	6HP
Depth	22mm
Power Supply	±12V
+12V Current Draw	30mA
-12V Current Draw	30mA
+5V Current Draw	0mA
Function	Dual Channel Stepped Voltage Source and Adder
Octave Range	-2 to +2 volts (5 octaves) per channel
Step Resolution	1V per step
Outputs per Channel	2 Buffered Outputs + 1 Thru Output
Normalization	Top input normalized to bottom input per channel
Chaining Capability	Bottom channel output can feed top channel input for extended range (up to ±4 octaves, 9 total)
Mult Function	1→6 or dual 1→3 buffered mult
Construction	Designed and built in England

Key Features

Dual Precision Octave Switching

The Chalkboard’s core function is deceptively simple: take a CV signal, shift it in exact 1V/octave steps, and output it cleanly. But in practice, that simplicity is its strength. Each of the two channels operates independently, letting you transpose two different sources—say, a main VCO and a modulation oscillator—by different amounts. The stepped control ensures no voltage drift between positions, so you’re never guessing whether +1.98V is “close enough” to +2V. This is especially valuable when working with analog oscillators that may have slight tracking inconsistencies. Because the module uses precision resistors and a stable reference, the steps are repeatable and accurate across systems and over time. And since the steps are discrete, not continuous, you can’t accidentally drift off-key by a few cents—every setting is a known quantity. That’s the kind of reliability that makes live performance patches feel bulletproof.

Buffered Mult & CV Distribution

Beyond octave shifting, the Chalkboard doubles as one of the cleanest buffered mults in the Eurorack ecosystem. With two buffered outputs and a thru per channel, it can distribute a single CV, clock, or gate signal to up to six destinations without loading the source or degrading the signal. This is crucial when you’re splitting a delicate LFO or a high-impedance envelope to multiple modules—something a passive mult might struggle with. The buffering ensures consistent voltage levels across all outputs, so your filter, VCA, and modulation targets all respond the same way. And because the mult function is always active (even when the octave knob is at zero), you can use the Chalkboard as a permanent distribution hub in your system. It’s not just a utility—it’s infrastructure.

Chainable Design for Extended Range

One of the Chalkboard’s most underrated features is its ability to chain the two channels for extended octave shifts. By patching the output of the bottom channel into the input of the top, you can stack octave offsets—say, -2 from the first channel and another -2 from the second, giving you a total of -4 octaves. That pushes the effective range from ±2 to ±4 octaves, or nine total octaves of shift. This is incredibly useful when you’re working with sub-audio oscillators, ultra-low drones, or when you want to transpose a sequence across multiple registers without re-patching. It turns a simple octave switch into a modular transposition engine, letting you explore extreme pitch spaces with surgical precision.

Historical Context

The Beast’s Chalkboard arrived in 2013, right as Eurorack was shifting from a niche hobbyist format to a mainstream force in electronic music. At the time, many systems were growing in size and complexity, but utility modules—especially those focused on CV manipulation—were still relatively basic. Most octave shifters were single-channel, unbuffered, or lacked precision. ALM, already known for their no-nonsense, engineer-driven design philosophy, saw a gap: a need for a compact, reliable, and multi-functional octave control module that could keep up with increasingly complex patches. The Chalkboard wasn’t flashy, but it solved real-world problems—tuning drift, CV loading, and patch inflexibility—with a minimalist, build-it-right approach. It stood in contrast to more feature-heavy modules from competitors like Make Noise or Intellijel, which often prioritized experimental interfaces over utility. Instead, the Chalkboard was the Swiss Army knife of voltage control: not exciting on paper, but indispensable in practice. It also reflected ALM’s roots in the UK DIY and industrial synth scene, where reliability and precision were valued over gimmicks. In a world of chaotic, unpredictable patches, the Chalkboard was the grounding wire.

Collectibility & Value

The Beast’s Chalkboard has aged exceptionally well—not because it’s rare, but because it’s useful. Unlike flashier modules that fall out of favor, the Chalkboard remains a staple in both beginner and expert systems, which keeps demand steady. It’s not a “grail” module, but it’s a “must-have” for many, and that consistency translates to stable resale value. On the used market, expect to pay between $75 and $110 depending on condition and region. UK-based sales often list it around £75–£90, while US prices hover near $100. EU listings can vary, but €90 is a common midpoint. Since it’s been in continuous production since 2013, there’s no scarcity premium, and NOS (new old stock) units don’t command much more than used ones—because new units are still available. That also means counterfeits are rare; if you see one, it’s likely legit.

Failures are uncommon, but not unheard of. The most frequent issue reported by technicians is power connector wear, especially on units that have been frequently removed from cases. The 22mm depth makes it skiff-friendly, but that also means the power cable can be stressed if the module is crammed into a tight space. There are no user-serviceable parts—no trimmers, no switches to fail—so if it powers up, it usually works as intended. No firmware, no hidden modes, no digital brains to corrupt. That’s part of the appeal: it’s a passive-acting, analog-precision module with no moving parts beyond the rotary switches. When buying used, check that the knobs turn smoothly and that all outputs respond consistently. A multimeter test at -2, 0, and +2 settings can confirm voltage accuracy—anything within ±10mV is acceptable, though most units are much tighter. Given its role as a tuning reference, even small deviations matter.

For new users, the Chalkboard is still worth the $135–$145 retail price—especially if you’re running multiple oscillators or complex sequencing. It’s not the kind of module that inspires awe, but it’s the kind that makes you wonder how you ever patched without it. And for vintage collectors, it’s a snapshot of early 2010s Eurorack philosophy: functional, no-frills, and built to last. It may not have the cult status of a Doepfer A-100 or the mystique of a Buchla, but in the quiet economy of modular utilities, the Chalkboard is quietly essential.
