KODAK BROWNIE HAWKEYE
The Kodak Brownie Hawkeye is an iconic American box camera introduced in 1949 as a premium iteration in the long-running Brownie series. Designed for amateur photographers and families, it combined simple operation with robust construction and improved optics for its class, becoming one of the most recognizable and widely produced box cameras of the postwar era.
Overview
The Brownie Hawkeye was released at a time when amateur photography was rapidly expanding in post-World War II America. Kodak, already a dominant force in consumer imaging, sought to modernize its entry-level offerings while maintaining affordability and ease of use. The Hawkeye represented a significant upgrade over earlier Brownie models, featuring a streamlined Bakelite body, a more advanced optical system, and a reliable flash synchronization capability—features that positioned it as a bridge between basic toy cameras and more sophisticated amateur equipment.
Targeted primarily at middle-class families, children, and casual photographers, the Brownie Hawkeye emphasized simplicity and durability. It utilized the 620 film format, a Kodak-exclusive medium that was mechanically identical to 120 film but wound on a smaller spool, ensuring continued consumer reliance on Kodak film products. The camera's design was both functional and aesthetically modern for its time, with a high-gloss black Bakelite body, prominent viewfinder hood, and a distinctive red "Hawkeye" logo on the front, reinforcing brand identity.
The Hawkeye was part of Kodak’s broader strategy to dominate the snapshot market by offering a tiered product lineup. Positioned above the basic Brownie models like the Brownie 127 and below more advanced folding or rangefinder cameras, the Hawkeye offered improved image quality without complicating the user experience. Its fixed-focus lens and single-speed shutter required minimal technical knowledge, making it ideal for capturing everyday moments—birthdays, vacations, and family gatherings—with consistent results.
Specifications
| Specification | Value |
| Type | Box camera |
| Film Format | 620 film (producing eight 6×6 cm exposures per roll) |
| Years Produced | 1949–1961 |
| Lens Mount | Fixed, non-interchangeable |
| Lens | 85mm Kodak Anastigmat f/11 (single-element meniscus lens in later versions; Anastigmat in early models) |
| Focus | Fixed focus (optimized for subjects 8 feet to infinity) |
| Shutter | Rotary (rotating disc) shutter with two speeds: Bulb and 1/30 sec (later models standardized on 1/30 sec) |
| Aperture | f/11 (fixed) |
| Metering | None (sunny-16 rule recommended) |
| Exposure Modes | Manual via shutter speed selector (B or 1/30 sec) |
| Viewfinder | Direct optical viewfinder with wire frame and hood |
| Flash Support | Yes, with M-sync contact and accessory shoe for flashbulb adapters (e.g., AG-1) |
| Film Advance | Manual knob wind with red window on back for frame numbering |
| Body Material | High-impact Bakelite (polystyrene in later production runs) |
| Dimensions | 13.3 × 9.5 × 9.5 cm (5.25 × 3.75 × 3.75 in) |
| Weight | Approximately 450 g (1 lb) |
Key Features
- Bakelite Construction: Durable, lightweight, and resistant to impact, the glossy black Bakelite body gave the Hawkeye a premium feel compared to earlier cardboard or pressed-metal Brownies.
- Improved Optics: Early models featured a 85mm Kodak Anastigmat lens, a significant upgrade over the simple meniscus lenses used in base models, delivering sharper images and better contrast.
- Flash Synchronization: One of the first Brownie models with built-in flash support (via M-sync), enabling indoor and low-light photography with flashbulbs.
- Rotary Shutter with Bulb Option: The dual-speed shutter allowed for time exposures (Bulb) and standard daylight snapshots (1/30 sec), increasing creative flexibility.
- Red Window Frame Counter: Located on the back, this allowed users to manually align frame numbers printed on the film backing paper, ensuring proper exposure spacing.
Historical Context
The Brownie Hawkeye was introduced in 1949, during a period of economic growth and rising consumerism in the United States. Kodak capitalized on the demand for accessible photography by refining the Brownie line, which had been in production since 1900. The Hawkeye was marketed as a "deluxe" box camera, priced at around $5.95 (approximately $70 in 2024), making it affordable for most households. Its release coincided with the peak popularity of snapshot photography and the widespread use of flashbulbs for indoor events.
Competitors in the box camera market included the Argus C2 (though more advanced), the GAF Ansco Shur-Shot, and various models from Universal and Keystone. However, Kodak’s brand recognition, nationwide film development network, and aggressive marketing gave the Brownie Hawkeye a distinct advantage. Advertisements often featured children using the camera, reinforcing its image as a family-friendly tool for preserving memories. Over a million units were produced during its 12-year production run, a testament to its commercial success.
Collectibility & Value

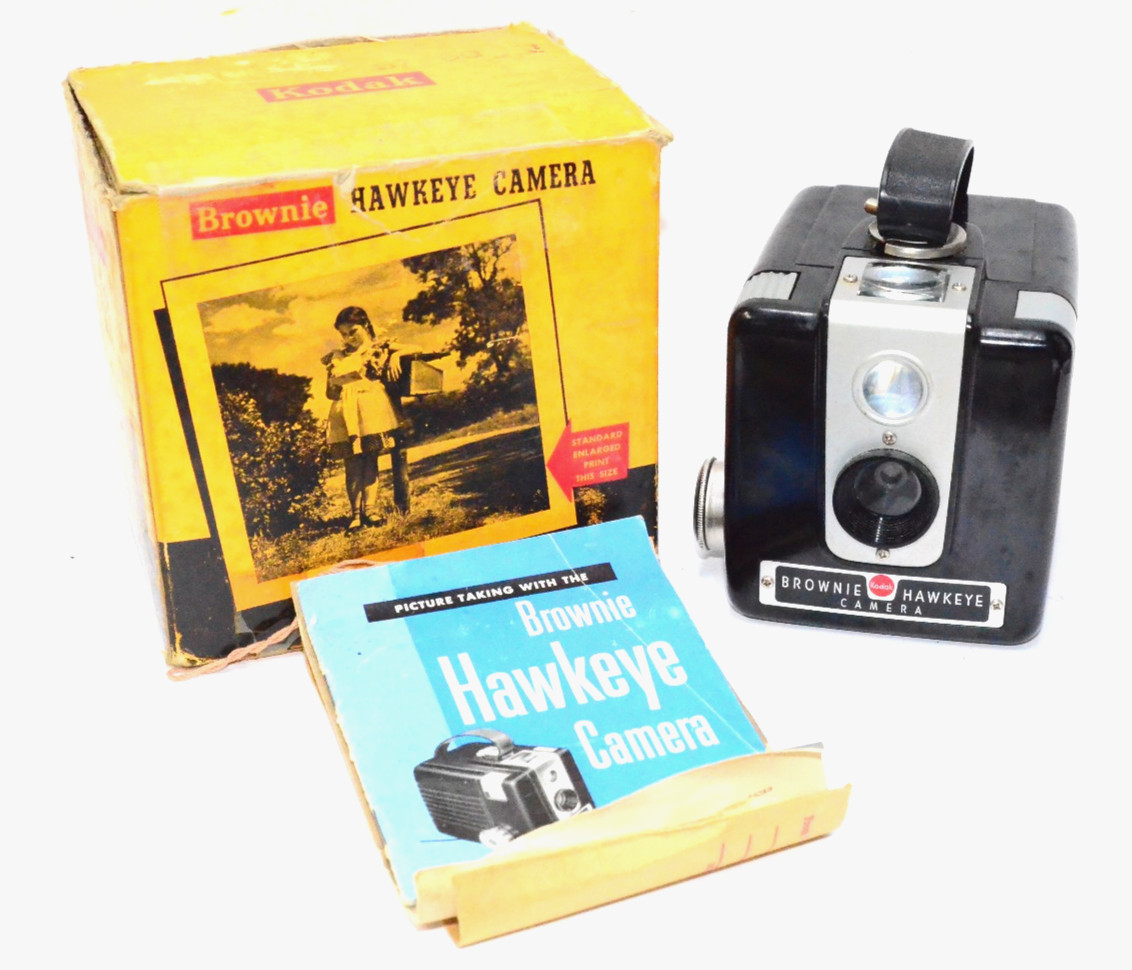

Today, the Brownie Hawkeye is a sought-after collectible among vintage camera enthusiasts and photography historians. Its iconic design, cultural significance, and association with mid-century American life contribute to its enduring appeal. In excellent condition, with intact finish, functional shutter, and original strap, values typically range from $50 to $150. Early models with the Anastigmat lens and original flash accessories can command higher prices, especially if boxed or accompanied by original literature.
When purchasing a Brownie Hawkeye, collectors should inspect the Bakelite body for cracks, crazing, or fading—common issues due to age and UV exposure. The shutter mechanism, particularly the spring in the rotary disc, may be sluggish or stuck; cleaning and lubrication by a specialist may be required. The red window can become opaque due to dried adhesive or paint, and the viewfinder hood may be missing or broken. While the camera can still be used with 620 film (or respooled 120 film), the fixed aperture and slow shutter speed limit its practicality in variable lighting conditions.
Similar Cameras
- Ansco Shur-Shot Reflex – A comparable mid-tier box camera with similar 620 film use and flash capability.
- Kodak Brownie Starflash – A later model with built-in flash and similar form factor.
- Universal Mercury II – A more advanced box camera with scale focusing and better lens options.
- Kodak Brownie Cresta – UK-market box camera using 620 film, similar in concept but with different styling.
- GAF Tenex – A 1960s box camera with built-in flash and simple zone focusing.
Repair & Maintenance
The Brownie Hawkeye requires no batteries and operates entirely mechanically. The rotary shutter is prone to sticking over time due to dried lubricants or dust accumulation; disassembly and cleaning with appropriate solvents are often necessary. The film advance knob and take-up spool should turn smoothly; if binding occurs, the internal spool gears may need inspection. The flash sync contact should be cleaned with contact cleaner if used with modern adapters. Due to the fragility of aged Bakelite, repairs should avoid excessive force or heat. Replacement parts are scarce, so preservation of original components is recommended. Regular use with respooled 620 film (from 120) is possible but requires careful loading to avoid light leaks.
