Yamaha CT-810 (1976–1979)

A silver-faced tuner with smarts under the hood—and a few quirks that keep restorers busy.

Overview

Don’t let the clean, understated faceplate fool you: the Yamaha CT-810 isn’t just another pretty tuner from the late ’70s. It’s a deliberate piece of engineering, born from Yamaha’s high-end CT-7000 development program—a “super sophisticated audio component for the spare no expenses audiophile,” according to internal documentation. The CT-810 was the more accessible spin-off, part of Yamaha’s “Natural Sound” series, designed to deliver clean, fatigue-free listening without the flagship’s price tag. Introduced in 1976 and likely produced through 1979, this AM/FM stereo tuner balances thoughtful circuit design with practical features, wrapped in a wood-veneered chassis that still turns heads on a rack.

It’s not flashy, but it’s smart. The CT-810 was built for people who actually listened to the radio—not just as background noise, but as a source of music and information worth hearing clearly. Owners report excellent sensitivity and selectivity, with a clean audio reproduction that fits Yamaha’s 1970s house sound: smooth, effortless, and surprisingly engaging over long sessions. One reviewer flat-out called it “an excellent FM tuner,” and while not every assessment is that glowing—some note it was “a budget tuner at best”—its technical foundation suggests Yamaha didn’t cut corners where it counted.

Specifications

Key Features

Stable and Sensitive Front End

The CT-810’s front end is built for performance: an all-FET, four-gang capacitor design with a MOS FET and special transistor local oscillator. This setup delivers high signal-to-noise ratio, excellent stability, and strong rejection of interference—critical for pulling in weak stations without hash or drift. It’s not just sensitive; it’s smart about how it handles signals, minimizing distortion before the audio even hits the decoder.

NFB PLL MPX Section with Pilot Cancellation

Yamaha’s stereo decoding circuit is a standout. The NFB (Negative Feedback) Phase-Locked Loop (PLL) MPX section provides stable, low-distortion stereo separation, with a clever pilot cancellation system that reduces crosstalk and improves clarity. Unlike some tuners that let the 19kHz pilot bleed into the audio, the CT-810 actively suppresses it, contributing to its clean, fatigue-free sound.

Optimum Tuning System (OTS)

The OTS was Yamaha’s attempt at “set it and forget it” tuning—automatic fine-tuning that locks onto stations for minimum distortion and maximum stereo separation. In theory, it’s brilliant: you tune close, and OTS dials in the perfect alignment. In practice? It’s a known weak spot. Reviewers note the OTS system “can be problematic and often these tuners drift out of calibration.” One blunt assessment: “ALL of Yamaha's OTS tuners (even in their receivers), aren’t the best system.” If you’re buying one today, expect to recalibrate or disable it.

Twin-Meter FM Tuning

Flanked by subtle backlighting, the twin analog meters do double duty. One shows signal strength—useful for gauging reception quality—while the center-zero tuning meter makes precise station alignment intuitive. It’s a classic touch that turns tuning into a tactile experience, not just a hunt for the clearest sound.

Twin-Level Muting

No one likes hearing static between stations. The CT-810 offers two muting levels: one for silencing weak signals, another for blocking inter-station noise. It’s a small feature, but it makes scanning the dial far more pleasant, especially in areas with crowded FM bands.

High Blend and Dolby Adaptor Provision

The high blend switch reduces high-frequency hiss on stereo FM broadcasts—a subtle but effective way to clean up marginal signals without sacrificing stereo imaging. And for those running a Dolby B or C noise reduction unit, the CT-810 includes dedicated provision to integrate it into the signal chain, a nod to the era’s obsession with lowering noise floors.

High-Performance AM Section

AM gets respect here. With an untuned RF stage, differential mixer, and peak detector, the MW (medium wave) section is optimized for clarity and selectivity. Sensitivity is rated at 300uV, and the 30dB selectivity at 300kHz helps reject adjacent stations. For a 1970s tuner, that’s solid—especially when paired with the 50dB signal-to-noise ratio.

Design and Build

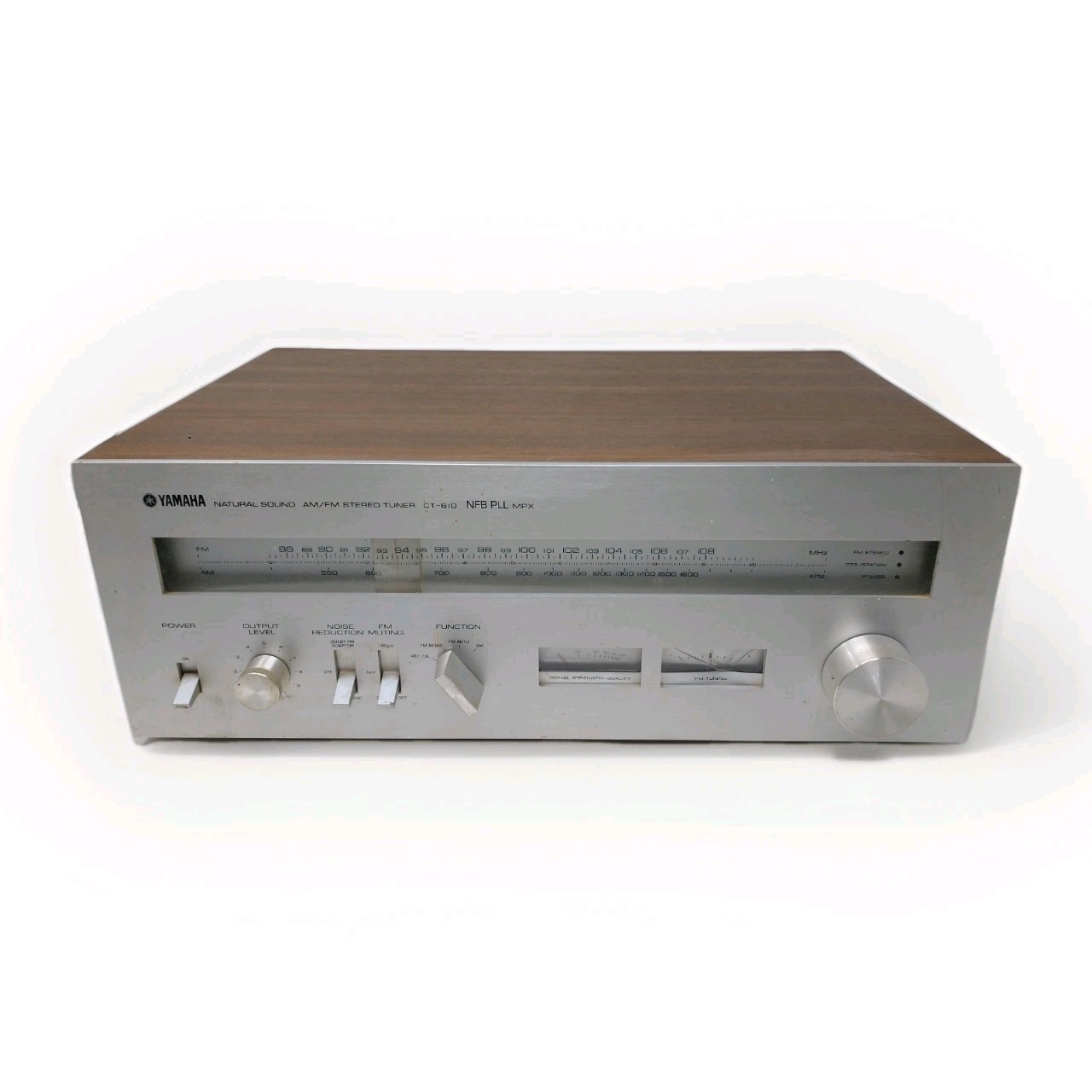

Visually, the CT-810 leans into the era’s aesthetic: a silver faceplate, wood-veneered sides, and a stylish dial with subtle backlighting. It’s not flashy, but it’s handsome in a way that ages well. The 5.9kg weight suggests a solid chassis, and the component layout—29 transistors, 4 ICs, 3 FETs—shows Yamaha didn’t skimp on parts count. It’s dense with tech, but neatly executed.

Historical Context

The CT-810 wasn’t developed in a vacuum. It was a “spin off from our CT-7000 development program,” a high-end tuner built for audiophiles who spared no expense. That lineage shows in the circuit design—especially the front-end architecture and PLL MPX decoder. While the CT-7000 aimed for the stratosphere, the CT-810 brought key technologies down to a more attainable level, fitting Yamaha’s broader “Natural Sound” series philosophy of musical accuracy without artificial excitement.

Collectibility & Value

Today, the CT-810 trades in the $100–$200 range depending on condition and region—listings have appeared from €200 to DKK 1,200—but its value hinges on functionality, not rarity. The OTS system’s tendency to drift means many units need servicing, and while a restoration kit for filter capacitor repair is available for $95, it’s not a plug-and-play classic. Service manuals are accessible (€20 in print, $13.95 as PDF), which helps, but owners should expect some tinkering.

It’s not a showstopper, but it’s a smart buy for someone building a period Yamaha stack or restoring a 1970s system. Its clean sound, solid build, and thoughtful features make it more than just a radio—it’s a window into how seriously Yamaha took broadcast listening at the time.
