Tandberg TR 2075 (1975-1977)

The heavy flywheel tuner on a Norwegian receiver doesn't click. It flows.

Overview

Japanese receivers of the 1970s ran to flashy chrome and big wattage claims. The Tandberg TR 2075 doesn't. Lift the lid and the layout is built for signal integrity, not for mass production efficiency. The TR 2075 was Tandberg's flagship receiver during its production run from 1975 to 1977. It sat above the TR 2050 and below the later MKII revisions. It came before the industry shifted toward integrated circuits and plastic casings.

The volume control is not a cheap potentiometer that develops channel imbalance after a decade. It is a stepped attenuator, which keeps the left and right channels matched. The tuning mechanism uses a heavy flywheel that smooths out jittery hand movements, so you can land on the carrier of an FM station without drift. Contemporaries like the Pioneer SX-1980 were boasting massive power supplies and glowing frequency scopes. The TR 2075 went after transparency, low noise, and a build quality that assumes the unit will outlive its owner.

The TR 2075 delivers 75 watts per channel into 8 ohms, which was considerable power in 1975. It gets there with a fully discrete amplifier circuit that favors dynamic headroom over raw thermal output. It isn't built to drive low-efficiency speakers with brute force, so system matching matters. The tonal balance is neutral, without the excessive warmth of some American designs or the brittle brightness of early Japanese solid-state gear. Classical works benefit from the low distortion and its spatial cues. Rock recordings benefit from the tight bass control, which keeps the kick drum defined.

Specifications

Key Features

The Toroidal Power Supply

In the mid-1970s a toroidal transformer was rare in a consumer audio product. Most manufacturers used standard EI laminated transformers because they were cheaper and easier to mount. Tandberg went toroidal for the TR 2075. The toroidal transformer minimizes magnetic flux leakage, which means less hum induction into the sensitive tuner and preamplifier sections. It also holds up better during dynamic musical passages. Push the volume and the power supply does not sag; it holds the voltage steady. The supply feeds two powerful amplifiers with true complementary, direct-coupled circuits, giving ample overload margin for low distortion. It is an expensive part not usually found in consumer products, and Tandberg used it because they believed performance mattered more than cost savings.

Diode Switching and Signal Path

The input selection is one of the odd bits. Instead of mechanical switches that scratch and wear out after forty years of toggling, Tandberg used electronic time-delayed diode switching. This gives noise-free blends when changing program sources. You press a button and the signal path changes without the pop or crackle of worn contacts. The TR 2075 also has separate preamplifiers for each input to keep low-level signals noise-free. The first stages of amplification sit within millimeters of the signal input. That is expensive, but it gets low noise and clean sound. Even with a low-output magnetic cartridge, the signal is boosted before it travels through the chassis, which cuts the chance of picking up interference on the way.

The Tuner Section

The FM section is where the TR 2075 pulls away from the mass-market Japanese receivers of the era. It has MOSFET transistors in the RF stage, 4-pole ceramic filters, and integrated circuits for stability. The heavy flywheel makes tuning a pleasure rather than a task. There are two tuning meters. A signal strength meter gives full-scale deflection for strong aerial signals, and a center-zero meter makes it easy to tune FM stations spot-on, which matters for stereo transmissions. The capture ratio is 0.9 dB, and the image frequency rejection ratio is greater than 90 dB. The phono stage has switchable equalization for both MM and MC cartridges, though some collectors say it is a little weak compared to dedicated preamps. For a receiver it is versatile, with two inputs for transcription units and two inputs for tape recorders with adjustable sensitivity.

Build Quality and Quirks

The TR 2075 is built to last. Its 12.5kg weight comes from the heavy-gauge steel chassis and thick aluminum faceplate. It was delivered in Teak, Rosewood, or Walnut cases, which looked like furniture next to Japanese black vinyl cases. There are quirks to know before buying. The headphone jack is a 3-pole 1/4-inch standard, but some users report that modern headphones do not seat completely. The community debates whether Tandberg used a different jack dimension or whether it is a tight tolerance issue. Do not force it. The rubber drive belts in the tuning mechanism degrade over time, and if the tuning feels sluggish, a belt replacement is a Saturday project. The foam surrounds on the original speakers paired with this unit often crumble. On the receiver itself, the main failure points are dried-up electrolytic capacitors and worn selector switches if the diode system has been bypassed or modified.

Historical Context

The TR 2075 arrived when the receiver format was king. In 1975 the industry was moving from separate amplifiers and tuners to all-in-one units, but high-end manufacturers still demanded performance that matched separates. Tandberg, based in Oslo, was competing with European brands like Grundig and Philips, and with Japanese giants like Pioneer, Sansui, and Kenwood. The Japanese models often won on power specs and feature lists, with multiple speaker outputs and glowing displays. Tandberg won on refinement and precision. The TR 2075 traded raw wattage for clarity, channel separation, and long-term reliability. It was priced at $999.00 in the USA, which made it a luxury item for the serious audiophile.

The model sits in a specific spot in the Tandberg family. It is above the TR 2050, which offered 50W per channel and a simpler tuner section. It is below the TR 2080, which was released after the TR 2075 with updated cosmetics and minor circuit refinements, as a transitional model before Tandberg's shift in design direction. A later MKII model was produced from 1978 to 1980, with similar power and updated cosmetics. The TR 2075 balances the raw power of the later models with the analog purity of the earlier designs. Collectors often prefer it over the MKII because it is the purest iteration of the 1975 engineering philosophy, before cost pressures began to alter the component selection.

Collectibility & Value

Today the Tandberg TR 2075 is highly sought after by vintage audio collectors and purists, particularly in Europe, where the brand remains a household name. In North America it is a rare find. Units in good working condition typically command prices between $800 and $1,500. Fully restored examples with recapped power supplies and cleaned controls can reach the higher end of the range, sometimes exceeding $2,000 if the original wood case is flawless. eBay listings run from $9.50 for parts machines to $4,000 for mint specimens, but realistic market value for a functional unit is around $1,000.

When buying a TR 2075, look for responsive controls, stable tuning, and balanced channel output. Bring a flashlight and examine the faceplate at a raking angle to check for scratches in the aluminum. Common issues include dried-up electrolytic capacitors, which can cause hum or instability in the power supply. Worn selector switches are less common because of the diode switching system, but if the unit has been modified, check for continuity. The tuning mechanism belts are a common failure. If the tuning knob spins freely without moving the dial, the belt is likely shattered. Budget for a full recapping and cleaning service. Originality is highly valued, so modifications - especially to the amplifier or power supply - can reduce collector appeal unless professionally executed.

The TR 2075 is rarer than the mass-market Japanese receivers. Tandberg's production volumes were modest, and many units remain in Europe. A well-preserved example in North America is particularly desirable. If you find one with the original wood case (Teak, Rosewood, or Walnut), hold onto it. The cosmetic condition of the wood is often the first thing to degrade, and refinishing it requires skill to match the original grain. It pairs best with efficient, well-designed speakers such as Tannoy, Spendor, or vintage KEF models.

eBay Listings

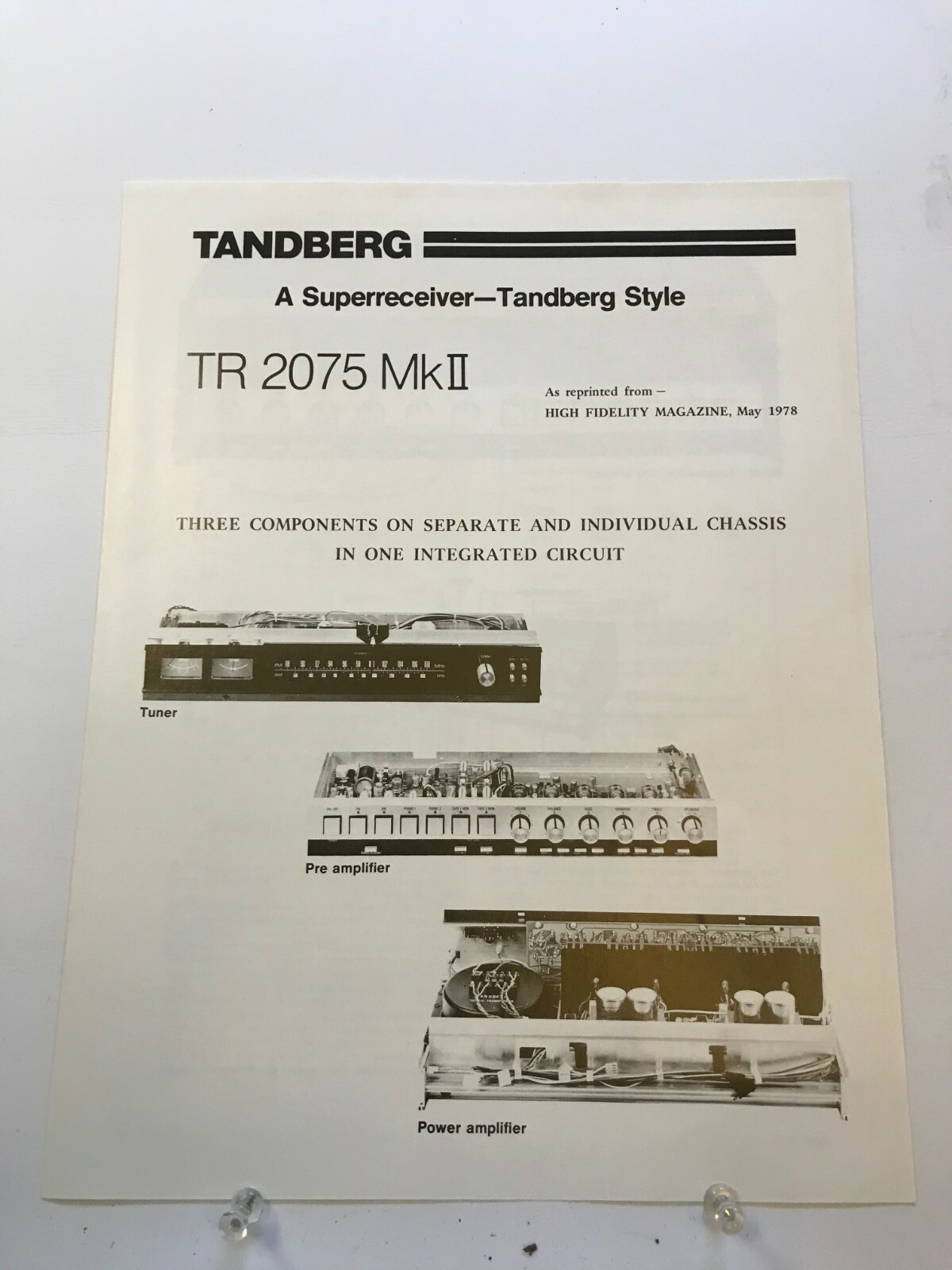

Tandberg TR 2075 mk II Receiver Review,4 pgs,1978
