Scott 200B (1960)

Name: Scott 200B
Brand: Scott

The Scott 200B is a vintage stereo vacuum tube amplifier produced by H.H. Scott, Inc., a company renowned for its high-fidelity audio equipment during the mid-20th century. Introduced in 1960, the Scott 200B is a refined evolution of the earlier Scott 200 model, incorporating improvements in circuit design, stability, and user interface. As a product of the golden era of tube amplification, the 200B exemplifies the engineering excellence and meticulous attention to detail that made H.H. Scott a respected name among audiophiles and broadcast engineers alike.

Design and Engineering

The Scott 200B is a push-pull, class AB stereo amplifier that delivers 25 watts per channel into an 8-ohm load. It uses a dual-mono design with separate power supplies for each channel, a rare and sophisticated feature at the time, which contributes to excellent channel separation and low crosstalk. The amplifier employs a total of ten vacuum tubes: four 6SN7GT dual triodes in the preamplifier and driver stages, and two 6L6GC beam power tetrodes per channel in the output stage. This tube complement ensures a smooth, musical amplification characteristic that many listeners describe as warm, detailed, and dynamically expressive.

One of the defining features of the Scott 200B is its use of negative feedback, which Scott implemented with precision to achieve low distortion and flat frequency response without sacrificing sonic liveliness. The amplifier maintains a frequency response of 10 Hz to 60 kHz within ±1 dB, an exceptional specification for its time. Total harmonic distortion is rated at less than 0.5% at full power, a remarkable achievement in the early 1960s.

The 200B features four inputs: two high-level (line) inputs and two low-level inputs, one of which is designated for magnetic phono cartridges. The phono stage includes RIAA equalization and is optimized for moving magnet cartridges with an output of 5 mV or higher. Input selection is handled via a sturdy rotary switch on the front panel, accompanied by individual level controls for each input, allowing users to normalize volume differences between sources—a thoughtful feature uncommon in amplifiers of the era.

Build Quality and Aesthetics

H.H. Scott was known for its industrial design and robust construction, and the 200B is no exception. Housed in a heavy-gauge steel chassis with a walnut-veneered cabinet, the amplifier exudes craftsmanship and durability. The front panel is made of brushed aluminum with clearly labeled controls and a large VU meter centered between the input selectors. The meter can be switched between monitoring left, right, or both channels and is internally illuminated, adding to the unit’s visual appeal.

Ventilation is carefully considered, with perforated grilles along the top and sides to ensure proper cooling of the tubes and power transformer. The rear panel includes high-quality binding posts for speaker connections, gold-plated RCA jacks for inputs, and a grounding terminal for turntable use. The power transformer and output transformers are potted to reduce microphonics and hum, contributing to the amplifier’s reputation for quiet operation.

Performance and Sound Characteristics

The Scott 200B is celebrated for its natural, balanced sound signature. Unlike some tube amplifiers that emphasize midrange warmth at the expense of clarity, the 200B delivers a well-rounded tonal balance with extended highs and tight, controlled bass. Its high damping factor—unusual for a tube amp—allows it to drive a wide range of speakers effectively, including more demanding designs of the period such as Altec Lansing and JBL models.

Listeners often praise the amplifier’s ability to render complex musical passages with clarity and spatial coherence. The stereo imaging is precise, with a wide soundstage and excellent depth perception. Instruments are rendered with realistic texture and presence, making the 200B particularly well-suited for acoustic jazz, classical, and vocal recordings.

Despite its age, the Scott 200B remains competitive with many modern amplifiers in terms of measured performance. Its low noise floor, wide bandwidth, and minimal phase shift contribute to a transparent and engaging listening experience. When properly maintained—especially with re-capped power supplies and tested tubes—the 200B can deliver reliable performance that satisfies even discerning audiophiles.

Historical Context and Legacy

H.H. Scott, Inc. was founded by Hermon Hosmer Scott in the late 1940s and quickly gained recognition for combining broadcast-grade engineering with consumer audio products. The Scott 200B was part of a lineage of high-performance amplifiers that included the legendary Scott 299 and 299B, which were used in professional broadcast studios. While the 200B was designed for the home market, it shares many design philosophies with its professional siblings, including transformer-coupled outputs, regulated power supplies, and extensive shielding against interference.

Production of the Scott 200B lasted from 1960 to approximately 1963, when it was succeeded by solid-state models as the industry began transitioning away from vacuum tubes. As a result, the 200B is relatively rare today, especially in fully functional condition. Well-preserved units are highly sought after by collectors and vintage audio enthusiasts.

Restoration and Maintenance

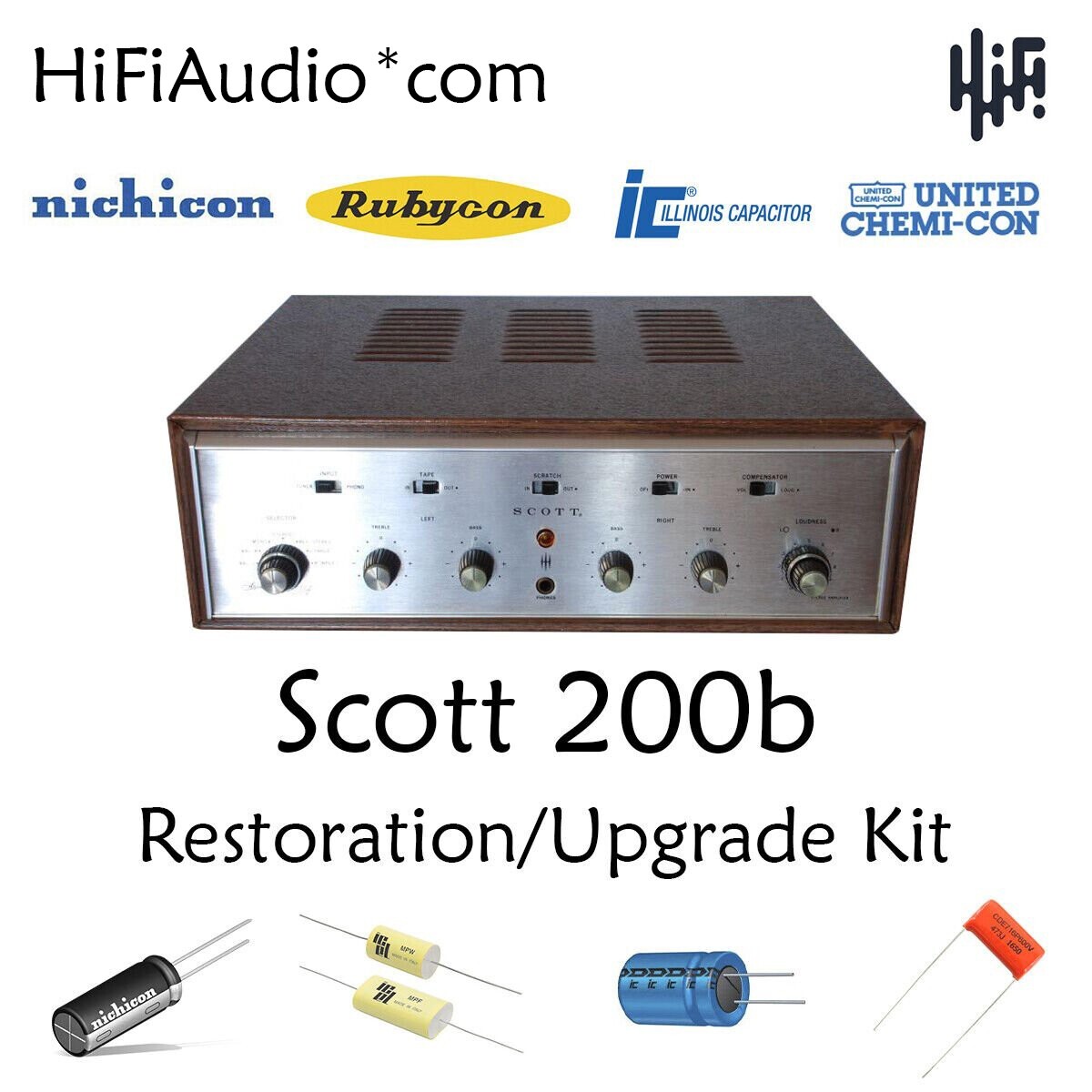

For those interested in acquiring a Scott 200B, restoration is often necessary. Over time, electrolytic capacitors dry out, resistors drift in value, and tube sockets can develop poor connections. A proper refurbishment typically includes replacing all electrolytic capacitors, testing and replacing any out-of-spec resistors, cleaning switches and potentiometers, and inspecting the transformers for signs of overheating or insulation breakdown.

Finding original tubes is usually not a problem, as 6SN7GT and 6L6GC tubes were widely used and are still available as new-old-stock or modern reproductions. However, it is important to use matched pairs in the output stage to ensure balanced performance.

Due to the high voltages present in the power supply (over 400 volts DC), servicing the Scott 200B should only be performed by qualified technicians familiar with tube amplifier safety procedures.

Conclusion

The Scott 200B stands as a testament to the art of analog audio engineering. Its combination of technical innovation, superb build quality, and musical performance places it among the elite tube amplifiers of the 1960s. While it may lack the raw power of modern amplifiers, its ability to deliver emotionally engaging sound with clarity and refinement continues to win over listeners more than six decades after its introduction. For vintage audio enthusiasts, the Scott 200B is not just a collector’s item—it’s a living piece of audio history that still has the power to move music lovers today.
