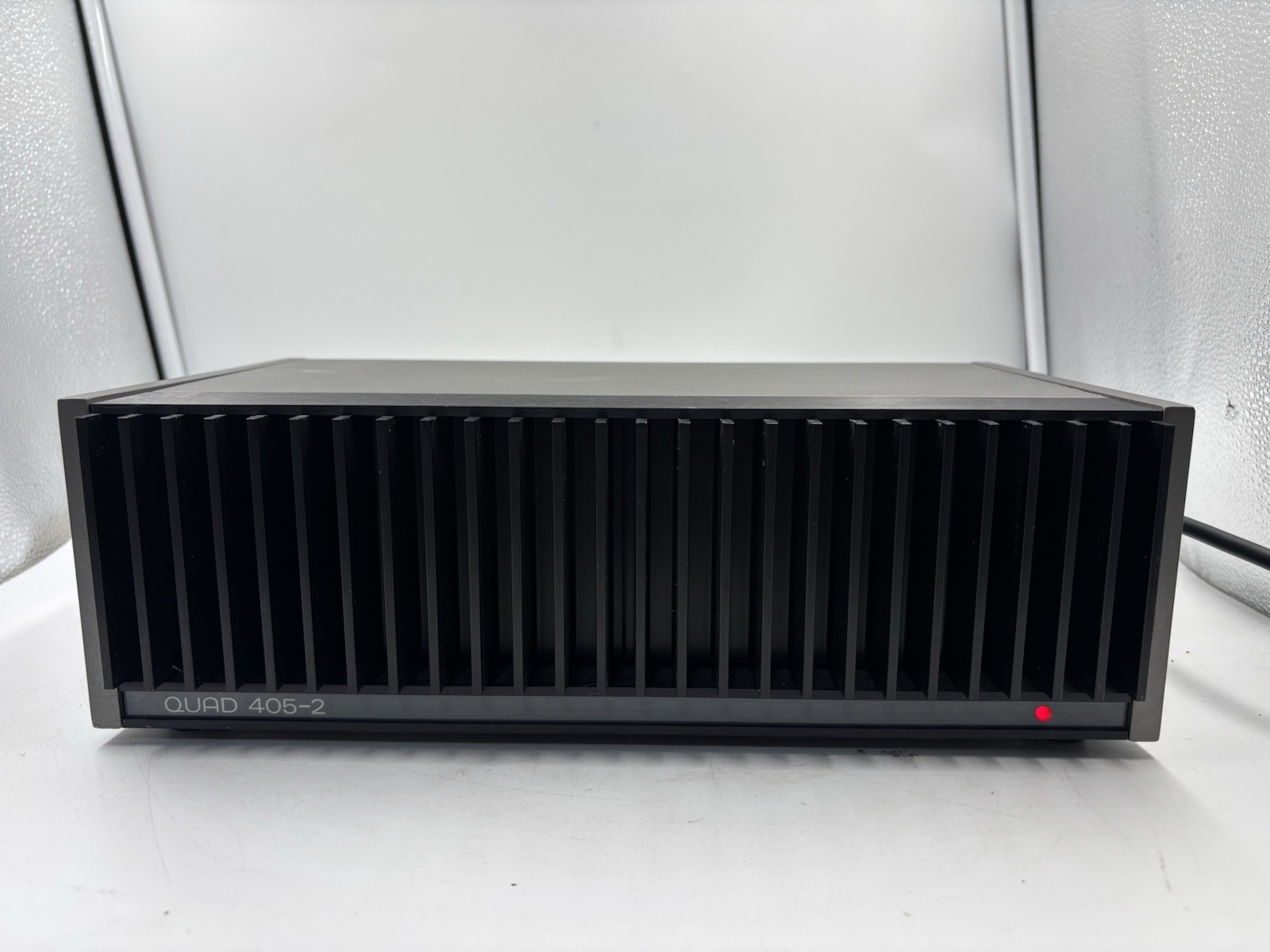

Quad 405-2 Stereo Amplifier

The Quad 405-2 is a landmark solid-state power amplifier introduced in 1979 as part of Quad's acclaimed 400 series. Renowned for its innovative engineering and faithful sound reproduction, the 405-2 exemplifies Quad's long-standing commitment to sonic accuracy and minimalist design philosophy. Designed by the legendary Peter Walker, this amplifier remains a favorite among vintage audio enthusiasts for its transparency, control, and technical ingenuity.

Specifications

Parameter	Specification
Model	Quad 405-2
Year of Release	1979
Production Period	1979–1982
Power Output	100W per channel into 8Ω (stereo)
Nominal Impedance	8Ω (compatible with 4Ω loads)
Frequency Response	10Hz – 20kHz (+/-0.5dB)
Total Harmonic Distortion	<0.005% (typical, 1kHz, 8Ω)
Damping Factor	>200 (at 100Hz, 8Ω)
Input Sensitivity	Unknown
Input Impedance	47kΩ (unbalanced)
Gain	Approximately 27dB
Amplifier Topology	Current dumping (dual feedback loop design)
Output Stage	Fully complementary, dual mono construction
Power Supply	Toroidal transformer, dual regulated rails
Protection	Short-circuit, thermal, and turn-on surge
Dimensions (W×H×D)	435 × 120 × 340 mm
Weight	18.5 kg

Historical Context

The Quad 405-2 was a pivotal development in solid-state amplifier design. Building on the original 405 released in 1975, the -2 revision improved stability, reduced distortion, and enhanced reliability. Its defining feature is the current dumping amplifier topology—a hybrid approach where a small, high-precision error amplifier operates in conjunction with a high-current output stage. This design allows the amplifier to combine the linearity of Class A operation with the efficiency of Class B, achieving exceptionally low distortion and high damping factor.

Peter Walker, founder of Quad and a visionary in audio engineering, championed the idea that amplifiers should remain sonically invisible. The 405-2 embodied this principle, delivering a neutral, uncolored sound that let recordings speak for themselves. It was a key model in the 400 series, which also included the 303 preamplifier and 33 preamp, forming the backbone of high-end British audio systems in the late 1970s and early 1980s.

The 405-2 gained a reputation not only for its performance but also for its build quality. With a robust chassis, toroidal transformer, and dual mono layout minimizing crosstalk, it was engineered for longevity and precision.

Sound Signature

The Quad 405-2 is celebrated for its transparent, detailed, and neutral sound. It delivers tight, well-controlled bass and a clear midrange with minimal coloration. High frequencies are smooth and extended without harshness. Its high damping factor ensures excellent control over loudspeaker cones, making it particularly effective with difficult or bass-heavy speaker loads.

True to Quad’s motto—“the closest approach to the original sound”—the 405-2 avoids romanticizing music. Instead, it offers an honest, accurate presentation that appeals to critical listeners and purists alike.

Maintenance and Tips

While the Quad 405-2 is a well-built amplifier, units over 40 years old require careful attention to ensure reliable and safe operation. Common issues include:

Aging electrolytic capacitors: Especially in the power supply and feedback circuits. These should be replaced (recapped) by a qualified technician to prevent failure or performance degradation.
Output transistor failure: Though robust, the output devices can fail if capacitors degrade or protection circuits are compromised. Testing and matching during servicing is recommended.
Noisy pots and connectors: The volume control and input selectors may develop crackling. Cleaning or replacement is advised.
Thermal protection: Ensure heatsinks are clean and airflow is unobstructed to prevent thermal shutdown.

Recommended Servicing Steps:

1. Full recapping of power supply and signal path electrolytics

2. Inspection and testing of output transistors and driver stages

3. Cleaning of controls and connectors

4. Verification of bias and protection circuit operation

Regular servicing not only restores performance but also preserves the amplifier’s collectibility and resale value.

Collectibility and Market Value

The Quad 405-2 holds a collectibility rating of 7/10. It is sought after by vintage audio collectors and Quad enthusiasts for its historical significance and unique amplifier topology. While not as rare as some contemporaries, its engineering pedigree ensures enduring respect.

Market Value: $300–$600 USD
Factors affecting value: Original condition, service history, matched channel performance, and inclusion of original packaging or documentation.

Well-maintained or professionally recapped units command higher prices, especially when paired with other components from the 400 series.

Conclusion

The Quad 405-2 stands as a milestone in amplifier design—a bold fusion of innovation and sonic integrity. Its current dumping technology was ahead of its time, and its sound remains competitive even by modern standards. For audiophiles who value accuracy, transparency, and engineering excellence, the 405-2 is more than a vintage component; it's a testament to Quad’s enduring legacy in high-fidelity audio.
