Pioneer SA-9900 (1974–1980)

At 20 kilograms, it arrives like a declaration—this is not an amplifier for the timid.

Overview

The Pioneer SA-9900 isn’t just another integrated amp from the 1970s; it’s a statement piece from the peak of analog ambition. Built between 1974 and 1980, it stood as Pioneer’s top-tier integrated model by 1976, setting the tone for what would later be called the company’s golden age. This was the flagship of the classic silver-faced series, positioned above the SA-8800 and just below the legendary SA-10000. At the time, it represented the most lavish engineering Pioneer could pack into a single chassis—an era when "integrated" didn’t mean compromise, but consolidation of serious power and precision. Owners report a machine built not just to drive speakers, but to dominate a rack, both physically and sonically.

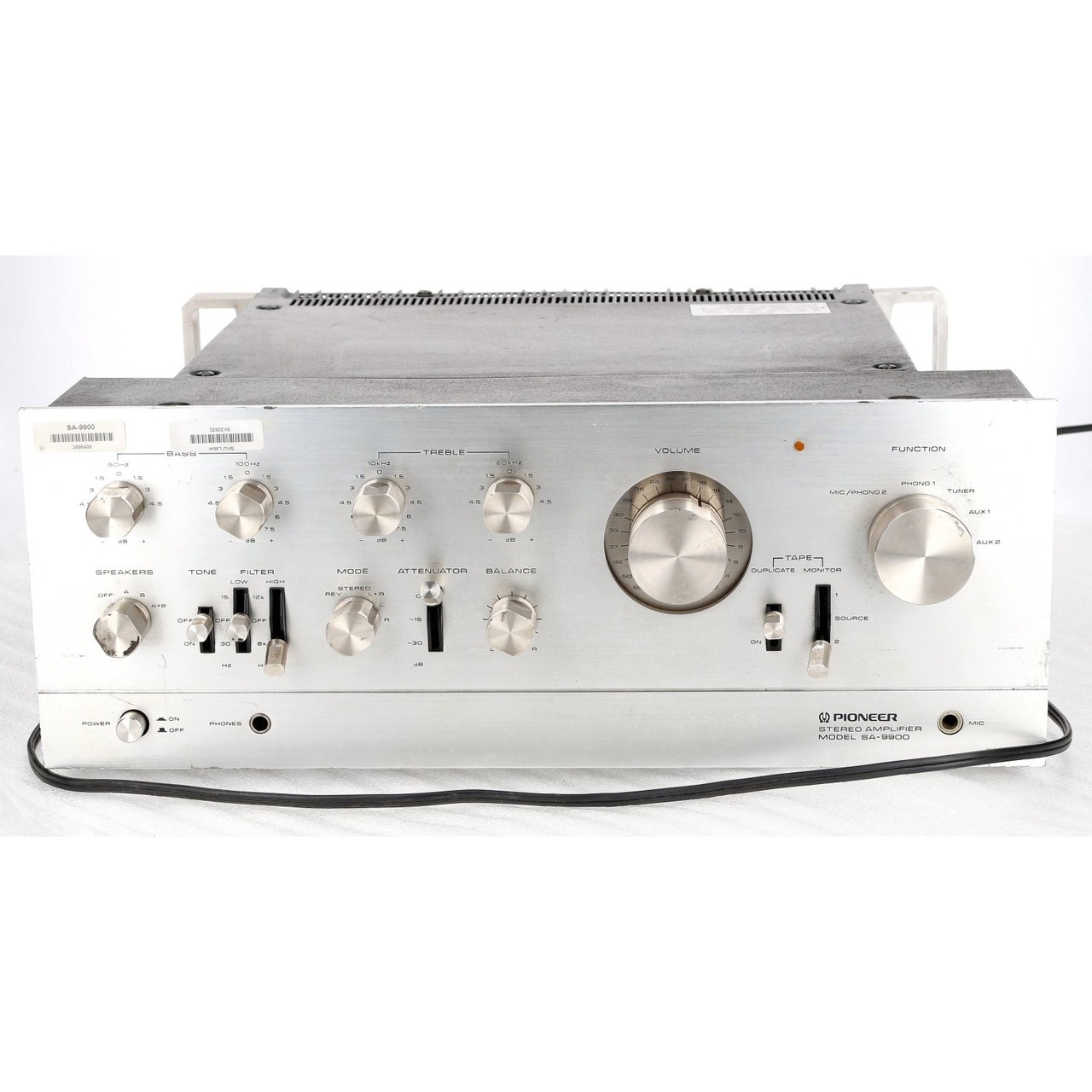

Weighing in at 20 kg (approximately 44 pounds), the SA-9900 feels like it was machined from a single block of intent. Its front panel, all brushed silver and purposeful knobs, hides a discrete, dual power supply design with massive heat sinks and a power rating that still commands respect: 110 watts per channel into both 8 ohms and 4 ohms across the full 20Hz–20kHz bandwidth. That kind of output, rated with a THD of 0.1% or less, wasn’t just competitive—it was overkill for most living rooms, which is exactly the point. This was gear for those who wanted to see the needles peg on the dual power meters, who valued headroom as much as fidelity.

And fidelity it delivers. The preamp section boasts a frequency response of 10 Hz to 80 kHz (±1 dB), while the full signal path from tuner or aux sources stretches from 7 Hz to 40 kHz. The phono stage is no afterthought: Phono 1 offers 2.5mV sensitivity with 50kΩ impedance, while Phono 2 adds selectable loading (35k, 50k, 70k, or 100kΩ) and adjustable gain, accommodating everything from vintage MM cartridges to higher-output MCs. Signal-to-noise ratios back this up—70 dB or better for phono, 95 dB or higher for line-level inputs—ensuring the noise floor stays deep in the background, even at high gain.

But what separates the SA-9900 from its peers isn’t just the spec sheet. It’s the execution. The volume control, for instance, is a 22-contact, edge-lit, printed resistor attenuator with 2 dB steps—no potentiometer wiper to wear out, just a clean, precise progression that glows softly from the sides. The tone controls use a twin-stage approach with ±7.5 dB adjustment at 100 Hz and 10 kHz, backed by subtler ±4.5 dB shelves at 50 Hz and 20 kHz. Filters are available at 15/30 Hz (low-cut) and 8/12 kHz (high-cut), each with a 12 dB/octave slope, letting users tailor response for less-than-ideal rooms or aging recordings.

Specifications

Key Features

Direct-Coupled OCL Power Amplifier with 3-Stage Darlington Output

The SA-9900’s power amp section is a textbook example of late-1970s high-current design. It uses a direct-coupled, pure complementary OCL (Output Capacitor-Less) circuit, eliminating coupling capacitors from the signal path to preserve low-frequency integrity. The output stage employs a 3-stage Darlington configuration with parallel push-pull transistors—four pairs of 2SA679/2SC1079 devices, reportedly—mounted on massive heat sinks to handle thermal load. This setup contributes to a damping factor of 30 or more (20Hz–20kHz), giving the amplifier tight control over difficult speaker loads, especially in the bass. Bias is actively compensated to minimize thermal drift and DC offset, a critical feature in a high-power OCL design where even small offsets can damage speakers.

FET Differential Phono Stage with Precision RIAA Network

The phono preamp is a standout, especially for its time. The first stage uses a low-noise FET differential amplifier, chosen for its high input impedance and low noise—critical for extracting detail from vinyl without amplifying hiss. The second stage is a voltage amplifier with a constant current load, improving linearity. The RIAA equalization network itself relies on precision Nichrome metal-coated resistors and Styrofoam capacitors, materials selected for stability and low dielectric absorption. This attention to passive component quality helps achieve a claimed RIAA deviation of ±0.2 dB from 30 Hz to 15 kHz, translating to remarkably accurate tonal balance across the frequency spectrum.

22-Contact Edge-Lit Attenuator Volume Control

Forget potentiometers—Pioneer went all-in on precision with a true stepped attenuator for volume. The 22-contact printed resistor network provides consistent channel balance and eliminates the scratchiness common in aging pots. Each step represents a 2 dB change, offering fine-grained control. The edge-lit design, with illumination from the sides of the knob, allows for clear visibility of the selected level without glare—a small but thoughtful touch that reflects the overall build quality. This system is mechanically robust and less prone to wear than traditional volume controls, though the switches themselves can develop contact issues over decades of use.

Dual 22,000μF Power Supply Capacitors and Discrete Design

Power delivery is handled by a dual power supply system featuring two 22,000μF electrolytic capacitors—massive by 1970s standards—ensuring stable voltage under dynamic load. The entire amplifier is discrete, with no ICs in the signal path, using 74 transistors, 10 FETs, and 33 diodes. This discrete topology, combined with constant-current circuits in the preamp stages, expands the operating range of the transistors and contributes to the amplifier’s clean, dynamic sound. The power supply also includes three AC outlets—two switched, one unswitched—allowing users to power associated components directly from the SA-9900.

Side-Mounted Speaker Terminals and Physical Layout

The SA-9900 employs a unique side-terminal system for speaker connections, with binding posts mounted on the left side of the chassis rather than the rear. This design, while unconventional, improves airflow around the output transistors and simplifies bi-amping setups when using both Speaker A and B outputs. Internally, the layout follows a logical flow: input sources are grouped on the right, outputs on the left, with the power transformer and heat sinks dominating the rear and center. This physical organization aids in serviceability and reduces crosstalk.

Historical Context

The SA-9900 was as lavish an integrated amplifier as the mid-1970s could produce, embodying the era’s appetite for high power, high specs, and high visibility. It was part of Pioneer’s revered silver-faced series, a lineup that defined the company’s high-fidelity identity during its most innovative period. Positioned between the SA-8800 and the ultimate SA-10000, the SA-9900 was the practical flagship—offering nearly the same performance as its bigger sibling but in a more accessible form. It was reportedly available in Germany until 1981, suggesting strong regional demand even as newer models emerged.

Collectibility & Value

The SA-9900 remains highly collectible, with a reputation for warm, detailed sound and exceptional build quality. In good working condition, it typically sells for $400–$600, though prices can vary based on restoration status and cosmetic condition. Common problems include failing power switches and degraded electrolytic capacitors, both of which are expected after 40+ years. Owners note that capacitor replacement is often necessary to restore optimal performance and reliability. Original parts, especially the volume control switches and output transistors, can be difficult to source, making fully restored units particularly valuable. Despite its age, the SA-9900 is still praised for its ability to drive demanding speakers with authority and control.
