Pioneer Elite A-20 (2012–2018)
An analog-only integrated amplifier with a modern build and a vintage-inspired design.
Overview
The Pioneer Elite A-20 is a two-channel integrated amplifier built from 2012 to 2018, part of the Pioneer Elite series. Pioneer called it an "unabashed throwback." It has analog inputs only and no digital connectivity, so the money goes into amplification. It includes a moving magnet (MM) phono stage, a motorized precision volume control, and Source Direct Mode, which bypasses the tone controls for a purer signal path. Reviewers praised its soundstage, transient response, and bass definition. They also noted that the build quality far exceeds what you would expect for a $299 MSRP.
Specifications
| Power Output (8Ω, rated) | 30 watts per channel |
| Power Output (8Ω, measured) | approximately 50 watts per channel |
| Total Harmonic Distortion | 0.05% at 1kHz, rated output, 8Ω |
| Frequency Response (Line) | 5 Hz – 100 kHz (0dB/-3dB) |
| Signal-to-Noise Ratio (Line) | 115 dB (IHF, A-network) |
| Inputs | 4 stereo line, 1 MM phono, tape loop |
| Outputs | Speaker A/B, tape out, headphone jack |
| Speaker Impedance | 4–16 Ω (A or B), 8–32 Ω (A+B) |
| Power Requirements | AC 120V, 60 Hz |
| Power Consumption | 135 W (0.3 W in standby) |
| Dimensions (W×H×D) | 17.12 × 5.03 × 14.17 in (435 × 128 × 360 mm) |
| Weight | 15.87 lbs (7.2 kg) |
Design

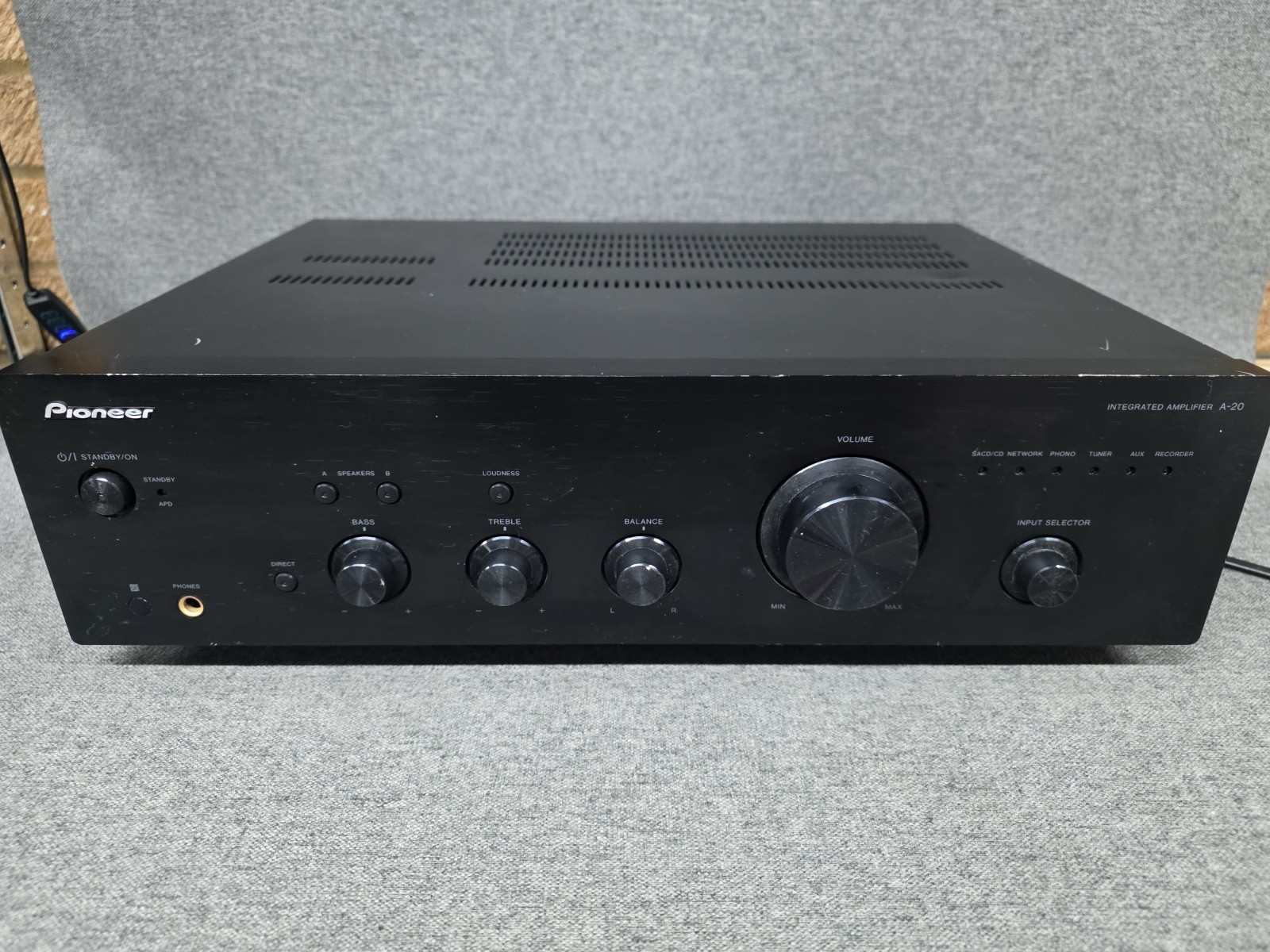

The A-20 uses Direct Energy Design, Symmetrical Power Amp, Clean Ground Construction, and an isolated power supply to keep noise and distortion down. It has a large toroidal (EL) transformer and heavy-duty heat sinks. All stages are DC-coupled, so there are no coupling capacitors from input to output. The front panel is brushed aluminum. On it you get a motorized volume knob, tone and balance controls, loudness and direct mode buttons, a speaker A/B selector, and a headphone jack. The rear panel has six analog inputs, 5-way binding posts for two speaker sets, and control in/out jacks. A remote control is included.
Context
The A-20 landed in a market crowded with multi-function AV receivers, and it went the other way: high-fidelity audio and simplicity. Competitors at launch included the Harman Kardon HK3390 and the Marantz PM5004. It was marketed to listeners tired of features they never used, with honest performance and a focus on analog sources.
Market
The Pioneer Elite A-20 was originally priced at $299. Secondary market values have dropped since, and one example was listed at $150 USD by The Turntable Store.
