Pioneer TX-540L (1983)

Name: Pioneer TX-540
Brand: Pioneer

A 3-band AM/FM stereo tuner with analog dial and LED tuning indicator, made in 1983.

Overview

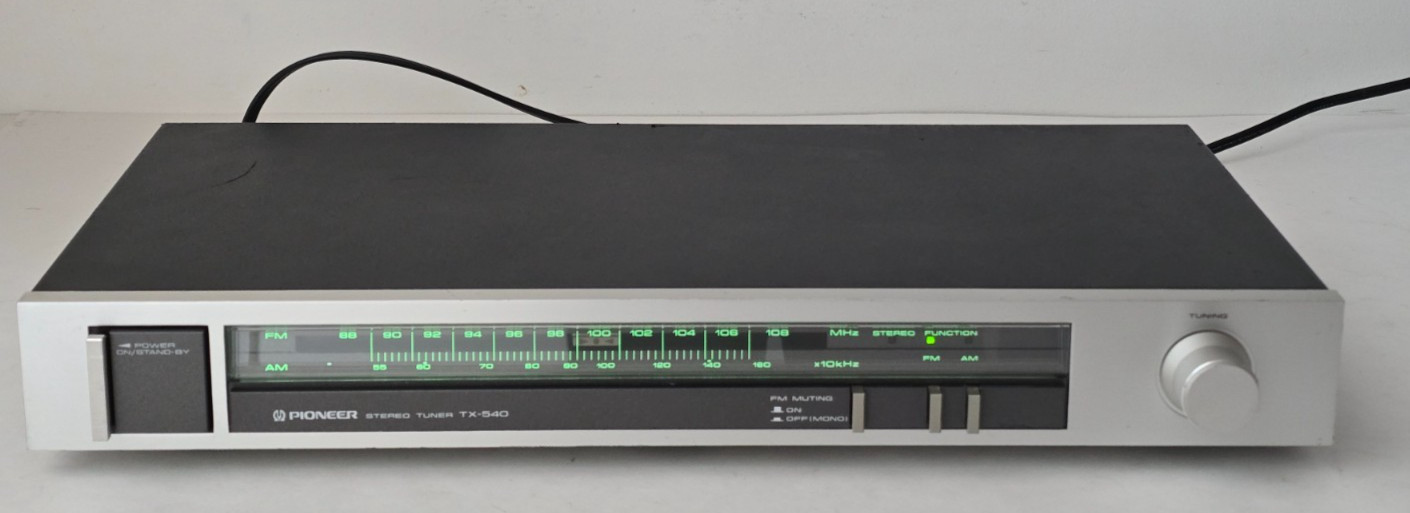

The Pioneer Stereo Tuner TX-540L is a 1983 AM/FM stereo tuner made by Pioneer Corporation in Tokyo. It supports FM, Medium Wave (MW), and Long Wave (LW) bands and features a black metal case with a silver front panel. Designed as a bookshelf unit, it includes a rotary tuning knob, power on/standby switch, FM muting, band selection (FM, AM, MW/LW), and an FM stereo indicator. The rear panel has RCA phono line outputs, 300Ω balanced and 75Ω unbalanced FM antenna inputs, AM antenna terminals, and a ground terminal. It was part of the Pioneer Syscom A30 and A50 hi-fi systems. A similar model, the TX-540, supports only FM and MW.

Specifications

Dimensions (WHD)	420 x 60 x 234 mm / 16.5 x 2.4 x 9.2 inch
Power supply	AC 110 / 120 / 220 / 240 Volt
Power consumption	12 watts
Net weight	2.5 kg / 5 lb 8.1 oz (5.507 lb)

Design

The TX-540L uses a superheterodyne circuit design and features an analog tuning dial with a three-LED pointer: two red arrows and a central green round LED. The red LEDs guide tuning left or right; the green LED confirms station lock. It contains a mechanical tuning capacitor, two 10.7MHz ceramic filters, and ICs including the TA7640AP (FM detector), NEC µPC1235C, and BA695. The FM detector IC connects to coil T101 at PIN11, and the local oscillator (TC3) is a gray tunable capacitor. Nippon Chemi-con capacitors are used throughout. The FM detector circuit includes a 47pF capacitor.

Market

Common issues include malfunctioning tuning pointer LEDs (only left red LED working), noisy audio near station lock, weak FM reception, FM frequency display inaccuracy (off by 0.6–0.8MHz), and failure of the stereo indicator to light. The FM detector coil (T101) has been reported chipped. Misalignment of the FM dial can be corrected by adjusting the TC3 local oscillator trimmer. Diagnosis often involves voltage checks on the TA7640AP IC and oscilloscope signal analysis.
