Pioneer C-77 (1976–1980)

A high-end stereo preamplifier from Pioneer’s late-1970s lineup, engineered for precision and low distortion.

Overview

The Pioneer C-77 is a stereo preamplifier produced from 1976 to 1980, designed as part of a matched system with the M-77 power amplifier. It was positioned alongside Pioneer’s elite SPEC-1 and SPEC-2 models, reflecting its high-end engineering and build quality. This unit features dual phono inputs, extensive tone control capabilities, and a robust design focused on minimizing noise and distortion.

Specifications

Model	C-77
Brand	Pioneer
Product type	Stereo preamplifier / Preamplifier
Production years	1976–1980
Original price	¥120,000 (around 1980)
Power supply voltage	100 V, 50Hz/60Hz
Power consumption	17W
External dimensions (W×H×D)	480 × 186.5 × 365 mm
Weight	11.2 kg
Input terminal Phono1	2.5mV/50k Ω
Input terminal Phono2	2.5 mV to 10mV/50k Ω
Input terminal MIC	2.5mV/50k Ω
Input terminal Tuner, AUX1, 2	150mV/100k Ω
Input terminal Tape Play1, 2	150mV/100k Ω
Phono maximum allowable input (0.05% THD, 1 kHz)	Phono1: 500mV, Phono2: 500 mV to 1000 mV
Output terminal Tape Rec1, 2	150mV/2.2k Ω
Output (Pre Out)	2V/600 Ω, 7V/600 Ω (RL : 50k Ω)
Harmonic distortion factor	0.03% (2V output), 0.05% (7V output) (20 Hz to 20 kHz)
Frequency characteristic Phono1, 2	20 Hz to 20 kHz ± 0.2 dB
Frequency characteristic Tuner, AUX, TapePlay	10 Hz to 70 kHz +0 to 0.5 dB
Signal-to-noise ratio (IHF, A-network, short circuit)	Phono: 74dB, Tuner/AUX/TapePlay: 90dB
Tone control (1.5 dB step)	Bass Main: ±7.5 dB (100 Hz), Sub: ±4.5 dB (50 Hz); Treble Main: ±7.5 dB (10 kHz), Sub: ±4.5 dB (20 kHz)
Filter Low	15 Hz, 30 Hz (12dB/oct.)
Filter High	12 kHz, 8 kHz (12dB/oct.)
Attenuator	0, -15, -30dB
Subsonic Filter	15Hz, 12dB/oct
Semiconductor count	IC: 2, Transistor: 50, Diode/Other: 31

Design

The C-77 uses a fully discrete circuit design with a first-stage differential, three-stage direct-coupled amplifier in both the equalizer and control amplifier sections, ending in a class-A SEPP output stage. A ±48V power supply feeds the equalizer circuit, enhancing headroom and stability. The tone control system is Pioneer’s original twin-tone design, combining main and sub controls to generate up to 5929 unique frequency curves. The volume control is a special 4-channel attenuator with 22 contact points, reducing noise by splitting attenuation between the front and back of the control amplifier. NFB components include precision 1% tolerance nichrome resistors and 2% styrofoam capacitors, ensuring frequency accuracy within ±0.2 dB across the full 20 Hz–20 kHz range.

Context

The C-77 was designed to pair with the M-77 power amplifier as a high-fidelity integrated system. It shares engineering philosophy and market positioning with the Pioneer SPEC-1 and SPEC-2, serving as a reference-grade preamplifier for discerning audiophiles of the era.

Market Value

┌──────────────────────────────────────────────────────────────────────────┐
│ PIONEER C-77                                                    Apr 2026 │
├──────────────────────────────────────────────────────────────────────────┤
│ High      $1,048                                  Latest            $284 │
│ Median    $147                                    Trend             ▲ Up │
│ Low       $2                                      Volume           ~8/mo │
├──────────────────────────────────────────────────────────────────────────┤
│ $2,000 ┤                                                                 │
│        │                                                                 │
│        │                                                                 │
│ $1,143 ┤                                                                 │
│        │                                                      .          │
│        │                                                                 │
│        │                                           . .     .             │
│     $0 ┤.  .        .           .      . .     .   ..       .           .│
│        ├─────────────────────────────────────────────────────────────────│
│    vol │▄  ▄        ▄           ▄      ▄ ▄     ▄   █▄▄     ▄▄ ▄         ▄│
│        └─────────────────────────────────────────────────────────────────│
│         2026-02                      2026-03                      2026-04│
└──────────────────────────────────────────────────────────────────────────┘

eBay completed sales. Excludes accessories, parts, and non-working units. Hover points for details.

eBay Listings

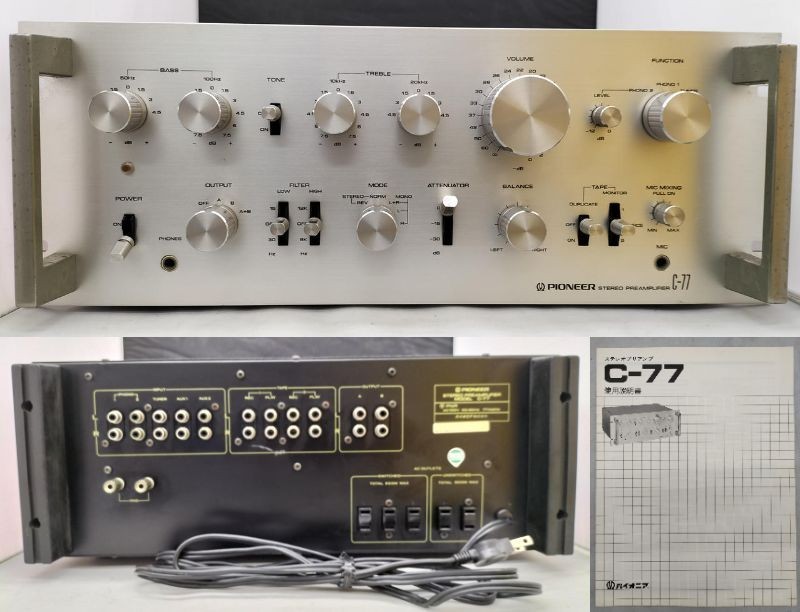

Pioneer C-77 vintage audio equipment - eBay listing photo 1
