Pioneer CS-77A (1979)

Name: Pioneer CS-77A
Brand: Pioneer

The Pioneer CS-77A is a pair of floor-standing loudspeakers introduced by Pioneer Corporation in the late 1970s, specifically around 1979. These speakers were part of a broader lineup of high-fidelity audio equipment that Pioneer produced during the golden age of analog audio, a time when sound quality, craftsmanship, and bold design converged to create iconic audio components. The CS-77A stands out not only for its striking aesthetic but also for its robust acoustic performance, making it a sought-after model among vintage audio enthusiasts and collectors today.

Design and Build Quality

The CS-77A features a classic floor-standing design with a tall, narrow cabinet crafted from high-quality wood veneer, typically finished in a rich walnut or rosewood tone. The cabinet is generously sized, measuring approximately 95 cm (37.4 inches) in height, 24 cm (9.4 inches) in width, and 30 cm (11.8 inches) in depth. This substantial enclosure allows for deep bass response and efficient sound dispersion, characteristics that were highly prized in high-end speaker design of the era.

One of the most distinctive visual features of the CS-77A is its dual-driver configuration with a unique baffle layout. The front baffle is slightly angled and houses a three-way driver array. The cabinet is ported, with a rear-facing bass reflex port that enhances low-frequency output without requiring a powered subwoofer. The grilles are made of acoustically transparent fabric stretched over a rigid frame, and they attach magnetically or via clips—a convenience feature that was somewhat advanced for its time.

The build quality is exceptional, with thick MDF (medium-density fiberboard) panels internally braced to reduce resonance and cabinet vibration. This attention to structural integrity contributes to a cleaner, more accurate sound by minimizing coloration caused by cabinet flex. The overall weight of each speaker is substantial—approximately 22 kg (48.5 lbs)—a testament to the dense materials and internal construction.

Driver Configuration and Acoustic Performance

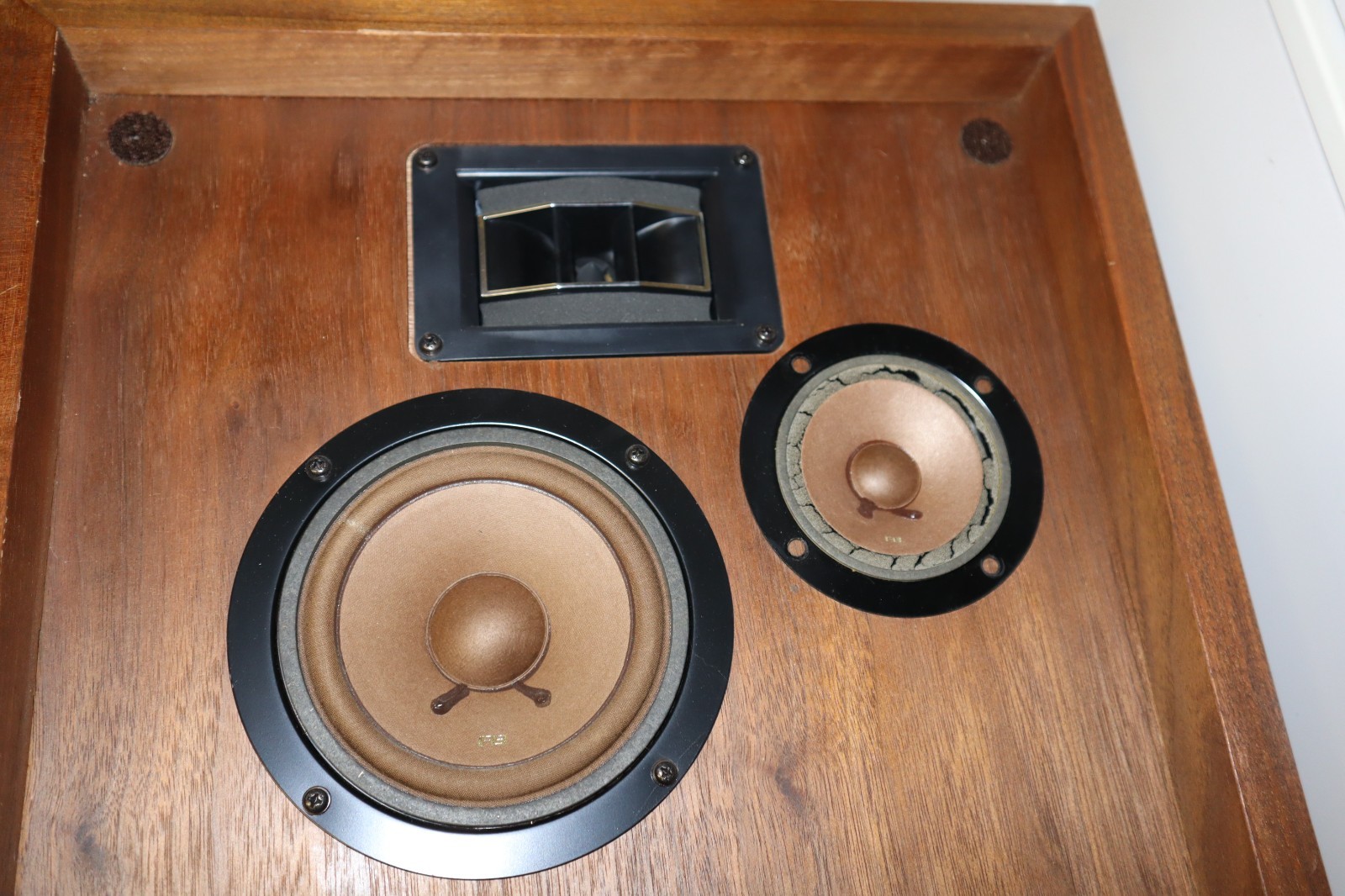

The Pioneer CS-77A employs a three-way speaker system, meaning it uses three separate drivers to cover the full audio spectrum: a woofer for low frequencies, a midrange driver for vocals and instruments, and a tweeter for high-frequency detail.

Woofer: 30 cm (12-inch) low-frequency driver with a treated paper cone. This large woofer is capable of delivering powerful bass response down to around 35 Hz, making the CS-77A suitable for both music and home theater applications, even by modern standards.
Midrange: 8 cm (3-inch) cone driver dedicated to the midrange frequencies. This ensures clarity in vocal reproduction and instrumental timbre, a critical factor in achieving a lifelike soundstage.
Tweeter: 2.5 cm (1-inch) dome tweeter, typically made of soft fabric or mylar, designed to reproduce high frequencies up to 20 kHz with smooth extension and minimal harshness.

The crossover network, located inside the cabinet, is a passive design that directs the appropriate frequencies to each driver. While not as sophisticated as modern digital crossovers, the analog network in the CS-77A is well-engineered with high-quality capacitors and inductors, contributing to a balanced and coherent sound.

Sensitivity and Power Handling

One of the standout features of the CS-77A is its high sensitivity, rated at approximately 92 dB (1W/1m). This means the speakers are very efficient and can produce loud sound levels even when paired with lower-powered amplifiers—a significant advantage in the era of tube and early solid-state receivers. The maximum power handling is rated at 100 watts, allowing the speakers to handle dynamic musical peaks without distortion when driven by a capable amplifier.

With a nominal impedance of 8 ohms, the CS-77A is compatible with a wide range of amplifiers and receivers, including vintage models from Pioneer, Denon, Yamaha, and Sony. The 8-ohm load presents a stable and predictable demand on the amplifier, reducing the risk of overheating or instability.

Sound Characteristics

The sonic signature of the Pioneer CS-77A is warm and dynamic, with a slightly forward midrange that brings vocals and lead instruments to the forefront. The bass is deep and punchy, thanks to the large 12-inch woofer and ported cabinet design, though it may benefit from careful room placement to avoid boominess in smaller spaces. The highs are detailed without being overly bright, making the speakers well-suited for extended listening sessions.

These speakers excel with a wide variety of music genres, from rock and jazz to classical and electronic. Their ability to project a wide soundstage with good imaging allows listeners to perceive the spatial arrangement of instruments and voices, enhancing the realism of the listening experience.

Historical Context and Legacy

The late 1970s marked a high point for Japanese audio manufacturers, with Pioneer, Sony, and Kenwood competing to produce high-performance audio gear for the growing consumer market. The CS-77A was part of Pioneer’s CS (Concert Sound) series, which aimed to deliver concert-hall audio experiences in the home. During this period, Pioneer invested heavily in research and development, including advanced driver materials, cabinet design, and acoustic testing.

While not as widely documented as some of Pioneer’s later models, the CS-77A has developed a cult following among vintage audio enthusiasts. Its combination of powerful sound, elegant design, and build quality has ensured its longevity. Today, well-maintained pairs of CS-77A speakers can still be found on the secondhand market, often commanding premium prices from collectors and audiophiles.

Restoration and Maintenance

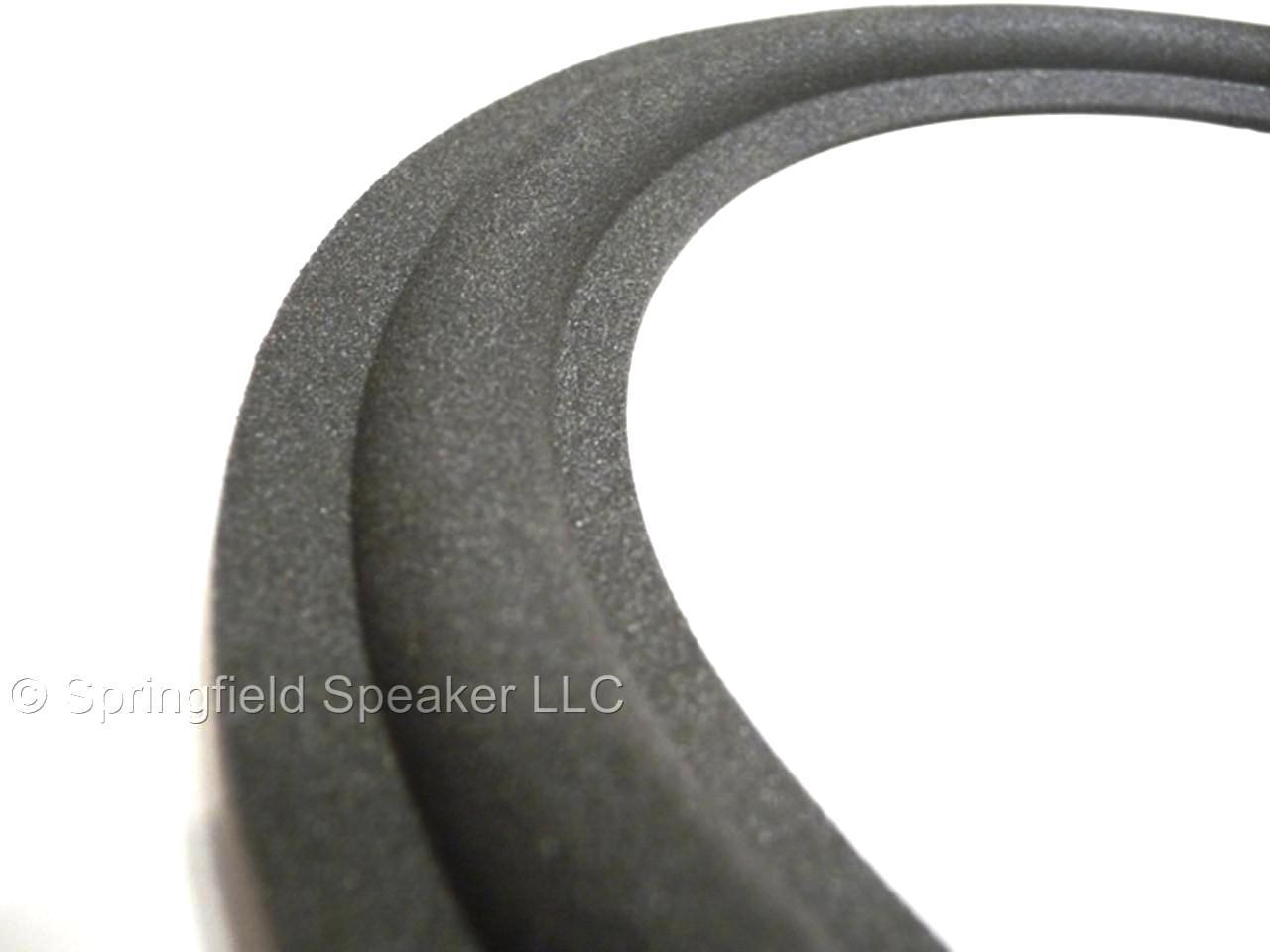

Like all vintage speakers, the CS-77A may require restoration after decades of use. Common issues include deteriorated foam surrounds on the woofer and midrange drivers, which can lead to distorted bass and reduced output. Replacing these with modern rubber or foam surrounds is a common and effective repair. The crossover components may also degrade over time, particularly electrolytic capacitors, which can dry out and lose capacitance.

Restoration kits and replacement parts are available from specialty audio repair shops and online vendors. Many enthusiasts report that a full refurbishment can restore the CS-77A to—or even beyond—its original performance.

Conclusion

The Pioneer CS-77A is a remarkable example of late-1970s Japanese speaker engineering. With its powerful 12-inch woofer, high sensitivity, elegant wood finish, and balanced three-way design, it delivers a compelling audio experience that remains competitive even by today’s standards. Whether used as part of a vintage stereo setup or integrated into a modern system, the CS-77A offers a warm, dynamic sound that captures the essence of analog audio at its best.

For collectors and audiophiles alike, the CS-77A represents more than just a pair of speakers—it’s a piece of audio history, a symbol of an era when form and function were harmoniously blended in the pursuit of sonic excellence.
