Pioneer CS-630DX (1985)

Name: Pioneer CS-630DX
Brand: Pioneer

The Pioneer CS-630DX is a vintage loudspeaker model released in the mid-1980s as part of Pioneer’s CS-DX series, a lineup designed to deliver high-fidelity audio performance with refined engineering and aesthetic appeal. Though often categorized as a bookshelf speaker, the CS-630DX is on the larger side for its class, offering a robust sound profile that belies its compact footprint. These speakers were marketed toward audiophiles and home audio enthusiasts who valued clarity, warmth, and a balanced frequency response—hallmarks of Pioneer’s speaker design philosophy during that era.

Design and Build Quality

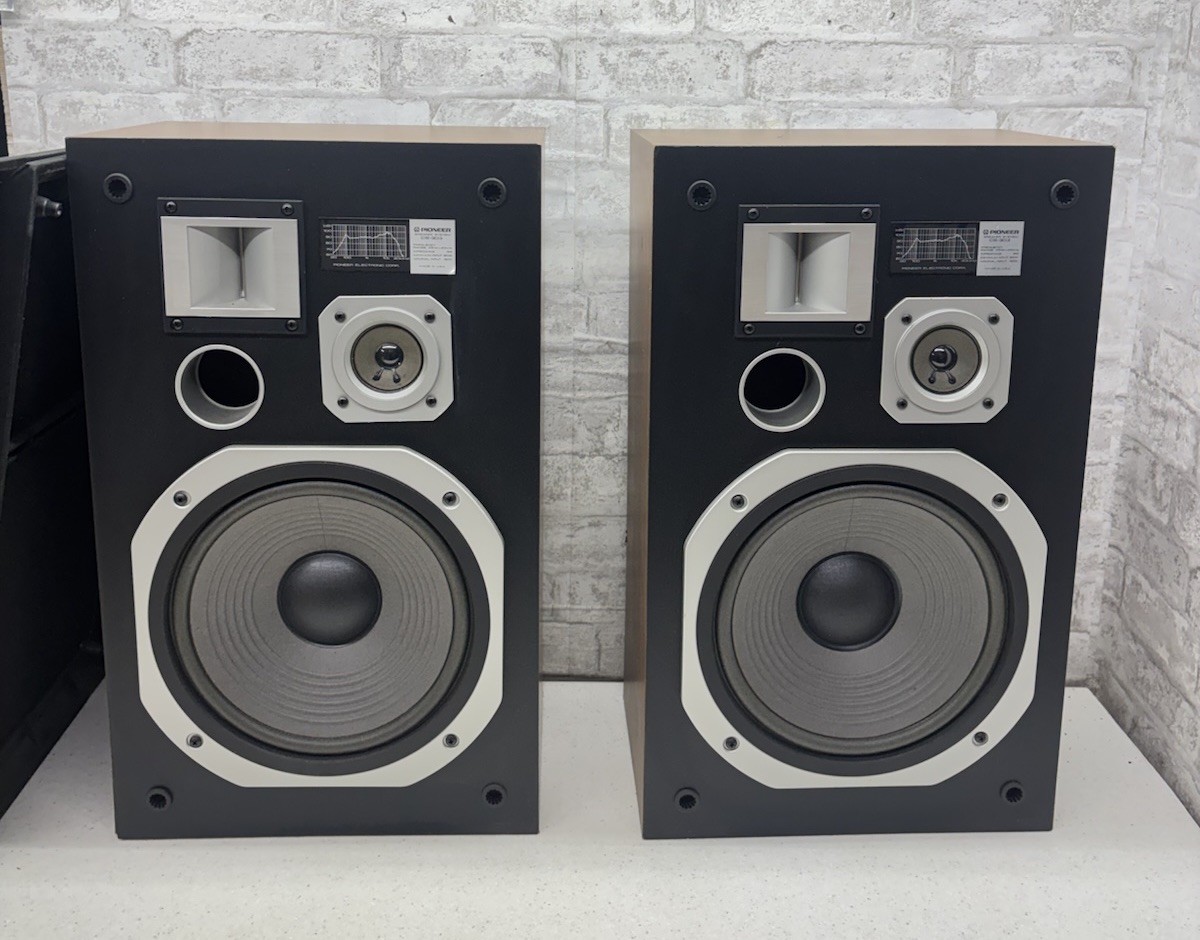

The CS-630DX features a 3-way driver configuration, which is relatively uncommon in bookshelf models. This design includes a 30 cm (12-inch) woofer for deep bass reproduction, an 8 cm (3.2-inch) midrange driver, and a dome tweeter for high-frequency clarity. The use of a dedicated midrange driver allows for greater precision in vocal and instrumental reproduction, reducing distortion and enhancing overall sonic transparency.

The cabinet is constructed from medium-density fiberboard (MDF) with a real wood veneer finish, available primarily in walnut and black ash. This not only gives the speakers a classic, elegant appearance but also helps minimize cabinet resonance, which can color the sound. The front baffle is slightly curved, contributing to both visual appeal and acoustic dispersion characteristics.

A bass reflex port is located on the rear panel, tuned to enhance low-frequency response without requiring excessive amplifier power. This design allows the CS-630DX to achieve a frequency response of 45 Hz to 20 kHz, which was impressive for a speaker of its size and era. The sensitivity is rated at 88 dB, making it moderately efficient and well-suited to pairing with vintage receivers and integrated amplifiers of the 1980s.

Acoustic Performance

The CS-630DX employs a dual crossover network with crossover points at approximately 500 Hz (between the woofer and midrange) and 3.5 kHz (between the midrange and tweeter). This ensures that each driver operates within its optimal frequency range, resulting in smooth tonal transitions across the audio spectrum. Pioneer used high-quality components in the crossover design, including polypropylene capacitors and air-core inductors, which were considered premium choices at the time.

In practice, the CS-630DX delivers a warm, slightly laid-back tonal balance with strong midrange presence—ideal for vocal-centric music such as jazz, blues, and acoustic rock. The bass, while not as deep or tight as modern floor-standing models, is well-controlled and resonant, especially for a speaker of its size. The dome tweeter provides clear, detailed highs without harshness, making these speakers suitable for extended listening sessions.

When paired with appropriate amplification—such as vintage Pioneer, Yamaha, or Sony receivers from the same period—the CS-630DX reveals its strengths in imaging and soundstage. The speakers produce a wide and well-defined stereo image, with good instrument separation and depth. While not designed for large rooms, they perform admirably in medium-sized listening environments, especially when properly positioned and angled toward the listener.

Historical Context and Market Position

Introduced in 1985, the CS-630DX was part of a broader trend in the 1980s where Japanese audio manufacturers like Pioneer, Sony, and Kenwood competed to offer high-performance components at accessible price points. Pioneer distinguished itself by focusing on balanced sound reproduction and durable construction, often incorporating advanced materials and engineering techniques into even its mid-tier models.

The CS-DX series, to which the CS-630DX belongs, was positioned above Pioneer’s entry-level CS series but below the flagship CS-90 series. It was designed to offer a taste of high-end audio performance without the premium price tag. The inclusion of a 3-way design in a bookshelf format was a notable selling point, as most competitors in this category used 2-way configurations to save cost and space.

During its time, the CS-630DX received favorable reviews in audio magazines for its natural sound signature and build quality. It was often recommended for listeners who prioritized musicality over technical flash, and it found a loyal following among those building stereo systems centered around turntables, cassette decks, and early CD players.

Restoration and Modern Use

Today, the Pioneer CS-630DX is sought after by vintage audio enthusiasts and collectors. While not as widely known as some of Pioneer’s larger floor-standing models, it has developed a cult following due to its balanced sound and classic design. Many units still in circulation have been restored, with owners replacing aging foam surrounds on the woofers and midrange drivers to restore original performance.

For modern use, the CS-630DX can be integrated into a vintage setup or paired with contemporary amplifiers that respect its 8-ohm impedance and moderate sensitivity. It performs well with tube amplifiers, which complement its warm character, but also works with solid-state receivers that provide clean power in the 50–100 watt range.

Due to its age, original parts may be difficult to source, but replacement foam kits and crossover components are available from specialty audio restoration suppliers. Proper maintenance—such as cleaning the terminals, checking internal wiring, and ensuring secure driver mounting—can extend the life of these speakers for decades.

Conclusion

The Pioneer CS-630DX stands as a testament to 1980s Japanese audio engineering, combining thoughtful design, quality materials, and musical performance. Its 3-way configuration, warm tonal balance, and elegant wood finish make it a compelling choice for vintage audio enthusiasts seeking a speaker that delivers both sonic and aesthetic appeal.

While not a powerhouse by today’s standards, the CS-630DX remains a capable performer in the right environment. Whether used as part of a period-correct stereo system or as a nostalgic addition to a modern setup, it continues to offer a listening experience that emphasizes musical engagement over technical precision. For those who appreciate the craftsmanship and character of analog-era audio gear, the Pioneer CS-630DX is a worthy candidate for restoration and long-term enjoyment.
