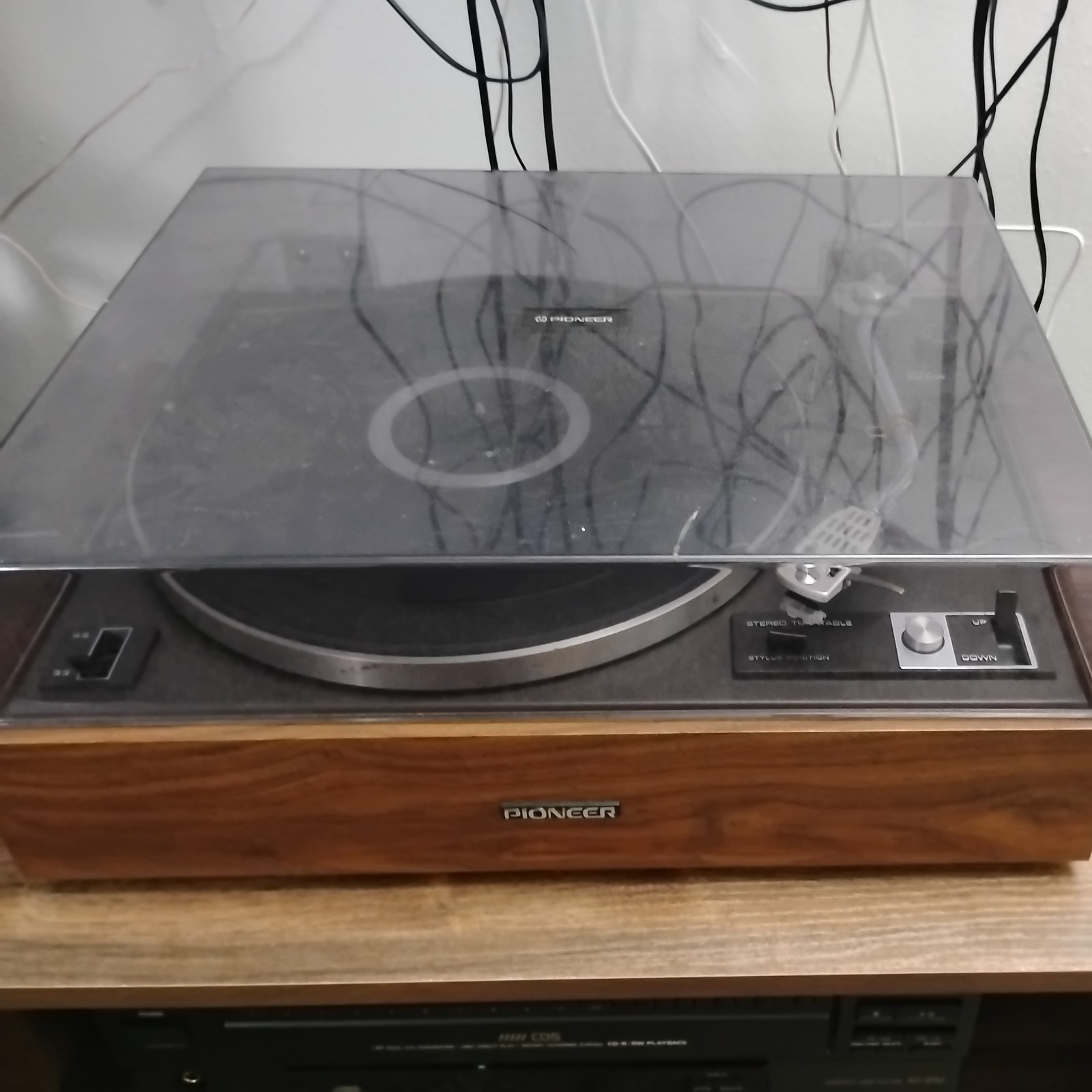

Pioneer PL-15D-MKII (1981)

Name: Pioneer PL-15D-MKII
Brand: Pioneer

The Pioneer PL-15D-MKII is a belt-driven turntable introduced in 1981 as part of Pioneer’s mid-tier range of vinyl playback equipment during the early 1980s. Though not as widely documented as some of Pioneer’s flagship models like the PL-510 or PL-550, the PL-15D-MKII holds a quiet reputation among vintage audio enthusiasts for its reliable performance, minimalist design, and solid build quality. It represents a transitional period in turntable design—bridging the gap between fully manual operation and the emerging semi-automatic and direct-drive technologies of the era.

Design and Build Quality

The PL-15D-MKII features a sleek, minimalist aesthetic typical of Japanese audio equipment from the early 1980s. It is housed in a compact wooden cabinet with a black matte finish, accented by a silver control panel and a clear acrylic dust cover. The chassis is constructed from medium-density fiberboard (MDF), which helps dampen unwanted vibrations and resonance, contributing to improved sound clarity. Rubber feet isolate the turntable from surface vibrations, a thoughtful touch for a model in its class.

The plinth supports a single-layer aluminum platter, driven by a high-torque synchronous motor via a rubber belt. The belt-drive system reduces motor noise transmission to the stylus, resulting in lower background noise and a cleaner audio signal. The platter itself weighs approximately 1.2 kg, providing decent rotational inertia for stable speed and reduced wow and flutter.

Tonearm and Cartridge

One of the standout features of the PL-15D-MKII is its straight aluminum tonearm, which measures approximately 8.5 inches in length. The tonearm employs a precision bearing system with adjustable tracking force and anti-skate control, allowing users to fine-tune performance based on their cartridge specifications. While not as advanced as the gimbal or linear-tracking arms found on higher-end models, this tonearm offers smooth operation and reliable tracking across a wide range of vinyl conditions.

The turntable typically came factory-equipped with the Pioneer SP-200MM moving magnet (MM) cartridge. This cartridge features an elliptical stylus tip, which provides better high-frequency response and improved groove contact compared to conical tips. Frequency response ranges from 20 Hz to 20 kHz, with an output voltage of around 4.5 mV at 5 cm/sec. The SP-200MM strikes a balance between affordability and performance, making it well-suited for casual listeners and entry-level audiophiles.

Operation and Features

As a fully manual turntable, the PL-15D-MKII requires the user to lift and place the tonearm onto the record groove and return it after playback. There is no auto-stop or auto-return function, which may be seen as a drawback for some users but is appreciated by purists who value direct control over playback.

Speed selection is handled via a mechanical switch on the front panel, allowing playback at both 33⅓ and 45 RPM. The motor is electronically regulated to maintain consistent speed, with wow and flutter measured at less than 0.15%, which is excellent for a belt-drive turntable in this class. Speed accuracy is further enhanced by strobe markings on the edge of the platter, visible under fluorescent lighting.

The turntable includes a built-in phono preamp, a notable convenience feature for users connecting directly to line-level inputs on receivers or powered speakers. This preamp can be bypassed via a rear-panel switch, allowing connection to external phono stages for improved sound quality.

Technical Specifications

Turntable Type: Belt-driven, manual operation
Platter: 300 mm aluminum, 1.2 kg
Motor: Synchronous AC motor, 12V
Drive System: Belt drive
Speeds: 33⅓, 45 RPM (switchable)
Wow and Flutter: < 0.15% WRMS
Tonearm: 8.5-inch straight aluminum, pivoted
Tracking Force: Adjustable, 0–3 grams
Anti-Skate: Continuously adjustable
Cartridge: Pioneer SP-200MM (factory installed)
Stylus Type: Elliptical
Frequency Response: 20 Hz – 20 kHz
Output Voltage: 4.5 mV (MM)
Channel Separation: > 25 dB at 1 kHz
Signal-to-Noise Ratio: > 65 dB
Phono Preamp: Built-in, switchable
Power Supply: AC 120V, 60 Hz (North American version)
Dimensions: 450 mm (W) × 140 mm (H) × 360 mm (D)
Weight: 6.8 kg (15 lbs)

Sound Quality and Performance

In practice, the PL-15D-MKII delivers a warm, balanced sound signature typical of well-engineered analog equipment from the era. The belt-drive system ensures low noise and minimal motor intrusion, while the SP-200MM cartridge extracts a surprising amount of detail from vinyl grooves. Bass response is tight and controlled, mids are clear, and highs are smooth without harshness—ideal for jazz, classical, and vocal recordings.

When paired with a quality external phono preamp and a good receiver or integrated amplifier, the PL-15D-MKII can outperform many modern entry-level turntables. Its manual operation encourages a more engaged listening experience, and the solid build ensures long-term reliability.

Legacy and Collectibility

While not a flagship model, the PL-15D-MKII reflects Pioneer’s commitment to quality and innovation during a competitive period in hi-fi history. It was produced during a time when vinyl was still the dominant home audio format, and manufacturers like Pioneer, Sony, Technics, and Yamaha were pushing the boundaries of turntable engineering.

Today, the PL-15D-MKII is a sought-after piece among collectors of vintage Japanese audio gear. Its relative rarity—compared to mass-market models—adds to its appeal. Units in good working condition with original parts, especially the SP-200MM cartridge and dust cover, can command premium prices in online marketplaces.

Replacement belts are still available from specialty audio suppliers, and the turntable’s simple design makes maintenance straightforward for DIY enthusiasts. Upgrades such as aftermarket cartridges (e.g., Audio-Technica AT95E or Ortofon 2M Red) can further enhance performance.

Conclusion

The Pioneer PL-15D-MKII is a well-crafted, no-frills turntable that exemplifies the quality and attention to detail Pioneer brought to its audio products in the early 1980s. While overshadowed by more famous models, it offers excellent value for vintage audio enthusiasts seeking a reliable, sonically pleasing entry into analog playback. With proper care and minor upgrades, the PL-15D-MKII remains a capable and enjoyable component in any modern or vintage hi-fi system.
