Pioneer PL-12D (1975)

Name: Pioneer PL-12D
Brand: Pioneer

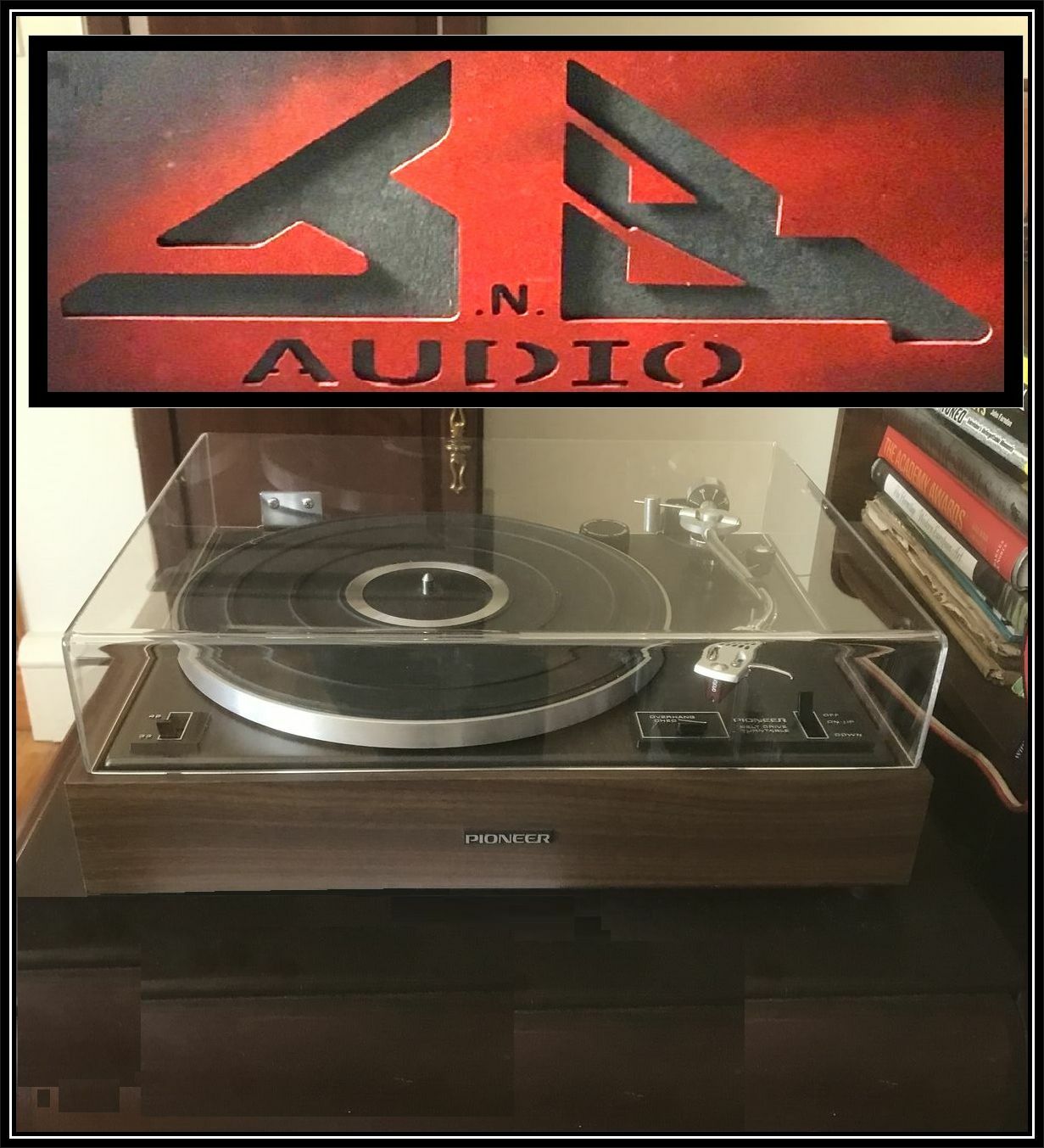

The Pioneer PL-12D is a vintage belt-drive turntable manufactured in the mid-1970s, representing Pioneer’s commitment to high-fidelity audio reproduction during a golden era of analog sound. Released around 1975, the PL-12D was part of a broader family of turntables that included the more advanced PL-1200 and PL-1400 models, which were widely adopted in professional DJ and broadcast environments. However, the PL-12D itself was designed primarily for the high-end consumer market, offering excellent build quality, precise speed control, and low wow and flutter—hallmarks of Pioneer’s engineering philosophy at the time.

Despite being less famous than its professional siblings, the PL-12D stands out as a refined, reliable turntable that delivers excellent performance for audiophiles and collectors who appreciate mechanical precision and analog warmth. It features a manual operation design, meaning the user must physically place the tonearm on the record and lift it at the end of playback. Unlike fully automatic models that auto-lift and return the arm, the PL-12D emphasizes control and simplicity, appealing to purists who prefer a hands-on listening experience.

Design and Build Quality

The PL-12D is built around a heavy die-cast aluminum platter that ensures rotational stability and reduces resonance. It is driven by a belt-drive system, which isolates the platter from motor vibrations, resulting in lower background noise and improved sonic clarity. The motor itself is a high-torque, low-noise unit designed for consistent speed accuracy across both 33⅓ and 45 RPM settings. Speed is regulated via a quartz-locked system, a feature that was advanced for its time and ensured exceptional speed stability. This system uses a reference crystal to monitor and correct platter speed in real time, minimizing wow and flutter to remarkably low levels—typically measured at less than 0.025%.

The turntable’s chassis is constructed from rigid materials to dampen external vibrations. It features a suspended subchassis design, where the platter, tonearm, and motor are mounted on a sprung platform isolated from the outer cabinet. This design effectively decouples the sensitive audio components from surface vibrations and acoustic feedback, a technique commonly found in high-end turntables of the era.

Tonearm and Cartridge Compatibility

The PL-12D is equipped with a S-shaped tonearm with hydraulic damped cueing, allowing for smooth and controlled lowering of the stylus onto the record surface. The tonearm features adjustable counterweight and anti-skate controls, enabling precise tracking force calibration—typically set between 1.5 to 2.0 grams, depending on the cartridge used. The effective length of the tonearm is approximately 9 inches, and it is designed to accommodate a wide range of moving magnet (MM) and moving coil (MC) cartridges.

While the PL-12D does not come with a factory-installed cartridge, it was often paired with high-quality options such as the Shure M97xE, Audio-Technica AT-120E, or Pioneer’s own P-75E. These cartridges complement the turntable’s low resonance and stable tracking, delivering detailed midrange, extended highs, and tight bass response.

Technical Specifications

Drive System: Belt-drive with quartz-locked speed control
Platter: Die-cast aluminum, 300 mm diameter
Motor: Synchronous AC motor with quartz phase comparator
Speeds: 33⅓ and 45 RPM (with pitch adjustment)
Wow and Flutter: < 0.025% (weighted, RMS)
Signal-to-Noise Ratio: > 78 dB
Tonearm Type: S-shaped, static balanced, damped cueing
Effective Arm Length: ~9 inches (228 mm)
Overhang: Adjustable via headshell
Tracking Force Range: 0–5 grams (adjustable)
Anti-Skate: Continuously variable
Cartridge Compatibility: MM and MC (user-installed)
Output Voltage: ~5 mV (with typical MM cartridge)
Dimensions: 450 mm (W) × 156 mm (H) × 360 mm (D)
Weight: Approximately 10.5 kg (23.1 lbs)
Power Supply: 120V AC, 60 Hz (North American version)

Performance and Sound Characteristics

The Pioneer PL-12D delivers a balanced and natural sound signature, characteristic of well-engineered analog playback systems from the 1970s. Its quartz speed control ensures pitch accuracy, making it ideal for classical and vocal recordings where timing and tonality are critical. The belt-drive system contributes to a quiet noise floor, allowing subtle details in the music to emerge clearly.

Users often praise the PL-12D for its excellent tracking ability, even on warped or slightly damaged records, thanks to the stable platter and well-damped tonearm. The suspended chassis further enhances performance by rejecting external vibrations—making it suitable for use in less-than-ideal acoustic environments.

In comparison to direct-drive turntables like the Technics SL-1200 series, the PL-12D trades the immediacy and torque of direct drive for smoother, more organic speed delivery. While not designed for DJ use, its precision and consistency make it a favorite among collectors and analog enthusiasts who value fidelity over functionality.

Legacy and Collectibility

Though overshadowed by Pioneer’s professional DJ models, the PL-12D holds a quiet reputation among vintage audio aficionados. It was never produced in the same quantities as the PL-1200, making it a relatively rare find today. Units in good working condition are sought after, particularly those with original parts and well-maintained plinths.

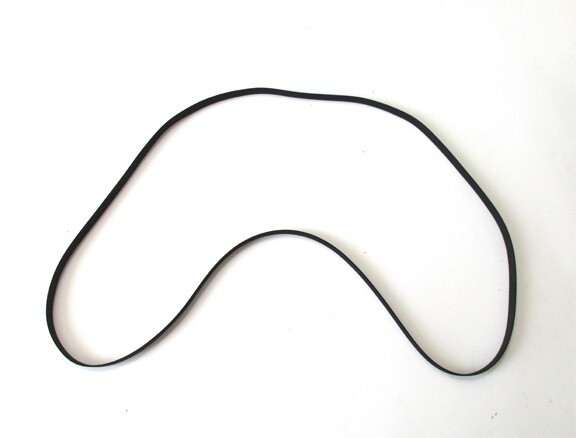

Restoration of the PL-12D typically involves replacing the aging belt (a common failure point in belt-drive turntables after decades of use), cleaning the platter and spindle, and ensuring the cueing mechanism operates smoothly. The quartz speed control system may require capacitor replacement if the unit has been stored for long periods, as electrolytic capacitors degrade over time.

Conclusion

The Pioneer PL-12D is a testament to 1970s Japanese audio engineering, combining precision mechanics with elegant design. While it may not have achieved the fame of its professional counterparts, it remains a highly capable turntable for home listening. Its quartz-locked speed control, suspended chassis, and high-quality tonearm place it firmly in the upper tier of vintage consumer turntables.

For collectors, restorers, or analog enthusiasts looking for a reliable and sonically rewarding player, the PL-12D offers a compelling blend of performance and craftsmanship. With proper maintenance, it continues to deliver warm, detailed, and immersive vinyl playback—proving that even lesser-known models from legendary brands can offer exceptional value and listening pleasure decades after their release.
