Onkyo TX-6500: The Forgotten All-in-One Analog Powerhouse

Name: Onkyo TX-6500
Brand: Onkyo

In the golden era of late 1970s hi-fi, when component separates ruled the living rooms of audiophiles and casual listeners alike, Onkyo quietly carved out a reputation for building reliable, sonically engaging equipment that offered exceptional value. Among their lineup, the Onkyo TX-6500 stands as a unique and often overlooked gem — not a receiver in the traditional sense, but rather a sophisticated hybrid unit combining a high-quality FM tuner with a robust stereo preamplifier and power amplifier section. Released in 1978, the TX-6500 reflects Onkyo’s engineering philosophy of the time: precision, musicality, and build quality that punched above its price point.

While not as widely celebrated as some of its contemporaries from Pioneer or Sansui, the TX-6500 has developed a quiet cult following among vintage audio enthusiasts who appreciate its balanced performance, elegant design, and the rare integration of high-fidelity amplification with excellent FM reception in a single chassis.

Technical Specifications

The Onkyo TX-6500 was engineered during a period when Japanese manufacturers were rapidly advancing analog circuit design. It features a dual-stage amplification system, with a discrete preamp section feeding a powerful amplifier stage built around high-current output transistors. Its FM tuner section was considered top-tier for its era, incorporating a double-conversion superheterodyne circuit with phase-locked loop (PLL) tuning, a feature that was still relatively advanced in consumer gear at the time.

Specification	Detail
Model	TX-6500
Year of Release	1978
Manufacturer	Onkyo Corporation, Japan
Category	Integrated Amplifier with FM Tuner
Power Output	100 watts per channel (RMS, 8Ω)
Total Harmonic Distortion	0.05% (1kHz, rated power)
Frequency Response	3Hz – 30kHz
Input Sensitivity	2.5mV (MM), 150mV (Line)
Output Impedance	8Ω minimum load
Signal-to-Noise Ratio	65dB (MM), 90dB (line)
Tuner Type	FM: Double-conversion superheterodyne
Tuner Features	PLL synthesis, stereo indicator, AFC
Inputs	2x Line, 1x Phono (MM), Tape In
Outputs	Tape Out, Speaker A/B, Headphones (1/4")
Dimensions	538mm (W) × 187mm (H) × 435mm (D)
Weight	22 kg (48.5 lbs)

Sound Characteristics and Performance

The sonic signature of the Onkyo TX-6500 is best described as warm, detailed, and dynamically expressive. Unlike some of the more clinical-sounding receivers of the era, the TX-6500 delivers a slightly rich midrange that enhances vocals and acoustic instruments, making it particularly well-suited for jazz, classical, and vocal-centric recordings.

The amplifier section provides ample headroom for most bookshelf and medium-sized floorstanding speakers of the period. With 45 watts per channel into 8 ohms, it can drive efficient speakers (87dB+) with authority, and even handle more demanding loads with grace, thanks to its robust power supply and high-current design. Bass response is tight and well-controlled, avoiding the flabbiness sometimes found in budget receivers of the time.

The FM tuner is where the TX-6500 truly shines. Its PLL (Phase-Locked Loop) tuning system ensures stable reception with minimal drift, while the double-conversion design reduces interference and image frequencies. Stereo separation is excellent for its era (typically around 40dB), and the tuner handles weak signals with surprising resilience. The inclusion of an AFC (Automatic Frequency Control) switch allows users to lock onto strong stations or disable it for fine manual tuning — a feature appreciated by FM DXers and analog purists.

Notable Features and Innovations

What sets the TX-6500 apart from typical receivers of its time is its modular, no-compromise approach to signal path integrity. Onkyo avoided the cost-cutting measures common in mass-market receivers, such as shared amplifier stages or compromised grounding schemes. Instead, the TX-6500 features:

Discrete preamplifier circuitry with low-noise JFET input stages
High-quality Alps potentiometers for volume and balance controls
Heavy-duty toroidal power transformer (uncommon in consumer gear at the time)
Gold-plated RCA jacks and robust speaker terminals
Dual speaker outputs (A/B) with independent switching
Tape monitoring loop with dedicated record/playback jacks
Front-panel headphone amplifier with level control

The front panel design is clean and functional, with a large VU meter flanked by tuning and level meters. The tuning dial is smooth and precise, aided by a large rubberized knob. The overall build quality is excellent — thick steel chassis, solid faceplate, and high-grade internal wiring reflect Onkyo’s commitment to durability.

Common Issues and Maintenance

Like any vintage electronics from the late 1970s, the TX-6500 can benefit from careful servicing after decades of use. Common issues include:

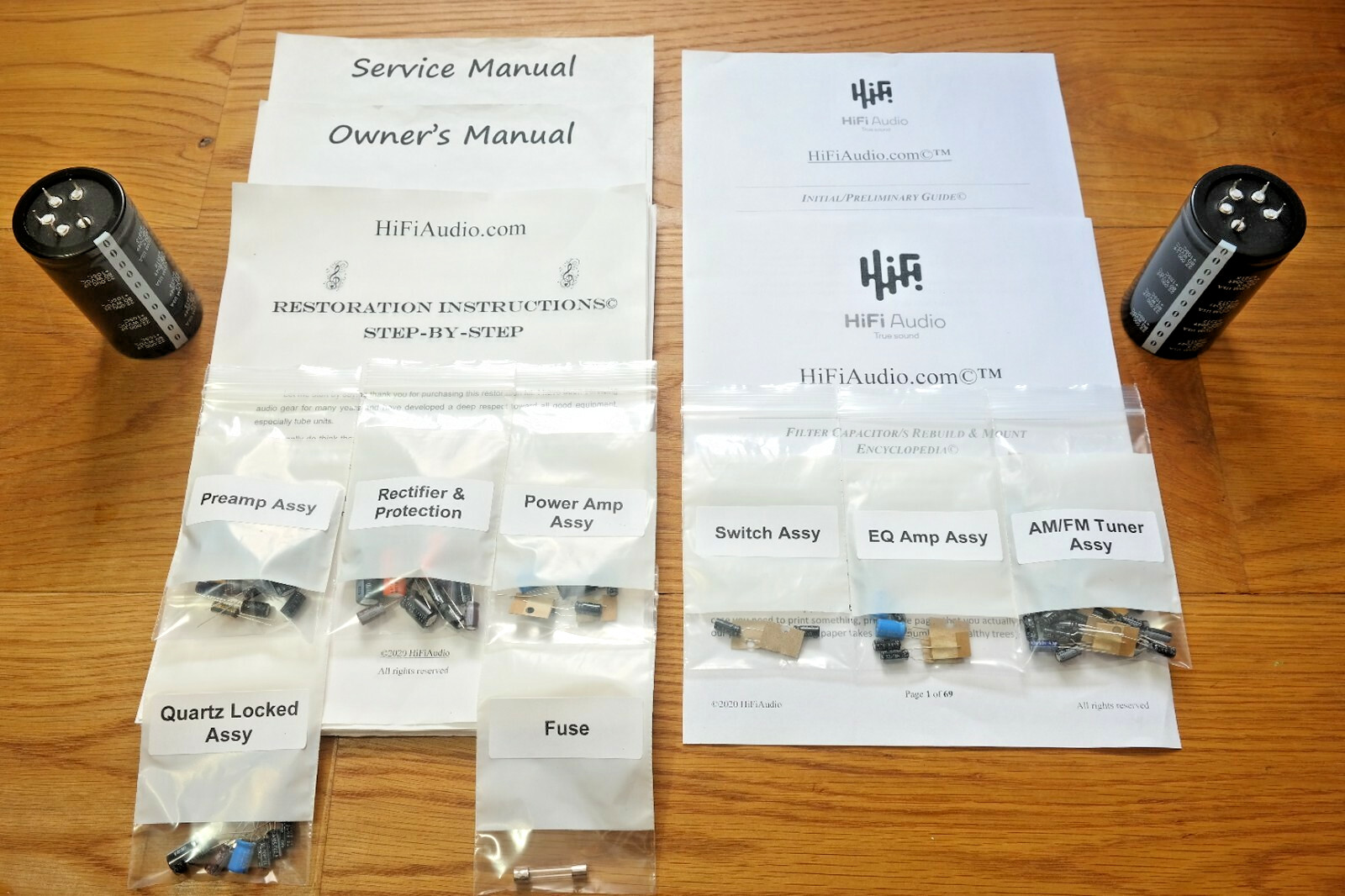

Dried-out electrolytic capacitors in the power supply and signal path, which can lead to hum, low output, or channel imbalance. A full recapping is often recommended for units that haven’t been serviced.
Sticky or noisy potentiometers — the Alps volume and balance controls are generally reliable, but can develop crackle over time. Cleaning with DeoxIT can help, though replacement may be necessary in severe cases.
Tuner alignment drift — the FM section may require realignment by a technician familiar with analog tuners to restore optimal sensitivity and stereo separation.
Rubber drive belts (if equipped with a tape section — though the TX-6500 does not include tape recording) — not applicable here, but worth noting for similar models.

Despite these age-related concerns, the TX-6500 is generally considered a robust unit. Its conservative thermal design and high-quality components contribute to long-term reliability when properly maintained.

Current Market Value and Collectibility

The Onkyo TX-6500 remains relatively obscure compared to more famous receivers like the Pioneer SX series or Sansui G-2500, but this obscurity works in its favor for collectors and practical users alike. Units in good working condition typically sell for $300–$500, depending on cosmetic condition, functionality, and whether they’ve been recently serviced.

Its value lies not in rarity, but in performance-per-dollar. For someone building a vintage system on a budget, the TX-6500 offers a compelling all-in-one solution: excellent amplification, superb FM tuning, and solid build quality. It’s particularly attractive to those who still enjoy FM radio or want a simple, single-box setup for vinyl and tuner sources.

While not a "blue chip" collectible, the TX-6500 is gaining recognition among Onkyo enthusiasts and analog purists. Fully restored examples with documented service history are beginning to command higher prices, especially in Europe and Japan where FM tuner quality is highly valued.

Conclusion and Legacy

The Onkyo TX-6500 may not have the name recognition of some of its peers, but it represents a quiet triumph of thoughtful engineering and balanced performance. It embodies the best of late-1970s Japanese hi-fi: no flash, no gimmicks, just solid, musical sound and reliable operation.

For the modern listener, the TX-6500 offers a refreshing alternative to the complexity of today’s digital systems. Plug in a turntable, connect a pair of vintage speakers, and tune into your favorite FM station — the TX-6500 delivers an analog experience that’s both nostalgic and genuinely enjoyable.

If you’re seeking a vintage unit that combines excellent sound, FM fidelity, and understated elegance, the Onkyo TX-6500 deserves a second look. It may not be the loudest name in the history of hi-fi, but for those who know, it’s a true hidden gem.
