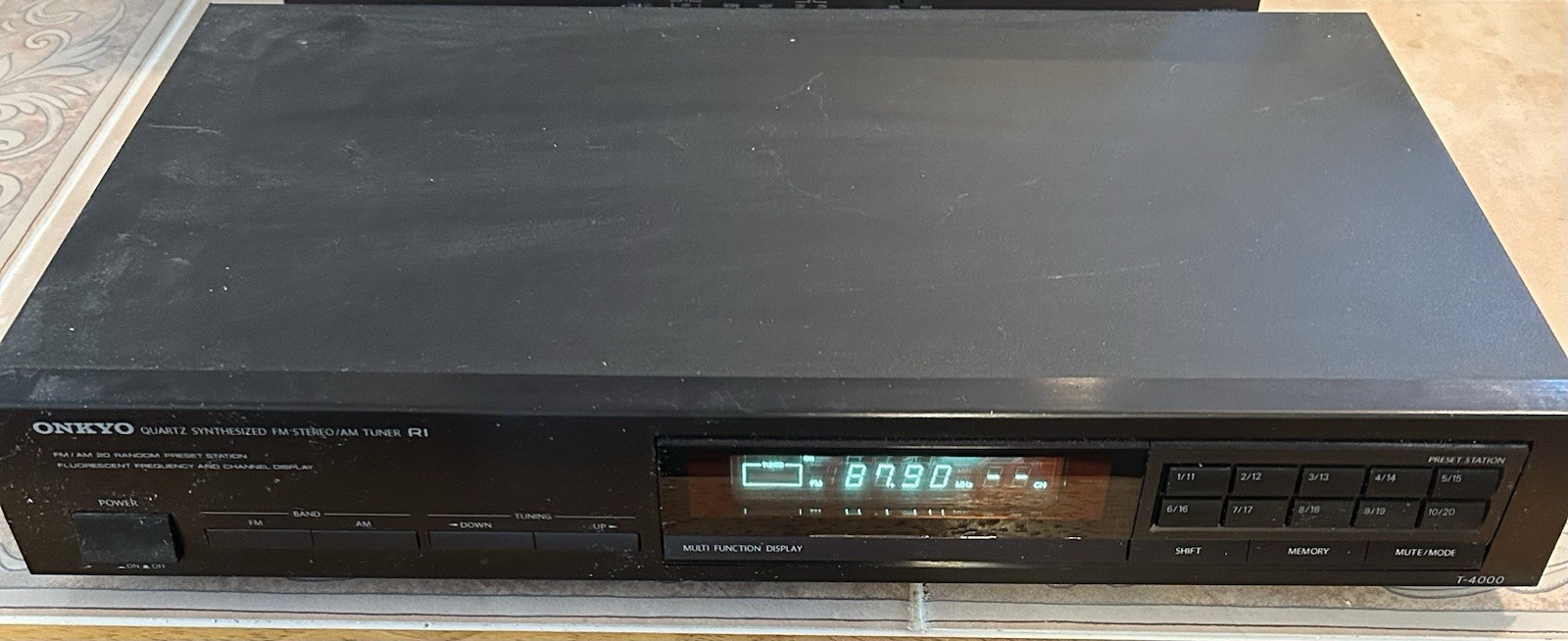

Onkyo T-4080: A Vintage FM Tuner of Exceptional Fidelity
In the late 1970s, Japanese audio manufacturers were at the forefront of analog innovation, delivering high-performance components that combined cutting-edge engineering with meticulous attention to detail. Among these, Onkyo stood out for its commitment to sonic purity and reliability. The T-4080, introduced in 1977, is a prime example of Onkyo’s dedication to excellence in FM reception and remains a sought-after tuner among vintage audio enthusiasts today.
Though not as widely documented as some of its contemporaries, the T-4080 occupies a respected place in Onkyo’s tuner lineage. It was released during a golden era of FM broadcasting, when stereo radio offered a rich, dynamic listening experience—especially for classical, jazz, and live concert broadcasts. The T-4080 was engineered to extract every nuance from the FM band, delivering clarity, stability, and musicality that rivaled far more expensive units.
Technical Specifications
The Onkyo T-4080 was designed with the audiophile in mind, featuring a robust build and advanced circuitry for its time. While detailed service manuals are scarce, known specifications and design elements reflect Onkyo’s high standards during this period.
| Specification | Detail |
| Model | T-4080 |
| Year of Release | 1977 |
| Type | Stereo FM Tuner |
| Tuning System | Analog needle meter with tuning dial |
| Frequency Range | 87.5–108 MHz |
| IF Frequency | 10.7 MHz |
| Sensitivity | Approx. 1.8 µV for 30 dB SNR (typical) |
| Selectivity | Excellent (double-tuned IF filters) |
| Signal-to-Noise Ratio | >70 dB (weighted) |
| Stereo Separation | >40 dB at 1 kHz |
| Output Level | 300 mV (at 50 dBf, 1 kHz) |
| Output Impedance | 1 kΩ |
| Input for Antenna | 75Ω coaxial, 300Ω twin-lead (via adapter) |
| Power Supply | 120V AC, 60 Hz (North American models) |
| Power Consumption | Approx. 20W |
| Dimensions (W×H×D) | 430 × 146 × 325 mm (17 × 5.75 × 12.8 in) |
| Weight | 8.5 kg (18.7 lbs) |
The T-4080 features a dual-gang variable capacitor for precise tuning and a high-gain RF front end to maximize weak signal reception. Its double-conversion superheterodyne design (common in high-end tuners of the era) reduces image interference and improves stability. The inclusion of a high-quality S-meter and stereo indicator allows users to fine-tune stations for optimal reception.
Sound Characteristics and Performance
The Onkyo T-4080 delivers a sound signature that is detailed, balanced, and natural—hallmarks of Onkyo’s design philosophy. Its audio circuitry uses discrete components and high-grade capacitors, avoiding the cost-cutting integrated circuits found in lower-tier models.
Listeners consistently praise the T-4080 for its exceptional stereo imaging and low noise floor, making FM broadcasts sound remarkably close to live performances. The tuner handles multipath distortion well, thanks to its sharp selectivity and effective limiting stages. Even in urban environments with signal interference, the T-4080 maintains a stable lock on stereo broadcasts.
The needle meter is not just a visual delight—it’s a functional tool. Its smooth movement and high damping allow for precise tuning, letting users center a station perfectly on frequency to maximize signal-to-noise ratio and minimize distortion. The result is a listening experience that feels immersive and authentic, especially when paired with high-quality speakers and amplifiers.
Notable Features and Innovations
While the T-4080 may not have introduced revolutionary technology, it exemplifies the refinement of proven engineering principles:
- High-Selectivity IF Filters: Utilizes crystal or ceramic filters to reject adjacent channel interference, crucial for crowded FM bands.
- Silicon-Gate MOSFET RF Amplifier: Provides high input impedance and low noise, improving reception of weak signals.
- DC-Operated Stereo Decoder: Ensures stable demodulation of stereo signals with minimal drift.
- Heavy-Duty Chassis: A rigid steel enclosure reduces microphonics and shields sensitive circuitry from external interference.
- Gold-Plated RCA Outputs: Minimize signal loss and resist corrosion over time.
The front panel design is clean and functional, with a large tuning dial, illuminated frequency window, and dedicated buttons for band switching (if equipped with AM), mono/stereo, and muting. The build quality is exceptional—typical of Onkyo’s mid-to-high-end offerings from the 1970s.
Common Issues and Maintenance
Like all vintage electronics, the Onkyo T-4080 benefits from periodic maintenance to ensure optimal performance:
- Deteriorated Electrolytic Capacitors: Over time, capacitors in the power supply and audio path can dry out, leading to hum, low output, or failure. Replacing them with modern equivalents is recommended.
- Tuning Capacitor Lubrication: The dual-gang tuning capacitor may become stiff or noisy. Cleaning and lubrication with dielectric grease can restore smooth operation.
- Worn Potentiometers: The volume and balance controls (if present in later variants) may develop crackling. Contact cleaner or replacement is advised.
- Antenna Terminal Corrosion: Check and clean the 75Ω and 300Ω terminals to ensure good signal transfer.
- Rubber Degrade: Any rubber components (e.g., feet or internal dampers) may have hardened or crumbled and should be replaced.
Using a proper outdoor FM antenna—such as a folded dipole or Yagi—will dramatically improve performance, especially in fringe reception areas. The T-4080 rewards good antenna systems with near-CD quality sound from strong stations.
Current Market Value and Collectibility
The Onkyo T-4080 is not as common as some other vintage tuners (like the Sony ST-555ES or Pioneer SX series), which adds to its appeal among collectors. Units in excellent working condition with a clean faceplate and responsive tuning typically sell for $150–$300, depending on region and included accessories.
Fully restored models with recapped power supplies and cleaned controls can command higher prices, especially when paired with matching Onkyo components like the M-5080 amplifier or A-9080 preamp. Its value is likely to increase as interest in analog FM grows, particularly among listeners rediscovering the charm of live radio and HD Radio’s limitations.
Conclusion and Legacy
The Onkyo T-4080 may not be a household name, but it represents the pinnacle of 1970s FM tuner design—a time when manufacturers competed fiercely on sound quality, build, and precision. It embodies Onkyo’s philosophy of delivering high-fidelity performance without unnecessary gimmicks.
Today, the T-4080 serves as both a functional component and a testament to an era when radio was a primary source of high-quality music. Whether you're building a vintage system, restoring classic gear, or simply appreciate the art of analog reception, the Onkyo T-4080 is a worthy addition to any collection.
For those who value clarity, craftsmanship, and the magic of FM radio, the T-4080 remains a quiet legend—waiting to be rediscovered.
