Nakamichi 700ZXL: The Ultimate Cassette Calibration Deck

Nakamichi was one of the biggest names in cassette technology. It is best known for decks like the Dragon and the CR-7, but the lineup also had a lesser-known machine, the Nakamichi 700ZXL. It was not made for music playback in the home. It was a professional cassette calibration and alignment deck, built for mastering engineers, tape duplicators, and service technicians who needed absolute precision in analog tape reproduction.

Nakamichi released the 700ZXL in 1985, when high-fidelity cassette recording had reached its technical peak. Cassettes were being used for serious music production, broadcast, and archival, so accurate calibration tools were needed. The 700ZXL was Nakamichi's answer, a no-compromise machine meant to let every cassette deck, from studio to consumer, perform to its full potential.

Technical Specifications

The Nakamichi 700ZXL was built with laboratory-grade components and precision mechanics. While it shares some design DNA with the Nakamichi 600Z and 1000Z series, the 700ZXL was stripped of consumer features and optimized for measurement, alignment, and reference playback.

Specification	Detail
Model	700ZXL
Year Introduced	1985
Type	Professional Cassette Calibration Deck
Tape Speed	1⅞ ips (4.76 cm/s)
Head Configuration	Separate Record, Playback, and Erase Heads
Head Type	Discrete Ferrite Heads
Azimuth Adjustment	Continuously variable, front-panel micrometer control
Playback Equalization	120 μs (IEC), 70 μs (NAB), and OFF (flat)
Recording Equalization	120 μs (IEC), 70 μs (NAB)
Frequency Response	Playback: 30Hz – 18kHz (±3dB), depending on tape formulation
Wow and Flutter	< 0.055% (WRMS)
Signal-to-Noise Ratio	> 60dB (Dolby C encoded), > 50dB (Dolby B), > 40dB (no noise reduction)
Input/Output Levels	Line In: 1V RMS; Line Out: 1V RMS
Input/Output Impedance	10kΩ (in), 600Ω (out)
Monitoring	Dual VU meters (record level), front-panel headphone jack
Power Requirements	120V AC, 60Hz (or 220–240V versions for export)
Dimensions	445 mm × 140 mm × 380 mm (W×H×D)
Weight	13.5 kg (29.7 lbs)

Sound Characteristics and Performance

It is a calibration tool, but the 700ZXL also delivers exceptional sonic performance. The discrete playback head and precision capstan drive system keep phase distortion minimal and give excellent high-frequency extension. Engineers who have used it for reference playback often remark on its clarity, neutrality, and transparency, which is what accurate tape alignment calls for.

The NAB and IEC equalization curves are switchable, so the 700ZXL can calibrate decks designed for different regional standards. The flat-response mode (equalization bypass) is useful for analyzing raw tape signals without coloration. The continuously variable azimuth control is a standout feature. It lets you correct head alignment in real time while monitoring phase or high-frequency response, which consumer decks can't match.

Notable Features and Innovations

The 700ZXL was packed with features tailored for professional use:

Micrometer Azimuth Control: A front-panel knob with a calibrated scale allows for precise, repeatable azimuth adjustments — critical when aligning multi-deck duplication setups.
Three-Head Configuration: Separate record, playback, and erase heads eliminate crosstalk and allow independent optimization of each function.
Selectable Playback EQ: Switch between NAB (70μs) and IEC (120μs) time constants, or disable EQ entirely for flat playback.
High-Stability Transport: Derived from Nakamichi’s flagship decks, the capstan-driven system ensures consistent tape speed with ultra-low wow and flutter.
Reference-Level Output: The line output is optimized for connection to test equipment, oscilloscopes, and spectrum analyzers.
No Auto-Reverse or Dolby HX Pro: Unlike consumer models, the 700ZXL omits unnecessary circuitry to maintain signal purity.

The 700ZXL was often used with Dolby calibration tapes, NAB reference tapes, and oscillators to set record levels, bias, and frequency response on other cassette decks. It was a staple in high-end audio service centers and duplication facilities during the 1980s and early 1990s.

Common Issues and Maintenance

Production was limited and the machines were professional gear, so surviving 700ZXL units are rare and often show signs of heavy use. Common issues include:

Worn pinch rollers: Hardened or glazed rollers can cause speed instability. Replacement with fresh rubber rollers is essential.
Head wear: While durable, the ferrite heads can develop scratches or debris buildup. Regular cleaning with isopropyl alcohol and demagnetization are recommended.

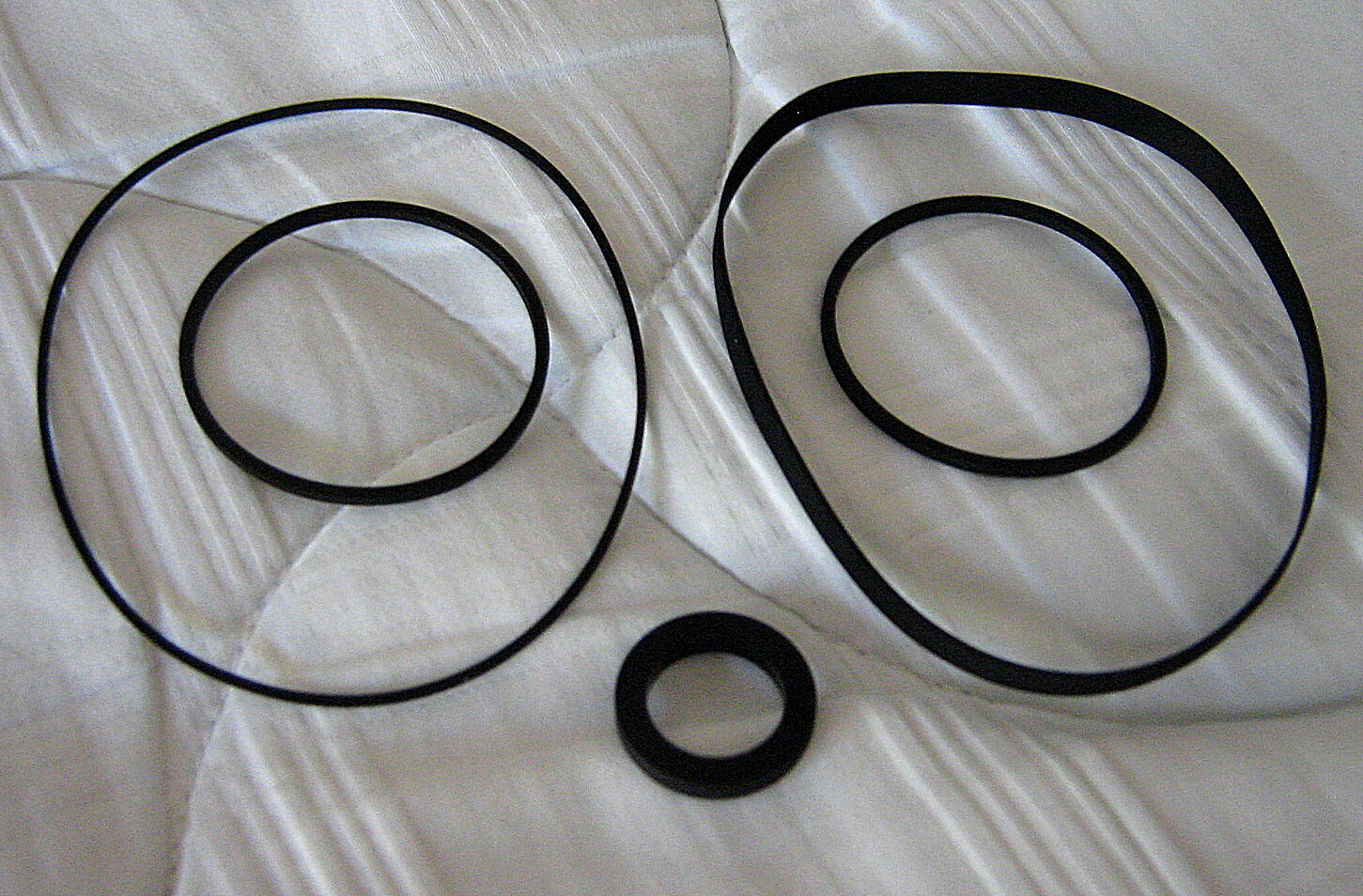

Capstan belt degradation: Though the capstan is direct-drive, some internal idler belts may dry out over time.
Potentiometer noise: The azimuth and level controls may develop crackling; cleaning with contact cleaner can help.
Dust accumulation: As a bench-top unit, the 700ZXL is prone to dust, especially in the tape path and head block.

Because of its precision role, the page strongly advises having a 700ZXL serviced by a technician familiar with professional tape equipment. Calibrate it periodically with NAB or IEC reference tapes to maintain accuracy.

Current Market Value and Collectibility

The Nakamichi 700ZXL is not a common find on the vintage audio market. It never reached the fame of the Dragon, and its specialized function means fewer units were produced. Buyers today are audio restorers, tape archivists, and Nakamichi collectors who want a complete set of the brand's professional lineup.

Working units typically sell for $400-$700, depending on condition and accessories. Fully calibrated decks with original manuals, calibration tapes, and carrying cases can command higher prices. Given its historical significance and engineering pedigree, the 700ZXL is likely to appreciate in value as analog tape interest continues to grow.

Conclusion and Legacy

The 700ZXL lacks the glamour of a Dragon and the ubiquity of a CR-1, but from an engineering standpoint it is the pinnacle of cassette technology. It was not built for show. Analog tape was still a primary medium for music distribution and preservation, and the 700ZXL let every cassette deck, wherever it was used, deliver the fidelity Nakamichi championed.

Analog tape and vinyl are seeing a resurgence today, and the 700ZXL is a monument to precision, craftsmanship, and the pursuit of audio perfection. For the serious collector or audio professional, it is a tool that once defined the standards of high-fidelity sound.

Market Value

┌──────────────────────────────────────────────────────────────────────────┐
│ NAKAMICHI 700ZXL                                                Nov 2026 │
├──────────────────────────────────────────────────────────────────────────┤
│ High      $193                                    Latest             $90 │
│ Median    $141                                    Trend                — │
│ Low       $83                                     Volume           ~1/mo │
├──────────────────────────────────────────────────────────────────────────┤
│   $200 ┤                                                                 │
│        │.               .                                                │
│        │                                                                 │
│   $136 ┤.                                                                │
│        │                                                                 │
│        │                                                                 │
│        │                 .                                              .│
│    $50 ┤                                                                 │
│        ├─────────────────────────────────────────────────────────────────│
│    vol │█               ▄▄                                              ▄│
│        └─────────────────────────────────────────────────────────────────│
│         2026-03                      2026-05                      2026-07│
└──────────────────────────────────────────────────────────────────────────┘

eBay completed sales. Excludes accessories, parts, and non-working units. Hover points for details.
