MCS 3233 (late 1970s-early 1980s)

A solid-state AM/FM stereo receiver from Modular Component Systems, known for its 33 watts per channel and Motorola 2N3055 output transistors.

Overview

The MCS 3233 is an AM/FM stereo receiver made by Modular Component Systems during the late 1970s and into the early 1980s, with confirmed sales as early as 1979. It was sold through retailers like JC Penney and marketed under names including "Modular Component Systems MCS 3233" and "MCS 3233 AM/FM Stereo Receiver." The unit delivers 33 watts per channel into 8 ohms, both channels driven, with frequency response from 20 to 20,000 Hz, THD of 0.8%, IM distortion of 0.1%, and a signal-to-noise ratio of 80 dB. It includes a phono stage and uses solid-state circuitry.

Specifications

Product type	AM/FM Stereo Receiver
Power output	33 watts per channel into 8 ohms, both channels driven
Frequency response	20-20,000 Hz
THD	0.8%
IM distortion	0.1%
Signal-to-noise ratio	80 dB
Phono stage	Present
Tuning bands	FM, MW
Output transistors	Two Motorola 2N3055 output transistors

Design

The MCS 3233 is a solid-state receiver featuring two Motorola 2N3055 output transistors, known for durability and ease of replacement. It has milled aluminum knobs and dial lamps that provide a warm glow during operation.

Context

The MCS 3233 was sold through department stores such as JC Penney in 1979. It shares the same schematic as the MCS 3235, though the 3235 operates with higher voltage DC.

Market

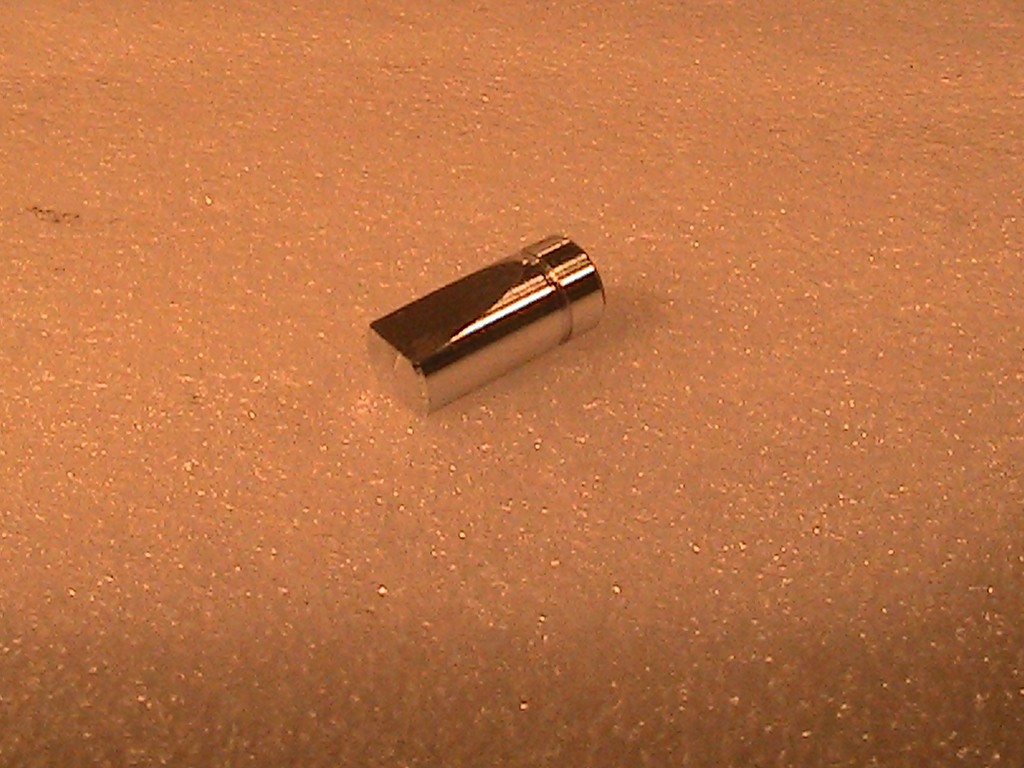

Units have been found in thrift stores for as little as $5–$10, while units in good condition list for around $160. Replacement parts, including the original volume knob, are available on eBay. A known issue includes a bent tuner rod, and while output transistors may fail over time, they are readily available.
