McIntosh MAC4100 (1978–1985)
At 40 pounds, it arrives like a declaration—this is not a receiver built to blend in, but to dominate the rack and the room with unflinching authority.
Overview

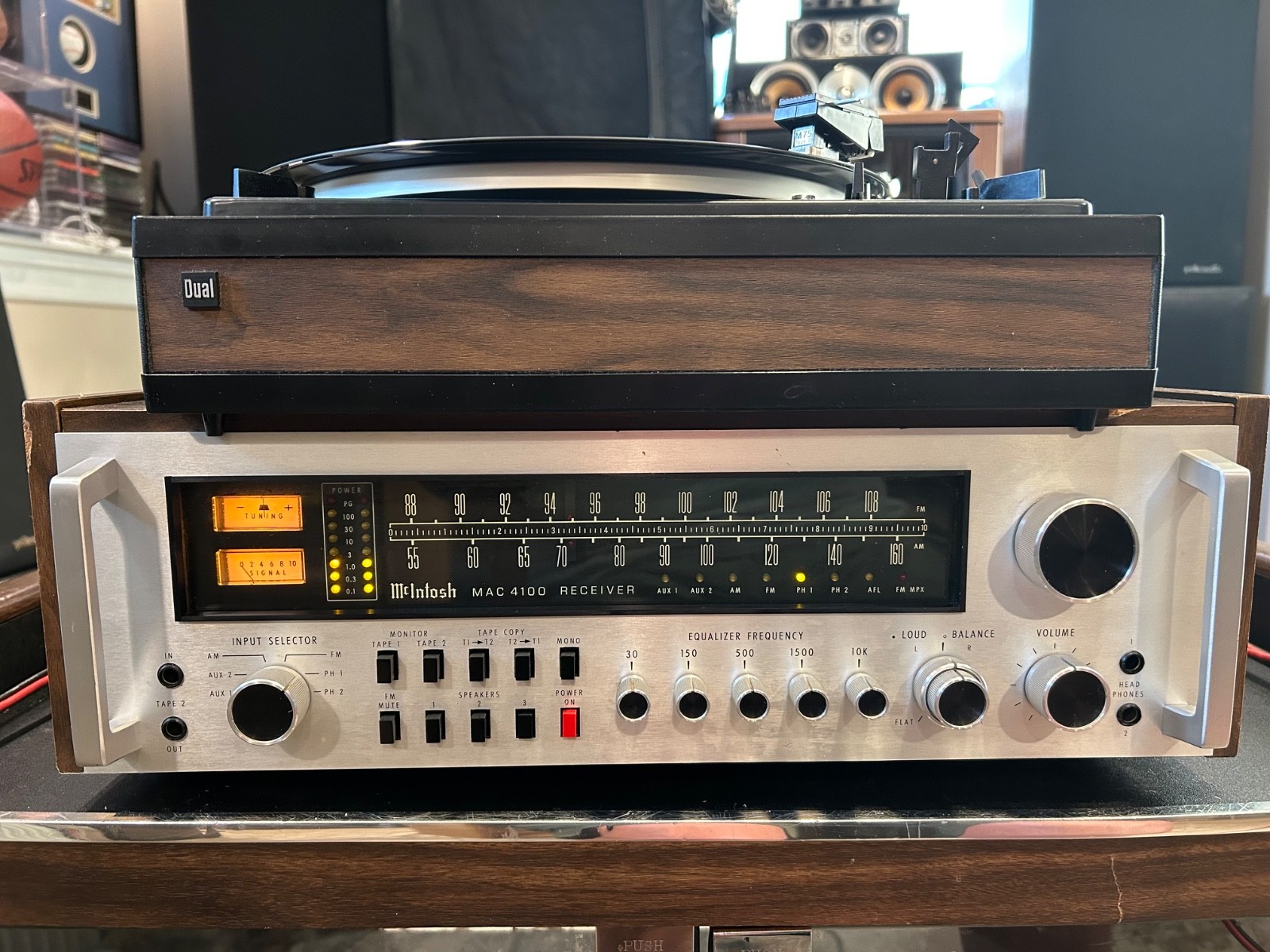

The McIntosh MAC4100 AM/FM Stereo Receiver stands as a full-featured, solid-state receiver produced from 1978 to 1985. Built during a period when integrated receivers were expected to do everything—amplify, tune, and shape sound—the MAC4100 was engineered to do it all without compromise. Owners report a machine that feels overbuilt from the moment the power switch clicks into place, with the signature McIntosh blue VU meters lighting up like command indicators. It wasn’t just an amplifier with a tuner bolted on; it was a unified system designed to deliver high-fidelity performance across every function, from phono playback to FM broadcast reception. The build reflects McIntosh’s no-compromise philosophy: heavy steel chassis, robust power supply, and circuitry laid out for signal purity rather than cost savings.
Specifications
| Manufacturer | McIntosh Laboratory, Inc. |
| Product Type | AM/FM Stereo Receiver |
| Production Years | 1978–1985 |
| Power Output | 100 watts per channel into 8Ω (stereo) |
| Power Bandwidth | 20Hz – 20,000Hz |
| Total Harmonic Distortion | 0.1% |
| Intermodulation Distortion | 0.1% |
| Frequency Response | 20Hz – 20,000Hz ±0, -0.5dB |
| Damping Factor | 40 |
| Hum and Noise | High Level: 90dB below rated output |
| Input Sensitivity | High Level: 0.5V; Phono 1 & 2: 2.5mV |
| Tone Controls | Bass: ±12dB at 50Hz; Treble: ±12dB at 15kHz |
| Loudness Contour | +7dB at 100Hz |
| Filter | Low 15Hz, 6dB per octave |
| FM Tuner Usable Sensitivity | 10.3dBF (1.8µV) |
| FM Signal-to-Noise Ratio | 70dB |
| FM Distortion | 0.3% |
| FM Capture Ratio | 1.5dB |
| FM Selectivity | 70dB |
| FM Image Rejection | 80dB |
| FM IF Rejection | 100dB |
| FM Spurious Response Rejection | 100dB |
| FM AM Suppression | 55dB |
| FM Stereo Separation | 40dB at 1kHz |
| AM Tuner Sensitivity | 200µV |
| Dimensions (W×H×D) | 17-1/2" × 6-1/8" × 15-1/4" (44.5 × 15.6 × 38.7 cm) |
| Weight | 40 lbs (18.2 kg) net |
Key Features
100W per Channel Power Output with Full Protection
Delivering 100 watts per channel into 8 ohms—measured across the full 20Hz to 20kHz bandwidth with no more than 0.1% THD—the MAC4100 was among the most powerful integrated receivers of its time. The power bandwidth matches the full audio spectrum, ensuring that transient peaks and deep bass are reproduced without strain. Combined with a damping factor of 40, the amplifier maintains tight control over speaker cones, especially noticeable with complex, dynamic passages.
Phono Amplifier with Integrated Circuit Operational Amplifier
The phono stage in the MAC4100 was designed around a new high-technology integrated circuit operational amplifier, a departure from discrete transistor designs common in earlier models. According to available documentation, this IC-based approach aimed to improve signal-to-noise ratio and reduce distortion in the critical RIAA equalization stage. With input sensitivity set at 2.5mV for both phono inputs, the receiver was compatible with standard moving magnet cartridges. However, collectors note that the reliance on a specialized IC has become a point of vulnerability over time—phono IC issues are reportedly one of the more common failure points in surviving units, and replacement or repair often requires sourcing rare components or modern equivalents.
Quartz-Locked FM Tuner with Comprehensive Filtering
With a usable sensitivity of 1.8µV and a 70dB signal-to-noise ratio, it performed well even with modest antennas. The receiver’s selectivity (70dB), image rejection (80dB), and IF rejection (100dB) indicate a well-shielded, high-performance front end capable of rejecting adjacent and spurious signals. Stereo separation of 40dB at 1kHz suggests clean channel demarcation, preserving the spatial qualities of broadcast stereo. A delayed action FM muting circuit was implemented to suppress noise during tuning or signal dropouts, enhancing the listening experience.
Independent Tone Controls and Loudness Compensation
Unlike simpler receivers that offer only basic bass and treble adjustments, the MAC4100 provides ±12dB of control at 50Hz and 15kHz, allowing for significant tailoring of the sound. The loudness contour, which applies +7dB at 100Hz, compensates for the ear’s reduced sensitivity to bass at lower volumes. Sources suggest the loudness control uses common sliders, integrating smoothly with the overall tone adjustment system. A 15Hz low-pass filter is also included, useful for reducing subsonic noise from records or tapes without affecting audible bass.
Collectibility & Value
The MAC4100 has developed a strong reputation among vintage audio enthusiasts, with some describing it as "legendary" and "a great piece" in owner circles. Its combination of high power, full feature set, and McIntosh build quality makes it a sought-after all-in-one solution for those avoiding stacked separates. However, its collectibility is tempered by known reliability concerns, particularly with the phono stage’s integrated circuit. While service manuals and recap kits are available, full restoration often requires technical skill and component sourcing. Current market prices are not consistently documented, but examples of units listed for sale (including sold listings) indicate ongoing demand.
