McIntosh MAC1700 (1967–1973)

One of McIntosh’s first solid-state receivers—and a hybrid legend with tubes up front and transistors driving the power, it’s the machine that helped define what high-end audio could be.

Overview

The McIntosh MAC1700 isn’t just another vintage receiver—it’s a bridge. Built between 1967 and 1973, it marks the moment McIntosh began its full pivot from tubes to solid-state, but in true Mac fashion, they didn’t go all-in overnight. Instead, they crafted a hybrid beast: a solid-state preamp and power amp section paired with a tube-based FM tuner. That mix gave owners the reliability and headroom of transistors with the warm, forgiving character of tubes where it mattered most—on the front end of the signal chain. It was one of McIntosh’s first solid-state designs, and while the company had already earned a reputation for indestructible build quality, the MAC1700 proved they could innovate without sacrificing their sonic signature.

Owners report that this thing feels like it was built to survive a fall from a moving truck—and probably still play afterward. It’s heavy at 34 pounds, sits low and wide in that classic late-'60s McIntosh stance, and wears its black-and-silver front panel with quiet authority. The faceplate glass is slightly curved, the tuning dial is illuminated, and the whole unit just means business. It wasn’t cheap when new—$599 in 1967 would be over $5,000 today—so it wasn’t for casual listeners. This was for people who wanted the best, and who expected it to last. And by all accounts, it delivered.

Specifications

Key Features

Hybrid Circuit Design: Best of Both Worlds

The MAC1700’s hybrid topology—solid-state preamp and power amp with a tube-based FM tuner—isn’t a gimmick. It’s a deliberate engineering choice that leverages the strengths of both technologies. The tuner section uses six tubes (including a 12AU7 and multiple 6DS4s and 6HS6s), which helps deliver that smooth, low-noise FM reception McIntosh was known for. Meanwhile, the solid-state sections use 16 silicon planar transistors in the preamp, giving the unit precision, stability, and the kind of power delivery that could drive all but the most demanding speakers. It’s a transitional piece, yes, but one that feels cohesive rather than compromised.

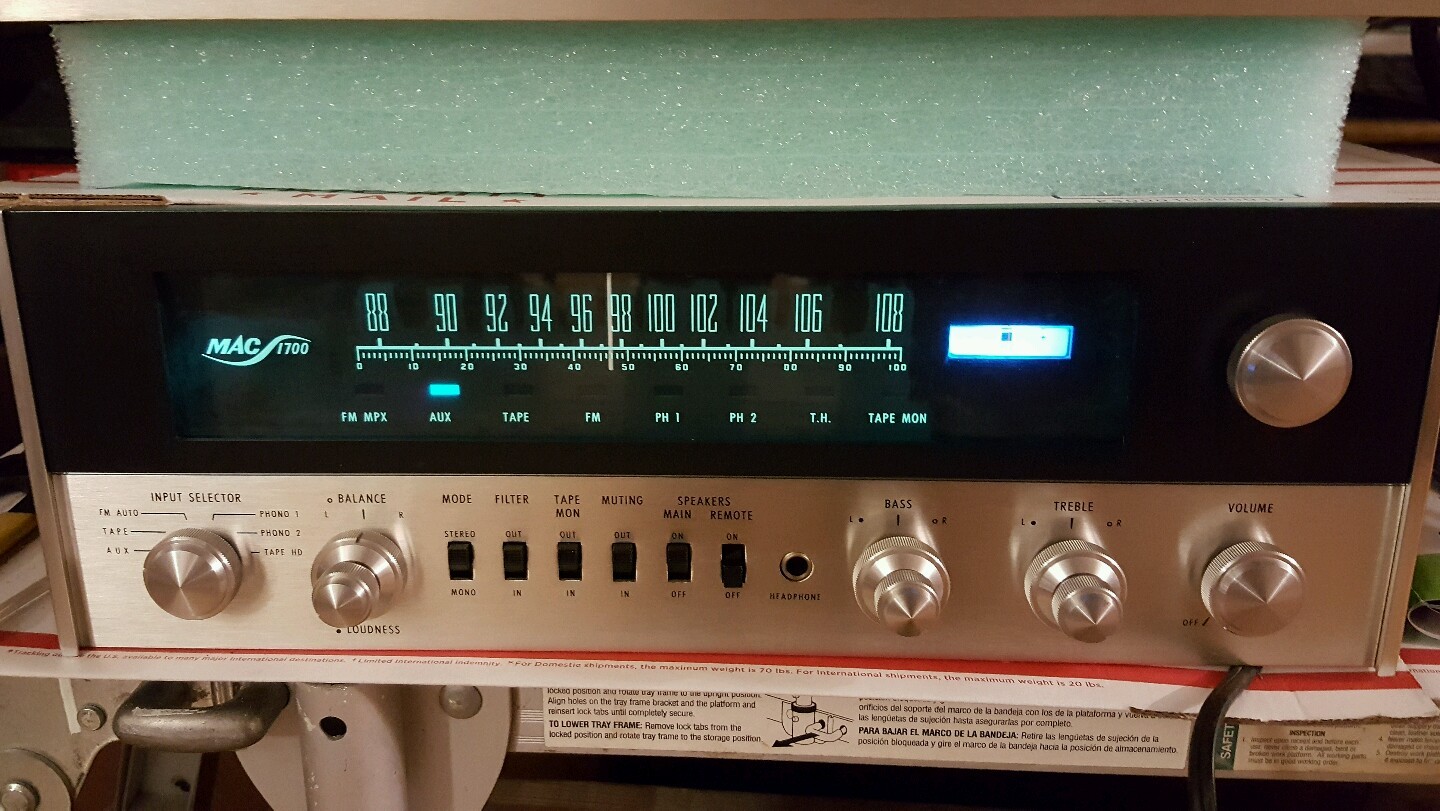

Front Panel Layout: Functional and Iconic

McIntosh didn’t mess around with ergonomics. The front panel is clean, logical, and built to last. The volume knob doubles as the power switch (pull to turn on, push to turn off), and it’s connected to a dual concentric control for bass and treble—turn the outer ring for treble, the inner for bass, each adjustable from +18 to -18dB. The illuminated tuning dial sits front and center, flanked by a tuning meter and a large, satisfyingly damped tuning knob. Indicator lights for each input (aux, tape, fm, ph 1, ph 2, th) let you know at a glance what’s active. The faceplate glass is a single curved sheet, and if you’re lucky enough to find one with it intact, you’ll appreciate how it catches the light just right.

Input and Output Flexibility

For its time, the MAC1700 was loaded with connectivity. Inputs include aux, tape, phono 1, phono 2, and tape head—plenty for a turntable, tape deck, and maybe a tuner or tuner preamp. The tape monitor function lets you switch between live and recorded sources, and there’s even a muting switch for quick silencing. On the back, you’ll find barrier strip speaker terminals (no modern binding posts, but these are rock-solid), screw terminals for both 300-ohm and 75-ohm antenna connections, a ground terminal, and three AC outlets—one unswitched and two switched, so you can power up your entire system from one plug. There’s also a headphone jack up front, which is more than some high-end receivers of the era offered.

Slide Switches and Filtering

Just below the input selector are a row of slide switches that handle mode (stereo/mono), filter (in/out), tape monitor (in/out), muting (in/out), loudness (in/out), and speaker (on/off). The filter is a fixed 60Hz low-pass and 5kHz high-pass, useful for cleaning up noisy recordings or protecting tweeters. The loudness switch applies a bass boost at lower volumes, which can help compensate for the ear’s reduced sensitivity in the lows when listening quietly. These switches feel industrial—precise, stiff, and built to be flipped daily for decades.

Collectibility & Value

The MAC1700 doesn’t show up often on the market, and when it does, it moves fast. Owners tend to hold onto them—so much so that one repair shop noted, “We rarely receive MAC1700's into our shop and our best guess as to why is because their owners don’t want to part with them.” That loyalty isn’t just sentimental; it’s backed by real-world durability. A properly serviced unit can still perform at or near factory specs, and the current market reflects that. One example sold for $1,895 as of December 31, 2025, according to HifiShark.com.

But let’s be real: these are 50-year-old machines. The most common issue is minor channel imbalance in the volume controls, caused by wear in the shaft mechanism—nothing catastrophic, but enough to be noticeable. The volume control itself is long out of production, so repairs can be tricky. More critically, the power supply capacitors tend to fail with age, and a full recap is almost always necessary for reliable operation. One restoration shop reported replacing “the majority of the power supply capacitors” along with out-of-spec axial caps, lamps, and even the front dial glass. They also replaced all output transistors and select drivers with authentic McIntosh parts—important, because while the circuit is robust, using incorrect replacements can alter the sound or lead to premature failure.

If you’re considering a purchase, look for a unit that’s been professionally recapped and tested. A rebuild kit (including all necessary capacitors and instructions) sells for $195, but unless you’re experienced with tube/solid-state hybrids, leave the work to a specialist. When it’s right, the MAC1700 delivers that “signature sweet McIntosh sound”—warm, detailed, and effortlessly powerful, especially with vinyl. It’s not just a collector’s piece; it’s a living, breathing part of audio history that still belongs in a serious listening room.
