McIntosh MA6100 (1972–1979)
Seventy honest watts, a pair of phono inputs, and the cheapest door McIntosh ever opened into its own house.
Overview
Thirty-four pounds net, sixteen inches across the front panel, and a chassis that slides thirteen inches deep into a cabinet — the MA6100 is a small amplifier by McIntosh standards, and that is precisely the point. As Modern Recording (February 1976, p.56) reported, the unit weighs 34 pounds net and its front panel measures 16 inches by 5 7/16 inches.
This was the integrated that McIntosh marketed as a gateway into the brand: one chassis containing both a stereo preamplifier and a power amplifier, sold to listeners who wanted the McIntosh name without buying separates. Production ran from 1972 to 1979, though at least two enthusiast databases list it as a 1975–76 model instead, so the exact run is worth treating as approximate. A surviving example with a late serial number was reportedly built in 1978, which argues for the longer span.The MA6100 delivers 70 watts per channel into 8 ohms. The documentation that survives from the period confirms it holds that rating into 4-ohm loads as well, which matters because plenty of mid-Seventies solid-state folded up when the impedance dropped. Into 16 ohms it is rated at 40 watts per channel. The output stage is direct-coupled with no output autoformer, which sets the MA6100 apart from several of its McIntosh siblings of the era. That simplifies the signal path and takes the transformer out of the impedance-matching equation entirely.
Frequency response is quoted as 20 Hz to 20 kHz, with one source adding a tolerance of +0/-0.5 dB. Total harmonic distortion is listed at 0.2% maximum. That is a single-source figure, so treat it as indicative. Signal-to-noise is 90 dB on the high-level inputs and 76 dB for moving-magnet phono, and the damping factor is 50. Input sensitivity is 2.5 mV for phono and 300 mV for line sources.
The input count is where the value shows. There are six inputs total: Aux, two tuners, two phono stages, and a tape deck. Two record players and two tuners on a single integrated was not a given in this era. The dual phono inputs in particular drew favorable comment from owners who wanted a second turntable permanently wired without a switcher.
Key Features
Direct-Coupled Output Stage, No Autoformer
McIntosh built its reputation on output transformers and autoformers, so the MA6100's direct-coupled design is a deliberate departure. Removing the transformer simplifies the signal path and eliminates the transformer's contribution to distortion and bandwidth limiting. It also means the amplifier's behavior into a given load is determined by the output devices and feedback network rather than by a tapped winding. Collectors note that this makes the MA6100 something of an outlier in the McIntosh catalog, closer in topology to what the rest of the industry was building than to what McIntosh itself was building.
Six Inputs Including Dual Phono
The rear panel accepts Aux, Tuner 1, Tuner 2, Phono 1, Phono 2, and Tape. Contemporary descriptions put it as two record players, two tuners, and two tape decks. The dual phono provision is the standout. Owners who ran two turntables, or who wanted a moving-magnet and a moving-coil rig both permanently connected, found it useful.
Two Speaker Pairs Plus Headphones
The MA6100 provides outputs for two sets of speakers as well as a headphone jack. The rear apron carries Pre-Out/Main-In connections so the preamp and power amp sections can be split, which lets you insert an equalizer or an external processor without hacking the chassis. Accessory AC outlets on the back let you power a tuner or turntable from the amplifier's own switched supply.
Loudness Compensation
A compensation switch automatically applies the bass boost required to offset the ear's reduced low-frequency sensitivity at low playback levels. It is the same idea behind the loudness buttons on countless receivers, but here it is a circuit that tracks the volume control rather than a fixed contour. At low listening levels the music would otherwise lose much of its bass and some of its treble, and the compensation circuit puts it back.
Dimensions and Cabinet

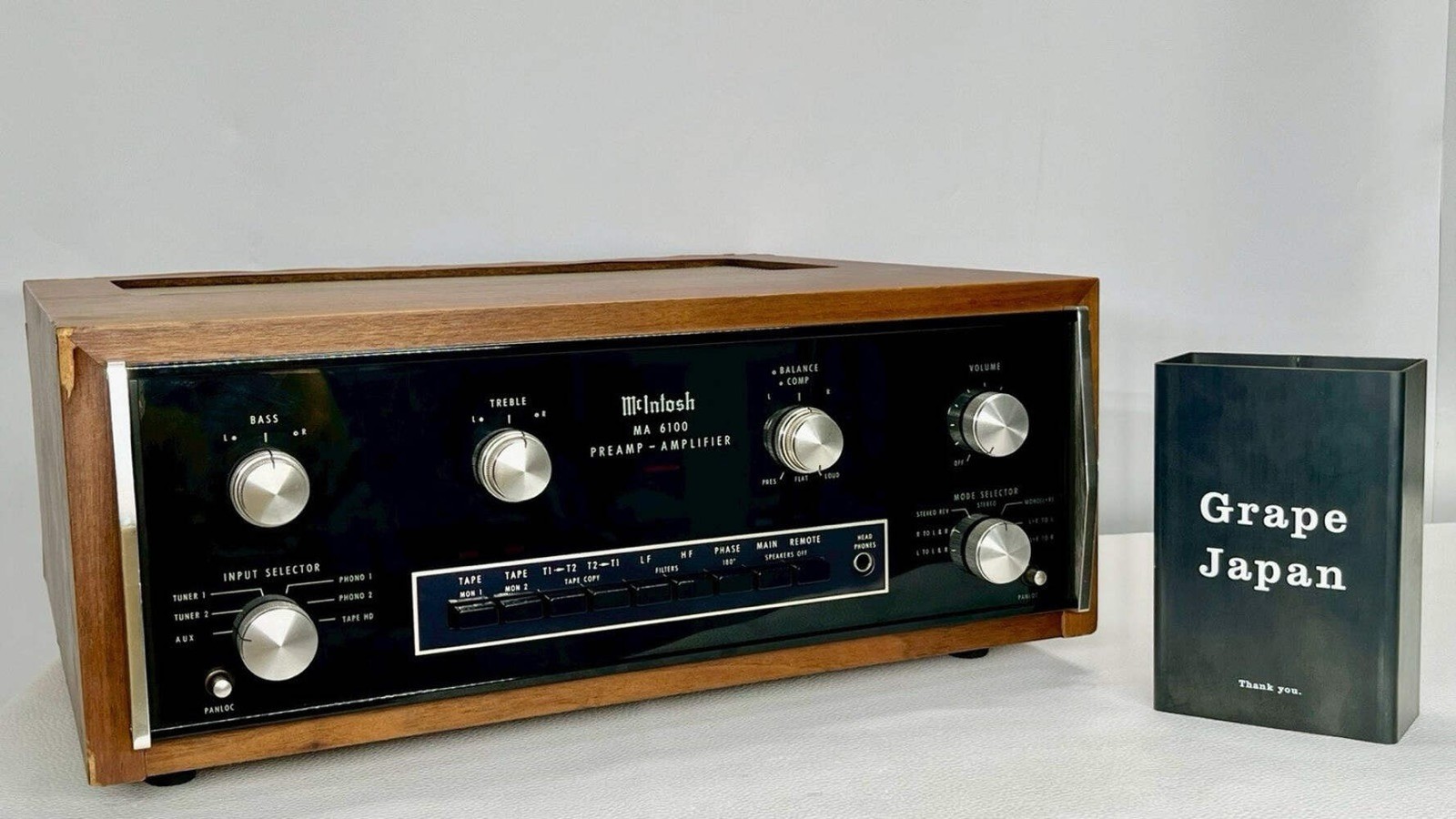

The front panel measures 16 inches wide by 5.5 inches high, according to the fact sheet. The manufacturer's own documentation gives the height as 5 7/16 inches, with a 13-inch chassis depth including the Panloc shelf and rear connectors. Knob clearance requires about an inch and a half in front of a mounting panel. Net weight is 34 pounds. A handcrafted wooden cabinet was offered as an option, and surviving examples with the wood case command a premium in the used market.
Historical Context
The MA6100 arrived as McIntosh's entry point to its own lineup, the amplifier you bought when you wanted the brand but could not justify separates. It was marketed explicitly that way, and it was one of the earlier integrated amplifiers from a company better known for splitting preamp and power amp into separate chassis. The visual resemblance to the C28 preamplifier of the same era is strong enough that sellers and buyers alike have mistaken one for the other. The two share a family face but nothing else.
McIntosh positioned the MA6100 as a companion to its own tuners, and the period literature pairs it most naturally with the MR71, the two together forming essentially a receiver built from separate boxes. For a mid-Seventies system with the McIntosh sound and without the McIntosh separates budget, the MA6100 and an MR71 were the obvious combination.
Collectibility & Value
The MA6100 has seen a significant increase in collector interest. Units in clean, serviced condition are listed for as much as $1,750, with recent eBay listings reaching $1,800 for a standard example and $2,300 for one described as super clean and serviced. A serviced unit with the wooden case has been listed at $2,700, though that listing's title says "Preamplifier" rather than integrated amplifier, so verify before treating it as a straight MA6100 comparison.
Reliability is decent but not maintenance-free. Owners report long-term daily use stretching past 15 years, and the documented service items are the expected ones: front-panel bulb replacement and general upkeep. Units described as serviced or regularly maintained appear more frequently in active listings, and a restored example typically has had a multitude of parts replaced that were out of spec or known to have potential issues. Replacement front glass is available, and service manuals and schematics survive, including a factory service bulletin covering a wiring correction on early serial numbers.
The production-year record is inconsistent. If you are chasing a specific vintage, check the serial number rather than trusting the listing. And if the amplifier has never been serviced, budget for it. A forty-plus-year-old direct-coupled amplifier with original electrolytics is a restoration project, not a plug-and-play purchase.
