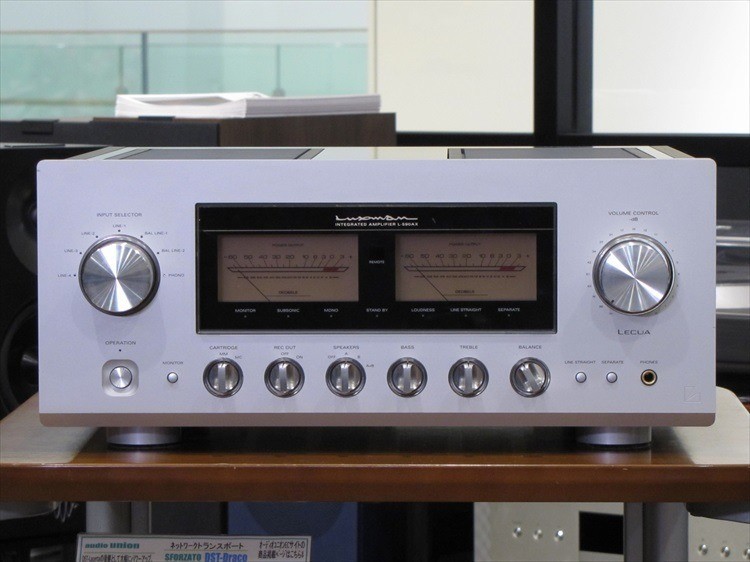

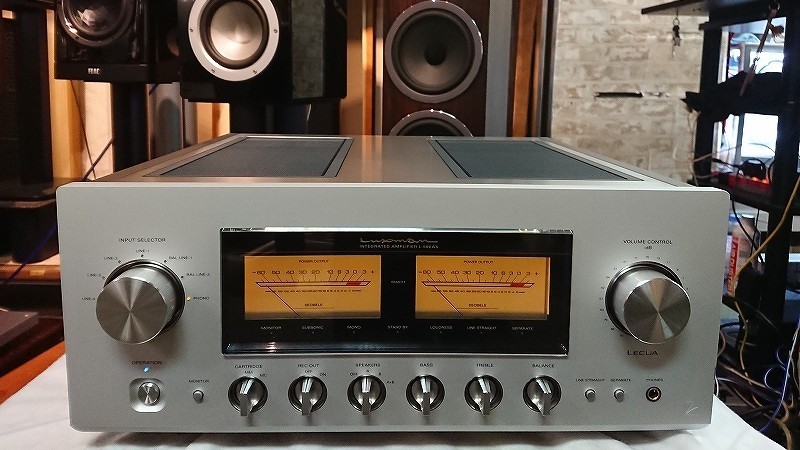

Luxman L-590AX: The Pinnacle of Modern Vintage-Style Integrated Amplification
Luxman is a Japanese company with a history going back to 1925. The L-590AX, introduced in 2018, is a flagship integrated amplifier built to deliver the precision expected of today's high-end market while keeping the feel of vintage audio.
It isn't a vintage unit by age, but it follows vintage audio values. It appeals to collectors and audiophiles who like the warmth, musicality and build quality of classic tube and solid-state amplifiers from the 1970s and 1980s. It has a hand-finished aluminum front panel, a meter display and an understated look. It feels like a natural successor to Luxman's L-550 and L-507 models.
Technical Specifications
The L-590AX is engineered for those who demand both performance and purity in their audio chain. As a fully discrete, Class A/B integrated amplifier, it forgoes the use of integrated circuits in critical signal paths, relying instead on discrete transistor circuitry for greater control and sonic transparency.
| Specification | Detail |
| Model | L-590AX |
| Year Introduced | 2018 |
| Type | Integrated Amplifier |
| Output Power | 80W per channel (8Ω), 140W (4Ω) |
| Frequency Response | 5 Hz – 100 kHz (-1 dB) |
| Total Harmonic Distortion | < 0.05% (1 kHz, rated power) |
| Input Sensitivity | 250 mV (for rated output) |
| Input Impedance | 47 kΩ |
| Signal-to-Noise Ratio | 103 dB (IHF-A) |
| Speaker Outputs | A/B or A+B selectable, gold-plated |
| Inputs | 5 line-level (RCA), 1 MM phono |
| Output | Preamp out (RCA) |
| Tone Controls | Bass, Treble (±8 dB at 100 Hz / 10 kHz) |
| Construction | Discrete Class A/B, no ICs in signal path |
| Power Supply | Large toroidal transformer, dual mono-block design |
| Dimensions (W×H×D) | 440 × 145 × 418 mm |
| Weight | 22.5 kg (49.6 lbs) |
| Finish Options | Black, Silver |
One of the most striking features is the inclusion of a high-gain MM phono stage, a rarity in modern high-end integrated amplifiers. This allows direct connection of turntables without the need for an external phono preamp, a nod to Luxman’s commitment to vinyl enthusiasts.
Sound Characteristics and Performance
The sound of the L-590AX is balanced, warm, and deeply musical. It doesn't shout for attention. It has natural tonality and exceptional clarity. The midrange is transparent, vocals come across with lifelike presence, and acoustic instruments have texture and spatial definition.
Bass is tight and well controlled. The power supply and the dual-monaural design get the credit here, since the design isolates the left and right channel power circuits to minimize crosstalk. High frequencies are smooth and extended, without the harshness that can plague some solid-state designs. The overall presentation is one of effortless coherence, with excellent soundstaging and imaging that places instruments precisely within a three-dimensional space.
Even at moderate volumes, the L-590AX conveys microdynamic nuances, like the subtle breath of a vocalist or the faint pluck of a guitar string, that lesser amplifiers often gloss over. It stays composed during complex passages, so it suits orchestral works, jazz trios or rock recordings.
Notable Features and Innovations
The L-590AX has a number of thoughtful engineering touches that make it more than a power amplifier with inputs:
- O.C.D. (Optimum Circuit Design): Luxman’s proprietary circuit philosophy emphasizes minimal signal degradation. The L-590AX uses discrete components throughout the audio path, avoiding op-amps and ICs that can color or compress the sound.
- LX-500 Phono Stage: The built-in MM phono stage is derived from Luxman’s standalone phono preamps, featuring low-noise JFET transistors and precise RIAA equalization. It’s sensitive enough for most moving magnet cartridges and delivers a rich, analog warmth.
- Analog VU Meters: The large, centrally mounted VU meters are not just decorative—they provide real-time feedback on output levels and add to the amplifier’s vintage charm. Illuminated in soft orange, they evoke the golden age of hi-fi.
- Tone Control Defeat Switch: For purists, a front-panel switch allows the tone controls to be bypassed entirely, ensuring a direct signal path when EQ adjustment isn’t needed.
- High-Quality Components: Luxman uses polypropylene capacitors, low-resistance wiring, and precision resistors throughout. The speaker terminals are heavy-duty, gold-plated, and compatible with spades, bananas, or bare wire.
- Selectable Outputs: The ability to switch between Speaker A, B, or A+B makes the L-590AX versatile for multi-room setups or bi-amping (with external crossovers).
Common Issues and Maintenance
As a modern high-end component, the L-590AX is built to last and has proven highly reliable in owner reports. A few considerations apply, though:
- Ventilation: Due to its high bias current and Class A/B operation, the amplifier generates noticeable heat, especially during extended use. Ensure at least 10 cm of clearance on all sides, particularly above and behind, to prevent thermal throttling or component stress.
- Cleaning: The aluminum front panel and glass meter cover are prone to fingerprints and dust. Use a microfiber cloth and non-abrasive cleaner—avoid alcohol-based sprays that could damage the finish.
- Phono Stage Sensitivity: While the built-in phono stage is excellent, it may not be sufficient for very low-output MM cartridges. In such cases, an external step-up transformer or dedicated phono preamp may be needed.
- Firmware and Service: Unlike digital-heavy competitors, the L-590AX is largely analog and requires no firmware updates. However, periodic inspection by an authorized Luxman technician every 5–7 years is recommended to check solder joints, relays, and capacitor health.
Current Market Value and Collectibility
The L-590AX was introduced only in 2018, but it already has a cult following among Luxman enthusiasts and integrated amplifier fans. The L-590AXII succeeded it in 2022, with an improved power supply and an updated phono stage. That makes the original AX a sought-after modern classic.
On the secondary market, the L-590AX typically sells for $3,500-$4,500 USD, depending on condition, hours of use, and whether the original packaging is included. Units with low usage and full documentation command premium prices, especially in regions where Luxman distribution was limited.
Its collectibility comes from its transitional status. It was one of the last Luxman integrated amps before the brand introduced more digital features in later models. For buyers who want an all-analog signal path and a minimalist user interface, it is a high-water mark.
Conclusion and Legacy
The Luxman L-590AX is more than just an amplifier—it’s a statement. A statement that high-fidelity audio need not be complicated, that elegance and performance can coexist, and that the values of vintage design still have a place in the modern era.
It honors Luxman’s legacy of craftsmanship while delivering a listening experience that is both emotionally engaging and technically superb. Whether you’re pairing it with vintage speakers or modern high-efficiency designs, the L-590AX delivers a sound that is timeless in the truest sense.
For collectors and audiophiles alike, the L-590AX is a worthy centerpiece of any system—a modern heirloom that future generations may well regard as a classic. In the pantheon of great integrated amplifiers, the Luxman L-590AX has already secured its place.
