Luxman L-504 (1975)

Name: Luxman L-504
Brand: Luxman

Luxman L-504 Preamplifier: Elegance in Simplicity from Japan’s Golden Age of Hi-Fi

In the early 1970s, Japanese audio manufacturers were rapidly gaining global recognition for their precision engineering, elegant design, and unwavering commitment to high-fidelity sound. Among these, Luxman stood out as a brand that balanced technical innovation with a distinctly musical, analog warmth. The Luxman L-504, introduced in October 1973, is a prime example of this philosophy—an integrated amplifier that may not boast flashy features, but delivers a listening experience that continues to captivate audiophiles decades later.

Though not as widely documented as some of its contemporaries, the L-504 occupies a respected place in Luxman’s lineage. It emerged during a golden era when Japanese electronics companies were refining their craft, moving beyond mere imitation of Western designs to create their own signature sonic identity. The L-504 reflects this evolution: understated in appearance, yet meticulously constructed with audiophile-grade components and a circuit topology focused on signal purity.

Technical Specifications

The L-504 was designed as an integrated amplifier, packing both preamp and power amp sections into one elegant chassis. It embodies the minimalist, high-performance ethos that Luxman championed during this period. Its design specifically targeted the elimination of crossover distortion, a common plague in class B push-pull designs of the time, which tells you they were serious about the sound, not just the specs.

Model	Luxman L-504
Years of Manufacture	1973 - 1975
Type	Stereo Integrated Amplifier
Power Output	2 x 35 Watts RMS
Inputs	Phono 1, Phono 2, Tuner, Aux 1, Aux 2, Tape 1, Tape 2
Outputs	Pre Out, Main In
Tone Controls	Bass, Treble, Loudness
Dimensions (W x H x D)	450 x 160 x 268 mm
Weight	10 kg
Finish	Silver front panel, Rio rosewood wood veneer case
Power Consumption	150 W max

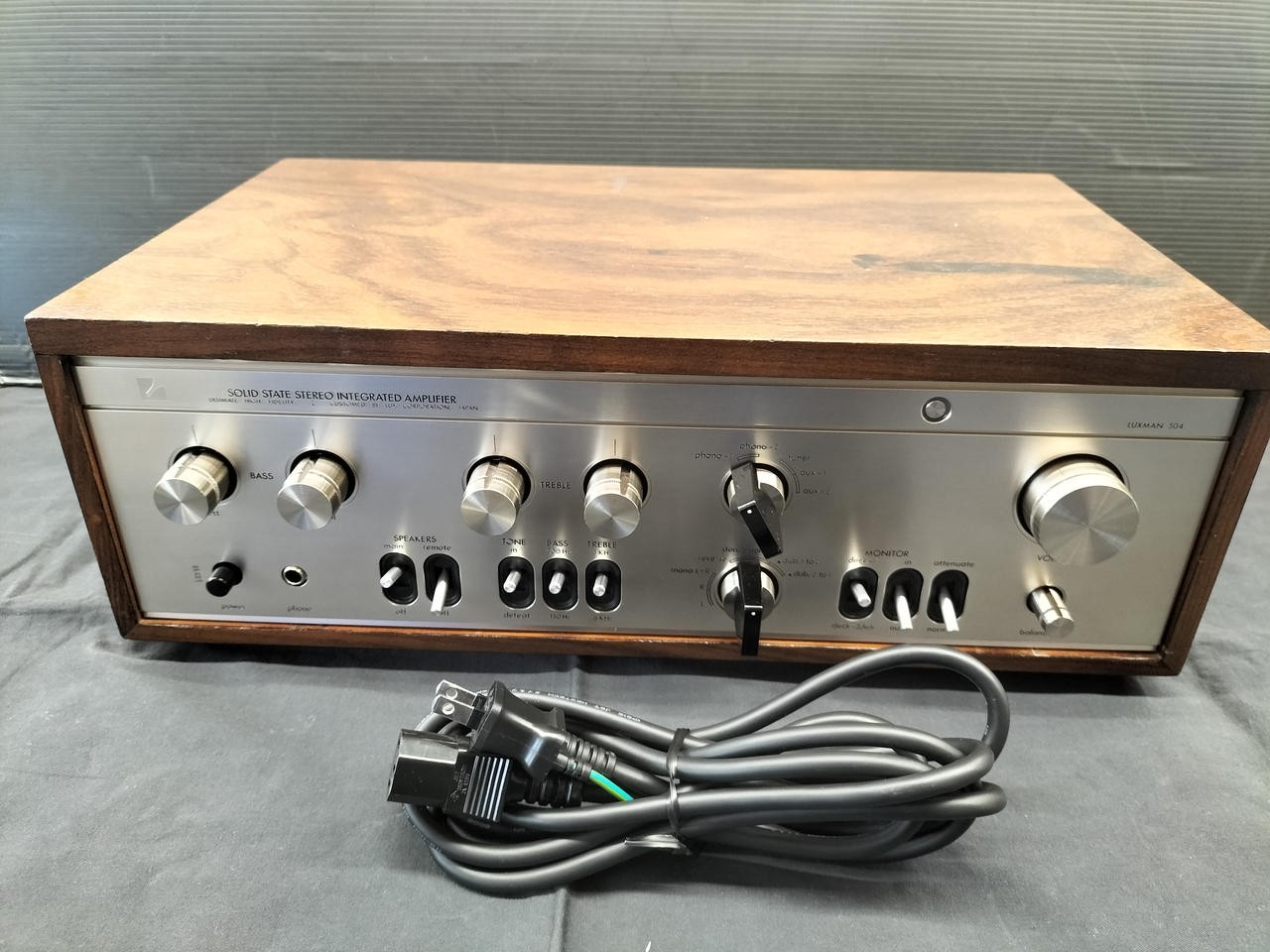

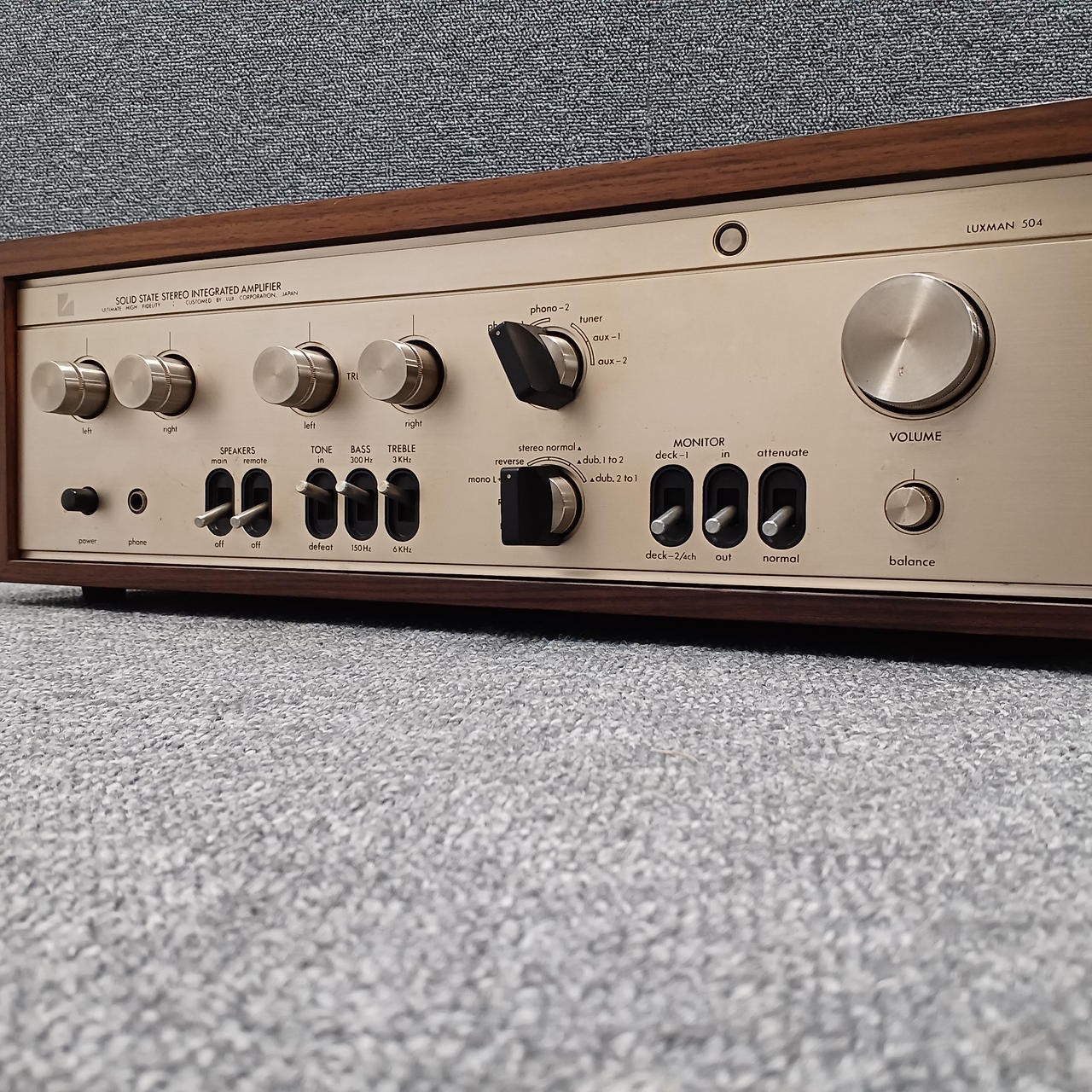

The L-504 features a clean, symmetrical layout with a large central volume knob, flanked by smaller knobs for balance, bass, and treble. The front panel is minimalist, with a Luxman logo badge—a subtle nod to the brand’s heritage in broadcast and studio-grade equipment.

Sound Characteristics and Performance

The Luxman L-504 is not an amplifier built for sonic fireworks. Instead, it excels in transparency, tonal balance, and a natural presentation that lets the music breathe. Its sound signature is best described as refined, neutral with a touch of warmth, avoiding the clinical sterility that plagued some solid-state designs of the era.

Thanks to its discrete transistor circuitry and carefully selected components, the L-504 delivers a smooth midrange, detailed highs, and a well-controlled low end. It handles complex orchestral passages with ease and renders vocals with remarkable clarity and presence. The tone controls are musical rather than corrective, allowing you to tailor the sound without sacrificing coherency. That dedicated effort to squash crossover distortion pays off with a remarkably clean and cohesive sound, especially at lower listening volumes where lesser amps can sound thin and grainy.

One of the L-504’s most praised attributes is its low noise floor. Even at high gain settings, background hiss is minimal, a testament to Luxman’s attention to power supply filtering and circuit layout. This makes it an excellent match for sensitive speakers, letting you hear the music, not the electronics.

Notable Features and Innovations

While the L-504 may appear conventional by today’s standards, it incorporated several design philosophies that were ahead of its time. Luxman stuck with discrete components instead of the op-amps that were becoming trendy, allowing for greater control over the sonic character and linearity. The volume control is typically a high-grade, smooth-operating pot, and the inclusion of both Pre Out and Main In jacks offers flexibility, letting you use it as a preamp or integrate a different power amp later.

The build quality is where this thing really shines. You’ve got a heavy-gauge steel chassis with that gorgeous brushed aluminum faceplate and real wood veneer sides. It’s built like a tank, not to impress at a glance, but to last for decades and provide excellent shielding against vibration and electromagnetic interference. This thing reflects Luxman’s philosophy of long-term reliability—components were conservatively rated, and the layout was designed for serviceability, because they expected you to keep it for life.

Common Issues and Maintenance

As with any vintage electronics from the 1970s, the Luxman L-504 requires careful evaluation before use. While generally reliable, several issues may arise after 50+ years. The electrolytic capacitors in the power supply and signal path are the prime suspects. They’ve likely dried out by now, which can lead to hum, weak performance, or worse. A full recapping by a qualified technician is pretty much a must-do for peace of mind and performance.

The volume and tone controls may develop the classic crackles or channel imbalance. A good cleaning with contact cleaner often works wonders, but sometimes a replacement is needed. Also, check those RCA inputs and selector switches for oxidation; they can cause intermittent connections. A bit of regular use and occasional cleaning helps keep everything happy. Despite these age-related concerns, the L-504 is generally considered well-serviced and repairable, thanks to its sensible, modular design and the fact that Luxman used pretty standard parts.

Current Market Value and Collectibility

The Luxman L-504 isn’t the poster child of vintage audio like some Marantz or Sansui models, and that’s part of its charm. It holds a quiet reverence among enthusiasts who’ve discovered its capabilities. Its value has been steadily increasing, particularly among collectors seeking uncompromised analog sound from the 1970s without the hype-inflated price tag.

As of 2024, a fully functional and well-maintained L-504 typically sells for $400–$700 USD, depending on condition, wood case integrity, and whether it has been restored. Units with original packaging or manuals are rare and command more. It’s a true sleeper gem—an integrated amp that delivers Luxman’s legendary, musical engineering at a relatively reasonable entry point. Its appeal is its authenticity. In an age of digital perfection, the L-504 offers a warm, organic, and deeply human listening experience.
