Luxman K-210 (1982–1986)

Name: Luxman K-210
Brand: Luxman

A no-nonsense, precision-built cassette deck from Luxman’s golden era—solid, reliable, and ready to be serviced back to life.

Overview

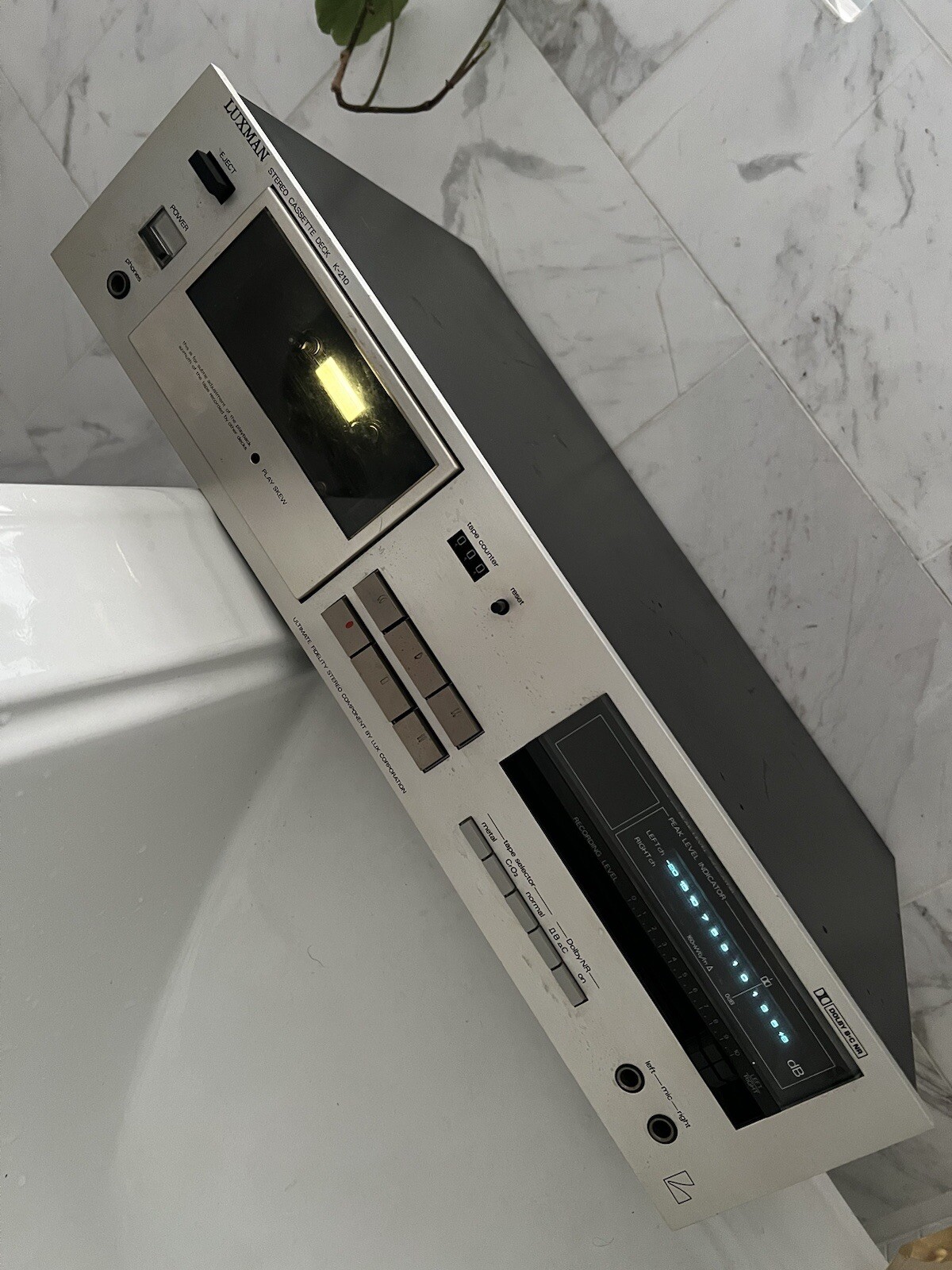

The Luxman K-210 isn’t flashy, but it doesn’t need to be. Introduced in 1982 and produced through 1986, this 2-head stereo cassette deck was built during a time when Japanese manufacturers were perfecting the art of high-fidelity tape recording. Luxman, better known for their amplifiers and tuners, didn’t cut corners here—they delivered a machine that’s mechanically thoughtful, sonically competent, and built to last. It’s not a flagship model with every bell and whistle, but it’s the kind of deck you’d find in a serious listener’s system who valued consistency and serviceability over showy automation.

Unlike some of the more complex 3-head decks of the era, the K-210 sticks to a 2-head configuration: one combination record/playback head and a separate erase head. That keeps the design simpler and more reliable, which matters when you’re dealing with a format defined by moving parts and wear items. It supports all major tape types—Type I, CrO2, and Metal—so it can adapt to whatever you throw at it, and with Dolby B and C noise reduction on board, it handles high-speed recording with respectable clarity.

Owners report that when properly serviced, the K-210 plays and records well, with smooth operation and solid tracking. One listing even noted a 1984 unit as “*Serviced* Nice!”—a small phrase, but one that speaks volumes in the vintage tape world. Another user on Tapeheads.net put it simply: “Lux sound quality is spoken of by many for good reason,” adding they expected to get along great with the K-210 if it matched the quality of their Luxman L-10 amplifier. That’s high praise by implication, and it reflects the brand’s reputation for clean, transparent audio.

Specifications

Type	2-head, single compact cassette deck
Track System	4-track, 2-channel stereo
Tape Speed	4.76 cm/s
Heads	1 x combination record/playback head, 1 x erase head
Motor	1 x brushless DC motor, 1 x DC motor
Tape Type	type I, CrO2, Metal
Noise Reduction	Dolby B & C
Frequency Response (Metal tape)	20Hz to 19kHz
Signal to Noise Ratio (Dolby C)	69dB
Wow and Flutter	0.06%
Total Harmonic Distortion	0.7%
Input	50mV (line), 0.25mV (DIN)
Output	0.5V (line), 0.5V (DIN)
Dimensions (W×H×D)	430 x 103 x 315 mm
Weight	5.5kg
Color	Silver
Origin	Made in Japan

Key Features

Brushless DC Capstan Motor

The K-210 uses a brushless DC motor for the capstan, which drives the tape at a steady 4.76 cm/s. This type of motor is known for long life and consistent speed, reducing wow and flutter to a very low 0.06%—a solid spec for its time. A separate DC motor handles the reel drive, contributing to stable tape tension during playback and recording.

Digital Peak-Level Meters

One of the more modern touches on the K-210 is its digital peak-level meters, complete with LED controls. These give visual feedback during recording, helping users avoid distortion by keeping input levels in check. It’s a practical feature that reflects the shift toward more user-friendly, precision-oriented design in the early 1980s.

Soft Touch Mechanical Controls

The deck features soft touch button operation with mechanical tape loading—no fragile solenoids or complex auto-eject mechanisms. This means fewer failure points over time. Functions include auto shutoff, which helps protect tapes and heads when playback ends.

Onboard Connectivity and Flexibility

The K-210 comes equipped with RCA jacks for line input and output, a 3-digit mechanical counter, and even two mono microphone inputs—useful for voiceovers or live recording. A headphone output allows for private monitoring, making this deck a self-contained recording solution for its era.

Collectibility & Value

The Luxman K-210 trades in a modest but predictable range. Functional units typically sell for around €100, while those needing repair—especially due to worn belts—can go for as little as $55. One sold listing on Reverb showed a price of $145.64 plus $66.75 shipping, suggesting that fully serviced, clean units command a premium, especially with high shipping costs factored in.

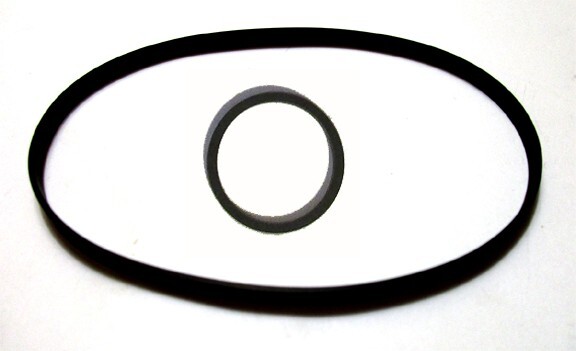

The most common failure point is aging rubber belts, which degrade over time and cause symptoms like a continuously running spindle or failure to engage play mode. Fortunately, replacement belt kits are available from specialty vendors like KP Components Inc., and service manuals can be found online through sources like HiFi Engine and Elektrotanya. An exploded view parts diagram is also referenced, making disassembly and reassembly more approachable for DIYers.

While not a rare or highly sought-after deck, the K-210 is appreciated for its build quality and straightforward design. It’s not a showpiece, but it’s a working machine—ideal for someone who wants to use a cassette deck regularly, not just display it. When restored, it performs reliably, and its support for Metal tapes and Dolby C means it can deliver very listenable results by analog tape standards.
