Klipsch KLF-20 (1996)

Name: Klipsch KLF-20
Brand: Klipsch

Three-way loudspeaker system introduced in 1996 as part of Klipsch’s Legend Series.

Overview

The Klipsch KLF-20 is a three-way loudspeaker system introduced in 1996 as part of the Klipsch Legend Series, which includes the KLF-30, KLF-20, and KLF-10 models. It features a traditional three-way design similar to Klipsch Heritage models. The speaker uses two 10-inch poly-carbon graphite cone woofers and a polymer compression driver tweeter with horn. User reviews highlight its balanced, dynamic, and powerful sound at high volumes, though some describe the stock sound as potentially "thin" compared to other Klipsch models.

Specifications

Product Type	Three-way loudspeaker system
Peak Power Handling	800W
Continuous/RMS Power Handling	200 watts
Impedance	8 ohms
Frequency Response	34Hz–20kHz
Sensitivity	100dB

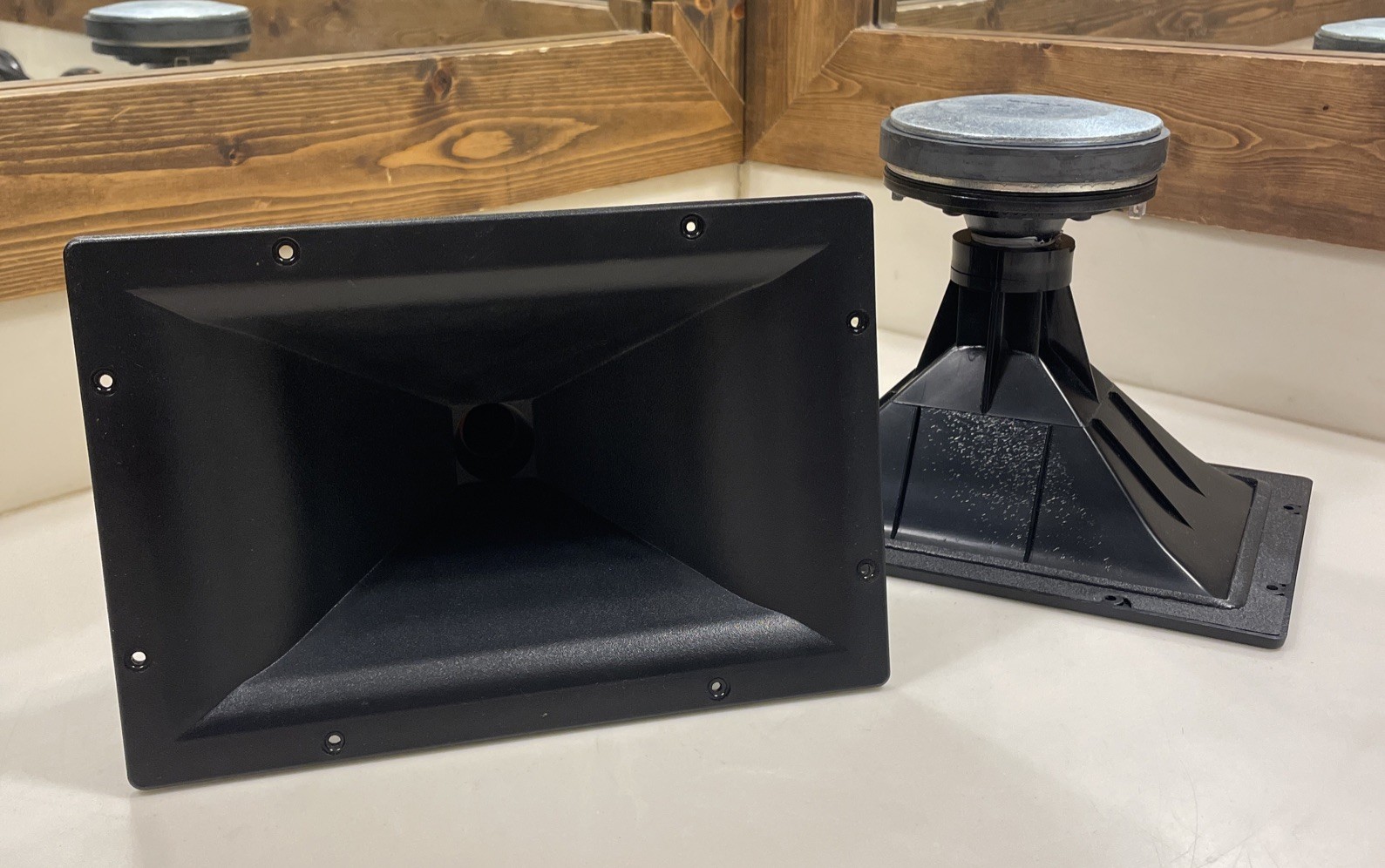

Driver Complement	Two 10-inch poly-carbon graphite cone woofers, one polymer compression driver tweeter with horn
Connectivity	Wired

Design

The KLF-20 uses a 3-way crossover network that, according to user forums, originally contained inexpensive components including electrolytic and paper capacitors prone to deterioration over time. Cabinet construction is reported to use particle board, with some users noting potential issues with joint and veneer quality and internal bracing, though others report no construction problems and describe their units as well-built. A known issue is baffle glue failure, reportedly addressed in later production runs.

Market

The Klipsch KLF-20 originally sold for $1,500 per pair. Used examples have sold for around $400 (2019) and $450 (2009), with current values suggested near $500. Common maintenance includes replacing degraded crossover capacitors or upgrading the entire crossover, with third-party specialists offering dedicated upgrade kits.
