Kenwood KD-2055 (1976–1980)

It hums to life with a deep, almost silent whir, then settles into a stillness so complete you forget it's spinning, until the needle hits the groove and the room fills with a warm, grounded sound.

Overview

Some collectors call this one "The Rock." Pick up the Kenwood KD-2055 and your arms dip. It weighs nearly 26 pounds. The weight comes from the plinth, a dense composite of marble and concrete. In an era when many manufacturers were still using particle board or lightweight MDF, Kenwood went all-in on inertness. The plinth resists resonance and tames low-frequency feedback before it can muddy the sound.

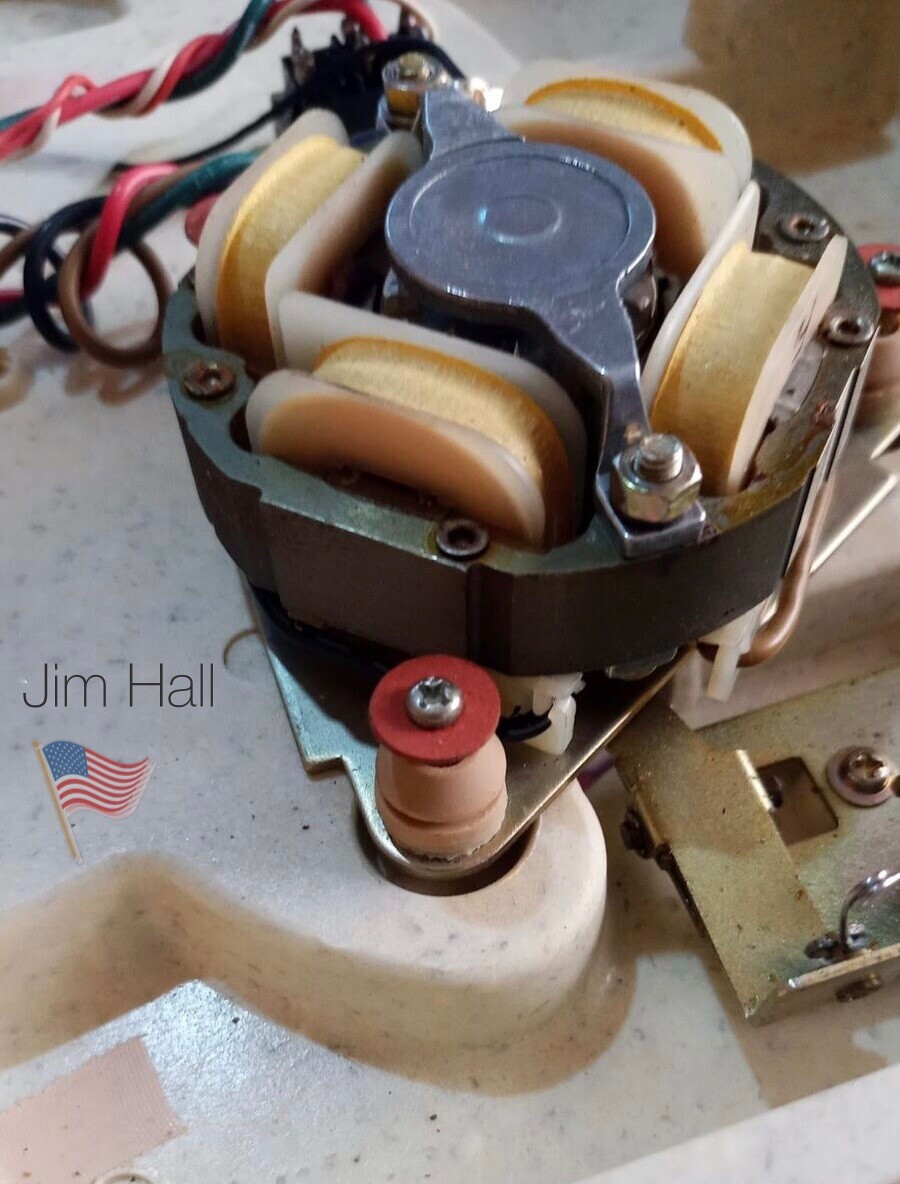

The mechanical design under that stony exterior is more refined than you'd expect. The KD-2055 runs on a belt drive powered by a 4-pole synchronous motor, which is simple, reliable, and well isolated from the platter. Wow and flutter is measured at less than 0.06% WRMS, a number that rivals some higher-end models of the late '70s. It spins at 33⅓ and 45 RPM, no 78. The auto-in, auto-cut, auto-return, and repeat functions work smoothly, which makes it a true semi-automatic deck without giving up rigidity. The arm moves with a deliberate motion, tracks cleanly and returns to rest without drama.

Kenwood didn't skimp on the tonearm, either. It's a static-balance, S-shaped pipe design with an effective length of 215 mm and an overhang of 9.5 mm. That's fairly standard for the era, but built with precision. It uses an EIA plug-in connector, which makes cartridge swaps easy, and it's designed to work with moving magnet cartridges in the 4 to 13 gram range. The original V-39 MK II cartridge, with its 0.5 mil elliptical stylus, gives a balanced, detailed sound with a touch of warmth. Nothing flashy, but honest and fatigue-free over long listening sessions. Owners report that it tracks well out of the box, especially when aligned with a Stevenson protractor, which suits the arm's geometry better than Baerwald on this particular setup.

The dust cover hinges feel substantial, and the platter spins with a satisfying inertia. The look is industrial, almost architectural, not flashy or minimalist. This turntable was engineered to disappear into a system, not dominate it visually. Compared to the more common Dual or Technics models of the time, the KD-2055 trades some adjustability for rigidity and mass. It's not the most tweakable deck, but it's one of the most stable.

Specifications

Key Features

The Granite Plinth: Mass as a Design Philosophy

Most turntables from the 1970s fought vibration with suspension, damping, or isolation feet. Kenwood took a different path: brute force. The KD-2055's plinth isn't wood or plastic. It's a poured composite of marble dust and concrete, which gives it exceptional density and internal damping. The point is reducing energy transfer. When your speakers are pumping out bass, a lightweight turntable can start to resonate, smearing detail and introducing low-frequency distortion. The KD-2055 just sits there like a boulder. Audiophiles with high-sensitivity speakers or ported cabinets often praise this design for eliminating the need for subsonic filters. It's not a magic bullet, since no turntable is.

Semi-Automatic Operation Without Compromise

Many semi-automatic turntables of the era sacrificed rigidity for convenience, using lightweight arms or flimsy mechanisms that compromised tracking. The KD-2055 avoids that. Its auto-in, auto-return, and pause elevation functions are driven by a mechanical system that doesn't interfere with the arm's stability. The disc size selector adjusts the return point for 7", 10", and 12" records, and the anti-skating control is both present and functional, which is no small thing on a deck in this price range. The cueing is manual, which some might see as a limitation, but it gives precise control over stylus placement. There's no motorized lift, just a simple lever that lets you lower the arm with care.

Cartridge Flexibility and Upgrade Path

The stock V-39 MK II cartridge is competent, but the real fun begins when you start upgrading. The tonearm's medium-to-high mass design pairs well with moderately compliant moving magnet cartridges, such as the Audio-Technica AT-120E, AT-440MLa, or Ortofon 2M Red. Grado cartridges, while excellent, tend to be higher compliance and can struggle with stability on this arm. Owners who've tried them report slight tracking issues at higher groove velocities. The EIA plug makes swaps trivial, with no soldering and no fiddling with tiny wires. Because the arm is rigid and well damped, you're more likely to hear the cartridge than the arm. There are reports of successful tonearm swaps, Transcriptors Vestigal for instance, but that's surgery best left to specialists. For most people, the stock arm is more than capable with a well-matched cartridge.

Historical Context

The mid-to-late 1970s were a golden age for Japanese hi-fi, and Kenwood was right in the thick of it. Technics dominated with its direct-drive SL-1200 lineage and Pioneer pushed sleek, minimalist designs. Kenwood carved out a niche with no-nonsense engineering. The KD-2055 arrived in 1976, when audiophiles were starting to demand more from their turntables than convenience. It sat above entry-level models like the KD-1025 but below the flagship KD-5000, which made it the sweet spot for serious listeners who didn't want to mortgage their homes.

Its closest competitors were the Technics SL-1900, the Pioneer PL-550, and the Sony PS-LX250. All were belt-driven, semi-automatic, and priced in a similar range. Where the Technics leaned on precision engineering and the Pioneer on sleek aesthetics, the KD-2055 bet on mass and inertness. In Japan, it was marketed under the Trio brand. It never reached the cult status of a Thorens or Linn, but it earned quiet respect among those who valued substance over hype.

Collectibility & Value

Today, the KD-2055 is a sleeper hit among vintage turntable collectors. It's not as common as a Technics or Dual, partly because it wasn't exported in the same volumes, and partly because its heavy plinth made shipping costly. That rarity, combined with its build, has driven interest up in recent years. On the used market, prices vary widely based on condition and completeness. A fully serviced unit with original dust cover, cartridge, and accessories typically sells for $250 - $400. Units listed as "new in box" are rare and can fetch $500 or more, especially if they include the original packaging and paperwork.

Common failures are mostly age-related. The rubber belt is the first thing to go. Replace it with a high-quality silicone version, not a cheap generic. The motor itself is durable, but the lubrication can dry out over decades, leading to slight speed instability. A proper service includes cleaning the motor shaft and applying fresh synthetic oil. The auto-return mechanism can gum up, but it's usually fixable with careful disassembly and cleaning. The tonearm bearings are sealed and rarely fail, but if they do, repair is difficult and replacement is often the only option.

When buying, check that the plinth has no cracks, especially around the arm mount or motor housing. The marble-concrete composite is strong but not indestructible. Also verify that the speed is stable, since some units run slightly fast due to capacitor drift in the power supply. There is an internal speed adjustment, but it requires opening the chassis and measuring with a strobe. The original cartridge is often worn, so factor in the cost of a new stylus or replacement cartridge. If the unit hasn't been serviced in years, budget $75 - $120 for a professional refurbishment.

The KD-2055 holds up well despite its age. It's not a showpiece like a Garrard or a statement like a Linn. For under $400, you get a turntable that outperforms many modern budget decks, and with proper care it will likely outlive you.

Market Value

┌──────────────────────────────────────────────────────────────────────────┐
│ KENWOOD KD-2055                                                 Nov 2026 │
├──────────────────────────────────────────────────────────────────────────┤
│ High      $353                                    Latest            $281 │
│ Median    $281                                    Trend                — │
│ Low       $264                                    Volume           ~2/mo │
├──────────────────────────────────────────────────────────────────────────┤
│   $400 ┤                                                                 │
│        │                                                                 │
│        │                             .                                   │
│   $314 ┤                                                                 │
│        │                                                                 │
│        │.                                                               .│
│        │                                                                 │
│   $200 ┤                                                                 │
│        ├─────────────────────────────────────────────────────────────────│
│    vol │█                            █                                  █│
│        └─────────────────────────────────────────────────────────────────│
│         2026-04                      2026-05                      2026-06│
└──────────────────────────────────────────────────────────────────────────┘
