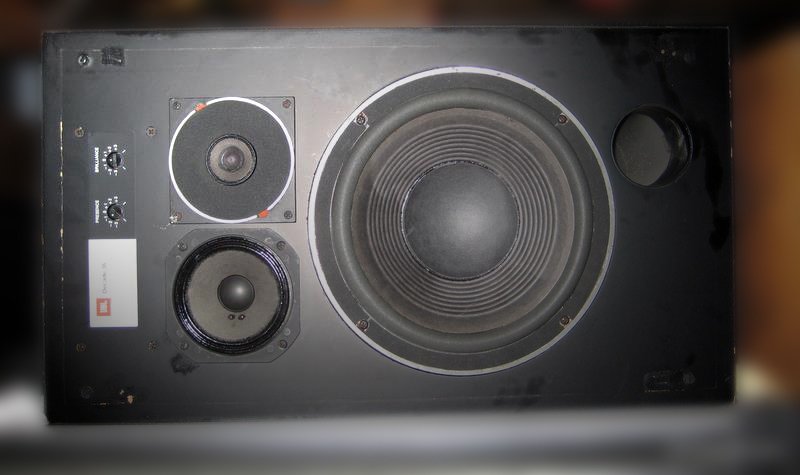

JBL L36 Decade
1977 - 1981
In the late 1970s, JBL proved that big sound didn’t need a floor-standing cabinet. The L36 Decade was a compact 3-way bookshelf speaker that defied expectations—packing flagship-tier engineering into a cabinet that fit neatly on a shelf. Born from JBL’s “Decade” series, it celebrated ten years of consumer speaker dominance with a design that balanced innovation, efficiency, and audiophile-grade clarity.
Specifications
| Type | 3-way, 3-speaker, Bass Reflex, Bookshelf |
|---|---|
| Drivers | Woofer: 10" 125A, Midrange: 5" LE5-6, Tweeter: LE25-4 |
| Crossover Frequencies | 1.5 kHz, 6 kHz |
| Nominal Impedance | 8 Ω |
| Power Handling | 50W (continuous program) |
| Sensitivity | 89 dB/W/m |
| Frequency Response | 45 Hz - 18 kHz |
| Dimensions | 343 x 610 x 346 mm (W x H x D) |
| Weight | 20 kg (per speaker) |
Drivers Used
- Woofer: 125A - 10" (25.5cm) cone woofer with Alnico V magnet and 5cm edgewound copper ribbon voice coil
- Midrange: LE5-6 - 5" (13cm) cone midrange with aluminum center dome
- Tweeter: LE25-4 - 3.6cm cone tweeter with 1.6cm voice coil and 15,000 Gauss magnetic circuit
Design Features
The L36 wasn’t just another bookshelf speaker—it was a statement. For its size, the 3-way configuration was a rarity, delivering a level of midband precision most 2-way designs couldn’t touch. That precision came from the LE5-6 midrange, a driver engineered with an aluminum center dome to extend its upper response and blend seamlessly into the LE25-4 tweeter. Below it, the legendary 125A woofer brought JBL’s classic Alnico V-powered punch and dynamic headroom, while the oil-finished 19mm compressed enclosure provided a rigid, resonance-resistant foundation. Efficient at 89 dB and built for dynamics, the L36 rewarded powerful amplification with room-filling clarity.
Variants
- L36 (1977-1981): Original Decade model with LE25-2 tweeter, later updated to LE25-4
- L36A: Updated variant with refinements
Comparison with L26
| Feature | L26 | L36 |
|---|---|---|
| Type | 2-way | 3-way |
| Woofer | 125A | 125A |
| Midrange | — | LE5-6 |
| Power | 35W | 50W |
Historical Context
Launched in 1977, the L36 Decade arrived at a pivotal moment—JBL was expanding its reach beyond pro audio and into high-fidelity homes, all while honoring a decade of consumer success since the L100. The L36 carved a unique niche: a true 3-way experience in a bookshelf footprint. It gave L26 owners a clear upgrade path and offered audiophiles a compact alternative to bulky towers without sacrificing the layered detail of dedicated midrange reproduction.
Behind the scenes, JBL used holographic analysis to fine-tune the LE5-6’s cone—cutting-edge stuff for the late '70s. The result? A midrange that didn’t just perform—it transitioned with grace into the tweeter’s domain, eliminating the harshness that plagued lesser designs. This attention to crossover behavior elevated the L36 from a technical exercise to a genuinely musical speaker.
eBay Listings
As an eBay Partner, we earn from qualifying purchases. This helps support our independent vintage technology research.
Related Models
The L36 Decade sat above the 2-way L26 Decade in JBL’s lineup, sharing the 125A woofer but gaining the LE5-6 midrange for richer, more articulate midband performance. It was the sweet spot for listeners who wanted 3-way refinement without stepping up to larger floorstanders.
Documentation
- Lansing Heritage - Comprehensive JBL specifications, photos, and historical documents
- HiFi Engine - JBL manuals, service documents, and brochures
- Audio Karma JBL Forum - Community discussions and restoration guides
