JBL L110A: The Legendary Studio Monitor That Defined an Era

Name: JBL L110A
Brand: JBL

The JBL L110A stands as one of the most iconic loudspeakers of the 1970s, a period when high-fidelity audio was undergoing a renaissance. More than just a consumer speaker, the L110A was a direct descendant of JBL’s professional studio monitor lineage, bringing near-field accuracy and high SPL capability into the living room. Introduced in 1975 as an updated version of the original L110, the L110A quickly became a favorite among audiophiles, recording engineers, and music lovers who craved dynamic, powerful sound with exceptional clarity.

Historical Context and Release

Born during the golden age of American speaker design, the JBL L110A emerged at a time when JBL (James B. Lansing Designs) was at the peak of its engineering prowess. The company had already established a reputation in professional audio with monitors like the 4310 and 4311, widely used in recording studios. The L110A was part of JBL’s “Century” series, a line of high-performance home speakers that leveraged the company’s studio-grade components and acoustic research.

The L110A was released in 1975, replacing the original L110 with several key improvements: enhanced crossover components, refined driver materials, and better cabinet damping. It remained in production until 1983, when shifting market trends and the rise of compact speaker designs led to its discontinuation. Despite its relatively short production run, the L110A developed a cult following and is now considered a classic of vintage audio.

Technical Specifications

Specification	Detail
Model	JBL L110A
Type	3-way, bass-reflex floorstanding speaker
Drivers	12" woofer (M120K), 5" midrange (M60), 1" titanium dome tweeter (2405)
Crossover Frequencies	1 kHz (woofer to midrange), 4 kHz (midrange to tweeter)
Impedance	8 ohms (nominal)
Sensitivity	89 dB (1 watt @ 1 meter)
Frequency Response	45 Hz – 20 kHz (±3 dB)
Recommended Amplifier Power	20 – 200 watts per channel
Cabinet Type	Vented (bass reflex) with dual ports
Dimensions (H x W x D)	23.5" x 14.25" x 11.26"
Weight	62 lbs (28.1 kg) per speaker
Finish Options	Walnut veneer, black ash, rosewood

Notable Features and Innovations

The L110A was engineered to deliver professional-grade sound in a home environment. Its most striking feature was the use of JBL’s legendary M120K 12-inch woofer, derived from the 2220 studio monitor. This driver offered deep, controlled bass with excellent transient response—rare for home speakers of the era.

The midrange was handled by the M60 compression driver, a 5-inch unit with a titanium diaphragm and phase plug, mounted on a large horn-like loading structure inside the cabinet. This design ensured high efficiency and low distortion, allowing the midrange to cut through dense musical passages with clarity.

The high frequencies were reproduced by the famous 2405 dual-ring radiator tweeter, a JBL hallmark known for its extended response and airy, detailed highs. This tweeter, also used in the 4310 studio monitor, contributed significantly to the L110A’s “studio monitor” character.

The crossover network was upgraded in the L110A with higher-quality capacitors and inductors, improving phase coherence and power handling. The cabinet featured internal bracing and damping materials to reduce resonance, while the dual bass-reflex ports helped extend low-frequency response and increase efficiency.

Sound Quality Characteristics

The JBL L110A is renowned for its dynamic, punchy, and highly detailed sound. With a sensitivity of 94 dB, these speakers are extremely easy to drive and respond well to both tube and solid-state amplifiers. They thrive on power, revealing their full potential when paired with amplifiers capable of delivering clean, robust current.

Bass response is deep and articulate for a speaker of its size, extending down to 45 Hz with authority. The 12-inch woofer delivers tight, fast bass that’s more about impact than sub-bass rumble—ideal for rock, jazz, and orchestral music.

The midrange is forward and expressive, thanks to the horn-loaded M60 driver. Vocals and instruments are rendered with exceptional presence and realism, though some listeners may find the upper midrange slightly aggressive, especially with bright recordings or amplification.

Highs are crisp, extended, and shimmering, with the 2405 tweeter adding a sense of air and sparkle. While some may describe the treble as “etched” or “bright,” this characteristic is part of the L110A’s studio-monitor DNA—designed to reveal every detail in a mix.

Overall, the L110A excels at reproducing live energy and dynamic contrasts. It’s a speaker that doesn’t shy away from volume, making it perfect for those who love to feel the music as much as hear it.

Market Value and Collectibility

Today, the JBL L110A is highly collectible, especially in good condition with original grilles and finishes. Prices vary widely depending on condition, finish, and provenance. As of 2024, a pair in excellent cosmetic and functional condition typically sells for $800 to $1,500, with rare finishes like rosewood commanding premiums.

Original JBL foam surrounds and tweeter diaphragms are prone to aging, so restored or reconed units often hold higher value. Collectors also prize speakers with original crossover components and unmodified cabinets.

The L110A’s reputation as a “musician’s speaker” and its association with classic recording studios enhance its desirability. It’s frequently sought after by vintage audio enthusiasts, studio memorabilia collectors, and those building retro hi-fi systems.

Common Issues and Maintenance

Like all vintage speakers, the L110A requires attention to aging components:

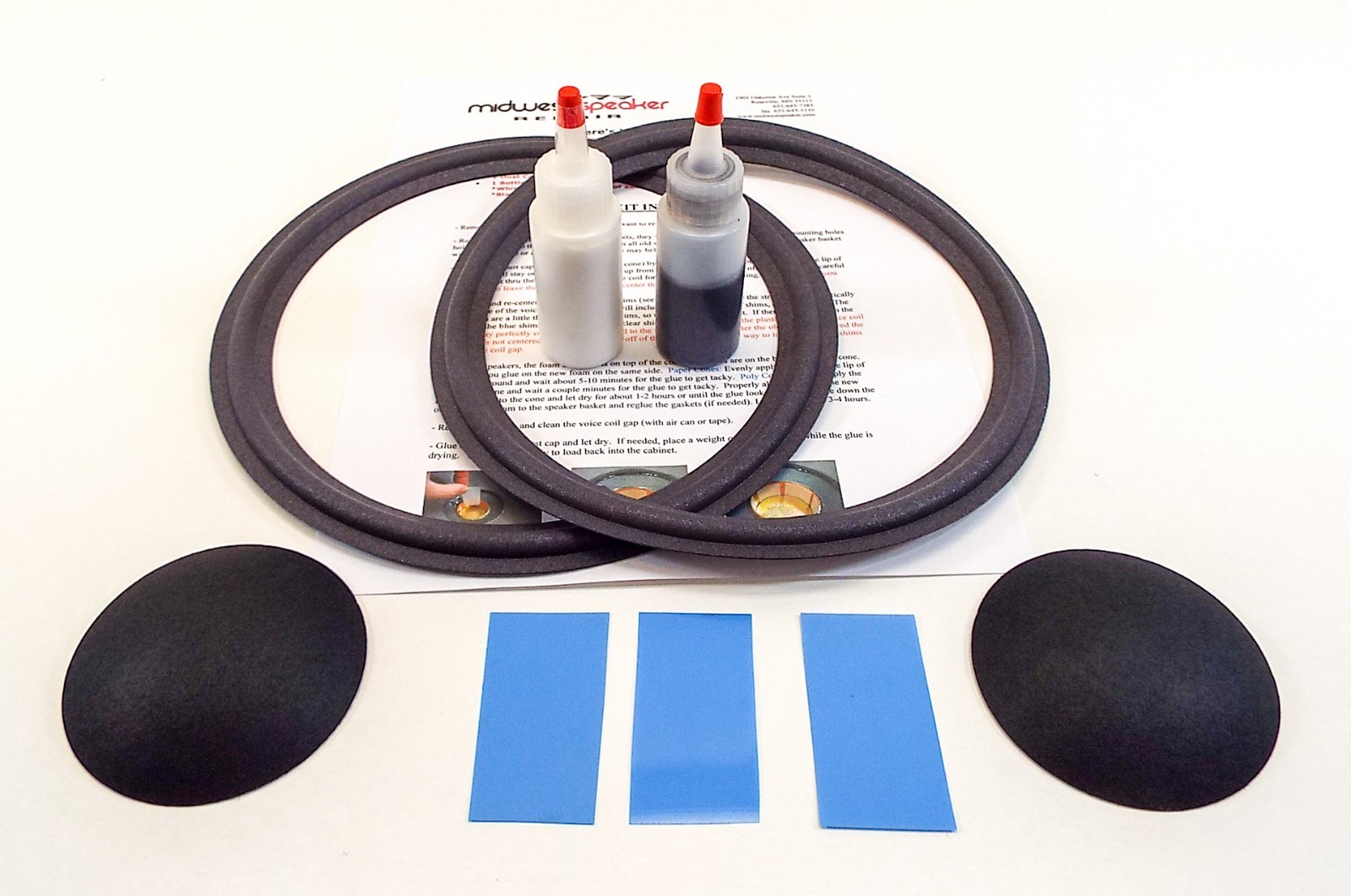

Foam Surrounds: The original foam on the woofer and midrange drivers typically deteriorates after 30–40 years, leading to sagging or disintegration. Replacing them with modern rubber or foam surrounds (reconing) is essential for restoring performance.
Tweeter Diaphragms: The 2405’s titanium dome can suffer from fatigue or oxidation, causing distortion or failure. Some owners replace them with modern equivalents or use refurbished originals.
Crossover Components: Electrolytic capacitors in the crossover may dry out over time, altering frequency response. Upgrading to modern film capacitors can improve reliability and sound quality.
Grilles and Finish: Original grilles are often missing or damaged. The wood veneer, while beautiful, can be scratched or faded. Gentle cleaning and polishing can restore luster, but refinishing should be done carefully to preserve value.

Regular inspection and preventive maintenance—such as checking driver alignment, securing terminal connections, and dusting ports—can extend the life of these speakers for decades.

Comparison to Similar Models

Model	Key Differences
JBL L100	Smaller cabinet, 12" woofer but less bass extension; more common and less expensive; similar driver technology but less refined crossover.
JBL 4311	Professional studio monitor; similar drivers but different cabinet tuning; flatter response, less bass; higher price and rarity.
AR-7	Acoustic Research; sealed cabinet, softer bass; smoother, more “hi-fi” tonality; less dynamic than L110A.
KLH Model Eleven	Compact design; planar midrange; more neutral, less aggressive sound; lower sensitivity.

The L110A strikes a unique balance: it’s more powerful and dynamic than most contemporaries, with a studio-monitor edge that sets it apart from the polite, “safe” sound of many 1970s speakers.

Final Thoughts

The JBL L110A is more than a vintage speaker—it’s a piece of audio history. Its bold design, professional heritage, and thrilling sound make it a standout in any collection. While not for those seeking a laid-back, “velvet glove” presentation, the L110A rewards listeners who appreciate transparency, dynamics, and the raw excitement of live music.

For audiophiles who want to experience the sound of the 1970s recording studio at home, the JBL L110A remains one of the most compelling choices. With proper care and restoration, these speakers can continue to deliver stunning performance for generations to come.
