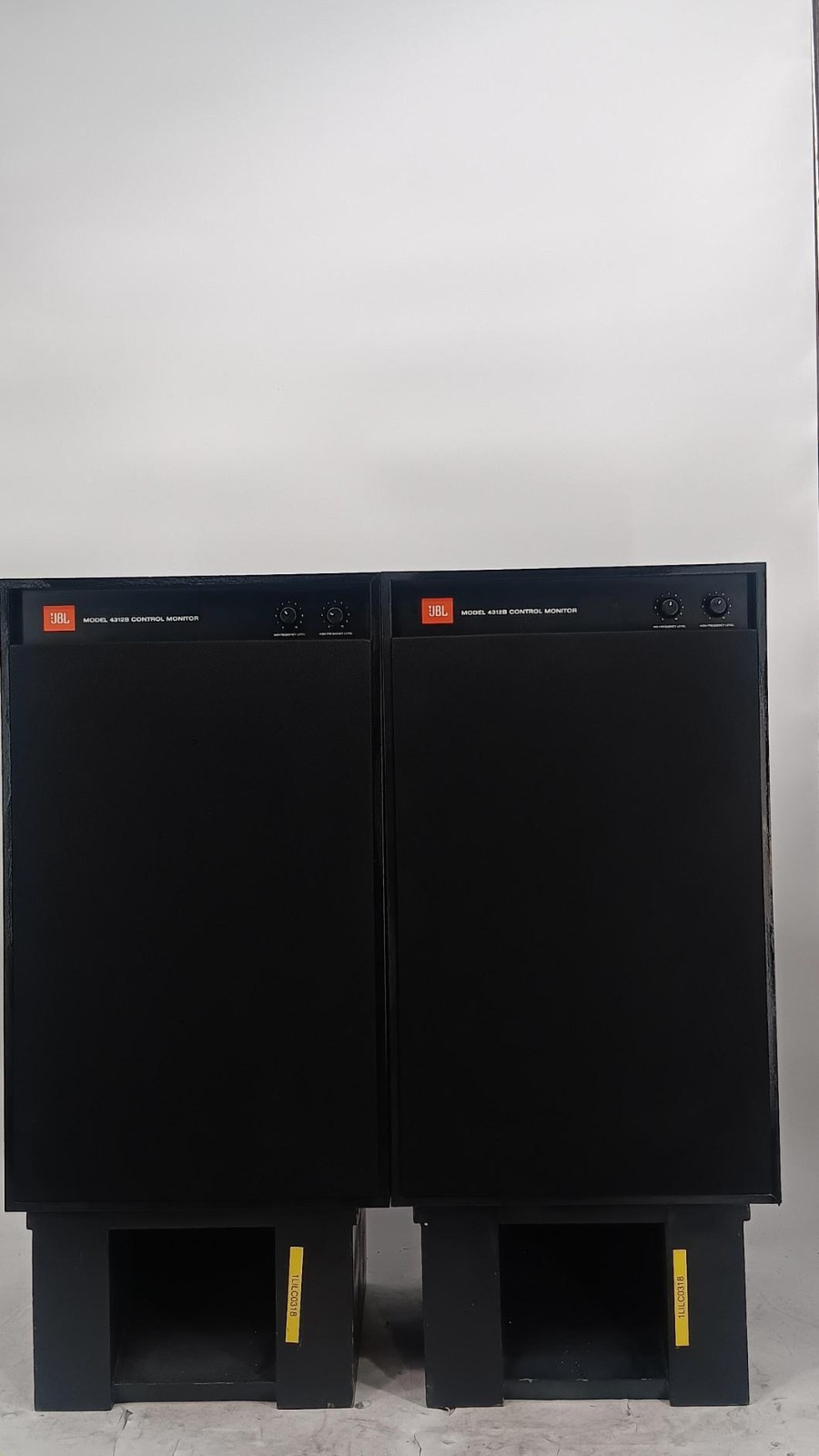

JBL 4312B Control Monitor
1980 - 1985
The JBL 4312B Control Monitor represents the maturation of one of the most successful studio monitor platforms in audio history. Introduced in 1980, this "B" version refined the legendary 4312 formula with evolutionary improvements that enhanced an already exceptional design. For many engineers and audiophiles, the 4312B represents the sweet spot in the 43xx series—incorporating decades of JBL's studio monitor expertise in a compact, reliable package.
Overview
| Type | Three-way studio monitor |
|---|---|
| Enclosure | Bass reflex (ported) |
| Dimensions | 23.5" H × 14.25" W × 13" D (597 × 362 × 330 mm) |
| Weight | 49 lbs (22 kg) |
| Impedance | 8 ohms |
| Sensitivity | 91 dB (1W/1m) |
| Power Handling | 100 watts RMS |
| Frequency Response | 45 Hz - 15 kHz (±3dB) |
| Crossover Frequencies | 1,500 Hz and 6,000 Hz |
Driver Configuration
- Woofer: 12" JBL 2213H with ferrite magnet and white paper cone
- Midrange: 5" JBL LE5-12 with improved phenolic ring radiator design
- Tweeter: JBL LE25-4 1" dome tweeter with enhanced ferrofluid cooling
History & Design Evolution
The 4312B emerged from five years of continuous professional use of the original 4312. JBL engineers carefully analyzed feedback from thousands of installations worldwide, identifying opportunities for meaningful refinement:
- Midrange Enhancement: The LE5-12 incorporated design improvements for reduced distortion and improved power handling
- Tweeter Evolution: The LE25-4 featured enhanced ferrofluid formulation for better thermal management
- Crossover Optimization: Refined network values improved driver integration and phase response
- Power Handling: Improved thermal design allowed higher continuous power ratings
By 1980, the 4312 had already achieved legendary status, having been used on countless hit records and becoming the de facto standard in broadcast facilities worldwide. The 4312B's improvements were evolutionary rather than revolutionary—JBL wisely focused on refining rather than reinventing a proven formula.
The "B" designation carried significance for professional users who understood that JBL's revision process involved rigorous testing and meaningful upgrades. Unlike some manufacturers who used such designations for cosmetic changes alone, JBL's "B" versions represented genuine performance improvements based on real-world experience.
Sound Character
The 4312B preserves the beloved 4312 sound while offering subtle refinements:
- Enhanced Midrange Clarity - The LE5-12 delivers even greater detail in the critical vocal range
- Improved High-Frequency Extension - Better ferrofluid cooling allows cleaner treble at higher SPLs
- Tighter Bass Control - Refined port tuning and crossover optimization improve low-frequency articulation
- Increased Dynamic Headroom - Higher power handling enables greater peak output with reduced compression
- Smoother Integration - Enhanced crossover design creates more seamless driver blending
Compared to earlier 4312 versions, the "B" model offers slightly improved resolution and greater dynamic capability. The fundamental character remains unmistakably 4312—musical, engaging, and revealing—but with a polish that reflects five additional years of development experience.
The 4312B excels at the tasks that made the 4312 famous: revealing mix details that lesser monitors obscure, delivering dynamic transients without compression, and providing a sonic window into recordings that engineers can trust for critical decisions.
Studio Legacy
The 4312B continued the 4312's dominance in professional environments:
- Recording Studios: Remained the nearfield monitor of choice in countless facilities
- Broadcast Excellence: Continued as the reference standard for radio and television
- Post-Production: Valued in film and video editing suites for accuracy and reliability
- Educational Use: Audio programs worldwide used the 4312B for critical listening training
Technical Improvements
The 4312B incorporated several meaningful technical advancements:
- Improved Ferrofluid: Enhanced formulation provided better heat transfer and longer service life
- Enhanced Midrange Motor: Revised magnetic circuit reduced distortion and improved efficiency
- Upgraded Crossover Components: Higher-grade capacitors and tighter-tolerance resistors
- Better Thermal Management: Improved voice coil designs handled higher continuous power
Collector's Notes
The 4312B is highly sought after by vintage monitor enthusiasts:
- Build Quality: Represents mature manufacturing with consistent component quality
- Performance Advantage: Meaningful improvements over earlier 4312 versions
- Availability: Good supply of well-maintained professional units on the used market
- Modern Relevance: Fully competitive with many contemporary studio monitors
Common Issues to Check:
- Ferrofluid condition in tweeters (may need replacement after 40+ years)
- Midrange L-pad operation (clean or replace if scratchy)
- Woofer surround condition (foam surrounds may need refoaming)
- Crossover capacitors (electrolytics should be replaced)
- Cabinet structural integrity
Distinguishing Features: The 4312B can be identified by driver markings and crossover component values. The LE5-12 midrange and LE25-4 tweeter are specific to this version. Serial numbers can help date production and identify specific revision levels.
Listening Tips: The 4312B benefits from quality amplification with good current delivery. The L-pad controls allow acoustic tuning—many engineers prefer slight midrange attenuation for extended listening sessions. Position 2-3 feet from room boundaries for optimal bass response.
eBay Listings
As an eBay Partner, we earn from qualifying purchases. This helps support our independent vintage technology research.
The 4312B stands as a testament to the power of evolutionary refinement. By carefully improving an already excellent design based on years of professional feedback, JBL created a monitor that many consider the definitive compact studio reference. Its combination of proven reliability, refined performance, and historical significance makes the 4312B a prized acquisition for collectors and a practical choice for working engineers who appreciate classic monitor design.
