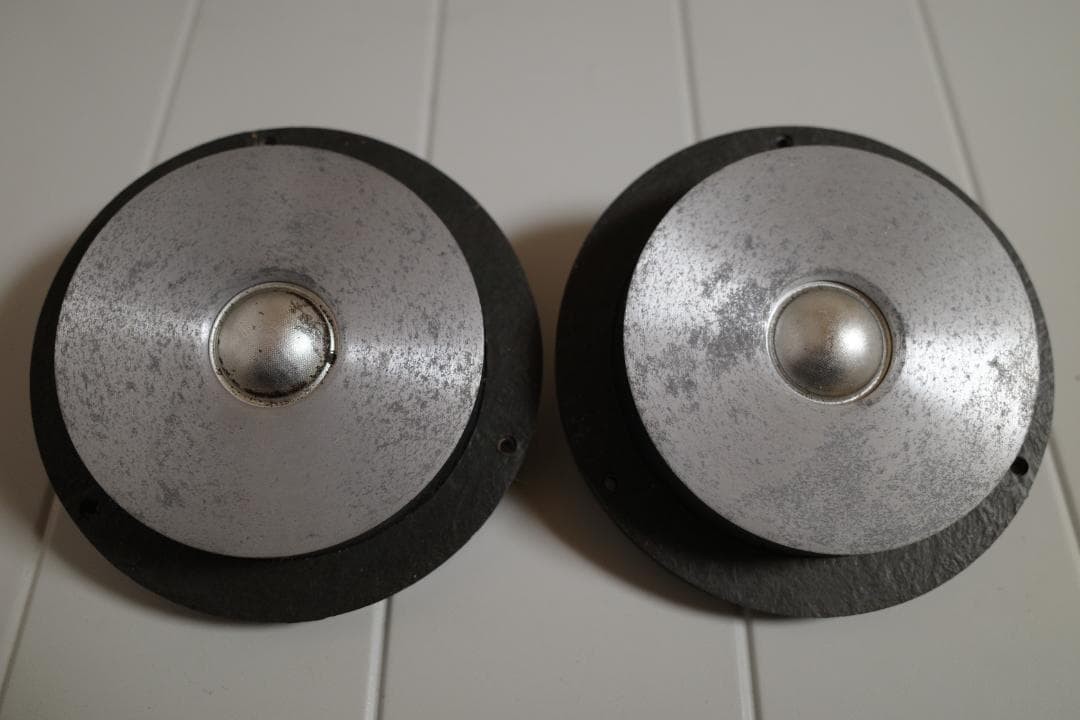

JBL 066 Tweeter
1975
The 066 was JBL's first dome tweeter. It went into the L166 Horizon and marked JBL's move from cone to dome high-frequency drivers. Response was smoother and dispersion was wider than on the earlier designs.
Specifications
| Type | Dome tweeter |
|---|---|
| Nominal Diameter | 1" (25mm) |
| Magnet Type | Alnico V |
| Diaphragm Material | Aluminum vapor-deposited |
| Impedance | 8 Ω |
| Frequency Response | 6 kHz - 30 kHz |
| Directivity | 150° at 20 kHz, 90° at 30 kHz |
| Crossover | 6 kHz (in L166) |
Key Features
- First JBL Dome: Revolutionary design for the company
- Aluminum Deposited Diaphragm: Vapor-deposited aluminum on resin base for optimal mass/stiffness
- Wide Dispersion: Excellent off-axis response to 30 kHz
- Extended Response: Reproduction beyond the audible range
Applications
- L166 Horizon (1975-1980)
Historical Context
JBL introduced the 066 in 1975. The company had built its reputation on cone tweeters and compression drivers. A small cone radiator couldn't match the smoothness and dispersion a dome could deliver.
The diaphragm is a resin base with a thin layer of aluminum applied by vapor deposition. That gave JBL low mass and high stiffness together. The process was refined in later dome tweeters like the 044 and 033.
