Infinity SM-82: The Forgotten Pioneer of Active Studio Monitoring

Name: Infinity SM-82
Brand: Infinity

In the early 1980s, as the audiophile world was still embracing passive loudspeakers and high-end separates, Infinity Systems—already renowned for its innovative driver technologies—quietly introduced a bold departure from tradition: the SM-82, a compact, active studio monitor designed for professional and high-end consumer use. Though overshadowed by the company’s more famous floorstanding models like the IRS or the Beta series, the SM-82 holds a unique place in audio history as one of the earliest commercially available powered studio monitors with servo-controlled bass and a ribbon-based high-frequency driver.

Born in 1982 (hence the model number), the SM-82 emerged during a transitional period for both recording studios and home audio. Digital recording was on the rise, and engineers needed accurate, compact monitors for nearfield listening. At the same time, audiophiles were beginning to explore active speaker designs for their potential in eliminating the variables introduced by external amplifiers and passive crossovers. The SM-82 was positioned at the intersection of these two worlds—a professional-grade tool with audiophile sensibilities.

Technical Specifications

The SM-82 was a self-contained, bi-amplified two-way monitor with an integrated crossover and servo-controlled bass system. Each cabinet housed its own amplification, making it a true active speaker system. Below are the known specifications based on period documentation and user reports:

Specification	Detail
Model	SM-82
Manufacturer	Infinity Systems
Year Introduced	1982
Type	Active 2-way studio monitor
Drivers	6.5" servo-controlled woofer, EMIT-1 ribbon tweeter
Crossover	Internal active crossover at 2.5 kHz
Amplification	Dual internal amps: 50W LF, 25W HF
Frequency Response	50 Hz – 20 kHz (±3 dB)
Impedance	Not applicable (active design)
Inputs	Balanced XLR and 1/4" TRS
Enclosure	Sealed, compact MDF cabinet
Dimensions (HxWxD)	14" × 8" × 9" (35.6 × 20.3 × 22.9 cm)
Weight	22 lbs (10 kg) per cabinet
Finish	Black vinyl wrap with steel grille

The SM-82 utilized Infinity’s proprietary EMIT-1 (Electro-Magnetic Induction Tweeter), a planar magnetic ribbon design that offered exceptional transient response and low distortion—characteristics highly prized in studio environments. Unlike conventional dome tweeters, the EMIT driver used a thin conductive ribbon suspended in a magnetic field, delivering a fast, detailed top end with minimal coloration.

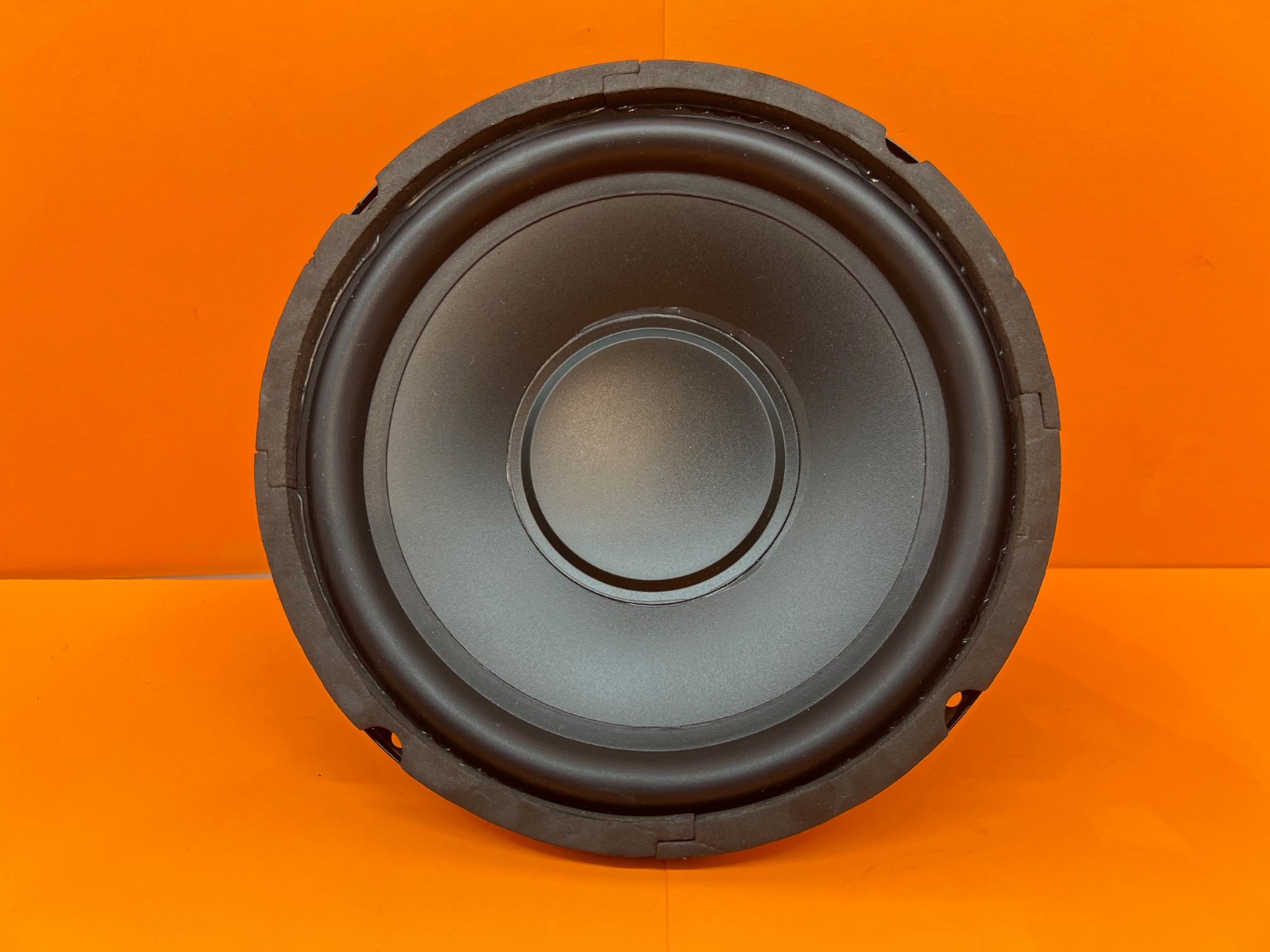

The bass driver was a 6.5-inch unit with servo-control feedback, a rare and advanced feature at the time. A sensor monitored cone movement and compared it to the input signal, correcting for distortion and non-linearities in real time. This resulted in tight, accurate bass response—critical for mixing decisions—despite the compact cabinet size.

Sound Characteristics and Performance

The SM-82 was engineered for neutrality and precision, not for warmth or euphonic coloration. Its sound signature was clinical by today’s standards, but that was the point: it was designed to reveal every nuance in a recording, warts and all.

In practice, the SM-82 delivered a remarkably flat frequency response with excellent imaging and stereo depth. The EMIT tweeter provided crisp, airy highs without harshness, while the servo-controlled woofer offered bass that was both extended and exceptionally well-controlled for a speaker of its size. The absence of port noise or resonance (thanks to the sealed enclosure) made it ideal for close-field monitoring.

Many users reported that the SM-82 excelled in small to mid-sized control rooms where larger monitors would suffer from boundary interference. Its compact form factor and front-firing bass port (though sealed, not ported) allowed for flexible placement on meter bridges or stands.

Because the SM-82 was bi-amplified with dedicated amplifiers for each driver, it eliminated the need for passive crossovers, reducing phase distortion and power loss. The result was a dynamic, responsive speaker that could handle sudden transients with authority—ideal for tracking and mixing.

Notable Features and Innovations

The SM-82 stood out for several forward-thinking features:

Servo-Controlled Bass: One of the first consumer/prosumer speakers to use real-time feedback to correct driver behavior, predating modern digital room correction by decades.
EMIT Ribbon Tweeter: Offered superior high-frequency clarity and speed, a hallmark of Infinity’s high-end designs.
Integrated Bi-Amplification: Eliminated external amplifiers and crossover networks, simplifying system setup and improving signal integrity.
Professional Connectivity: XLR and TRS inputs made it compatible with studio consoles and outboard gear.
Compact, Nearfield Design: Tailored for the emerging trend of close-field monitoring, reducing room acoustics’ influence.

These features made the SM-82 a favorite among project studio owners and broadcast engineers in the 1980s, particularly those working with early digital multitracks and analog tape machines.

Common Issues and Maintenance

Like many vintage active speakers, the SM-82 is prone to aging-related issues, particularly in its electronics. The internal amplifiers, while robust for their time, used discrete transistor circuits and electrolytic capacitors that degrade over decades.

Common problems include:

Capacitor failure in the power supply and signal path, leading to hum, distortion, or no output.
Failed servo-sensor circuitry, resulting in loose or distorted bass.
EMIT tweeter ribbon damage, often from overdriving or physical impact.
Oxidized input jacks and potentiometers, causing crackling or intermittent signal.

Restoration typically involves a full recapping of the power supply and audio circuits, cleaning of connectors, and careful inspection of the servo feedback loop. Replacement EMIT tweeters are extremely rare, so preservation is key.

Due to the complexity of the servo system, repairs should be handled by technicians familiar with analog feedback circuits. Original service manuals are scarce but occasionally surface in online collector forums.

Current Market Value and Collectibility

The Infinity SM-82 is a rare find today. It was never produced in large numbers, and many units have succumbed to component failure or obsolescence. Those that survive in working condition are highly sought after by vintage audio enthusiasts and studio gear collectors.

On the secondary market, a fully functional pair of SM-82s typically sells for $600–$1,000, depending on condition and provenance. Non-working units may go for as little as $200–$300, often purchased for parts or restoration projects.

While not as iconic as the Yamaha NS-10 or the Urei 813, the SM-82 is gaining recognition as a pioneering active monitor. Its blend of advanced driver technology and servo-assisted bass places it ahead of its time, and it’s increasingly appreciated as a piece of audio engineering history.

Conclusion and Legacy

The Infinity SM-82 may not have achieved the legendary status of other studio monitors, but it represents a bold and innovative step in the evolution of active loudspeaker design. At a time when most studios relied on passive speakers and external amps, Infinity delivered a self-contained, servo-monitored system that anticipated the modern era of powered monitors.

Though rare and technically demanding to maintain, the SM-82 remains a fascinating artifact of early 1980s audio engineering. For the vintage audio enthusiast, it offers a unique opportunity to experience a forgotten pioneer—one that combined cutting-edge materials, feedback control, and active electronics in a compact package.

Today, the SM-82 stands as a testament to Infinity’s willingness to innovate beyond the mainstream. It may not be the loudest voice in the vintage speaker world, but for those who listen closely, its legacy is clear: a quiet revolution in a black box.
