Infinity KAPPA-8A: The Pinnacle of 1980s Active Speaker Engineering

Name: Infinity KAPPA-8A
Brand: Infinity

In the late 1980s, when most audiophiles were still pairing passive speakers with external amplifiers, Infinity Systems pushed the envelope with a bold innovation: the KAPPA-8A, a high-fidelity active loudspeaker system that integrated amplification, equalization, and advanced driver design into a single, performance-optimized package. Released in 1987 as part of Infinity’s premium KAPPA series, the KAPPA-8A stood out as a forward-thinking solution for discerning listeners who valued precision, clarity, and system synergy.

At a time when active speakers were still a niche concept outside professional studio environments, the KAPPA-8A represented a rare consumer-grade implementation of active technology. Designed for both stereo and home theater applications (as the surround sound era began to emerge), the KAPPA-8A combined Infinity’s expertise in driver materials and crossover design with built-in amplification, offering a level of control and coherence that few passive systems could match.

Technical Specifications

The KAPPA-8A was engineered as a bi-amplified, two-way active speaker, meaning each driver had its own dedicated amplifier channel and was powered directly from within the speaker enclosure. This eliminated the need for passive crossovers and allowed for precise tuning and time alignment.

Specification	Detail
Model	KAPPA-8A
Manufacturer	Infinity Systems
Year Introduced	1987
Type	Active, bi-amplified loudspeaker
Configuration	Two-way (1 tweeter, 1 woofer)

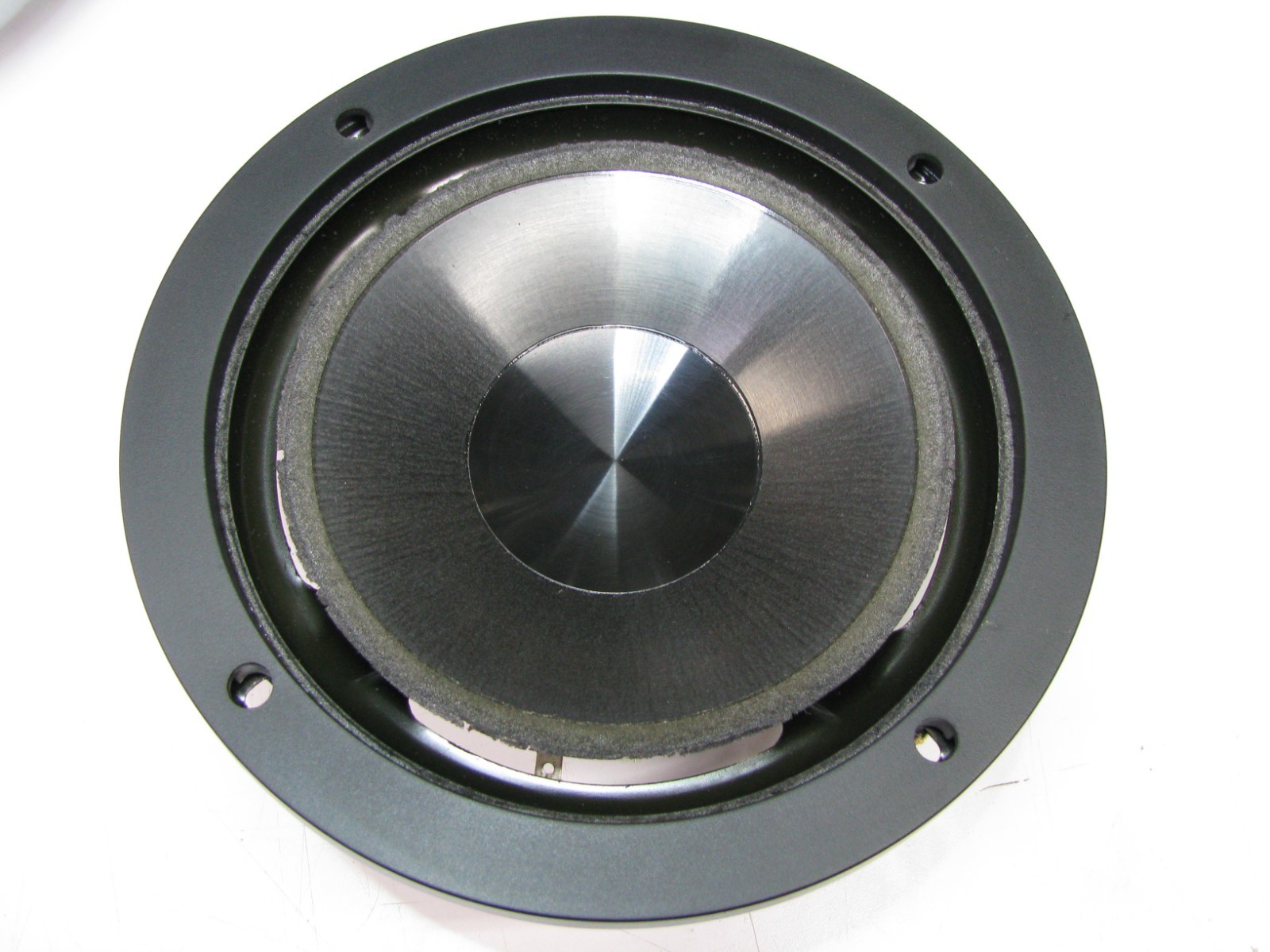

Woofer	8-inch polypropylene cone with rubber surround
Tweeter	1-inch soft-dome tweeter
Amplification	Built-in dual-channel amplifier (bi-amp design)
Power Output	50W (woofer), 25W (tweeter) — 75W total per speaker
Frequency Response	45 Hz – 20 kHz (±3 dB)
Crossover	Active electronic crossover at 2.5 kHz
Inputs	Balanced XLR and unbalanced RCA
Enclosure Type	Bass-reflex with rear-firing port
Impedance	Not applicable (active design)
Dimensions (H×W×D)	18.5" × 10.5" × 12" (47 × 26.7 × 30.5 cm)
Weight	32 lbs (14.5 kg) each
Finish Options	Black ash vinyl wrap, simulated woodgrain

Each KAPPA-8A housed its own amplifier module and active crossover network, allowing for direct connection to a preamplifier or line-level source. This design minimized signal loss and distortion typically introduced by speaker cables and passive components.

Sound Characteristics and Performance

The KAPPA-8A delivered a remarkably balanced and detailed sonic signature for its era. Thanks to the active crossover and dedicated amplification, the speaker exhibited excellent transient response, tight bass control, and a smooth, extended high end. The 8-inch woofer provided solid low-frequency output down to 45 Hz, impressive for a speaker of its size, while the soft-dome tweeter offered a refined, non-fatiguing treble that avoided the harshness sometimes associated with early metal domes.

One of the standout qualities of the KAPPA-8A was its coherence. Because the crossover occurred before amplification, driver integration was seamless, resulting in a precise soundstage and excellent imaging. The absence of passive crossover components also reduced phase distortion, enhancing the clarity of vocals and acoustic instruments.

In practice, the KAPPA-8A excelled with a wide range of music—from jazz and classical to rock and electronic—thanks to its dynamic range and low distortion. When paired with a high-quality preamp and source components, the system revealed subtle nuances in recordings, making it a favorite among critical listeners and early adopters of high-end home audio.

Notable Features and Innovations

The KAPPA-8A was packed with features that were ahead of their time:

Integrated Bi-Amplification: Each speaker contained its own dual-amplifier setup, eliminating the need for external power amps and ensuring optimal power delivery to each driver.
Active Crossover Network: Unlike passive crossovers that waste energy and degrade signal quality, the KAPPA-8A’s active crossover split the signal at line level, preserving fidelity and enabling precise tuning.
Dual Input Options: The inclusion of both XLR and RCA inputs made the KAPPA-8A compatible with a wide range of preamps, from consumer to semi-professional gear.
Front-Panel Status Indicators: Each speaker featured LED indicators for power and signal presence, a rare touch in consumer audio at the time.
Precision EQ Calibration: Factory-set equalization compensated for driver and cabinet resonances, ensuring a flat response out of the box.

These features made the KAPPA-8A not just a speaker, but a complete electro-acoustic system in a single enclosure—foreshadowing today’s modern active monitors and smart speakers.

Common Issues and Maintenance

As with any vintage electronics, the KAPPA-8A requires careful attention today due to its age. The most common issues include:

Capacitor Aging: The electrolytic capacitors in the internal amplifiers and power supplies are prone to drying out or leaking after 30+ years. Symptoms include hum, reduced output, or complete failure.
Power Supply Failures: The internal linear power supplies can fail due to heat stress or component fatigue. Replacement transformers or rectifiers may be needed.
Driver Wear: While the polypropylene woofers are durable, rubber surrounds can dry and crack over time, leading to reduced bass response or buzzing.
Tweeter Protection: The soft-dome tweeters are relatively robust but can be damaged by overdriving or amplifier clipping.

Restoration typically involves a full recapping of the amplifier boards, inspection of solder joints, and replacement of any degraded drivers. Due to the integrated design, servicing requires access to the internal electronics—best handled by technicians experienced with vintage active speakers.

Current Market Value and Collectibility

The Infinity KAPPA-8A is a rare find today, especially in working condition. While not as widely collected as Infinity’s legendary IRS or EMPIRE series, the KAPPA-8A has developed a cult following among enthusiasts of vintage active speakers and 1980s audio technology.

On the secondary market, working pairs typically sell between $400 and $800, depending on condition, originality, and cosmetic state. Units that have been professionally restored command higher prices, particularly if they include original packaging and documentation.

Their value lies not just in performance, but in their historical significance as a bridge between consumer hi-fi and professional monitor design. For collectors interested in the evolution of active speaker technology, the KAPPA-8A is a compelling artifact of a transitional era in audio engineering.

Conclusion and Legacy

The Infinity KAPPA-8A was more than just a speaker—it was a statement. At a time when most manufacturers were refining passive designs, Infinity embraced active technology to deliver a more integrated, accurate listening experience. Though overshadowed by more famous models in the Infinity lineup, the KAPPA-8A demonstrated the company’s willingness to innovate and challenge conventions.

Today, the KAPPA-8A serves as a reminder of the bold experiments in audio engineering during the 1980s. For vintage audio enthusiasts, it offers a unique opportunity to experience a high-performance active system from a pioneering American brand. With proper care and restoration, the KAPPA-8A remains a capable and rewarding speaker—one that continues to impress with its clarity, dynamics, and forward-thinking design.

If you’re lucky enough to encounter a pair in good condition, don’t overlook them. The Infinity KAPPA-8A may not be a household name, but for those who appreciate the art and science of sound, it’s a true hidden gem of vintage audio.
