Heathkit PT-1 (1958–1960)

A vacuum tube AM-FM tuner built from a kit, featuring separate AM and FM circuit boards and a multiplex output for stereo decoding

Overview

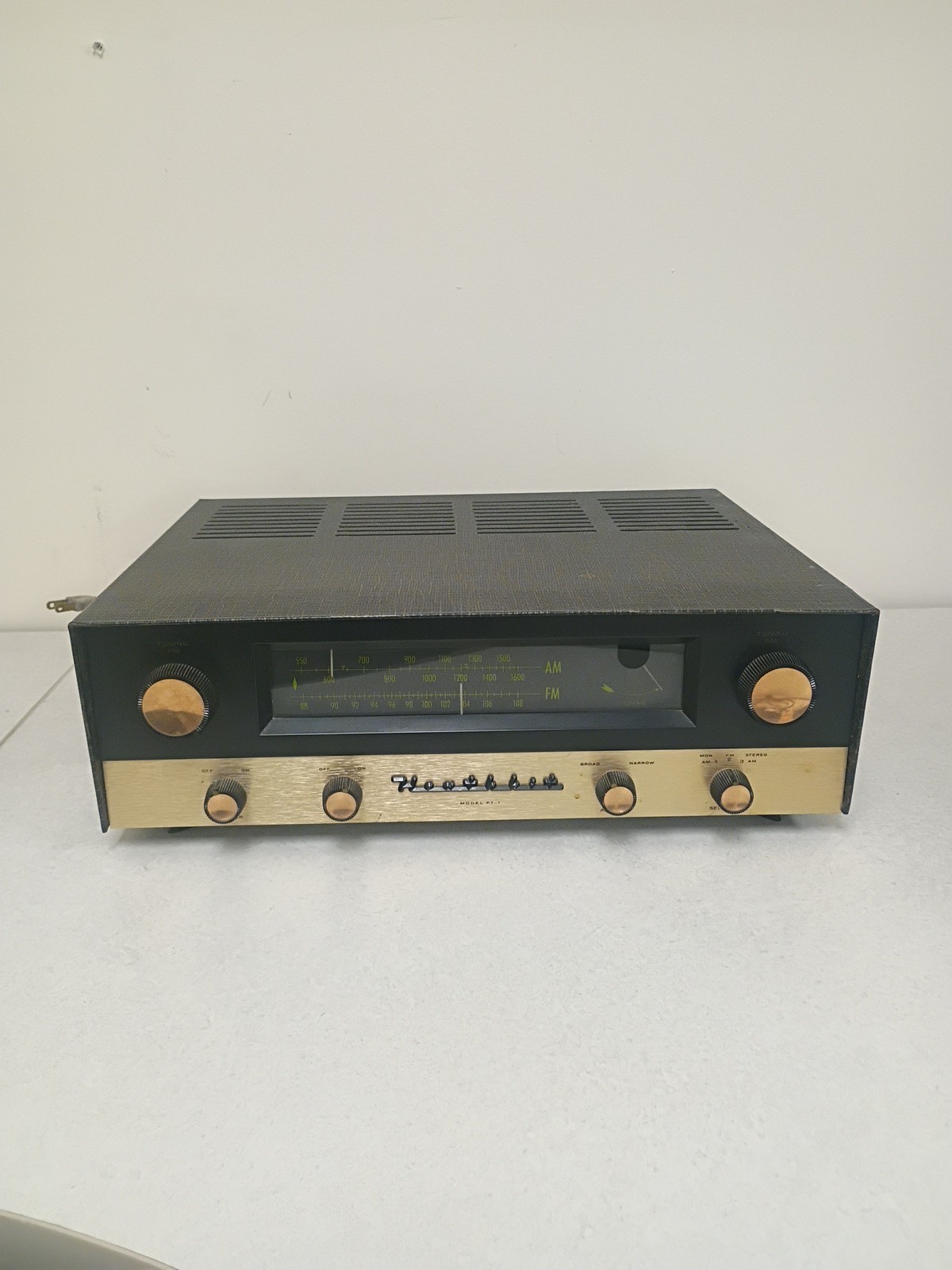

The Heathkit PT-1 is a vacuum tube AM-FM tuner produced in the late 1950s as a do-it-yourself kit for audio enthusiasts. Marketed as a "Professional AM-FM Stereo Tuner," it was delivered in loose parts and required assembly by the user. It appeared in the February 1959 issue of *HiFi/Stereo Review* alongside contemporary gear like the JanZen Z-300 Speaker System and Jerrold FM/TV R.F. Amplifier System. Despite its "stereo" designation, some sources refer to it as a mono tuner, though the schematic confirms a "MULTIPLEX OUT" connection—indicating support for stereo multiplex signals.

Specifications

Frequency range	88 TO 108 MHz
Tube type	12AT7 MULLARD
Country of origin	United States

Design

The PT-1 uses vacuum tube technology and features separate AM and FM circuit boards (board numbers 85-17, 85-18 / 85-19). The schematic includes labels for "+165V RED" and "+160V ORANGE," indicating internal high-voltage distribution. It includes a tuning meter, Automatic Frequency Control (noted as "AFC GRAY" wire), and a built-in antenna—though one report mentions damage to the fixed portion of that antenna. The word "PROFESSIONAL" is printed directly on the schematic, underscoring its intended use in high-quality home audio systems.

Context

Introduced around 1958 and produced through 1960, the PT-1 was designed for serious audiophiles building their own hi-fi systems. It reflects the era’s trend toward modular, user-assembled components and appears to have targeted the upper end of the DIY audio market. Its inclusion in a 1959 high-fidelity equipment listing alongside professional-grade systems suggests it was positioned as a capable, precision tuner.
